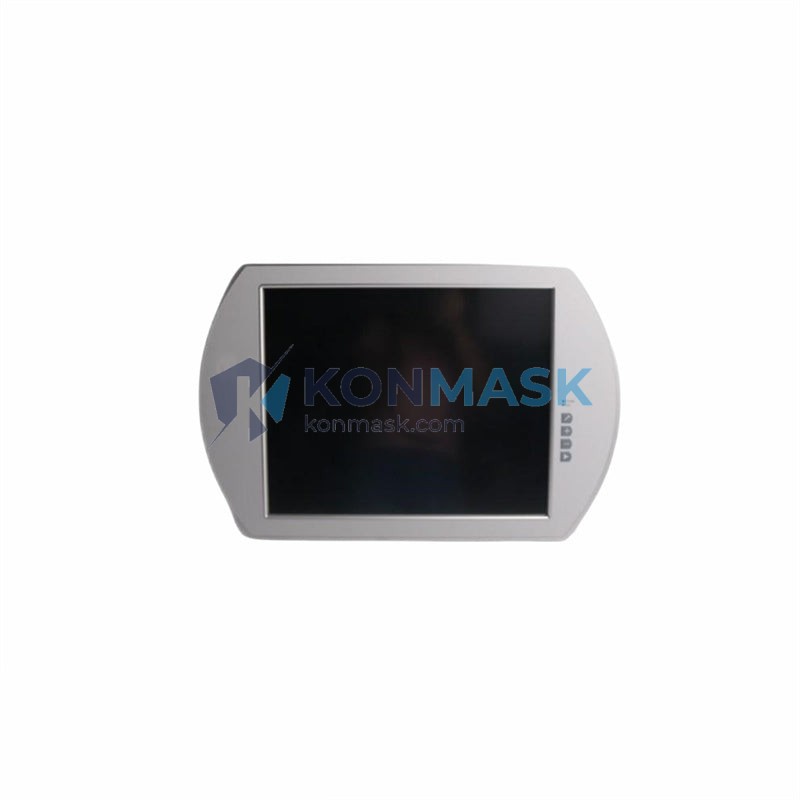

LENZE EL9800 EP8GAP71Y00P6M00XX-0000902804Z HMI Touch Screen Panel | Replacement, Equivalent & Selection Guide
The LENZE EL9800 EP8GAP71Y00P6M00XX-0000902804Z is an industrial HMI touch screen panel from LENZE’s EL9800 series, engineered for demanding machine control and automation environments. Whether sourcing an original unit, a compatible replacement, or evaluating equivalent alternatives, this guide provides the technical depth and selection criteria you need.
Technical Specifications
- Manufacturer: LENZE
- Part Number / SKU: EL9800 EP8GAP71Y00P6M00XX-0000902804Z
- Series: EL9800 (e.series HMI)
- Type: Industrial HMI Touch Screen Panel
- Display: TFT Color Touch Screen
- Communication: EtherCAT, CANopen, PROFIBUS, Modbus TCP
- Operating Voltage: 24 V DC
- Protection Rating: IP65 (front panel)
- Operating Temperature: 0 °C to +50 °C
- Weight: approx. 1,110 g
- Mounting: Panel cut-out, flush mount
- Certifications: CE, UL (verify with datasheet)
Compatible Replacement & Equivalent Models
If the original unit is unavailable or a cost-effective alternative is required, the following models are commonly evaluated:
- LENZE EP8GAP71Y00P6M00XX — Same base part; verify firmware and suffix compatibility
- LENZE EL9800 EP8GAP51 / EP8GAP91 — Different screen sizes within the same platform
- Siemens SIMATIC HMI KTP700 Basic — 7″ TFT, 24 V DC, PROFINET; cross-brand equivalent in same size class
- Weintek MT8071iE — 7″ TFT, Ethernet/RS-485; cost-effective open-architecture alternative
- Schneider Electric HMIGTO2310 — 24 V DC; suitable for compact panel replacement
- Pro-face GP4301TW — 4.3″ WQVGA, multi-protocol; compatible in open-architecture systems
Always verify electrical ratings, communication protocol, and mechanical dimensions before substituting. Contact support@konmask.com for compatibility confirmation.
Why Choose the Original Model
- Native LENZE Integration: Plug-and-play with LENZE i550, i650, and 8400 series drives and controllers
- Firmware Ecosystem: Full support for LENZE Engineer software and pre-configured function blocks
- Proven Reliability: Validated for LENZE machine architectures; minimizes integration risk
- Long-term Support: Spare parts and firmware updates via LENZE’s global service network
- Warranty Compliance: OEM parts preserve machine warranty and CE/UL certification integrity
Typical Applications
- Textile and winding machine operator panels
- Conveyor and material handling control interfaces
- Packaging line HMI stations
- Pump and compressor monitoring panels
- HVAC and building automation control terminals
- General-purpose industrial machine operator interfaces
System Compatibility
- LENZE Controllers: c300, p300, m300; i550 / i650 inverters
- LENZE Drives: 8400 StateLine, BaseLine, HighLine series
- Software: LENZE Engineer v2.x+; EASY Starter
- Fieldbus: EtherCAT, CANopen, PROFIBUS DP, Modbus TCP/RTU
- Third-party PLCs: Compatible via standard Modbus/PROFIBUS when configured accordingly
Selection Guide
- Screen Size: Match panel cut-out dimensions (EL9800 series: 7″ nominal)
- Communication Protocol: Confirm fieldbus — EtherCAT vs. PROFIBUS vs. Modbus
- IP Rating: IP65 front for wash-down or dusty environments
- Software Version: Ensure LENZE Engineer compatibility with panel firmware
- Power Supply: Confirm 24 V DC availability at panel location
- Replacement vs. Upgrade: Check mechanical and connector compatibility when upgrading from older EL9800 variants
Quality Assurance & Sourcing
- All units inspected for physical integrity and functional readiness prior to dispatch
- Stored in ESD-safe, climate-controlled warehousing
- Traceability documentation available upon request (batch records, test reports)
- New original and tested refurbished units available — specify at time of inquiry
- Lead time: 3–7 business days (in-stock); 2–4 weeks (sourced orders)
How to Order
- Confirm part number: EL9800 EP8GAP71Y00P6M00XX-0000902804Z
- Specify quantity and required delivery timeline
- Contact us for a formal quotation
- Submit purchase order — T/T, L/C, and major payment platforms accepted
- Receive shipping confirmation with tracking within 1 business day of payment clearance
Email: support@konmask.com
Phone / WhatsApp: +0086 19859288691
Replacement & Compatibility FAQ
Q: Can I use a Siemens KTP700 as a direct replacement for the LENZE EL9800?
A: Mechanically and electrically similar, but software and protocol configuration will differ. Not a plug-and-play replacement for LENZE-native systems without reprogramming.
Q: Is EP8GAP71Y00P6M00XX-0000902804Z the same as EP8GAP71Y00P6M00XX?
A: The suffix 0000902804Z typically denotes a specific hardware revision or factory configuration. Verify with LENZE documentation or contact us to confirm interchangeability.
Q: Do you supply the LENZE EL9800 with a warranty?
A: Yes. New original units carry the standard LENZE manufacturer warranty. Refurbished units carry a 90-day Konmask functional warranty.
Q: Can Konmask.com source discontinued LENZE HMI panels?
A: Yes. We specialize in sourcing obsolete and hard-to-find industrial automation components. Contact us with your part number for availability.
Q: What is the lead time for the EL9800 EP8GAP71Y00P6M00XX-0000902804Z?
A: In-stock units ship within 3–7 business days. Sourced orders typically require 2–4 weeks.
