Allen-Bradley 2707-L40P2 – DTAM Plus Operator Panel | DTAM Plus Series
Engineering Background

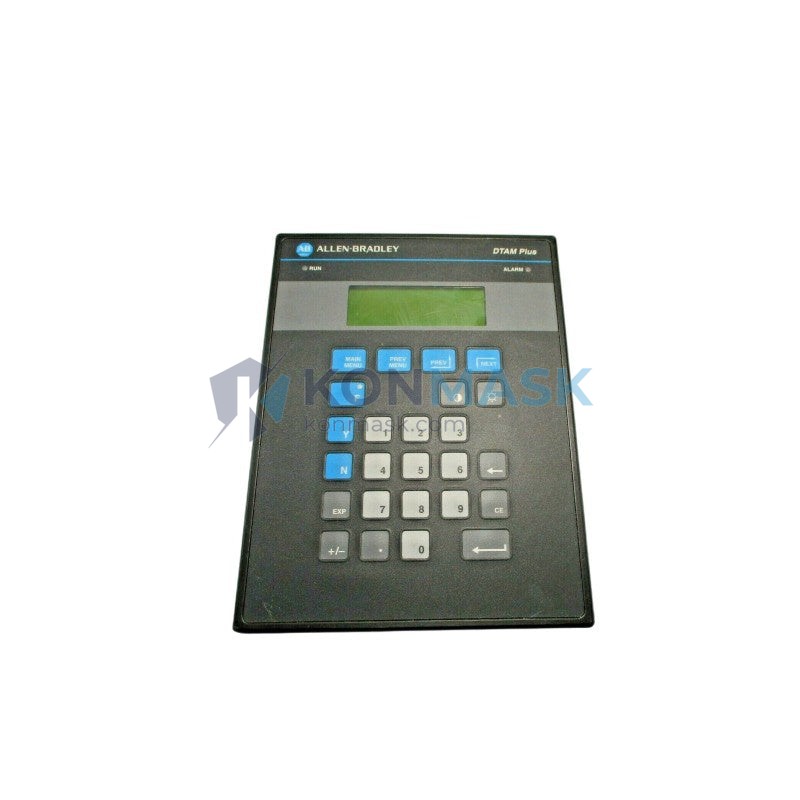

The Allen-Bradley 2707-L40P2 is part of Rockwell Automation’s DTAM Plus (Display Terminal And Manager) series — a compact, panel-mount operator interface designed for direct integration with Allen-Bradley PLC platforms including SLC 500, MicroLogix, and PLC-5 families. Engineered for industrial environments where space is constrained but operator visibility and control are non-negotiable, the DTAM Plus bridges the gap between basic pushbutton stations and full-featured HMI touchscreens.
Product Positioning
The 2707-L40P2 is the preferred choice for OEM machine builders and system integrators requiring a cost-effective, DIN-rail or panel-mount operator terminal with native Allen-Bradley communication. It delivers reliable alphanumeric display, programmable function keys, and direct DH-485 network connectivity — making it ideal for retrofit projects, standalone machine control, and distributed I/O monitoring applications where a full SCADA or touchscreen HMI is over-specified.
Complete Technical Specifications
- Part Number: 2707-L40P2
- Series: DTAM Plus
- Manufacturer: Allen-Bradley / Rockwell Automation
- Display Type: 4-line × 20-character backlit LCD
- Keypad: 40-key alphanumeric membrane keypad
- Communication Port: DH-485 (RS-485 based)
- Baud Rate: 1,200 – 19,200 bps (auto-detect)
- Power Supply: 24V DC (±15%), 200 mA max
- Operating Temperature: 0°C to 55°C (32°F to 131°F)
- Storage Temperature: -40°C to 85°C
- Relative Humidity: 5% to 95% non-condensing
- Enclosure Rating: NEMA 4/4X, IP65 (front panel)
- Mounting: Panel cutout mount
- Dimensions (H × W × D): Approx. 144 × 192 × 60 mm
- Weight: Approx. 900 g
- Memory: Non-volatile EEPROM for application storage
- Compatible PLCs: SLC 500, MicroLogix 1000/1100/1200/1500, PLC-5
- Programming Software: DTAM Plus Programming Software (Catalog 2707-NP1)
- Agency Approvals: UL Listed, CE Marked, CSA Certified
Proven Application Environments
- Discrete manufacturing: assembly lines, conveyor control, packaging machinery
- Process industries: pump stations, HVAC control panels, water treatment
- OEM machine panels: injection molding, CNC auxiliary control, press brakes
- Retrofit and modernization: replacing legacy pushbutton stations with intelligent operator interfaces
- Distributed control nodes: remote operator terminals on DH-485 networks up to 32 nodes
- Food & beverage: washdown-rated front panel suitable for sanitary environments
Engineering Advantages
- Native DH-485 Integration: Plug-and-play connectivity with Allen-Bradley SLC and MicroLogix PLCs — no gateway or protocol converter required.
- 40-Key Full Alphanumeric Keypad: Enables direct data entry, setpoint adjustment, and recipe management without a separate engineering workstation.
- NEMA 4/4X Front Panel: Sealed against dust, oil, and water ingress — suitable for harsh shop-floor and washdown environments.
- Non-Volatile Memory: Application programs and configuration data retained through power cycles without battery backup.
- Compact Form Factor: Minimal panel real estate consumption — ideal for retrofit into existing enclosures with limited space.
- Multi-Node Network Support: Addressable on DH-485 networks with up to 32 nodes, enabling centralized PLC control with distributed operator access.
- Low Power Consumption: 24V DC at 200 mA — compatible with standard PLC power supplies, no dedicated PSU required.
System Architecture & Signal Flow

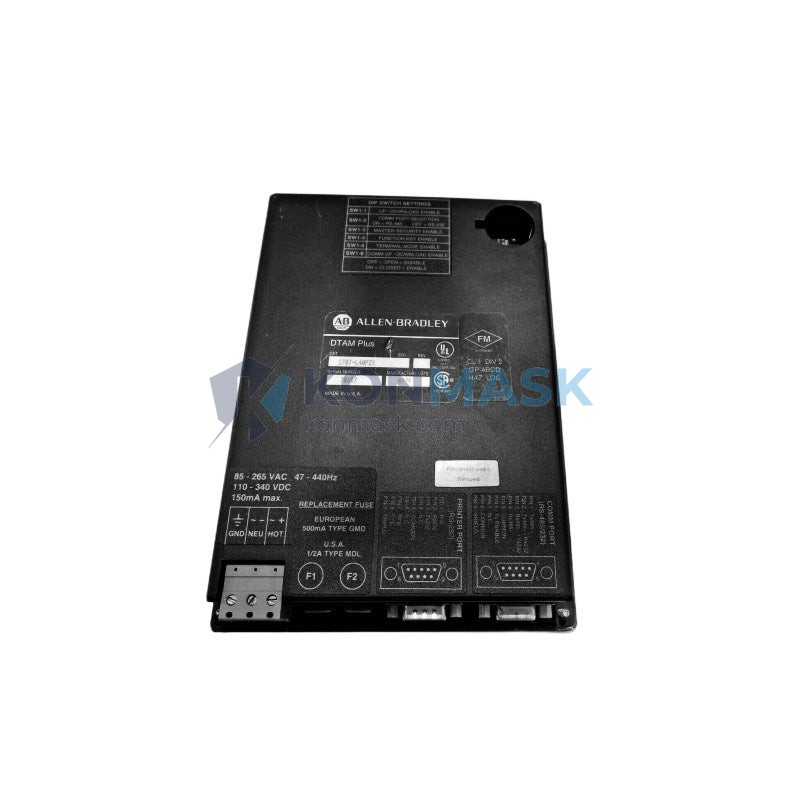

The 2707-L40P2 connects directly to the DH-485 port of an Allen-Bradley SLC 500 or MicroLogix PLC via a standard 1747-C13 or equivalent cable. The DTAM Plus acts as a network node (slave device), polling the PLC’s data table for display values and writing operator inputs back to designated integer or bit files. Application screens, messages, and function key assignments are programmed offline using the DTAM Plus Programming Software and downloaded via the same DH-485 port or a dedicated programming cable. In multi-node configurations, a single PLC can serve multiple DTAM Plus terminals, each assigned a unique node address (1–31).
Typical Signal Flow: Operator Input (Keypad) → DTAM Plus CPU → DH-485 Network → SLC/MicroLogix Data Table → PLC Logic Execution → Output Update → DTAM Plus Display Refresh
Sourcing & Quality Verification
- Source: Verified surplus and authorized distribution channels — no counterfeit risk.
- Inspection: Each unit undergoes visual inspection, label verification, and functional power-on test prior to shipment.
- Condition: New surplus (original packaging where available) or refurbished to OEM specification.
- Traceability: Date codes and lot numbers documented; available upon request for regulated industries.
- Warranty: 12-month Konmask operational warranty covering manufacturing defects and functional failure.
- Certifications on File: UL, CE, CSA documentation available for compliance audits.
Procurement Process
- Step 1 — Inquiry: Submit your part number, required quantity, and delivery timeline via the product page or email support@konmask.com.
- Step 2 — Quote: Receive a formal quotation within 1 business day including unit price, lead time, and shipping options.
- Step 3 — Order Confirmation: Purchase order accepted via online checkout, bank transfer (T/T), or corporate PO for approved accounts.
- Step 4 — Quality Check & Dispatch: Unit inspected, packed with anti-static protection, and dispatched with tracking number.
- Step 5 — After-Sales Support: Technical support available post-delivery for installation, commissioning, and compatibility queries.
Technical FAQ
Q: Is the 2707-L40P2 compatible with CompactLogix or ControlLogix PLCs?
A: No. The DTAM Plus uses DH-485 protocol, which is native to SLC 500 and MicroLogix platforms. CompactLogix and ControlLogix use EtherNet/IP or DH+. A protocol gateway (e.g., ProSoft MVI56-DFNT) would be required for integration with Logix5000 platforms.
Q: Can the DTAM Plus display real-time analog values?
A: Yes. The DTAM Plus can read and display integer and floating-point values from PLC data files, including scaled analog inputs, enabling real-time process variable monitoring.
Q: What programming software is required?
A: Rockwell Automation’s DTAM Plus Programming Software (Cat. No. 2707-NP1) running on a Windows PC. Legacy versions are compatible with Windows XP through Windows 10 with appropriate compatibility settings.
Q: Is the unit available with a warranty?
A: Yes. All units sold through Konmask.com carry a 12-month operational warranty. Extended warranty options are available upon request.
Q: What is the typical lead time?
A: In-stock units ship within 1–3 business days. For out-of-stock inquiries, lead time is quoted individually based on sourcing availability.
