LTI MOTION LSC-060-3-30-560-P5B0H2MM0 – High-Precision AC Servo Motor | LSC Series Platform
Engineering Background
LTI MOTION (formerly known as Lust Antriebstechnik) is a German-origin motion control specialist with decades of engineering heritage in servo drive and motor systems. The LSC series represents their compact, high-dynamic servo motor line engineered for demanding industrial motion applications where precision, repeatability, and thermal stability are non-negotiable.
Product Positioning

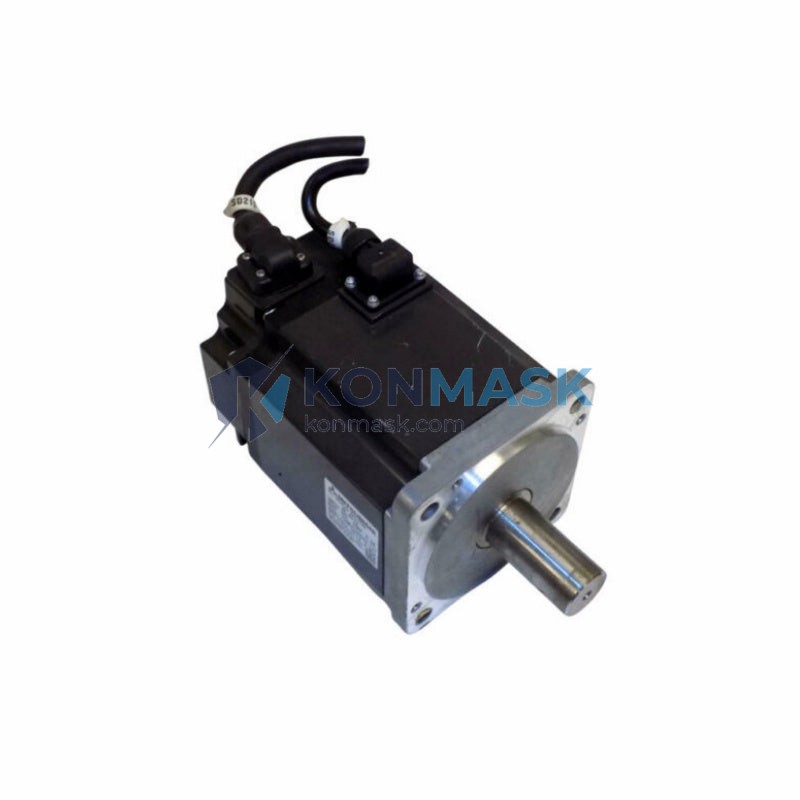

The LSC-060-3-30-560-P5B0H2MM0 is a frame-size 60 mm AC synchronous servo motor designed for integration with LTI MOTION servo drives and compatible third-party controllers. It targets applications requiring high torque density in a compact envelope — ideal for multi-axis CNC systems, robotic joints, and precision assembly automation. Konmask.com supplies this unit as a verified OEM-grade component with full traceability.
Complete Technical Specifications
| Manufacturer | LTI MOTION (Germany) |
| Part Number / SKU | LSC-060-3-30-560-P5B0H2MM0 |
| Series | LSC (Compact AC Servo Motor Series) |
| Frame Size | 60 mm |
| Rated Speed | 3,000 rpm |
| Rated Torque | ~0.30 Nm (nominal, refer to datasheet) |
| Peak Torque | ~0.90 Nm (3× rated, refer to datasheet) |
| Rated Power | ~100 W (nominal) |
| Bus Voltage | 560 V DC link |
| Feedback / Encoder | P5 – Resolver / Encoder (per model code) |
| Brake | B0 – No holding brake |
| Shaft Type | H2 – Smooth shaft with keyway |
| Connector Type | MM0 – Standard M23 connector |
| Protection Class | IP65 (shaft end IP54) |
| Insulation Class | Class F (155°C) |
| Cooling Method | Natural convection (IC410) |
| Weight | ~0.53 kg |
| Country of Origin | Germany / EU |
| Compliance | CE, RoHS |
Proven Application Environments
- CNC Machining Centers – Axis feed drives requiring sub-micron positioning repeatability
- Industrial Robotics – Joint actuators in SCARA and articulated arm robots
- Semiconductor & Electronics Assembly – Pick-and-place and wafer handling systems
- Packaging Machinery – High-cycle servo indexing and registration control
- Medical & Laboratory Automation – Low-noise, high-precision dosing and positioning
- Textile & Printing Equipment – Tension control and web guiding systems
Engineering Advantages
- High Torque Density – Compact 60 mm frame delivers exceptional torque-to-inertia ratio for fast dynamic response
- 560 V DC Bus Compatibility – Optimized for LTI MOTION servo drive systems; reduces cabling complexity in multi-axis cabinets
- IP65 Sealing – Robust against coolant splash, dust ingress, and wash-down environments
- Low Cogging Torque – Skewed rotor design minimizes velocity ripple for smooth motion profiles
- Thermal Stability – Class F insulation with conservative thermal derating ensures long service life under continuous duty
- Plug-and-Play Integration – M23 connector standard simplifies field wiring and replacement
System Architecture & Signal Flow
The LSC-060-3-30-560-P5B0H2MM0 operates within a closed-loop servo architecture:
- Controller (PLC/CNC) → Position/velocity command via fieldbus (EtherCAT, PROFIBUS, CANopen)
- LTI MOTION Servo Drive → Current loop, velocity loop, position loop regulation; 560 V DC bus supply
- LSC-060 Motor → Torque generation via 3-phase AC synchronous winding
- Feedback Device (P5) → Encoder/resolver signal returns to drive for closed-loop correction
- Load / Mechanical System → Ball screw, rack-and-pinion, or direct-drive coupling
Ensure drive-motor matching via LTI MOTION’s sizing software (ServoSoft or equivalent) before commissioning.
Sourcing & Quality Verification
- ✅ OEM-Grade Units – Sourced through verified industrial distribution channels; no grey-market or refurbished stock
- ✅ Traceability – Each unit ships with manufacturer serial number and production batch documentation
- ✅ Pre-Shipment Inspection – Visual, dimensional, and electrical continuity checks performed before dispatch
- ✅ Packaging – Original OEM packaging or equivalent anti-static, shock-protected export carton
- ✅ Warranty – 12-month limited warranty against manufacturing defects from ship date
Procurement Process
- Submit RFQ – Contact support@konmask.com with quantity, delivery timeline, and destination port
- Receive Quotation – Formal quotation with lead time, unit price (EXW/FOB Xiamen), and payment terms within 24 hours
- Order Confirmation – Pro-forma invoice issued upon PO receipt; T/T, L/C, or trade assurance accepted
- Inspection & Dispatch – Pre-shipment inspection report provided; DHL/FedEx/sea freight options available
- After-Sales Support – Technical commissioning guidance and warranty claim processing via dedicated engineer team
Technical FAQ
Q: Is this motor compatible with third-party servo drives?
A: The LSC-060 is optimized for LTI MOTION drives. Third-party compatibility depends on feedback interface (resolver vs. encoder) and current loop tuning. Consult your drive manufacturer’s motor database or contact our engineers.
Q: What is the encoder resolution of the P5 feedback option?
A: The P5 designation refers to the specific feedback variant in LTI MOTION’s model code. Please request the full datasheet from our team for exact PPR/bit resolution specifications.
Q: Can this motor be used in vertical axis applications without a brake?
A: The B0 (no brake) configuration requires the servo drive to maintain holding torque when the axis is stationary. For safety-critical vertical loads, an external mechanical brake or a brake-equipped variant (B2) is strongly recommended.
Q: What is the minimum order quantity?
A: MOQ is 1 unit. Volume pricing is available for orders of 5+ units.
Q: Do you provide export documentation for customs clearance?
A: Yes — commercial invoice, packing list, certificate of origin, and HS code declaration (HS 8501.52) are provided as standard.
