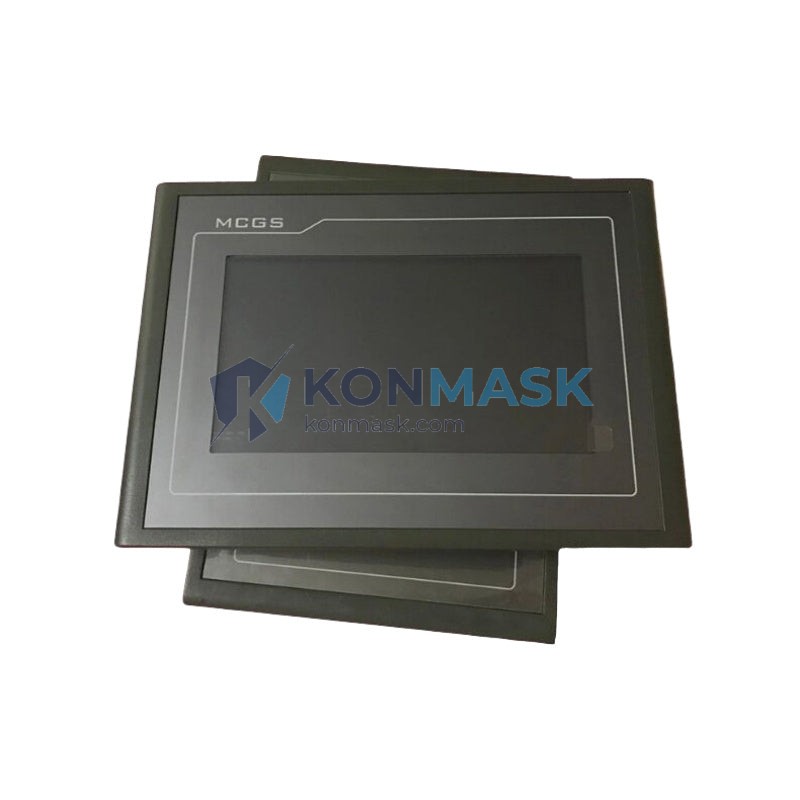

MCGS TPC7062TX – 7-Inch TFT Touch Panel HMI | MCGSTPC Series
Engineering Background
The MCGS (Monitor and Control Generated System) TPC7062TX is a mainstream 7-inch industrial Human Machine Interface developed by Beijing MCGS Technology Co., Ltd. — one of China’s leading SCADA and HMI platform vendors. The TPC7062TX belongs to the TPC (Touch Panel Computer) product line and is widely deployed across discrete manufacturing, process control, building automation, and OEM machine panels throughout Asia-Pacific and emerging markets.
Product Positioning
Designed for procurement engineers who require a cost-effective, field-proven HMI with broad PLC compatibility, the TPC7062TX delivers a balance of display quality, communication flexibility, and software ecosystem depth. It runs the MCGS Embedded configuration environment natively, enabling rapid project development without proprietary licensing fees. Konmask.com supplies this unit as genuine OEM hardware with full traceability.
Complete Technical Specifications
| Parameter | Specification |
|---|---|
| Model | TPC7062TX |
| Brand / Manufacturer | MCGS (Beijing MCGS Technology Co., Ltd.) |
| Display Size | 7.0 inch TFT LCD |
| Resolution | 800 × 480 pixels (WVGA) |
| Touch Type | 4-wire resistive touch screen |
| Backlight | LED, adjustable brightness |
| CPU | ARM Cortex-A8, 600 MHz |
| RAM | 128 MB DDR |
| Flash Storage | 256 MB NAND Flash |
| Operating System | Embedded Linux (MCGS Runtime) |

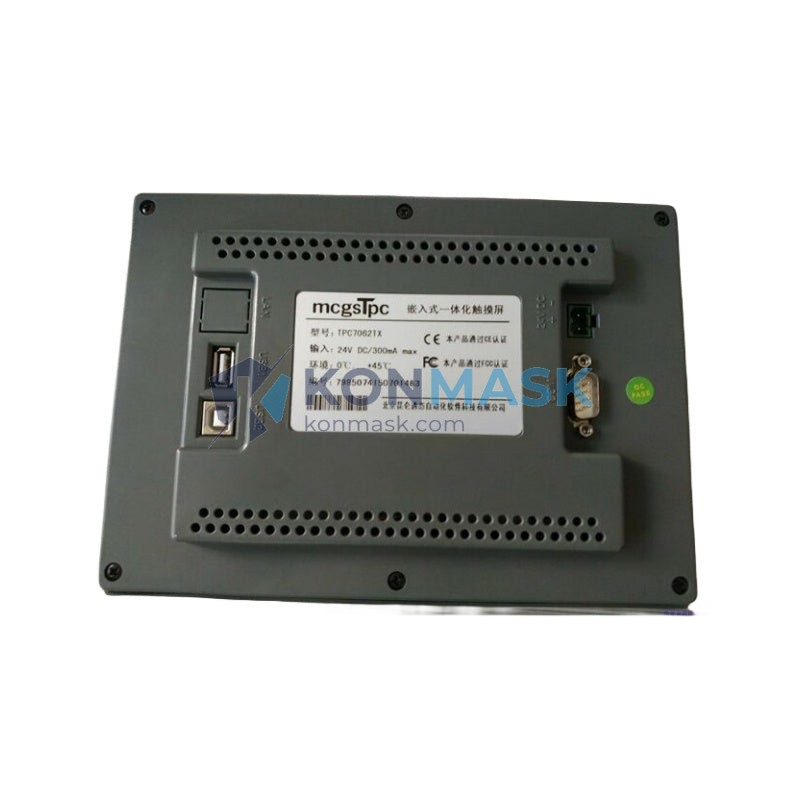

| Communication Ports | RS232 × 1, RS485 × 1, USB Host × 1, USB Device × 1, Ethernet (RJ45) × 1 |
| Ethernet | 10/100 Mbps, RJ45 |
| Power Supply | DC 24V (±15%), <8W typical |
| Operating Temperature | 0°C to +50°C |
| Storage Temperature | -20°C to +60°C |
| Humidity | 10% ~ 90% RH, non-condensing |
| Protection Rating | IP65 (front panel) |
| Panel Cutout | 192 × 138 mm (W × H) |
| Overall Dimensions | 214 × 158 × 47 mm (W × H × D) |
| Weight | Approx. 0.85 kg |
| Configuration Software | MCGS Embedded (free download) |
| Certifications | CE, RoHS |
Proven Application Environments
- Discrete Manufacturing: CNC machine tool panels, injection molding machine HMI, packaging line operator stations
- Process Control: Water treatment plant monitoring, chemical dosing systems, boiler control panels
- Building Automation: HVAC control, elevator monitoring, access control integration
- Energy & Utilities: Substation monitoring, solar inverter interfaces, generator control panels
- OEM Machine Builders: Textile machinery, food processing equipment, conveyor systems
- Infrastructure: Pump station automation, irrigation control, municipal water networks
Engineering Advantages
- Broad PLC Driver Library: Native MCGS driver support for Siemens S7-200/300/400/1200, Mitsubishi FX/Q, Omron CP/CJ, Delta DVP, Schneider Modicon, AB MicroLogix, and 300+ additional protocols via Modbus RTU/TCP
- IP65 Front Panel: Sealed against dust and water jets — suitable for wash-down and dusty shop-floor environments without additional enclosure engineering
- Free Configuration Software: MCGS Embedded is freely downloadable; no per-seat licensing cost reduces total project cost
- Ethernet + Serial Dual Path: Simultaneous Ethernet SCADA connectivity and RS485 PLC communication eliminates the need for protocol converters in most topologies
- Proven Field Reliability: Widely deployed in Chinese industrial OEM equipment since 2010; extensive field data and community support available
- USB Host Port: Enables on-site project upload/download and data logging to USB flash drive without a laptop
System Architecture & Signal Flow
The TPC7062TX operates as the operator interface layer in a typical 3-tier automation architecture:
- Field Layer → PLC/Controller: Sensors and actuators connect to the PLC (e.g., Siemens S7-1200) via I/O modules
- PLC → TPC7062TX (RS485 / Ethernet): The HMI polls the PLC register map at configurable scan rates (typically 100–500 ms) using the selected driver protocol
- TPC7062TX → Operator: Real-time process values, alarms, trends, and control buttons are rendered on the 7-inch TFT display
- TPC7062TX → SCADA / MES (Ethernet): Optional upstream data push via OPC, Modbus TCP, or MCGS cloud gateway for supervisory systems
- USB / SD: Local data logging, recipe management, and project backup
This architecture supports both standalone HMI-PLC cells and networked multi-panel SCADA topologies without hardware modification.
Sourcing & Quality Verification
- Origin: Genuine MCGS OEM product manufactured in Beijing, China
- Traceability: Each unit ships with original MCGS serial number label; authenticity verifiable via MCGS official channel lookup
- Inspection: Konmask.com performs incoming power-on verification and display/touch functional check before dispatch
- Packaging: Original MCGS retail box with foam insert, DC power connector, panel mounting clips, and quick-start guide
- Warranty: 12-month Konmask.com commercial warranty covering manufacturing defects; DOA replacement within 7 days of receipt
- Certifications on File: CE Declaration of Conformity and RoHS compliance documentation available upon request
Procurement Process
- Confirm Model: Verify TPC7062TX matches your display size, communication, and environmental requirements using the specification table above
- Request Quote: Contact support@konmask.com with quantity, delivery address, and required lead time for volume pricing
- Place Order: Add to cart and complete checkout, or request a proforma invoice for bank transfer / corporate PO
- Dispatch: Orders confirmed before 14:00 CST ship same business day via DHL Express, FedEx, or SF International (buyer’s choice)
- Customs & Documentation: Commercial invoice, packing list, and CE certificate provided; HS Code 8537.10 applicable for most jurisdictions
- Incoming Inspection: Recommended: power-on test at DC 24V, touch calibration check, and RS485 loopback test before panel installation
Technical FAQ
Q: Is the TPC7062TX compatible with Siemens S7-1200 via Ethernet?
A: Yes. MCGS Embedded includes a native S7-1200 Ethernet driver (ISO-on-TCP). No additional hardware or OPC server is required.
Q: Can I use Modbus TCP to connect to third-party controllers?
A: Yes. The TPC7062TX supports Modbus TCP Master mode over its RJ45 Ethernet port, compatible with any standard Modbus TCP slave device.
Q: What is the maximum number of tags/variables supported?
A: MCGS Embedded on the TPC7062TX supports up to 20,000 real-time data variables per project.
Q: Does the unit support recipe management?
A: Yes. MCGS Embedded includes a built-in recipe component supporting up to 32 recipes with 512 parameters each, stored in Flash or exported to USB.
Q: Is remote monitoring possible without a SCADA server?
A: The TPC7062TX supports MCGS Cloud (MCGS 云组态) for remote monitoring via web browser or mobile app when connected to the internet via Ethernet.
Q: What panel cutout dimensions are required?
A: 192 mm (W) × 138 mm (H). Panel thickness must be 1.5–6 mm for the supplied mounting clips to engage correctly.
Q: Can I order in bulk with custom firmware or project pre-loaded?
A: Yes. Contact support@konmask.com for OEM/ODM bulk orders with pre-loaded MCGS project files and custom splash screens.
