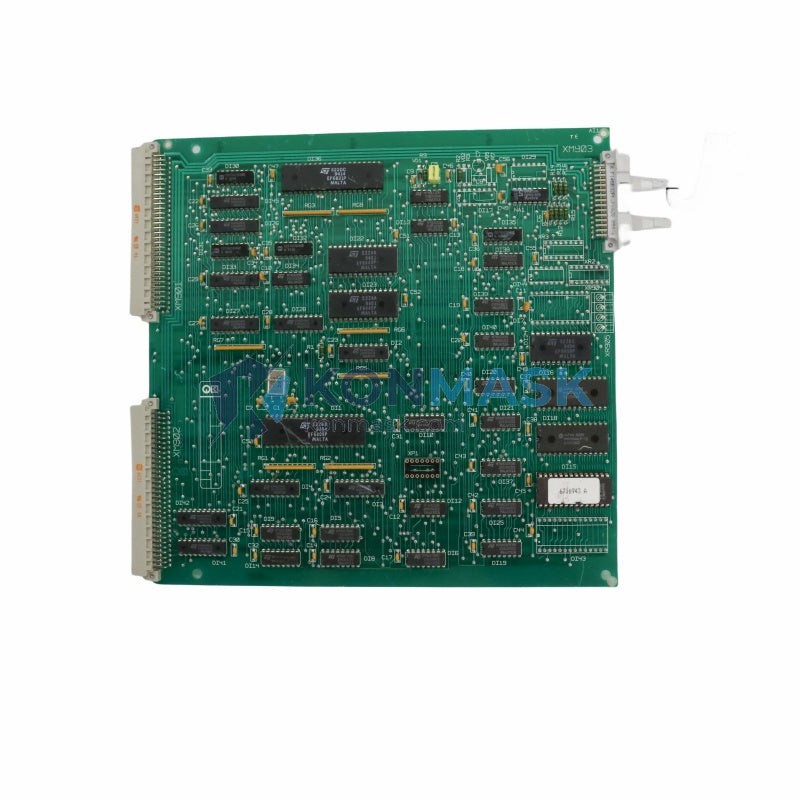

MERLIN GERIN 6716864-2B 556393 DSL-16-25-270-P-A-S20-B PCB Assembly – 810-800961-009 Control Board
When a critical PCB assembly fails inside a Merlin Gerin protection or control system, the entire production line can grind to a halt within seconds. Unplanned downtime in industrial environments costs thousands of dollars per hour — and sourcing an exact-match replacement board from an unreliable supplier only compounds the risk. The MERLIN GERIN 6716864-2B (556393 / DSL-16-25-270-P-A-S20-B / 810-800961-009) PCB Assembly is the precision-engineered solution that restores your system to full operational status without compromise.
The DSL-16-25-270-P-A-S20-B series represents Merlin Gerin’s commitment to robust, field-proven electronic control architecture. As a Schneider Electric legacy brand, Merlin Gerin PCB assemblies are embedded in power distribution, motor control, and protection relay systems across utilities, manufacturing plants, and infrastructure projects worldwide. The 6716864-2B variant — cross-referenced as 556393 and 810-800961-009 — occupies a key position in this lineage, delivering reliable signal processing and control logic in demanding industrial environments.
Technical Specifications
- Part Number: 6716864-2B
- Cross Reference: 556393 / 810-800961-009
- Series: DSL-16-25-270-P-A-S20-B
- Product Type: PCB Assembly (Printed Circuit Board Assembly)
- Brand: MERLIN GERIN (Schneider Electric)
- Weight: 2,600 g
- Condition: New / Surplus / Refurbished (specify on inquiry)
- Origin: OEM-grade, manufactured to Merlin Gerin specifications
Note: Additional electrical specifications (voltage, current ratings, communication interfaces) are available upon request. We do not publish unverified parameters.
Key Features & Benefits
- Exact OEM Match: Direct replacement for the original 6716864-2B board — no field modification required.
- Multi-Reference Compatibility: Verified cross-references 556393 and 810-800961-009 ensure correct identification across different documentation systems.
- Industrial-Grade Reliability: Designed to withstand the electrical noise, temperature variation, and vibration typical of heavy industrial environments.
- Plug-and-Play Restoration: Restores system functionality quickly, minimizing mean time to repair (MTTR).
- Traceable Sourcing: Every unit at Konmask.com is sourced through verified supply channels with full traceability documentation available.
- Global Stock Availability: Held in inventory for rapid dispatch to customers in Asia, Europe, the Americas, and the Middle East.
Industry & Equipment Applications
- Power Distribution Systems: Medium and low-voltage switchgear, protection relays, and circuit breaker control panels.
- Motor Control Centers (MCC): Variable speed drives, soft starters, and motor protection units using Merlin Gerin electronics.
- Building Automation & Infrastructure: HVAC control systems, elevator control panels, and facility management systems.
- Oil & Gas / Petrochemical: Process control cabinets requiring certified, traceable spare parts.
- Water Treatment & Utilities: SCADA-connected protection and monitoring systems.
- Manufacturing & Assembly Lines: Automated production equipment with Merlin Gerin legacy control boards.
System Integration & Compatible Parts
The 6716864-2B PCB Assembly is designed to integrate within Merlin Gerin DSL-series control architectures. When planning a repair or system upgrade, consider sourcing compatible components such as:
- Merlin Gerin DSL-series protection relay modules
- Schneider Electric Masterpact / Compact NS series control boards
- Associated terminal blocks, connectors, and backplane assemblies
- Replacement fuses and surge protection devices rated for the same panel
Contact our technical team at support@konmask.com to confirm compatibility with your specific system configuration before ordering.
Our Quality Assurance Process
- Visual Inspection: Each PCB assembly is inspected for physical damage, corrosion, and component integrity upon receipt.
- Functional Verification: Where applicable, boards undergo bench testing against known-good reference units.
- Anti-Static Packaging: All PCB assemblies are shipped in ESD-safe packaging to prevent electrostatic damage in transit.
- Documentation: Certificates of conformance and test reports available upon request for critical applications.
- Warranty: Standard warranty applies — contact us for terms specific to this part number.
How to Order
- Submit an Inquiry: Use the contact form on this page or email support@konmask.com with your part number and required quantity.
- Receive a Quote: Our team will respond within 1 business day with pricing, lead time, and availability confirmation.
- Confirm & Pay: We accept T/T (bank transfer), PayPal, and other B2B payment methods.
- Shipping: Orders are dispatched via DHL, FedEx, or UPS with full tracking. Express options available.
- After-Sales Support: Our engineers are available post-delivery to assist with installation questions.
Why Choose Konmask.com?
- Industrial Automation Specialists: We focus exclusively on PLC modules, DCS components, and industrial control hardware — this is our core expertise.
- Verified Supply Chain: We source from authorized distributors and reputable surplus channels, never from unverified grey-market sources.
- Technical Support: Our team includes engineers with hands-on experience in Merlin Gerin and Schneider Electric systems.
- Global B2B Service: Serving industrial buyers in 50+ countries with competitive pricing and reliable logistics.
- Fast Response: Inquiries answered within 24 hours. Urgent requirements handled with priority.
Frequently Asked Questions
- Q: Is the 6716864-2B the same as 556393 or 810-800961-009?
- A: Yes. These are cross-reference part numbers for the same MERLIN GERIN PCB Assembly. Different documentation systems and procurement databases may use any of these references interchangeably.
- Q: What is the DSL-16-25-270-P-A-S20-B series?
- A: The DSL-16-25-270-P-A-S20-B is the series/model designation for this Merlin Gerin control board family, indicating its design specification and application range within the product line.
- Q: Do you offer refurbished units if new stock is unavailable?
- A: Yes. We can source refurbished units that have been professionally tested and restored. Please specify your preference when submitting an inquiry.
- Q: How long does shipping take?
- A: Standard international shipping via DHL/FedEx typically takes 3–7 business days. Express options (1–3 days) are available for urgent requirements.
- Q: Can you provide a datasheet or technical documentation?
- A: We will share all available technical documentation with confirmed buyers. Contact us with your inquiry and we will provide what we have on file.
