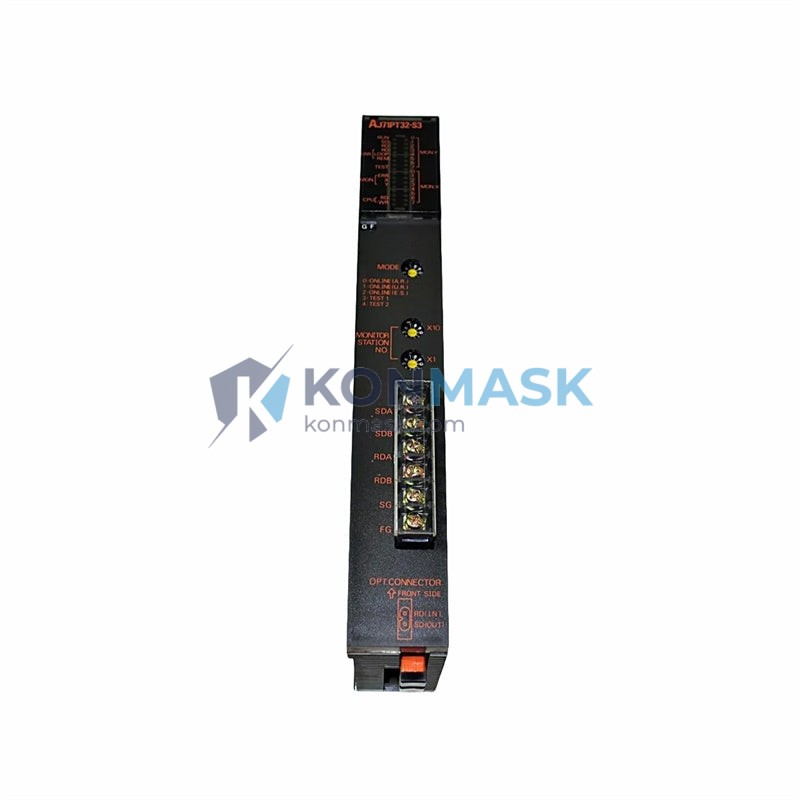

Mitsubishi AJ71PT32-S3 – MELSECNET/MINI-S3 Master Module | A-Series PLC Platform
Engineering Background
The AJ71PT32-S3 is a dedicated MELSECNET/MINI-S3 master communication module designed for Mitsubishi Electric’s A-Series programmable logic controller (PLC) platform. It enables high-speed, deterministic data exchange between the master station and up to 16 remote I/O slave stations over a token-passing optical or coaxial network. This module is a cornerstone component in distributed control architectures across process automation, machine tool control, and factory automation environments.
Product Positioning
Targeted at procurement engineers and system integrators maintaining or expanding legacy Mitsubishi A-Series control systems, the AJ71PT32-S3 provides a reliable, OEM-sourced solution for MELSECNET/MINI-S3 network master functionality. Konmask.com supplies this module with full traceability documentation and pre-shipment functional verification.
Complete Technical Specifications
| Parameter | Specification |
|---|---|
| Model Number | AJ71PT32-S3 |
| Manufacturer | Mitsubishi Electric Corporation |
| Series / Platform | MELSEC A-Series |
| Module Type | MELSECNET/MINI-S3 Master Station Module |
| Network Standard | MELSECNET/MINI-S3 |
| Station Type | Master Station |
| Max. Slave Stations | 16 remote I/O slave stations |
| Transmission Medium | Coaxial cable / Optical fiber (model-dependent) |
| Communication Method | Token-passing bus |
| I/O Points (Remote) | Up to 256 input / 256 output points |
| Transmission Speed | 1 Mbps |
| Power Consumption | 5 VDC, 0.55 A (from base unit backplane) |
| Operating Temperature | 0 °C to 55 °C |
| Storage Temperature | -20 °C to 75 °C |
| Humidity | 10% to 90% RH (non-condensing) |
| Vibration Resistance | IEC 68-2-6 compliant |
| Weight | Approx. 0.5 kg |
| Mounting | A-Series base unit slot (DIN rail via base) |
| Country of Origin | Japan |
| HS Code | 8537.10 |
Proven Application Environments
- Automotive Manufacturing: Body-in-white welding lines with distributed remote I/O across multiple robot cells
- Food & Beverage Processing: Conveyor and filling line control with centralized PLC and distributed sensor/actuator nodes
- Semiconductor Fabrication: Clean-room equipment control requiring deterministic cycle times
- Water Treatment Plants: Remote pump station monitoring and control via MELSECNET/MINI-S3 backbone
- Machine Tool OEMs: CNC machining centers integrating A-Series PLC with remote I/O for tool changers and coolant systems
- Chemical Process Plants: Distributed I/O for valve and sensor networks in hazardous-area-adjacent control rooms
Engineering Advantages
- Deterministic Communication: Token-passing protocol guarantees fixed scan-cycle data refresh, critical for real-time control loops
- High Node Density: Supports up to 16 slave stations per master, reducing wiring infrastructure costs significantly
- Seamless A-Series Integration: Plug-in compatibility with all A-Series base units; no additional interface hardware required
- Proven Field Reliability: Mitsubishi Electric’s MELSECNET/MINI-S3 has decades of deployment in mission-critical industrial environments
- Simplified Diagnostics: Onboard LED status indicators for network health, transmission errors, and power status
- Long Service Life: Designed for continuous 24/7 industrial operation with wide temperature tolerance
System Architecture & Signal Flow
The AJ71PT32-S3 occupies one slot in the A-Series base unit and communicates with the CPU module via the internal backplane bus. As the MELSECNET/MINI-S3 master, it cyclically polls each configured slave station in a token-passing sequence:
- CPU → Master Module: Output data (Y-device) written to master’s output buffer via backplane
- Master → Slave Stations: Output data transmitted over MELSECNET/MINI-S3 coaxial/optical link to each slave’s remote I/O unit
- Slave → Master: Input data (X-device) from remote sensors/switches returned to master’s input buffer
- Master → CPU: Input data mapped to CPU’s X-device area via backplane for ladder logic processing
This architecture eliminates point-to-point wiring between the control cabinet and field devices, reducing installation cost and improving fault isolation.
Sourcing & Quality Verification
- Origin: Sourced from authorized Mitsubishi Electric distribution channels and verified OEM inventory
- Inspection: Each unit undergoes visual inspection, label verification, and power-on functional test prior to shipment
- Packaging: Anti-static ESD bag + foam-padded carton; original Mitsubishi packaging preserved where available
- Documentation: Certificate of conformity and test report available upon request
- Warranty: 12-month Konmask warranty covering manufacturing defects and functional failure
Procurement Process
- Inquiry: Submit RFQ via product page or email [email protected] with quantity and required delivery date
- Quotation: Formal quotation issued within 1 business day including unit price, lead time, and shipping options
- Order Confirmation: Purchase order accepted via email or Shopify checkout; payment by T/T, PayPal, or credit card
- Inspection & Dispatch: Pre-shipment functional test completed; tracking number provided within 24–48 hours
- Delivery: DHL / FedEx / UPS express worldwide; estimated 3–7 business days to most destinations
- After-Sales: Technical support available via email and WhatsApp; returns accepted within 30 days for DOA units
Technical FAQ
Q: Is the AJ71PT32-S3 compatible with Q-Series or iQ-R Series PLCs?
A: No. This module is exclusively designed for the Mitsubishi A-Series base unit. Q-Series and iQ-R systems use different network modules (e.g., QJ71LP21, RJ71LP21).
Q: Can this module operate as a slave station?
A: No. The AJ71PT32-S3 is a master-only module. For slave station functionality, refer to the AJ65BT series remote I/O units.
Q: What programming software is required?
A: GX Developer (SW8D5C-GPPW) or earlier A-Series compatible programming tools. GX Works2/3 does not support A-Series CPU programming natively.
Q: Is optical or coaxial cable required?
A: The AJ71PT32-S3 uses coaxial cable. For optical fiber variants, refer to the AJ71PT32-S3 optical version or AJ71LP21 series.
Q: What is the maximum cable length per segment?
A: Up to 500 m per segment on coaxial cable at 1 Mbps transmission speed.
Q: Do you provide a datasheet or wiring diagram?
A: Yes. Contact [email protected] to request the official Mitsubishi IB-66721 hardware manual and wiring diagrams.
