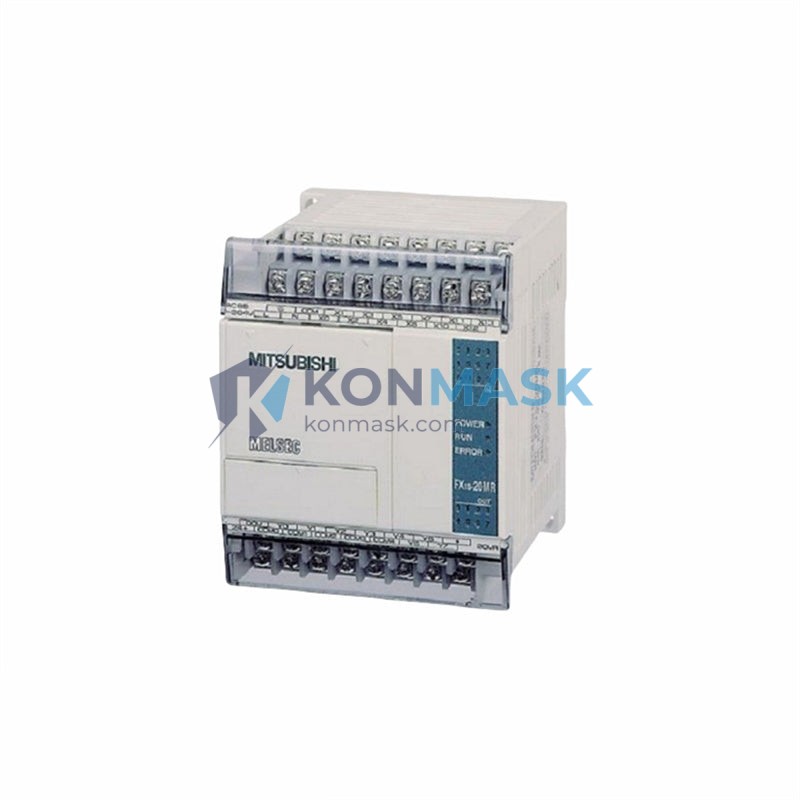

Compact Machine Automation Solution – Mitsubishi FX1S-20MT-001 | MELSEC FX1S Series
Where This Product Is Used
The Mitsubishi FX1S-20MT-001 is a high-reliability compact PLC widely deployed across demanding industrial environments. Its transistor (NPN sink) output and DC power architecture make it the preferred controller for applications requiring fast, noise-immune digital switching:
- Packaging Machinery – Precise sequencing of film feeders, sealing jaws, and label applicators at high cycle rates
- Conveyor & Material Handling – Multi-zone belt control, diverter logic, and sensor-triggered sorting systems
- Machine Tools & CNC Peripherals – Spindle interlocks, tool-change sequencing, and coolant pump management
- Textile & Printing Equipment – Tension control, register mark detection, and web-break response
- Building Automation & HVAC – Fan/pump scheduling, damper positioning, and alarm annunciation panels
- Food & Beverage Processing – Wash-down-adjacent control panels with compact footprint requirements
- OEM Control Panels – Space-constrained enclosures where DIN-rail density is critical
Technical Specifications
| Parameter | Specification |
|---|---|
| Model Number | FX1S-20MT-001 |
| Series | MELSEC FX1S |
| Manufacturer | Mitsubishi Electric |
| Total I/O Points | 20 (12 Inputs / 8 Outputs) |
| Input Type | DC 24V Sink/Source |
| Output Type | Transistor (NPN Sink) |
| Power Supply | DC 24V |
| Max Output Current | 0.5 A per point |
| Program Memory | 2,000 Steps |
| High-Speed Counters | Up to 60 kHz (single-phase) |
| Communication Port | RS-422 (mini-DIN, programming port) |
| Expansion Modules | Not supported (standalone unit) |
| Weight | Approx. 1,210 g (with packaging) |
| Mounting | DIN rail or direct screw mount |
| Operating Temperature | 0 °C to 55 °C |
| Storage Temperature | -25 °C to 75 °C |
| Protection Rating | IP20 |
| Standards | CE, UL, cUL |
Why Engineers Specify This Model
- Transistor Output for High-Speed Applications – Unlike relay-output variants, the MT suffix delivers sub-millisecond switching, enabling pulse-train outputs for stepper/servo drives and high-frequency counter inputs.
- DC-Only Power Architecture – Eliminates AC noise coupling in sensitive sensor environments; simplifies 24 VDC panel wiring and reduces transformer requirements.
- Proven MELSEC FX1S Platform – Backed by Mitsubishi Electric’s decades of FX-series reliability data; extensive installed base ensures long-term spare-parts availability.
- Compact DIN-Rail Footprint – Fits tight enclosures where larger PLCs cannot be accommodated, without sacrificing programming capability.
- GX Developer / GX Works2 Compatible – Seamless integration with Mitsubishi’s standard engineering software ecosystem.
Complete System Bill of Materials
For a fully operational FX1S-20MT-001 control system, engineers typically specify the following companion components:
- Programming Cable – SC-09 (RS-422 to RS-232) or USB-SC09-FX (USB adapter)
- Software – GX Works2 (recommended) or GX Developer
- 24 VDC Power Supply – e.g., Mitsubishi PS-5VDC or equivalent DIN-rail SMPS (5 A minimum recommended)
- I/O Terminal Blocks – Compatible 3.5 mm pitch DIN-rail terminal blocks for field wiring
- HMI (Optional) – Mitsubishi GOT1000/GOT2000 series or third-party RS-422 compatible panel
- Surge Suppressors – Varistor-type suppressors on inductive output loads
Compliance & Industry Standards
- CE Marking – EMC Directive 2014/30/EU & Low Voltage Directive 2014/35/EU
- UL 508 / cUL – Industrial Control Equipment (North American market)
- RoHS Compliant – Restriction of Hazardous Substances
- IEC 61131-2 – Programmable Controllers: Equipment Requirements and Tests
Quality Assurance & Sourcing
Konmask.com sources the FX1S-20MT-001 through verified industrial distribution channels. Every unit undergoes the following before dispatch:
- Visual inspection for label authenticity, housing integrity, and connector condition
- Firmware/version verification against Mitsubishi Electric official documentation
- Anti-static packaging with humidity indicator card
- Batch traceability records retained for warranty and audit purposes
How to Source This Part
Submit your enquiry via [email protected] or call +0086 19859288691. Please include:
- Required quantity and delivery timeline
- Destination country (for export compliance and shipping rate calculation)
- Any project-specific documentation requirements (COO, test reports, etc.)
Bulk orders and OEM procurement programs are available. Lead times vary by stock status — contact us for real-time availability.
Application-Specific FAQ
Q: Can the FX1S-20MT-001 control a stepper motor directly?
A: Yes. The transistor outputs support pulse-train (PLS/PLSY instructions) up to 100 kHz, making it suitable for open-loop stepper control without an external pulse generator.
Q: Is the FX1S-20MT-001 compatible with FX2N expansion modules?
A: No. The FX1S is a standalone unit and does not support expansion I/O modules. For expandable systems, consider the Mitsubishi FX3U or FX5U series.
Q: What is the difference between FX1S-20MT-001 and FX1S-20MR-001?
A: The MT suffix denotes transistor (DC) output; MR denotes relay output. Transistor outputs are faster and suited for pulse outputs and high-cycle applications; relay outputs handle higher voltages and AC loads.
Q: Can I use GX Works3 to program this PLC?
A: No. GX Works3 supports FX5 series and iQ-R/iQ-F platforms only. Use GX Works2 or GX Developer for FX1S programming.
Q: What is the warranty on units sourced from Konmask.com?
A: All units carry a 12-month warranty against manufacturing defects. Contact [email protected] for warranty claims and RMA procedures.
