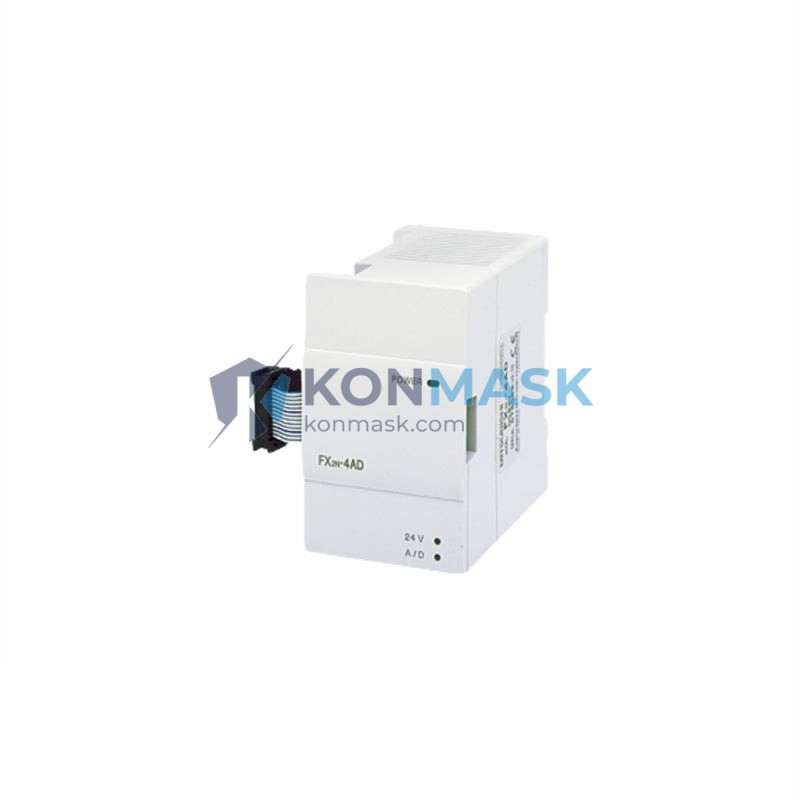

Genuine Mitsubishi FX2N-4AD 4-Channel Analog Input Module | MELSEC FX2N Series – Verified Source
The Mitsubishi FX2N-4AD is a high-precision 4-channel analog input special function module designed for the MELSEC FX2N programmable controller series. At Konmask.com, we supply only verified, genuine Mitsubishi Electric components — backed by our rigorous 4-step quality verification process and supported by a global sourcing network.
Technical Specifications
- Model: FX2N-4AD
- Manufacturer: Mitsubishi Electric
- Series: MELSEC FX2N
- Module Type: Special Function Module — Analog Input
- Input Channels: 4 channels (CH1–CH4)
- Input Signal: Voltage: -10V to +10V DC / Current: 4–20 mA (selectable per channel)
- Resolution: 12-bit (voltage), 11-bit + sign (current)
- Conversion Speed: 6 ms / channel (15 ms total for 4 channels)
- Isolation: Optocoupler isolation between channels and PLC bus
- Power Consumption: 5 VDC, 30 mA (from PLC bus)
- Operating Temperature: 0°C to 55°C
- Storage Temperature: -25°C to 75°C
- Weight: Approx. 210 g
- Dimensions: 55 mm (W) × 90 mm (H) × 87 mm (D)
- Compliance: CE, UL, cUL
Our 4-Step Quality Verification Process
- Step 1 — Source Authentication: All units are procured directly from Mitsubishi Electric authorized distributors or verified surplus channels with full traceability documentation.
- Step 2 — Physical Inspection: Each module undergoes visual inspection for label integrity, housing condition, connector pin alignment, and counterfeit indicators.
- Step 3 — Functional Testing: Modules are bench-tested for power-on response, channel signal conversion accuracy, and communication handshake with FX2N CPU units.
- Step 4 — Documentation Review: Serial numbers are cross-referenced against manufacturer records where available; all units ship with inspection reports upon request.
Key Features & Benefits
- ✅ 4 independent analog input channels — voltage and current selectable
- ✅ High-resolution 12-bit A/D conversion for precise process control
- ✅ Plug-and-play compatibility with all FX2N series CPU modules
- ✅ Compact DIN-rail mountable form factor
- ✅ Optocoupler isolation protects PLC bus from signal interference
- ✅ Supports both industrial voltage (±10V) and current loop (4–20 mA) signals
- ✅ Simple FROM/TO instruction programming — no special software required
Typical Applications
- Temperature monitoring via thermocouple/transmitter signal conditioning
- Pressure and flow measurement in process automation
- Level sensing in tank and silo management systems
- Speed feedback from variable frequency drives (VFDs)
- Multi-axis position feedback in machine tool control
- HVAC system analog signal acquisition
Compatible System Components
- Compatible CPUs: FX2N-16M, FX2N-32M, FX2N-48M, FX2N-64M, FX2N-80M, FX2N-128M (all variants)
- Extension Cables: FX2N-CNV-BC (for FX0N/FX2 bus conversion)
- Power Supplies: FX2N-series internal 5V bus (no external supply required)
- Programming Software: GX Developer, GX Works2
- Related Modules: FX2N-4DA (analog output), FX2N-8AD (8-channel input), FX2N-2AD (2-channel input)
Global Sourcing & Shipping Capabilities
Konmask.com operates a global industrial component sourcing network, enabling us to fulfill orders for the FX2N-4AD and related Mitsubishi MELSEC modules to customers worldwide.
- Stock Status: In-stock and ex-stock units available — contact us for real-time availability
- Lead Time: Typically 3–7 business days for in-stock items; 2–4 weeks for sourced units
- Shipping Regions: Asia-Pacific, Europe, North America, Middle East, Africa
- Export Compliance: All shipments comply with applicable export control regulations (ECCN, EAR)
- Packaging: Anti-static ESD packaging with foam cushioning; original OEM packaging preserved where available
Certifications & Compliance Statement
The Mitsubishi FX2N-4AD module is manufactured to the following standards:
- CE Marking: Compliant with EU Low Voltage Directive and EMC Directive
- UL / cUL Listed: Recognized under UL 508 (Industrial Control Equipment)
- RoHS Compliant: Restriction of Hazardous Substances Directive (EU 2011/65/EU)
- IEC 61131-2: Programmable controllers — Equipment requirements and tests
Konmask.com does not manufacture this product. We are an independent distributor and reseller of genuine Mitsubishi Electric components. All brand names and trademarks are the property of their respective owners.
How to Order
- Add to Cart — Click the “Add to Cart” button above to proceed with your order online.
- Request a Quote — For bulk orders (5+ units), OEM pricing, or custom lead times, email us at support@konmask.com.
- Provide Your Requirements — Include your required quantity, delivery address, and any specific documentation needs (test reports, COO certificates, etc.).
- Confirm & Ship — We will confirm availability, issue a proforma invoice, and arrange shipment within the agreed lead time.
📞 Phone/WhatsApp: +0086 19859288691
📧 Email: support@konmask.com
🌐 Website: https://konmask.com
Authenticity & Trust FAQ
Q: Are these modules genuine Mitsubishi Electric products?
A: Yes. All FX2N-4AD units supplied by Konmask.com are genuine Mitsubishi Electric products sourced from authorized distributors or verified industrial surplus channels. We do not sell counterfeit, cloned, or refurbished-as-new components.
Q: Can you provide a Certificate of Origin (COO)?
A: Yes, upon request. Please specify your documentation requirements at the time of order.
Q: What is your return policy for defective units?
A: We offer a 30-day return window for units that fail upon arrival or exhibit manufacturing defects. Units must be returned in original packaging with the inspection report included.
Q: Do you offer warranty on these modules?
A: We provide a 90-day functional warranty on all tested units. Extended warranty options are available for volume orders — contact us for details.
Q: Can you source other FX2N series modules not listed on your site?
A: Absolutely. Our sourcing network covers the full Mitsubishi MELSEC FX, Q, iQ-R, and iQ-F series. Contact us with your part number and required quantity.
