MODICON TSXAEY414 Analog Input Module | Replacement, Equivalent & Selection Guide

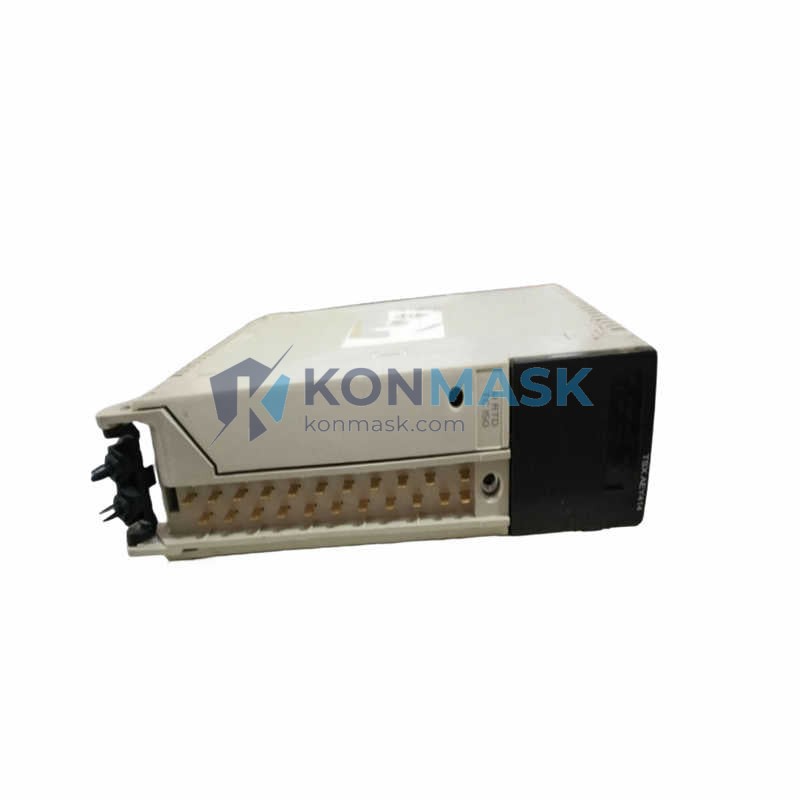

The MODICON TSXAEY414 is a 4-channel analog input module designed for the Schneider Electric TSX Premium PLC platform. It accepts voltage and current signals (0–10 V, ±10 V, 0–20 mA, 4–20 mA) and delivers high-resolution process data acquisition for demanding industrial automation environments. This page provides full technical specifications, verified replacement options, application guidance, and a structured selection guide to help engineers and procurement teams make confident sourcing decisions.
Technical Specifications
- Model: TSXAEY414
- Brand: MODICON / Schneider Electric
- Module Type: Analog Input
- Number of Channels: 4
- Input Signal Types: 0–10 V, ±10 V, 0–20 mA, 4–20 mA (configurable per channel)
- Resolution: 12-bit (4096 steps)
- Conversion Time: ≤ 10 ms per channel
- Isolation: Channel-to-bus isolation
- Compatible Rack: TSX Premium racks (TSX RKY series)
- Power Supply: Supplied via backplane
- Operating Temperature: 0°C to +60°C
- Storage Temperature: −25°C to +70°C
- Humidity: 5–95% RH (non-condensing)
- Protection Rating: IP20
- Weight: Approx. 340 g
- Certifications: CE, UL, cUL
- Programming Software: Unity Pro / PL7 Pro
Compatible Replacement & Equivalent Models
The following modules are verified functional equivalents or drop-in replacements for the TSXAEY414. Always confirm rack compatibility and firmware version before substitution.
- TSXAEY414 (OEM) – Direct original part; preferred for warranty-sensitive installations.
- TSXAEY800 – 8-channel upgrade; use when additional analog inputs are required in the same slot.
- TSXAEY1600 – 16-channel high-density alternative for large-scale process control.
- 140AII33000 (Quantum platform) – Functional equivalent for Modicon Quantum systems; not rack-compatible with Premium.
- TM5SAI4L (Modicon M340/M580 ecosystem) – Next-generation equivalent; requires adapter or migration project.
- Third-party equivalents – Contact Konmask for vetted third-party analog input modules compatible with TSX Premium racks.
Why Choose the Original Model
- Guaranteed compatibility with all TSX Premium rack configurations and Unity Pro / PL7 Pro software.
- Factory-calibrated analog channels ensure measurement accuracy from day one.
- Schneider Electric firmware support – eligible for official firmware updates and technical bulletins.
- Proven field reliability in process industries including oil & gas, water treatment, and manufacturing.
- Simplified spare-parts management – exact form, fit, and function match for existing installations.
Typical Applications
- Temperature monitoring via 4–20 mA transmitters (pressure, flow, level sensors)
- Process variable acquisition in SCADA and DCS hybrid architectures
- Closed-loop PID control with analog feedback signals
- Energy metering and power quality monitoring
- Water and wastewater treatment plant automation
- Pharmaceutical and food & beverage process control
- Machine tool and packaging line integration
System Compatibility
- PLC Platform: Schneider Electric TSX Premium series
- Compatible Racks: TSX RKY4, TSX RKY6, TSX RKY8, TSX RKY12
- CPUs: TSX P57 series (TSX P571, P572, P573, P574, P575, P576)
- Programming Software: Unity Pro XL / L / S / M (v2.0+), PL7 Pro v4.5+
- Communication: Modbus, Uni-Telway, Ethernet (via CPU)
- Not compatible with: TSX Micro, Modicon M340, Modicon M580 (without migration adapter)
Selection Guide
Use the following criteria to confirm the TSXAEY414 is the right module for your application, or to identify the best alternative:
- Channel count needed: 4 channels → TSXAEY414 ✓ | 8 channels → TSXAEY800 | 16 channels → TSXAEY1600
- Signal type: Voltage (0–10 V / ±10 V) or current (0–20 mA / 4–20 mA) → TSXAEY414 ✓
- Platform: TSX Premium rack → TSXAEY414 ✓ | Quantum rack → 140AII33000 | M340/M580 → TM5SAI4L
- Resolution requirement: 12-bit sufficient → TSXAEY414 ✓ | Higher resolution needed → consult Konmask for alternatives
- Budget: OEM new → TSXAEY414 | Refurbished / tested → contact Konmask for certified refurb stock
- Lead time sensitive: In-stock units available at Konmask.com — same-day dispatch for stocked items
Quality Assurance & Sourcing
- Source: Authorized distributor channels and verified surplus stock
- Inspection: Every unit undergoes visual inspection, functional power-on test, and firmware version verification before shipment
- Packaging: Anti-static ESD packaging with original or equivalent protective foam
- Traceability: Batch records and serial number documentation available on request
- Warranty: 12-month replacement warranty on all units sold by Konmask.com
- Counterfeit prevention: All units sourced from traceable supply chains; counterfeit screening applied
How to Order
- Online: Add to cart directly on this page — secure checkout with multiple payment options
- Bulk / B2B inquiry: Email [email protected] with quantity, delivery location, and required lead time
- Phone / WhatsApp: +0086 19859288691 (Mon–Sat, 09:00–18:00 CST)
- Quote request: Use the contact form on Konmask.com for formal RFQ response within 24 hours
- Export orders: We support international shipping with commercial invoice, packing list, and COO documentation
Replacement & Compatibility FAQ
Q: Can I replace TSXAEY414 with TSXAEY800 without reprogramming?
A: The TSXAEY800 is an 8-channel module and will require software reconfiguration in Unity Pro or PL7 Pro to map the additional channels. The physical slot and rack connection are compatible.
Q: Is TSXAEY414 compatible with Modicon M340?
A: No. The TSXAEY414 is designed exclusively for the TSX Premium rack architecture. For M340 systems, the equivalent is the BMX AMI 0410 or TM5SAI4L depending on topology.
Q: Can I use a third-party analog input module as a replacement?
A: Third-party modules may be electrically compatible but are not guaranteed to be recognized by Unity Pro or PL7 Pro without a custom device driver. Contact Konmask for vetted third-party options.
Q: What is the difference between TSXAEY414 and TSXAEY414F?
A: The “F” suffix typically denotes a conformal-coated variant for harsh or humid environments. Verify the suffix with your system documentation before ordering.
Q: Do you supply refurbished TSXAEY414 units?
A: Yes. Konmask.com offers certified refurbished units that have passed full functional testing. Contact us for availability and pricing.
Q: How long does shipping take?
A: Domestic (China): 1–3 business days. International: 5–15 business days depending on destination and shipping method. Express options available.
