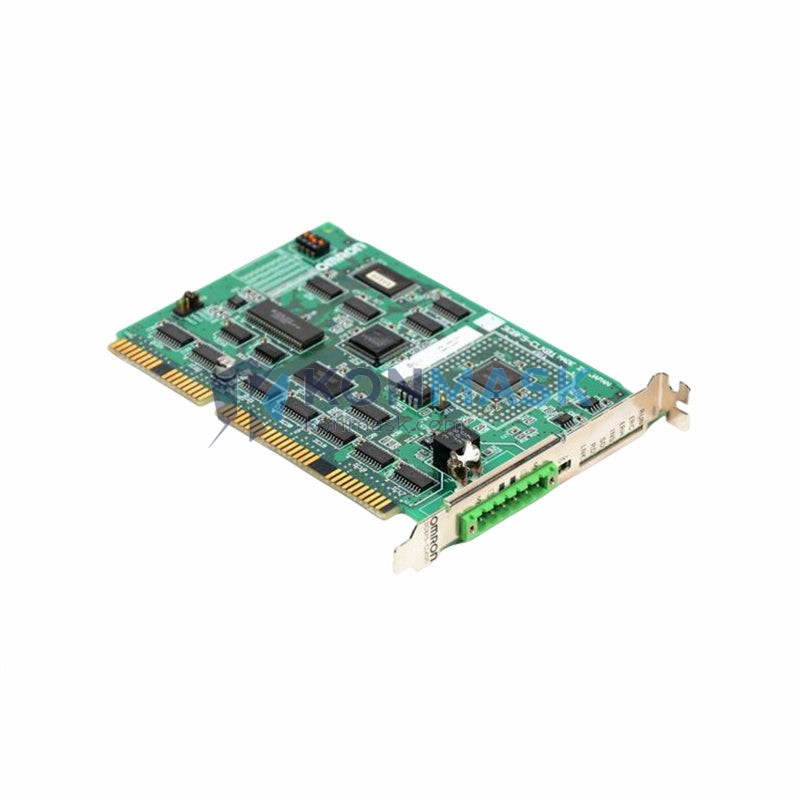

Industrial Network Solution – OMRON 3G8F5-CLK01 | Controller Link Series
Where This Product Is Used
The OMRON 3G8F5-CLK01 Controller Link Support Board is deployed in demanding industrial environments where reliable, high-speed peer-to-peer PLC communication is critical. Typical application scenarios include:
- Automotive Assembly Lines – Synchronizing multiple CS/CJ Series PLCs across body welding, painting, and final assembly stations for coordinated motion and data sharing.
- Food & Beverage Processing Plants – Linking filling, capping, and labeling machines on a single deterministic network to ensure line-speed consistency and traceability.
- Semiconductor Fab Equipment – Enabling real-time data exchange between process controllers in cleanroom environments where latency and reliability are non-negotiable.
- Water Treatment & Utilities – Connecting distributed pump stations and SCADA nodes over Controller Link for centralized monitoring and control.
- Warehouse & Logistics Automation – Coordinating conveyor sorters, barcode scanners, and robotic pick stations through a shared PLC network backbone.
- Machine Tool & CNC Systems – Integrating spindle controllers, servo drives, and safety PLCs on a single high-speed link for precision machining cells.
Technical Specifications
| Attribute | Value |
|---|---|
| Part Number / SKU | 3G8F5-CLK01 |
| Brand | OMRON |
| Series | Controller Link (3G8F5 Series) |
| Compatible PLC Families | CS Series, CJ Series |
| Module Type | Controller Link Support Board (PC Card) |
| Network Protocol | Controller Link (OMRON proprietary, token-bus) |
| Max Nodes per Network | 62 nodes |
| Max Data Link Words | 32,000 words (send/receive) |
| Communication Speed | 2 Mbps (shielded twisted-pair) |
| Max Cable Length | 1,000 m (at 500 kbps); 200 m (at 2 Mbps) |
| Interface | ISA / PC Card slot (host PC side) |
| Weight | 1,320 g |
| Country of Origin | Japan |
Why Engineers Specify This Model
- Deterministic Token-Bus Architecture – Controller Link uses a token-passing protocol that guarantees cycle-time consistency, eliminating the jitter that plagues Ethernet-based solutions in hard real-time applications.
- Large Data Link Tables – Up to 32,000 words of shared memory allow complex multi-node systems to exchange process data without custom messaging routines.
- Proven OMRON Ecosystem Integration – Native compatibility with CX-Programmer, CX-Integrator, and FINS messaging means zero protocol translation overhead and simplified commissioning.
- Robust Noise Immunity – Shielded twisted-pair wiring and differential signaling make the 3G8F5-CLK01 suitable for electrically noisy factory floors with VFDs and high-current switching.
- Long Field Track Record – Widely installed in automotive and process industries since the CS/CJ platform launch; spare parts and expertise are readily available globally.
Complete System Bill of Materials
For a fully operational Controller Link network using the 3G8F5-CLK01, engineers typically specify the following complementary components:
- OMRON CS1W-CLK21-V1 or CJ1W-CLK21-V1 – Controller Link Unit (PLC side)
- OMRON 3G8F5-CLK11 – Controller Link Support Board (alternative ISA variant)
- OMRON WS02-CXPC1-E – CX-Programmer software license
- OMRON CX-Integrator – Network configuration and diagnostics tool
- Shielded twisted-pair cable (OMRON recommended: ESVC0.5 × 2C)
- OMRON DRT2-series DeviceNet slaves (for downstream field device integration)
- 24 VDC DIN-rail power supply (e.g., OMRON S8VS-12024)
Compliance & Industry Standards
- CE Marking – EMC Directive 2014/30/EU compliant
- UL Listed – UL 508 (Industrial Control Equipment)
- RoHS Compliant – Directive 2011/65/EU
- OMRON Controller Link Specification v2.x
- IEC 61131-2 (Programmable Controllers – Equipment Requirements)
Quality Assurance & Sourcing
Every OMRON 3G8F5-CLK01 unit shipped from Konmask.com undergoes the following verification process:
- Visual Inspection – PCB, connectors, and labeling checked against OMRON factory standards.
- Authenticity Verification – Serial number and date code cross-referenced with authorized distributor records.
- Functional Pre-check – Board-level power-on test performed before packaging.
- Anti-static Packaging – Shipped in ESD-safe bags with foam cushioning inside double-wall cartons.
- Traceability – Full lot documentation available upon request for regulated industries.
How to Source This Part
Konmask.com maintains stock of the OMRON 3G8F5-CLK01 for immediate dispatch. To place an order or request a formal quotation:
- Online: Add to cart directly on this page and proceed to checkout.
- Email RFQ: Send your PO or BOM to support@konmask.com for volume pricing.
- Phone / WhatsApp: +0086 19859288691 (Mon–Fri, 09:00–18:00 CST)
- Lead Time: In-stock units ship within 1–2 business days; ETA provided at order confirmation.
- Export: We support DDP, DAP, and EXW Incoterms for international buyers. HS Code: 8537.10.
Application-Specific FAQ
Q: Can the 3G8F5-CLK01 communicate with CJ2 Series PLCs?
A: Yes. The CJ2 CPU supports Controller Link via the CJ1W-CLK21-V1 unit, and the 3G8F5-CLK01 host board participates in the same network without firmware changes.
Q: What is the maximum number of data link words I can allocate per node?
A: Each node can send up to 1,000 words and receive up to 31,000 words, within the 32,000-word total network limit.
Q: Is the 3G8F5-CLK01 compatible with Windows 10/11 for CX-Integrator?
A: OMRON’s CX-Integrator v2.6 and later support Windows 10 (64-bit). Confirm driver compatibility with your specific OS build before installation.
Q: Can I use fiber optic cable instead of twisted-pair?
A: The standard 3G8F5-CLK01 uses shielded twisted-pair. For fiber optic topology, OMRON offers the 3G8F5-CLK11 variant with optical repeaters.
Q: Do you provide a warranty?
A: All units carry a 12-month warranty against manufacturing defects. Contact support@konmask.com for RMA procedures.
