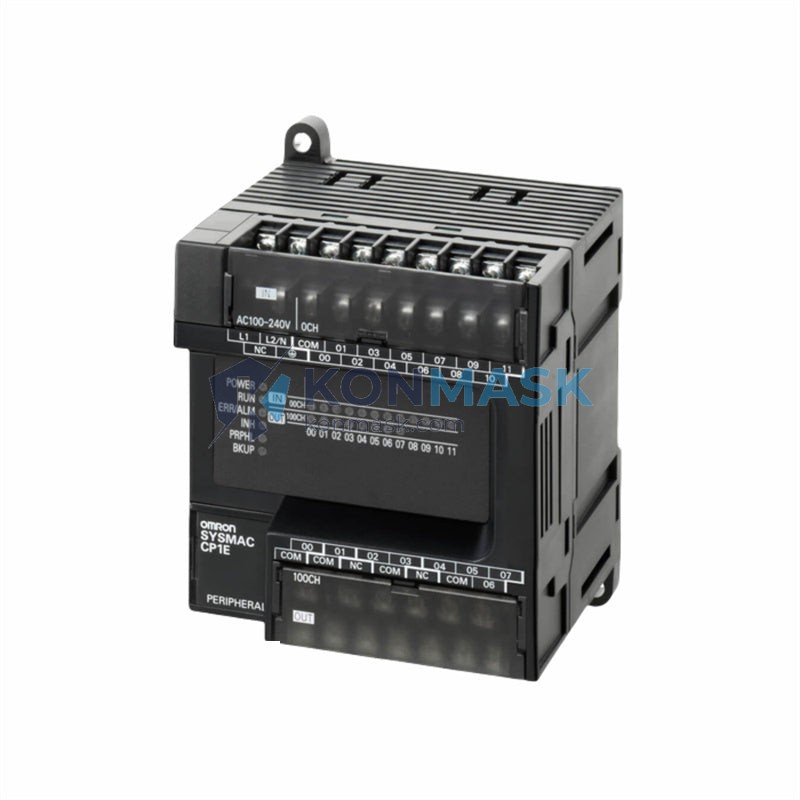

SME Machine Automation Solution – OMRON CP1E-N40SDR-A | CP1E Series
When a production line halts because the PLC CPU fails to execute ladder logic reliably, every minute of downtime translates directly into lost output and missed delivery commitments. The OMRON CP1E-N40SDR-A is the CPU unit that keeps compact machine automation running without interruption — combining sufficient I/O capacity, relay output flexibility, and OMRON’s proven CP1E architecture in a single, cost-effective package.
Where This Product Is Used
The CP1E-N40SDR-A is deployed across a wide range of light-to-medium industrial applications where a compact, reliable PLC CPU is required:
- Packaging Machinery – Controlling conveyor indexing, sealing sequences, and reject mechanisms on food and pharmaceutical packaging lines.
- Injection Molding Machines – Managing mold open/close cycles, ejector timing, and temperature interlock signals.
- Assembly & Test Stations – Coordinating multi-step assembly sequences with sensor feedback and relay-driven actuators.
- HVAC & Building Automation – Sequencing pumps, fans, and damper actuators in commercial building management systems.
- Water Treatment & Pumping Stations – Controlling pump start/stop logic, level monitoring, and alarm relay outputs.
- Textile & Printing Equipment – Synchronizing feed rollers, tension control, and registration mark detection.
- SME General Manufacturing – Any application requiring up to 40 discrete I/O points with relay output switching capability.
Technical Specifications
| Model | CP1E-N40SDR-A |
| Series | CP1E (Economy PLC) |
| CPU Type | N-type (Standard) |
| Total I/O Points | 40 (24 Inputs / 16 Outputs) |
| Output Type | Relay (R) |
| Power Supply | AC 100–240 V |
| Program Capacity | 8K steps |
| Data Memory | 10K words |
| Execution Speed | 0.1 μs/instruction (basic) |
| Communication Ports | USB (peripheral), RS-232C × 1 |
| Expansion Units | Up to 3 CP1E Expansion I/O Units |
| Real-Time Clock | Built-in |
| Programming Software | CX-Programmer / Sysmac Studio |
| Mounting | DIN rail or surface mount |
| Operating Temperature | 0 to 55 °C |
| Protection Rating | IP20 |
| Certifications | CE, UL, cUL |
Note: Specifications are based on OMRON published datasheets. Always verify against the official OMRON CP1E datasheet for your specific revision.
Why Engineers Specify This Model
- 40 I/O in a Compact Footprint – The N40 variant provides the highest built-in I/O count in the CP1E-N range, eliminating the need for an immediate expansion unit in most SME applications.
- Relay Output Versatility – Relay outputs switch both AC and DC loads without external interface relays, simplifying panel wiring and reducing BOM cost.
- AC Power Supply – Direct connection to 100–240 VAC eliminates the need for a separate 24 VDC power supply in many installations.
- RS-232C + USB Dual Port – Enables simultaneous HMI communication and laptop programming without a port-switching adapter.
- Expandable Architecture – Up to 3 expansion units allow the system to grow from 40 to a maximum of 100 I/O points as machine requirements evolve.
- CX-Programmer Compatibility – Fully supported by OMRON’s industry-standard IEC 61131-3 programming environment.
- Proven Global Installed Base – The CP1E series is one of OMRON’s highest-volume compact PLC families, ensuring long-term parts availability.
Complete System Bill of Materials
For a complete CP1E-N40SDR-A control system, engineers typically specify the following companion parts:
- CP1E-N40SDR-A – CPU Unit (this product)
- CP1W-20EDR1 – 20-point Relay Output Expansion I/O Unit
- CP1W-AD041 – 4-channel Analog Input Option Board
- CP1W-DA021 – 2-channel Analog Output Option Board
- CP1W-CIF01 – RS-232C Option Board (additional port)
- NS5-SQ11B-V2 – 5.7″ NS-Series HMI (RS-232C connection)
- CS1W-CN226 – USB-to-Peripheral Programming Cable
Contact Konmask.com to source any of the above companion parts with the same quality assurance process.
Compliance & Industry Standards
- CE Marking – Compliant with EU Low Voltage Directive and EMC Directive.
- UL / cUL Listed – Recognized for use in North American industrial control panels.
- IEC 61131-2 – Programmable controllers hardware standard compliance.
- RoHS Compliant – Restriction of Hazardous Substances Directive.
Quality Assurance & Sourcing
At Konmask.com, every OMRON CP1E-N40SDR-A unit goes through a structured verification process before shipment:
- Authenticity Check – Label verification, hologram inspection, and serial number cross-reference against OMRON’s product identification guidelines.
- Visual Inspection – Connector pin integrity, PCB surface condition, and housing damage assessment.
- Functional Power-On Test – Unit is powered and self-diagnostic LEDs are confirmed operational where test infrastructure permits.
- Packaging Integrity – Anti-static bag, foam cushioning, and moisture-barrier packaging for international shipment.
- Documentation – Certificate of conformity and inspection report available upon request.
How to Source This Part
- Submit an Inquiry – Use the contact form or email support@konmask.com with your required quantity and delivery timeline.
- Receive a Quote – Our team responds within 1 business day with pricing, lead time, and shipping options.
- Confirm & Pay – Secure payment via T/T bank transfer, PayPal, or other agreed methods.
- Shipment & Tracking – Units are dispatched via DHL / FedEx / UPS with full tracking provided.
- After-Sales Support – Technical questions and warranty claims handled directly by our engineering team.
Application-Specific FAQ
Q: Can the CP1E-N40SDR-A control a servo drive directly?
A: The N-type CP1E does not support built-in pulse output for servo positioning. For servo axis control, specify the CP1E-N40SDT-A (transistor output) or upgrade to the CP1L/CP2E series with pulse output capability.
Q: How many expansion units can be connected?
A: Up to 3 CP1E Expansion I/O Units, bringing the maximum system I/O to 100 points.
Q: Is the CP1E-N40SDR-A compatible with OMRON NS-series HMIs?
A: Yes. The built-in RS-232C port supports direct connection to NS-series HMIs using the OMRON Host Link / NT Link protocol.
Q: What is the difference between CP1E-N40SDR-A and CP1E-N40SDT-A?
A: The R suffix denotes relay output; the T suffix denotes transistor (NPN) output. Relay outputs handle higher load currents and both AC/DC loads; transistor outputs are required for high-speed pulse output applications.
Q: Does Konmask.com ship internationally?
A: Yes. We ship worldwide via DHL, FedEx, and UPS. Export documentation including commercial invoice and packing list is provided for customs clearance.
