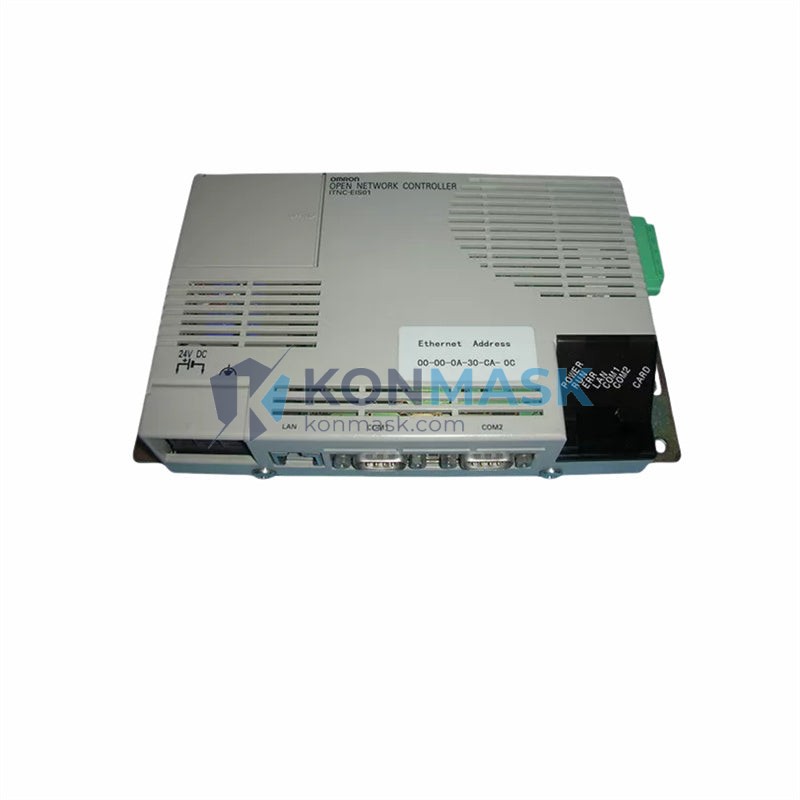

OMRON ITNC-EIS01-DRM – DeviceNet Open Network Controller | CS/CJ Series Platform
Engineering Background
The ITNC-EIS01-DRM is OMRON’s dedicated Open Network Controller designed to bridge Ethernet-based supervisory systems with DeviceNet field-level networks. It operates as a standalone gateway device, eliminating the need for a host PLC CPU while enabling direct I/O data exchange between DeviceNet slaves and upper-level SCADA, MES, or EtherNet/IP systems. This architecture is widely adopted in automotive assembly lines, semiconductor fabs, and process automation facilities where deterministic field-bus communication is critical.
Product Positioning
Targeted at control system engineers who require a compact, DIN-rail-mountable network bridge with robust DeviceNet master functionality, the ITNC-EIS01-DRM reduces panel footprint and wiring complexity compared to traditional PLC-based gateway solutions. It is fully compatible with OMRON’s CX-Integrator configuration software and supports standard EDS file management for rapid node commissioning.
Complete Technical Specifications
| Parameter | Specification |
|---|---|
| Model Number | ITNC-EIS01-DRM |
| Manufacturer | OMRON Corporation |
| Product Series | ITNC (Intelligent Network Controller) |
| Network Interface (Upper) | Ethernet (100BASE-TX / 10BASE-T) |
| Field Network (Lower) | DeviceNet (Master, Group 2 Only) |
| DeviceNet Nodes Supported | Up to 63 slave nodes |
| DeviceNet Baud Rates | 125 kbps / 250 kbps / 500 kbps |
| I/O Data Points | Max. 2,048 bits IN / 2,048 bits OUT |
| Communication Protocol | EtherNet/IP, FINS/TCP, FINS/UDP |
| Power Supply | 24 VDC (±10%), 0.5 A max |
| Operating Temperature | 0 to 55 °C |
| Storage Temperature | -20 to 75 °C |
| Operating Humidity | 10% to 90% RH (non-condensing) |
| Dimensions (W × H × D) | Approx. 35 × 90 × 65 mm |
| Weight | Approx. 140 g |
| Mounting | DIN Rail (35 mm) |
| Protection Rating | IP20 |
| Configuration Software | CX-Integrator (Ver. 2.0 or later) |
| Certifications | CE, UL, cUL |
| Country of Origin | Japan |
Proven Application Environments
- Automotive Manufacturing: Body-shop conveyor control with DeviceNet I/O slaves managed via EtherNet/IP to plant-level SCADA.
- Semiconductor Fabrication: Cleanroom equipment interlocking where deterministic DeviceNet scan cycles are mandatory.
- Food & Beverage Processing: Hygienic line control integrating distributed I/O blocks without a dedicated PLC CPU in each panel.
- Pharmaceutical Batch Control: FDA 21 CFR Part 11-compliant systems requiring auditable network topology documentation.
- Building Automation: HVAC and access-control integration bridging legacy DeviceNet sensors to modern IP-based BMS platforms.
- Machine Tool & Robotics: Multi-axis servo coordination where the ITNC-EIS01-DRM acts as a network concentrator for DeviceNet-enabled drives.
Engineering Advantages
- CPU-less Gateway Architecture: Eliminates the cost and complexity of a full PLC CPU unit for pure network bridging tasks.
- Dual-Protocol Upper Layer: Simultaneous EtherNet/IP and FINS support allows integration with both OMRON and third-party Ethernet controllers.
- High Node Density: Supports up to 63 DeviceNet slaves per unit, covering large distributed I/O topologies in a single device.
- EDS-Based Configuration: Standard Electronic Data Sheet management via CX-Integrator accelerates commissioning and reduces human error.
- Compact DIN-Rail Form Factor: 35 mm width minimizes control panel real estate while maintaining full industrial-grade performance.
- Wide Temperature Range: 0–55 °C operating range suits demanding factory floor environments without additional cooling.
System Architecture & Signal Flow
The ITNC-EIS01-DRM operates as a DeviceNet Master on the field side and as an EtherNet/IP Adapter or FINS node on the supervisory side. Signal flow is as follows:
- DeviceNet Slaves (sensors, actuators, I/O blocks) → cyclic polled I/O via DeviceNet trunk/drop cable.
- ITNC-EIS01-DRM internal memory maps DeviceNet I/O data into FINS memory areas (CIO, DM).
- Ethernet upper layer exposes this memory to SCADA/MES via EtherNet/IP explicit messaging or FINS/TCP commands.
- Host controller (PC, OMRON PLC, or third-party system) reads/writes I/O data over standard Ethernet without any DeviceNet hardware.
This architecture decouples field-bus timing from supervisory polling intervals, ensuring deterministic DeviceNet scan cycles regardless of Ethernet network load.
Sourcing & Quality Verification
- All units sourced through authorized OMRON distribution channels or verified surplus with full traceability documentation.
- Each unit undergoes incoming inspection: visual check, label verification (date code, country of origin), and power-on functional test.
- Firmware version and MAC address are recorded prior to shipment for full unit-level traceability.
- Packaging inspected for OEM seals; any resealed or relabeled units are rejected and quarantined.
- Certificate of Conformance (CoC) available upon request for regulated industries.
Procurement Process
- Confirm Quantity & Lead Time: Contact us via the form below or email support@konmask.com with your required quantity and delivery deadline.
- Quotation: We respond within 1 business day with a formal quotation including unit price, shipping cost, and estimated delivery.
- Order Confirmation: Submit your PO or place the order directly on this page. Payment via T/T, PayPal, or credit card accepted.
- Quality Inspection & Packing: Units are inspected, photographed, and packed in anti-static ESD bags with bubble wrap protection.
- Shipment: Dispatched via DHL / FedEx / UPS with full tracking. Export documentation (commercial invoice, packing list, COO) provided.
- After-Sales Support: 12-month warranty against manufacturing defects. Technical support available via email or WhatsApp.
Technical FAQ
Q: Can the ITNC-EIS01-DRM replace a CS1W-DRM21 DeviceNet master unit?
A: Functionally yes for pure I/O data exchange, but the ITNC-EIS01-DRM is a standalone controller, not a CS/CJ backplane unit. It connects to the host system via Ethernet rather than the PLC backplane.
Q: What is the maximum cable length for the DeviceNet network?
A: At 125 kbps, the trunk cable can extend up to 500 m. At 500 kbps, the maximum trunk length is 100 m, per DeviceNet specification.
Q: Is CX-Integrator required for initial setup?
A: Yes. CX-Integrator (Ver. 2.0+) is required to configure the DeviceNet scan list, assign node addresses, and map I/O data to FINS memory areas.
Q: Does this unit support explicit messaging to DeviceNet slaves?
A: Yes. In addition to polled I/O, the ITNC-EIS01-DRM supports explicit message commands for parameter read/write operations on DeviceNet devices.
Q: What happens if the Ethernet connection is lost?
A: The DeviceNet master scan continues uninterrupted. The unit maintains the last commanded output states until the Ethernet connection is restored or a watchdog timeout triggers a configurable fail-safe output state.
Q: Is the unit compatible with third-party EtherNet/IP scanners (e.g., Allen-Bradley)?
A: Yes. As a standard EtherNet/IP adapter, the ITNC-EIS01-DRM can be accessed by any EtherNet/IP scanner that supports the standard I/O connection model.
