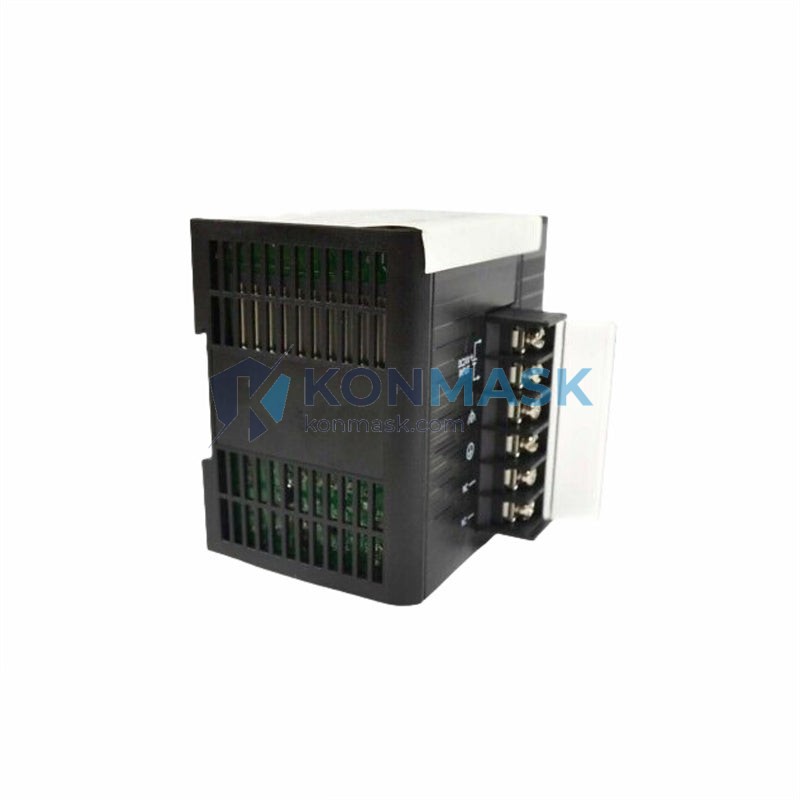

OMRON NE2A-PD025 Safety Network Controller Power Supply Module | Replacement, Equivalent & Selection Guide
The OMRON NE2A-PD025 is a dedicated power supply module for the OMRON NE2A-series Safety Network Controller (DeviceNet Safety). It provides stable, isolated DC power to the safety controller backplane, ensuring reliable operation in safety-critical automation environments. This page serves as a comprehensive selection, replacement, and compatibility reference for engineers and procurement teams sourcing the NE2A-PD025 or its equivalents.
Technical Specifications
- Model: NE2A-PD025
- Brand: OMRON
- Series: NE2A Safety Network Controller
- Module Type: Power Supply Module
- Input Voltage: 24 VDC (20.4–28.8 VDC)
- Output Current: 2.5 A (internal bus)
- Safety Standard: IEC 61508 SIL 3, ISO 13849-1 PLe / Cat. 4
- Network Protocol: DeviceNet Safety (DST)
- Mounting: DIN rail, NE2A backplane slot
- Weight: Approx. 1,470 g (with packaging)
- Operating Temperature: 0–55 °C
- Protection Class: IP20
- Certifications: CE, UL, TÜV
Compatible Replacement & Equivalent Models
When the NE2A-PD025 is unavailable or end-of-life, the following models may serve as functional replacements or equivalents depending on your system configuration. Always verify electrical and mechanical compatibility before substitution.
- OMRON NE2A-PD025 (OEM) — Direct replacement; identical form, fit, and function.
- OMRON NE1A-PD025 — Power supply for NE1A-series; compatible in mixed NE1A/NE2A backplane configurations (verify slot assignment).
- OMRON NE2A-SCPU01(-V1) — CPU unit with integrated power; may replace PD025 in single-unit deployments where CPU consolidation is acceptable.
- Third-party 24 VDC DIN-rail PSU (e.g., MEAN WELL SDR-75-24) — External power source option; requires additional wiring and does not mount in the NE2A backplane slot. Suitable only for external supply configurations.
Note: Konmask.com recommends using genuine OMRON NE2A-PD025 modules for safety-certified installations. Substitutions must be validated by a qualified safety engineer.
Why Choose the Original NE2A-PD025
- Safety Integrity: Factory-certified to SIL 3 / PLe — no re-validation required when replacing like-for-like.
- Plug-and-Play: Designed exclusively for the NE2A backplane; zero wiring modification needed.
- Stable Supply: Isolated output eliminates ground-loop interference in safety I/O circuits.
- Long Service Life: OMRON industrial-grade components rated for 24/7 continuous operation.
- Regulatory Compliance: Maintains CE / UL / TÜV certification of the overall safety system.
Typical Applications
- Machine safety systems with DeviceNet Safety networks
- Automotive body-shop welding lines and press safety guarding
- Packaging and palletizing machinery with light-curtain integration
- Semiconductor fab equipment requiring SIL 3 power isolation
- Food & beverage processing lines with safety door interlocks
- Collaborative robot (cobot) safety controller power supply
System Compatibility
- Compatible Controllers: OMRON NE2A-SCPU01, NE2A-SCPU01-V1, NE2A-SCPU02
- Compatible Backplanes: NE2A series expansion backplanes
- Network: DeviceNet Safety (DST) — compatible with OMRON CJ-series, CS-series, and NJ/NX-series master units
- Software: OMRON CX-One / CX-Safety (for system configuration; power module itself requires no software setup)
- Not Compatible With: NE1A-series backplanes (different slot pitch), SmartSlice G9SA series
Selection Guide
Use the following criteria to confirm the NE2A-PD025 is the correct module for your application:
- Step 1 — Identify your controller series: Confirm your CPU is NE2A-SCPU01 or NE2A-SCPU02. If NE1A, select NE1A-PD025 instead.
- Step 2 — Count power slots: Each NE2A backplane supports one PD025 per power domain. Verify the number of power supply slots required.
- Step 3 — Check input voltage: Confirm your panel supplies 24 VDC ±15%. If voltage fluctuates beyond this range, add an upstream voltage regulator.
- Step 4 — Verify safety level: NE2A-PD025 supports up to SIL 3 / PLe. If your application requires only SIL 2 / PLd, the NE2A-PD025 is still fully compliant (over-specified but acceptable).
- Step 5 — Confirm certifications: For CE-marked machinery exported to the EU, ensure the complete NE2A system (CPU + PD025 + I/O) carries the required declarations.
Quality Assurance & Sourcing
- All NE2A-PD025 units sourced by Konmask.com are procured through authorized industrial distribution channels.
- Each unit undergoes incoming inspection: label verification, firmware version check, and power-on functional test.
- Original OMRON packaging, serial number, and date code are preserved and documented.
- Traceability records available upon request for regulated industries (automotive, pharma, semiconductor).
- Warranty: 12 months from shipment date against manufacturing defects.
How to Order
- Part Number: NE2A-PD025
- Brand: OMRON
- Availability: Contact us for real-time stock status and lead time.
- Minimum Order: 1 unit
- Shipping: DHL / FedEx international express; EXW Xiamen, China
- Payment: T/T, PayPal, Trade Assurance
- Request a Quote: [email protected] | +0086 19859288691
Replacement & Compatibility FAQ
Q: Can I use NE1A-PD025 in place of NE2A-PD025?
A: No. The NE1A and NE2A backplanes use different slot pitches and connector pinouts. Cross-series substitution is not supported.
Q: Is the NE2A-PD025 still in production?
A: OMRON periodically updates product lifecycle status. Contact Konmask.com for the latest availability and recommended successor models.
Q: Does replacing the power supply module require re-validation of the safety system?
A: Like-for-like replacement with a genuine NE2A-PD025 typically does not require full re-validation, but always consult your safety engineer and applicable machinery directive requirements.
Q: What is the typical lead time?
A: In-stock units ship within 1–3 business days. Out-of-stock lead time is 4–8 weeks depending on OMRON production schedule.
Q: Can Konmask.com provide a certificate of conformity?
A: Yes. CoC, test reports, and traceability documentation are available upon request.
