OMRON CSK6-YKW Electromagnetic Counter | Replacement, Equivalent & Selection Guide

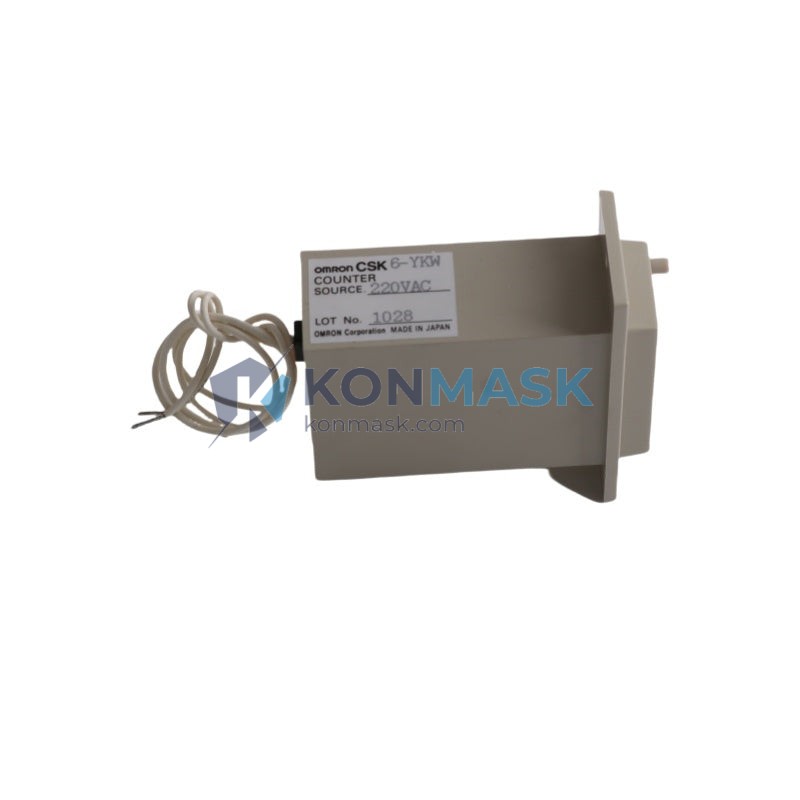

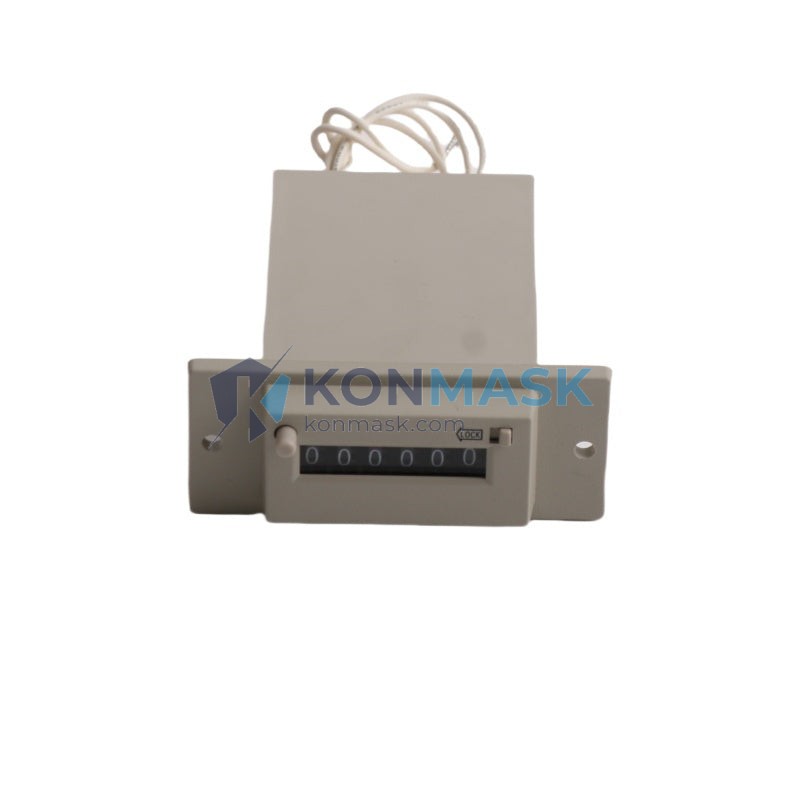

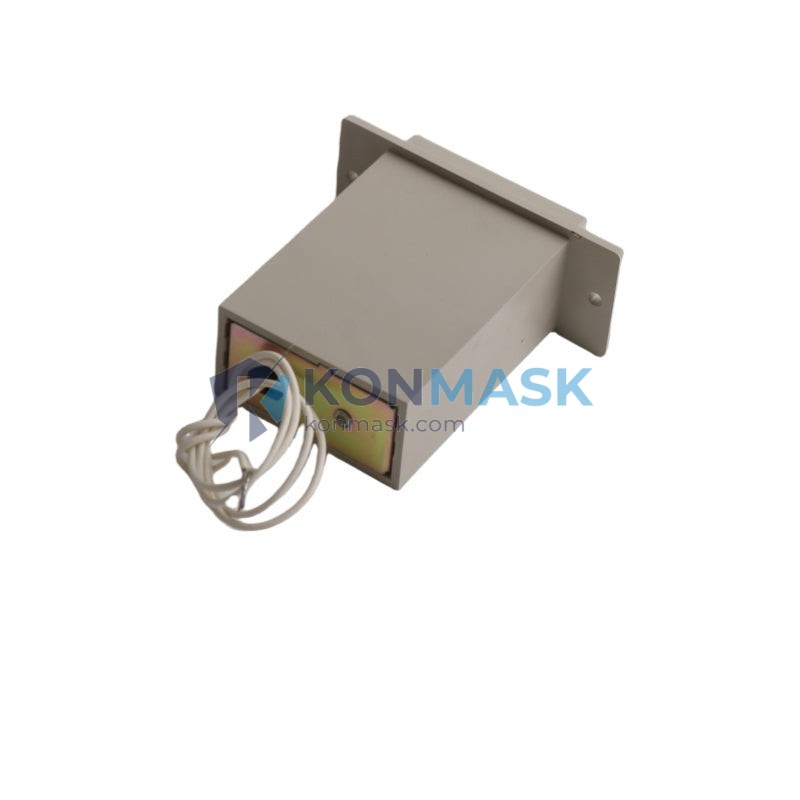

The OMRON CSK6-YKW is a 6-digit electromagnetic (mechanical) counter from OMRON’s CSK Series, designed for reliable pulse counting in industrial automation environments. This guide helps engineers and procurement teams identify compatible replacements, equivalent models, and make informed selection decisions.
Technical Specifications
| Model | CSK6-YKW |
| Brand | OMRON |
| Series | CSK (Electromagnetic Counter) |
| Digit Count | 6 digits |
| Type | Electromagnetic (Mechanical) Counter |
| Reset Method | Manual (Knob Reset) |
| Counting Speed | Up to 30 counts/min (electromagnetic) |
| Coil Voltage | 100–240 VAC / 12–24 VDC (confirm with datasheet) |
| Mounting | Panel mount, flush type |
| Display | Mechanical digit wheel |
| Weight | Approx. 123 g |
| Compliance | CE, RoHS |
Compatible Replacement & Equivalent Models
When the CSK6-YKW is unavailable or discontinued, the following models may serve as functional equivalents. Always verify electrical and mechanical compatibility before substitution:
| Model | Brand | Digits | Type | Notes |
|---|---|---|---|---|
| CSK6-YKW | OMRON | 6 | Electromagnetic | Original model |
| CSK5-YKW | OMRON | 5 | Electromagnetic | 5-digit variant, same series |
| H7EC-N | OMRON | 8 | Electronic (DIN) | Upgrade option, DIN rail mount |
| H7CX-A-N | OMRON | 8 | Electronic | Preset counter upgrade |
| CE6-YKW | Autonics | 6 | Electromagnetic | Cross-brand equivalent |
| LC6H-F-AC | Hengstler | 6 | Electromagnetic | European equivalent |
Note: Cross-brand substitutions require verification of coil voltage, terminal layout, and panel cutout dimensions.
Why Choose the Original Model
- Proven Reliability: OMRON CSK Series has decades of field-proven performance in industrial environments.
- OEM Compatibility: Exact fit for machines originally specified with CSK6-YKW — no mechanical or electrical modification required.
- Spare Parts Availability: Widely stocked globally; easier to source for MRO and maintenance programs.
- Warranty & Support: Genuine OMRON parts carry manufacturer traceability and quality assurance.
- No Reprogramming: Mechanical counters require zero configuration — install and operate immediately.
Typical Applications
- Production line piece counting and batch control
- Conveyor belt cycle monitoring
- Packaging machinery stroke counting
- Press and stamping machine operation counting
- Injection molding shot counters
- Utility metering and totalizing
- General-purpose industrial pulse counting
System Compatibility
The CSK6-YKW integrates with a wide range of OMRON and third-party automation systems:
- PLC Systems: Compatible with OMRON CJ/CS/NX Series PLC output modules (transistor or relay output)
- Sensors: Works with OMRON E3Z, E2E, and E18 series proximity/photoelectric sensors as pulse sources
- Panel Cutout: Standard 48×24 mm flush-mount cutout (verify with installation drawing)
- Wiring: Standard screw terminal block; compatible with 0.5–1.5 mm² wire
Selection Guide
Use the following criteria to confirm the CSK6-YKW is the right model for your application:
- Digit Count: Need 6 digits (max count: 999,999)? → CSK6-YKW ✓ | Need 5 digits? → CSK5-YKW
- Reset Type: Manual knob reset required? → CSK6-YKW ✓ | Need electrical reset? → Consider H7EC-N
- Counting Speed: ≤30 counts/min? → Electromagnetic type sufficient ✓ | Higher speed? → Electronic counter recommended
- Environment: Standard industrial (IP40 panel front)? → CSK6-YKW ✓ | Harsh/wet environment? → Specify IP65 rated alternative
- Budget: Cost-sensitive MRO replacement? → CSK6-YKW offers best value in class
Quality Assurance & Sourcing
- Genuine Parts Only: All units sourced from authorized OMRON distributors or verified surplus channels with full traceability.
- Pre-Shipment Inspection: Each unit visually inspected for label integrity, digit wheel condition, and terminal quality.
- Authenticity Verification: Batch and date codes cross-referenced against OMRON manufacturer records where available.
- Packaging: Shipped in original or protective anti-static packaging to prevent transit damage.
- Documentation: Certificate of conformity and packing list provided with every order.
How to Order
- Step 1: Confirm model number: CSK6-YKW and required quantity.
- Step 2: Submit your RFQ via the product page or email support@konmask.com.
- Step 3: Receive quote with lead time, unit price, and shipping options within 24 hours.
- Step 4: Confirm order and receive tracking information upon dispatch.
- Step 5: Inspect upon delivery — we support returns for non-conforming items.
For urgent requirements or bulk orders (>10 units), contact us directly at +0086 19859288691 for priority processing.
Replacement & Compatibility FAQ
Q: Can I replace CSK6-YKW with CSK5-YKW?
A: Only if your application can tolerate a 5-digit maximum count (99,999). The panel cutout and wiring are similar, but verify dimensions before installation.
Q: Is H7EC-N a direct drop-in replacement?
A: No. The H7EC-N is an electronic DIN-rail counter with different mounting and wiring. It offers more features but requires panel modification.
Q: Can Autonics CE6-YKW replace OMRON CSK6-YKW?
A: In many cases yes — verify coil voltage, terminal pitch, and panel cutout dimensions. Functional performance is comparable.
Q: Do you supply both new and refurbished units?
A: We primarily supply new-in-box genuine units. Refurbished or tested-used units are available on request with full disclosure of condition.
Q: How do I verify authenticity of my OMRON counter?
A: Check the OMRON hologram label, batch code, and date code on the unit. Contact us if you need assistance with verification.
