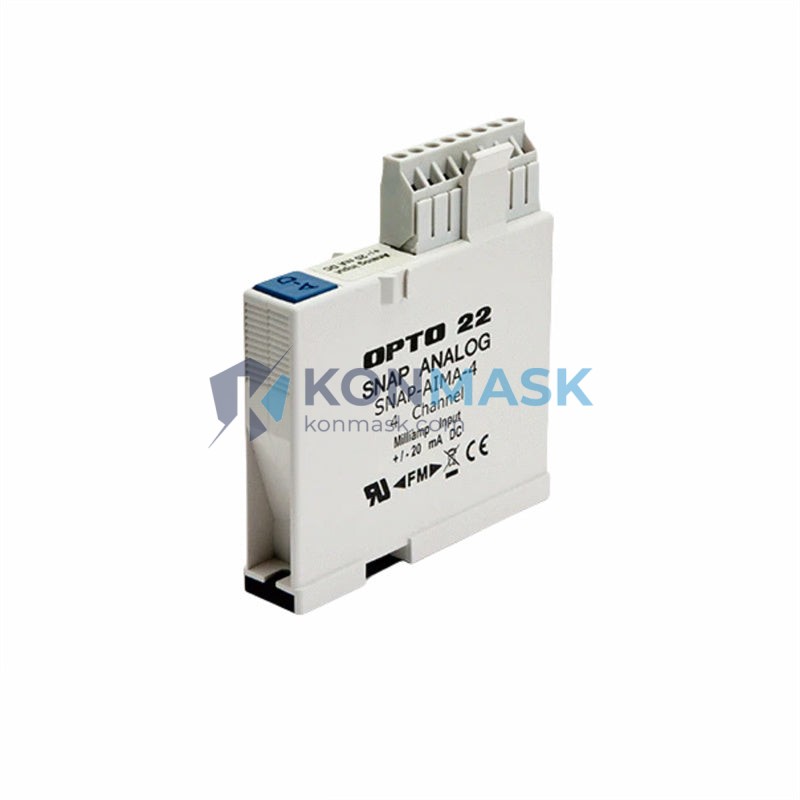

OPTO22 SNAP-AIMA-4 – 4-Channel Analog Current Input Module | SNAP I/O Platform
Engineering Background
The OPTO22 SNAP-AIMA-4 is a high-precision analog current input module designed for the SNAP I/O distributed I/O platform. It accepts four independent 4–20 mA current loop signals, making it the standard choice for process instrumentation in industrial control systems where signal integrity and isolation are critical. OPTO22’s SNAP I/O architecture has been deployed globally across oil & gas, water treatment, food processing, and discrete manufacturing for over two decades.
Product Positioning
Targeted at control engineers and system integrators who require reliable, rack-mountable analog acquisition with galvanic isolation per channel. The SNAP-AIMA-4 integrates directly with OPTO22 SNAP PAC controllers and brain boards, enabling deterministic data acquisition without external signal conditioning hardware.
Complete Technical Specifications
| Part Number / SKU | SNAP-AIMA-4 |
| Manufacturer | OPTO22 |
| Series / Platform | SNAP I/O |
| Module Type | Analog Input |
| Number of Channels | 4 (independent) |
| Input Signal Range | 4–20 mA current loop |
| Resolution | 12-bit (4096 counts) |
| Accuracy | ±0.1% of full scale |
| Input Impedance | 250 Ω (typical) |
| Isolation | 4,000 V optical isolation per channel |
| Operating Temperature | 0°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Power Consumption | 1.0 W (typical) |
| Backplane Compatibility | SNAP mounting racks (4-position, 8-position, 16-position) |
| Compatible Controllers | SNAP PAC R-series, S-series; SNAP-LCE; SNAP-ENET-RTC |
| Certifications | UL Listed, CE Marked, RoHS Compliant |
| Dimensions | Standard SNAP I/O module form factor |
| Weight | 1,260 g (packaged) |
| Country of Origin | USA |
Proven Application Environments
- Process Control: Flow, pressure, temperature, and level transmitter signal acquisition in continuous process plants
- Water & Wastewater: SCADA integration for pump station monitoring and chemical dosing control
- Oil & Gas: Remote terminal unit (RTU) analog data collection in hazardous-area adjacent panels
- Food & Beverage: CIP/SIP process parameter monitoring with hygienic-area transmitters
- Building Automation: HVAC sensor integration via BACnet/IP gateways paired with SNAP PAC controllers
- Discrete Manufacturing: Machine-level analog feedback loops for tension, force, and position control
Engineering Advantages
- Per-Channel Optical Isolation (4,000 V): Eliminates ground loops and protects the controller backplane from field-side transients — critical in long-cable industrial installations
- Hot-Swap Capable: Modules can be replaced under power without shutting down the rack, minimizing process downtime
- 4-Wire Current Loop Support: Compatible with both 2-wire and 4-wire transmitter configurations
- Deterministic Scan Rate: Synchronized with SNAP PAC controller scan cycle for time-stamped data acquisition
- No External Signal Conditioning Required: Integrated 250 Ω burden resistor eliminates the need for separate I/P converters
- Compact Modular Form Factor: Snap-in mounting reduces panel wiring time versus traditional DIN-rail terminal block assemblies
System Architecture & Signal Flow
Field transmitters (4–20 mA, 2-wire or 4-wire) connect directly to the SNAP-AIMA-4 screw terminals. Each channel is optically isolated before the analog-to-digital converter (ADC), which digitizes the signal to 12-bit resolution. The digitized value is passed via the SNAP backplane to the host controller (SNAP PAC or brain board), where it is available as a floating-point engineering unit value in the controller’s I/O table. Communication to supervisory systems (SCADA, HMI, MES) is handled by the controller via Ethernet/IP, Modbus TCP, or OPC-UA — no additional gateway hardware is required for standard protocols.
Sourcing & Quality Verification
- All OPTO22 modules supplied by Konmask.com are sourced from authorized distribution channels or verified surplus with full traceability
- Each unit undergoes incoming inspection: label verification, firmware/revision check, and functional continuity test prior to dispatch
- Original OEM packaging preserved where available; repackaged units are clearly identified with inspection certificates
- Counterfeit-risk mitigation: OPTO22 modules carry laser-etched serial numbers verifiable against OPTO22’s product database
- Warranty: 12-month Konmask.com operational warranty on all verified units
Procurement Process
- Step 1 – Inquiry: Submit your BOM or part number via the product page or email support@konmask.com with quantity and required delivery date
- Step 2 – Quote: Receive a formal quotation within 1 business day including unit price, lead time, and shipping options (DHL Express / FedEx IP / sea freight)
- Step 3 – Order Confirmation: Purchase order or online checkout accepted; T/T bank transfer, PayPal, and credit card supported
- Step 4 – Inspection & Dispatch: Pre-shipment inspection report issued; tracking number provided within 24 hours of dispatch
- Step 5 – After-Sales: Technical support available via email and WhatsApp; RMA process initiated within 48 hours for any quality claims
Technical FAQ
Q: Is the SNAP-AIMA-4 compatible with SNAP PAC S-series controllers?
A: Yes. The SNAP-AIMA-4 is compatible with all SNAP PAC R-series and S-series controllers, as well as legacy SNAP-LCE and SNAP-ENET-RTC brain boards, provided the firmware is current.
Q: Can I use 0–20 mA transmitters with this module?
A: The module is rated for 4–20 mA. While 0–20 mA signals may be physically connected, the lower range (0–4 mA) falls outside the calibrated range and accuracy cannot be guaranteed. Use OPTO22 SNAP-AIMA-8 or SNAP-AIV for 0–10 V / 0–20 mA applications.
Q: What is the maximum cable length for field wiring?
A: OPTO22 does not specify a maximum cable length for the SNAP-AIMA-4. In practice, 4–20 mA current loops support cable runs of 300–1,000 m depending on loop resistance and transmitter compliance voltage. Shielded twisted-pair (STP) cable is recommended for runs exceeding 50 m.
Q: Does the module require external loop power?
A: For 2-wire (loop-powered) transmitters, external 24 VDC loop power must be supplied by the user. The SNAP-AIMA-4 does not provide loop excitation voltage. For 4-wire transmitters, the transmitter supplies its own power independently.
Q: Is this module available for immediate shipment?
A: Stock availability varies. Contact support@konmask.com or call +0086 19859288691 for real-time inventory status and lead time confirmation.
