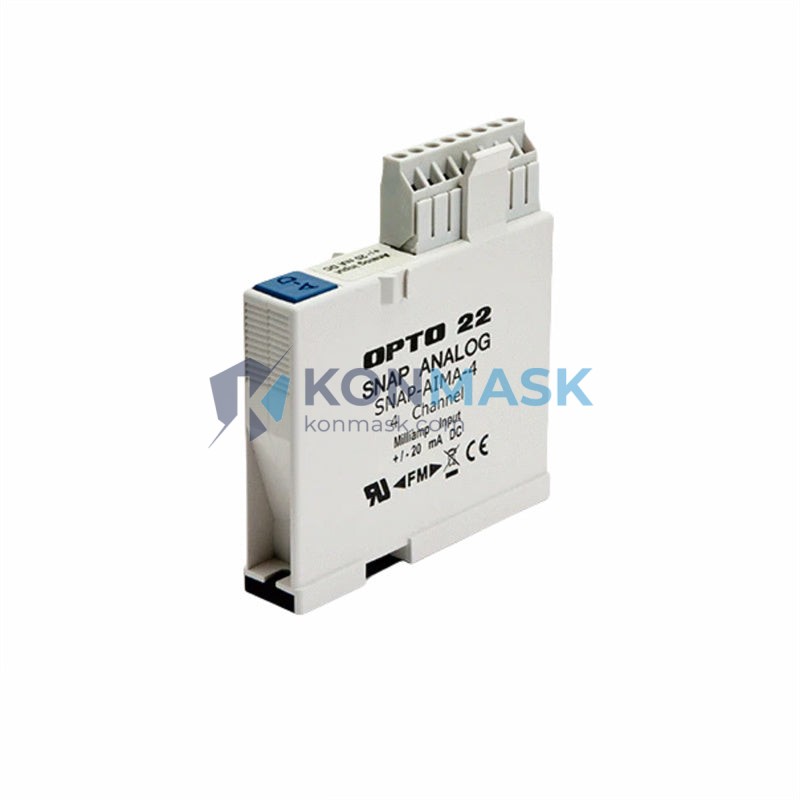

OPTO22 SNAP-AIMA-I Analog Current Input Module | Replacement, Equivalent & Selection Guide
The OPTO22 SNAP-AIMA-I is a 4-channel analog current input module designed for the SNAP PAC and SNAP Ultimate I/O systems. It accepts industry-standard 4–20 mA signals and delivers high-resolution process data to your controller. Whether you are maintaining an existing OPTO22 installation or evaluating alternatives, this guide covers specifications, compatible replacements, and selection criteria to help you make the right decision.
Technical Specifications
- Part Number: SNAP-AIMA-I
- Manufacturer: OPTO22
- Module Type: Analog Current Input
- Number of Channels: 4
- Input Range: 4–20 mA (current loop)
- Resolution: 12-bit (0–4095 counts)
- Accuracy: ±0.1% of full scale
- Input Impedance: 249 Ω
- Isolation: Optically isolated, 4,000 V channel-to-bus
- Operating Temperature: 0°C to 70°C (32°F to 158°F)
- Power Consumption: 100 mA @ 5 VDC (from SNAP rack)
- Compatible Racks: SNAP-B4, SNAP-B8, SNAP-B16, SNAP-LCSX, SNAP-PAC-R1/R2/S1/S2
- Certifications: UL Listed, CE Marked, RoHS Compliant
- Weight: 1,260 g (module + packaging)
- Country of Origin: USA
Compatible Replacement & Equivalent Models
If the SNAP-AIMA-I is discontinued, on long lead time, or outside your budget, the following models offer functional equivalence or drop-in compatibility:
- OPTO22 SNAP-AIMA – Predecessor model; same 4-channel 4–20 mA input, slightly lower isolation rating. Direct form-factor replacement.
- OPTO22 SNAP-AIV – Voltage input variant (0–10 V); use when your field devices output voltage instead of current.
- OPTO22 SNAP-AIMA-4 – Extended range model supporting 0–20 mA; suitable when transmitters do not use live-zero convention.
- Advantech ADAM-3017 – DIN-rail analog input module with 4–20 mA support; requires signal conditioning adapter for SNAP rack mounting.
- Wago 750-455 – 2-channel 4–20 mA input for Wago 750 fieldbus coupler; suitable for system migration projects.
- Phoenix Contact AXL F AI4 I 1H – Axioline F 4-channel current input; compatible via gateway when migrating to Phoenix Contact platforms.
Note: Third-party replacements may require wiring adapters or software reconfiguration. Always verify rack compatibility and firmware version before substitution.
Why Choose the Original SNAP-AIMA-I
- Proven Reliability: OPTO22 modules are known for 30+ years of industrial-grade performance with no firmware required on the module itself.
- Hot-Swap Capable: Replace the module without powering down the rack, minimizing process downtime.
- High Isolation: 4,000 V optical isolation protects your controller from field-side transients and ground loops.
- Seamless Integration: Native support in PAC Control, Node-RED, and REST API environments with zero additional drivers.
- Long Product Lifecycle: OPTO22 maintains backward compatibility across generations, protecting your capital investment.
Typical Applications
- Process control: flow, pressure, temperature, and level measurement via 4–20 mA transmitters
- Water and wastewater treatment plant monitoring
- Oil & gas pipeline instrumentation
- Building automation and HVAC control systems
- Pharmaceutical and food & beverage batch processing
- Factory automation and machine condition monitoring
System Compatibility
- Controllers: SNAP-PAC-R1, SNAP-PAC-R2, SNAP-PAC-S1, SNAP-PAC-S2, SNAP-LCE, SNAP-LCSX
- Racks: SNAP-B4, SNAP-B8, SNAP-B16, SNAP-B16H, SNAP-B32H
- Software: PAC Control Pro/Basic, PAC Manager, Node-RED (opto22-groov-node), REST API (groov EPIC compatible)
- Protocols: Modbus TCP, MQTT, OPC-UA (via groov EPIC gateway)
Selection Guide
Use the decision criteria below to confirm the SNAP-AIMA-I is the right module for your application:
- Signal type is 4–20 mA current loop? → SNAP-AIMA-I ✓
- Need 0–20 mA range? → Consider SNAP-AIMA-4
- Signal is 0–10 V voltage? → Use SNAP-AIV instead
- Need thermocouple or RTD input? → Use SNAP-AITM or SNAP-AIPM
- Require ATEX/hazardous area rating? → Consult OPTO22 for certified variants or use a certified barrier
- Migrating from legacy SNAP Ultimate? → SNAP-AIMA-I is backward compatible with all SNAP racks
Quality Assurance & Sourcing
All OPTO22 modules supplied by Konmask.com are sourced through verified industrial distribution channels. Each unit undergoes:
- Visual inspection and label verification against manufacturer documentation
- Functional power-on test where applicable
- Anti-static packaging with humidity indicator card
- Certificate of conformance available upon request
We supply both new original and factory-refurbished units. Refurbished units are clearly labeled and carry a 90-day warranty. New units carry the full manufacturer warranty.
How to Order
- Part Number: SNAP-AIMA-I
- Lead Time: In-stock items ship within 1–3 business days; ex-stock orders confirmed at checkout
- MOQ: 1 piece
- Bulk Pricing: Contact us for orders of 5+ units
- Export: Available for international shipment; export compliance documentation provided
- Payment: T/T, PayPal, credit card, and trade credit (approved accounts)
📧 support@konmask.com | 📞 +0086 19859288691
Replacement & Compatibility FAQ
Q: Can I use SNAP-AIMA-I in a SNAP Ultimate rack?
A: Yes. SNAP-AIMA-I is compatible with all standard SNAP racks including legacy SNAP Ultimate racks.
Q: Is the SNAP-AIMA-I hot-swappable?
A: Yes. OPTO22 SNAP modules support hot-swap without powering down the rack or controller.
Q: What is the difference between SNAP-AIMA and SNAP-AIMA-I?
A: The SNAP-AIMA-I features enhanced optical isolation (4,000 V vs. 500 V on the original SNAP-AIMA) and improved noise immunity, making it the preferred choice for industrial environments.
Q: Can I mix SNAP-AIMA-I with digital I/O modules in the same rack?
A: Yes. SNAP racks support mixed analog and digital modules in any slot position.
Q: Do you provide a datasheet or wiring diagram?
A: Yes. Contact us at support@konmask.com and we will provide the official OPTO22 datasheet and wiring reference.
Q: What warranty applies to your SNAP-AIMA-I units?
A: New original units carry the OPTO22 manufacturer warranty. Refurbished units carry a 90-day Konmask warranty.
