Parker C3S038V4F10I20T40M00 Single-Axis Servo Drive Controller | Replacement, Equivalent & Selection Guide

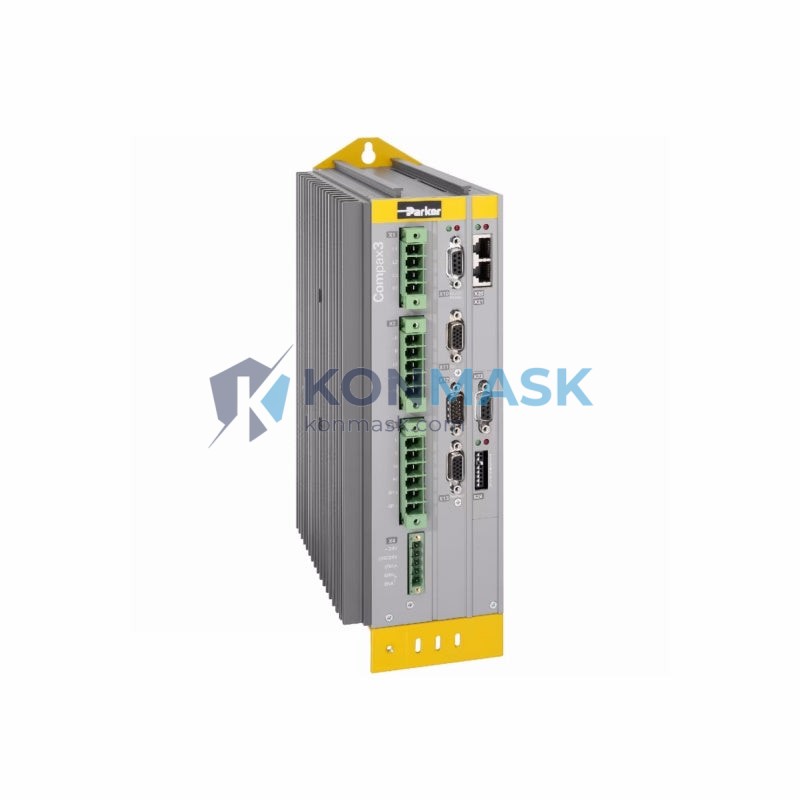

The Parker C3S038V4F10I20T40M00 is a high-performance single-axis servo drive/controller from Parker Hannifin’s Compax3 series. Designed for precision motion control in demanding industrial automation environments, this unit delivers reliable torque, speed, and position control for servo motor applications. This page provides full technical specifications, compatible replacement models, and a structured selection guide to help engineers and procurement teams make informed sourcing decisions.
Technical Specifications
| Parameter | Value |
|---|---|
| Model / SKU | C3S038V4F10I20T40M00 |
| Brand | Parker Hannifin |
| Series | Compax3 |
| Type | Single-Axis Servo Drive / Controller |
| Continuous Output Current | 3.8 A |
| Supply Voltage | 3-phase 200–480 VAC |
| Control Interface | F10 – EtherCAT fieldbus |
| I/O Option | I20 – Standard digital I/O |
| Technology Option | T40 – IEC 61131-3 PLC onboard |
| Motor Feedback | Resolver / Encoder compatible |
| Protection Class | IP20 |
| Weight | Approx. 1.5 kg |
| Certifications | CE, UL |
Compatible Replacement & Equivalent Models
The following models are functionally compatible or serve as direct/near-direct replacements for the C3S038V4F10I20T40M00. Always verify electrical and mechanical compatibility before substitution.
| Model | Brand | Compatibility Notes |
|---|---|---|
| C3S038V4F10I20T40M00 | Parker | Original — this listing |
| C3S038V4F10I20T30M00 | Parker | Same current rating; T30 technology option (no onboard PLC) |
| C3S038V4F10I10T40M00 | Parker | Alternate I/O option; verify I/O count requirements |
| C3S056V4F10I20T40M00 | Parker | Higher current (5.6 A); drop-in upgrade for higher-torque motors |
| AKD-P00306-NBEC-0000 | Kollmorgen AKD | EtherCAT, 3 A; cross-brand equivalent — verify motor feedback type |
| SD17060E | Leadshine | Budget alternative; limited to stepper-class performance |
Need help confirming compatibility? Contact our technical team at support@konmask.com.
Why Choose the Original Model
- Proven reliability — Parker Compax3 drives are field-tested in thousands of global installations across aerospace, semiconductor, and packaging industries.
- Onboard IEC 61131-3 PLC (T40) — eliminates the need for a separate motion controller, reducing panel footprint and wiring complexity.
- EtherCAT (F10) native support — sub-millisecond cycle times for tight multi-axis synchronization.
- Full Parker ecosystem integration — seamless compatibility with Parker servo motors (MPP, MPJ, NX series) and Parker C3 ServoManager software.
- Long product lifecycle — Parker provides extended support and spare parts availability for Compax3 series.
Typical Applications
- Semiconductor wafer handling and pick-and-place systems
- Packaging machinery (form-fill-seal, cartoning)
- CNC machine tool axes
- Medical device assembly automation
- Printing and converting equipment
- Robotics and gantry systems requiring EtherCAT synchronization
System Compatibility
- Fieldbus: EtherCAT (CoE — CANopen over EtherCAT)
- Compatible PLCs: Beckhoff TwinCAT, Omron Sysmac, Bosch Rexroth IndraMotion (via EtherCAT master)
- Compatible Motors: Parker MPP, MPJ, NX servo motor series; third-party motors with resolver or incremental encoder feedback
- Software: Parker C3 ServoManager (commissioning & diagnostics), Parker ACR-View
- Safety: STO (Safe Torque Off) — IEC 62061 / EN 13849 compliant
Selection Guide
Use the Compax3 model number structure to select the correct variant for your application:
| Position | Code | Meaning |
|---|---|---|
| Current Rating | S038 | 3.8 A continuous output |
| Voltage | V4 | 3-phase 200–480 VAC |
| Fieldbus | F10 | EtherCAT |
| I/O Option | I20 | Standard digital I/O module |
| Technology | T40 | IEC 61131-3 onboard PLC |
| Motor Option | M00 | Standard (no motor included) |
Upgrade path: If your application requires higher continuous torque, consider the C3S056V4F10I20T40M00 (5.6 A) or C3S075V4F10I20T40M00 (7.5 A) as direct form-factor upgrades.
Quality Assurance & Sourcing
- All units sourced through authorized distribution channels or verified surplus with full traceability.
- Pre-shipment functional testing available on request.
- Original Parker packaging and documentation supplied where available.
- Konmask.com specializes in industrial automation components — PLC modules, servo drives, DCS parts — for B2B buyers globally.
How to Order
- Confirm your required model number (use the Selection Guide above if unsure).
- Add to cart or contact us for bulk/OEM pricing.
- Provide your application details for compatibility verification if substituting with an equivalent model.
- Lead time: In-stock items ship within 1–3 business days. Special-order items: 5–15 business days.
📧 support@konmask.com | 📞 +0086 19859288691
Replacement & Compatibility FAQ
Q: Can I replace C3S038V4F10I20T40M00 with a C3S038V4F10I20T30M00?
A: Yes, if your application does not require the onboard IEC 61131-3 PLC (T40 feature). The T30 variant uses an external motion controller instead.
Q: Is this drive compatible with non-Parker servo motors?
A: Yes, provided the motor uses resolver or incremental encoder feedback and the electrical ratings match. Custom motor configuration is required via C3 ServoManager.
Q: What is the difference between F10 (EtherCAT) and F11 (PROFINET) variants?
A: The fieldbus option determines the communication protocol. F10 is EtherCAT; F11 is PROFINET. These are not interchangeable — select based on your PLC/controller network.
Q: Do you offer warranty on surplus/refurbished units?
A: Yes. All units carry a minimum 90-day functional warranty. Extended warranty available on request.
Q: Can Konmask source discontinued Parker Compax3 variants?
A: Yes. Contact us with your full model number and we will advise on availability and lead time.
