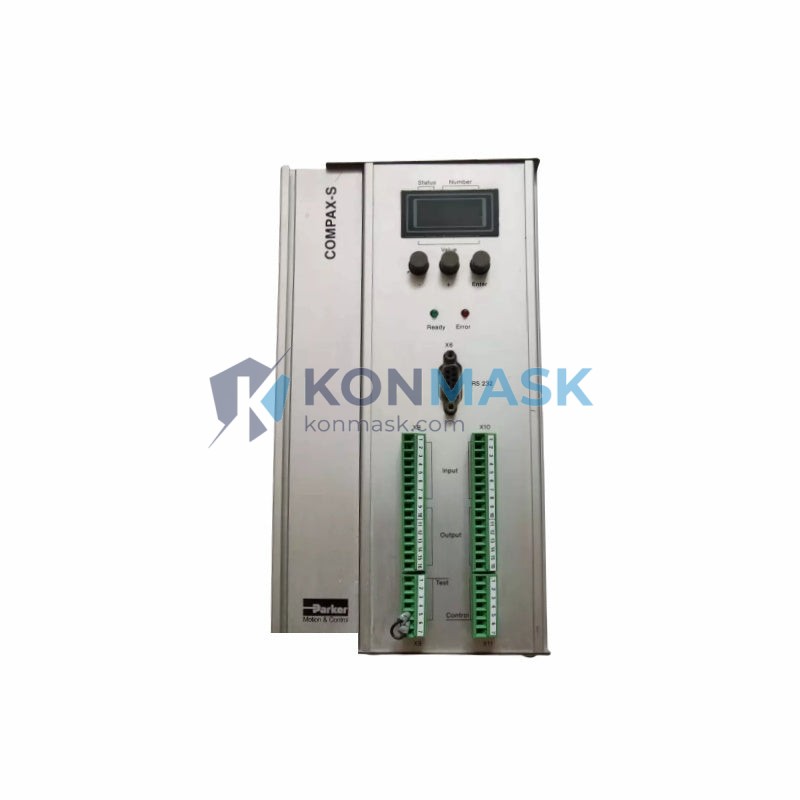

Parker CPX-0200H – Compax3 Series AC Servo Amplifier | High-Performance Motion Control
Engineering Background: The Parker CPX-0200H is part of the Compax3 family of digital servo drives engineered by Parker Hannifin’s Electromechanical & Drives Division. Designed for demanding industrial motion control applications, the Compax3 platform delivers precise torque, velocity, and position control across a wide range of servo motor configurations.
Product Positioning: The CPX-0200H targets OEM machine builders, system integrators, and MRO procurement engineers who require a compact, high-dynamic servo amplifier with deterministic fieldbus communication and robust EMC performance. It is a direct replacement and upgrade path for legacy Parker servo drive platforms.
Complete Technical Specifications
- Part Number: CPX-0200H
- Series / Platform: Compax3
- Manufacturer: Parker Hannifin – Electromechanical & Drives Division
- Country of Origin: Germany
- Drive Type: Digital AC Servo Amplifier
- Continuous Output Current: 2.0 A (rms)
- Peak Output Current: 6.0 A (rms)
- Supply Voltage: 200–480 VAC, 3-phase, 50/60 Hz
- DC Bus Voltage: 280–680 VDC
- Control Modes: Torque / Velocity / Position (closed-loop)
- Feedback Interface: Resolver, Incremental Encoder, EnDat 2.1/2.2, Hiperface
- Communication Options: RS-232/485, CANopen (CiA 402), PROFIBUS DP, DeviceNet (option-dependent)
- Switching Frequency: 8 kHz / 16 kHz selectable
- Protection Class: IP20
- Operating Temperature: 0 °C to +45 °C (ambient)
- Storage Temperature: −25 °C to +70 °C
- Humidity: 5–85% RH, non-condensing
- Certifications: CE, UL, cUL
- Mounting: DIN rail / panel mount
- Weight: approx. 1.5 kg
Proven Application Environments
- CNC machining centers and multi-axis gantry systems
- Packaging and labeling machinery (pick-and-place, indexing)
- Semiconductor wafer handling and precision positioning stages
- Textile and printing machine web tension control
- Robotics joint drives and collaborative automation cells
- Medical device assembly and laboratory automation
- Conveyor synchronization and electronic line-shafting
Engineering Advantages
- Compax3 Ecosystem: Seamless integration with Parker’s C3 ServoManager commissioning software for rapid parameter setup, oscilloscope diagnostics, and firmware updates.
- Auto-tuning: Built-in inertia identification and adaptive gain scheduling reduce commissioning time by up to 60%.
- Safe Torque Off (STO): IEC 61800-5-2 compliant STO function eliminates the need for external contactors in safety-rated stop circuits.
- Compact Footprint: Narrow 45 mm width enables high-density multi-axis cabinet layouts.
- Universal Feedback: Single hardware platform supports resolver, incremental, and absolute encoders without hardware modification.
- Regenerative Braking: Internal braking resistor with external resistor option for high-inertia load deceleration.
System Architecture & Signal Flow
The CPX-0200H operates on a cascaded control loop architecture: an outer position loop (trajectory generator or external pulse/direction input) feeds a velocity loop (PI controller, bandwidth up to 800 Hz), which commands the inner current/torque loop (bandwidth up to 3 kHz). The IGBT power stage converts rectified DC bus voltage to a PWM output driving the servo motor windings. Feedback signals are processed by a dedicated DSP at 62.5 µs cycle time, ensuring deterministic real-time control.
Fieldbus communication is handled by an optional plug-in module (CANopen / PROFIBUS), allowing the drive to operate as a standard CiA 402 or PROFIdrive slave within a PLC-controlled motion network.
Sourcing & Quality Verification
- Source: Genuine Parker Hannifin OEM units and certified refurbished stock — no counterfeit or grey-market parts.
- Inspection: Every unit undergoes incoming inspection: visual check, power-on self-test, and load-cycle verification before shipment.
- Traceability: Serial number and date code recorded; full chain-of-custody documentation available on request.
- Warranty: 12-month replacement warranty against manufacturing defects.
- Certifications on file: CE Declaration of Conformity, UL file reference available for compliance audits.
Procurement Process
- Confirm compatibility: Share your motor nameplate data and existing drive firmware version with our engineers.
- Request a quote: Contact support@konmask.com or call +0086 19859288691 for volume pricing and lead time.
- Place order: Purchase directly via this listing or via PO for B2B accounts (Net 30 available for qualified buyers).
- Shipping: DHL Express / FedEx International Priority — typical transit 3–7 business days worldwide.
- After-sales: Free technical support for commissioning and parameter migration from legacy drives.
Technical FAQ
Q: Is the CPX-0200H compatible with Parker MPP / MPJ / SM series servo motors?
A: Yes. The Compax3 platform natively supports Parker’s MPP, MPJ, and SM motor families. Motor data sets are pre-loaded in C3 ServoManager.
Q: Can I replace a legacy Parker 6K or Aries drive with the CPX-0200H?
A: The CPX-0200H uses the Compax3 firmware architecture, which differs from 6K/Aries. A parameter migration guide and wiring adapter are available — contact our engineering team.
Q: What fieldbus is supported without an option card?
A: The base unit includes RS-232/485 for C3 ServoManager communication. CANopen and PROFIBUS require the respective plug-in option module.
Q: Is STO wiring required for CE compliance?
A: STO (Safe Torque Off) must be wired per IEC 62061 / ISO 13849 requirements if the machine safety assessment mandates a safe stop function. Leaving STO inputs open will prevent drive enable.
Q: Do you provide the C3 ServoManager software?
A: Yes — we supply the latest C3 ServoManager installer and USB/RS-232 cable with every order at no additional charge.
