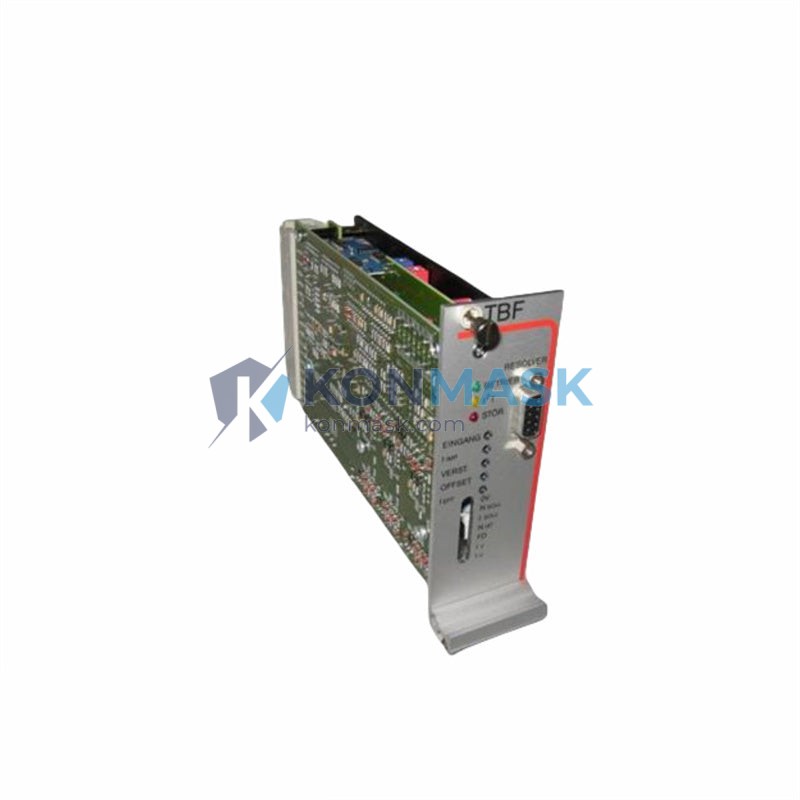

Industrial Motion Control Solution – Parker Hannifin TBF60/5R | Compumotor Series
Where This Product Is Used
The Parker TBF60/5R servo drive controller is engineered for demanding industrial motion control environments where precise torque, velocity, and position regulation are non-negotiable. Typical deployment scenarios include:
- CNC Machining Centers – Axis drive for milling, turning, and grinding machines requiring smooth, repeatable motion profiles
- Robotic Arms & Articulated Manipulators – Joint-level servo control in 4–6 axis industrial robots on assembly lines
- Automated Packaging Lines – High-cycle pick-and-place, labeling, and form-fill-seal machinery
- Semiconductor & PCB Handling Equipment – Precision stage positioning in wafer handlers and SMT placement machines
- Medical Device Manufacturing – Servo-driven dispensing, cutting, and inspection systems requiring low-noise, high-accuracy motion
- Textile & Printing Machinery – Tension control and register correction in web-fed processes
Technical Specifications
| Parameter | Value |
|---|---|
| Part Number / SKU | TBF60/5R |
| Brand | Parker Hannifin (Compumotor Division) |
| Series | Compumotor TBF Series |
| Supply Voltage | 60 V DC |
| Output Current Range | 5 – 15 A (peak) |
| Drive Type | Brushless / Brush DC Servo Drive |
| Control Modes | Torque, Velocity, Position |
| Feedback Interface | Encoder / Resolver compatible |
| Form Factor | Panel-mount module |
| Weight | 1,670 g (approx.) |
| Condition | New / Refurbished – Tested & Verified |
Why Engineers Specify This Model
- Wide current range (5–15 A) provides flexibility across motor frame sizes without changing the drive platform
- 60 V DC bus suits 24–48 V motor systems with adequate headroom for back-EMF transients
- Compumotor ecosystem compatibility – integrates natively with Parker 6K, Gemini, and Aries motion controllers via standard I/O and serial interfaces
- Compact panel-mount form factor minimizes cabinet footprint in space-constrained OEM enclosures
- Proven field reliability in 24/7 production environments across automotive, electronics, and life-science sectors
Complete System Bill of Materials
For a fully operational servo axis using the TBF60/5R, engineers typically specify:
- Parker TBF60/5R Servo Drive Controller (this unit)
- Parker Compumotor 6K4 / 6K8 Multi-Axis Controller
- Compatible Parker brushless servo motor (SM, NeoMetric, or J Series)
- Encoder feedback cable (shielded, twisted-pair)
- 24 VDC logic power supply
- 60 VDC bus power supply (sized to peak current demand)
- DIN-rail terminal block I/O breakout
- EMI line filter (recommended for CE compliance)
Compliance & Industry Standards
- Designed in accordance with UL 508C (Power Conversion Equipment)
- CE marking applicable – consult Parker documentation for EMC Directive compliance
- RoHS status: verify with Parker Hannifin product datasheet for specific revision
- Compatible with IEC 61800 adjustable-speed electrical power drive systems framework
Quality Assurance & Sourcing
Every Parker TBF60/5R unit shipped from Konmask.com undergoes the following verification process:
- Visual inspection for physical damage, corrosion, and label integrity
- Power-on functional test at rated voltage and current
- Firmware / parameter verification where applicable
- Anti-static packaging with moisture barrier bag and desiccant
- Traceable lot documentation available on request
We source directly from authorized distributors, OEM surplus channels, and verified industrial resellers. Counterfeit-free guarantee backed by our sourcing policy.
How to Source This Part
- In-stock orders: Add to cart and check out directly – ships within 1–3 business days
- Bulk / project orders: Contact us for volume pricing and lead-time commitment
- Urgent requirements: Email [email protected] or call +0086 19859288691 for expedited sourcing
- Cross-reference / substitution: Our engineers can recommend compatible alternatives if TBF60/5R is unavailable
Application-Specific FAQ
Q: Is the TBF60/5R compatible with third-party servo motors?
A: Yes, provided the motor’s back-EMF constant, inductance, and encoder interface match the drive’s configuration parameters. Consult the Parker TBF Series setup guide for tuning procedures.
Q: Can this drive operate in torque-control mode for tension applications?
A: Yes. The TBF series supports torque-mode operation via an analog command input, making it suitable for winding, unwinding, and web-tension control.
Q: What is the difference between TBF60/5R and TBF60/10R?
A: The suffix denotes the continuous/peak current rating. The /5R is rated 5–15 A peak; the /10R targets higher-power motor frames. Both share the same 60 V bus architecture.
Q: Do you provide a warranty?
A: Yes. All units carry a 90-day functional warranty. Extended warranty options are available – contact us for details.
Q: Can you supply the matching Parker motion controller?
A: Yes. We stock a range of Parker Compumotor controllers and accessories. Inquire for a complete system quote.
