Genuine Phoenix Contact QUINT-PS/1AC/24DC/40 Power Supply Module | QUINT Series – Verified Source

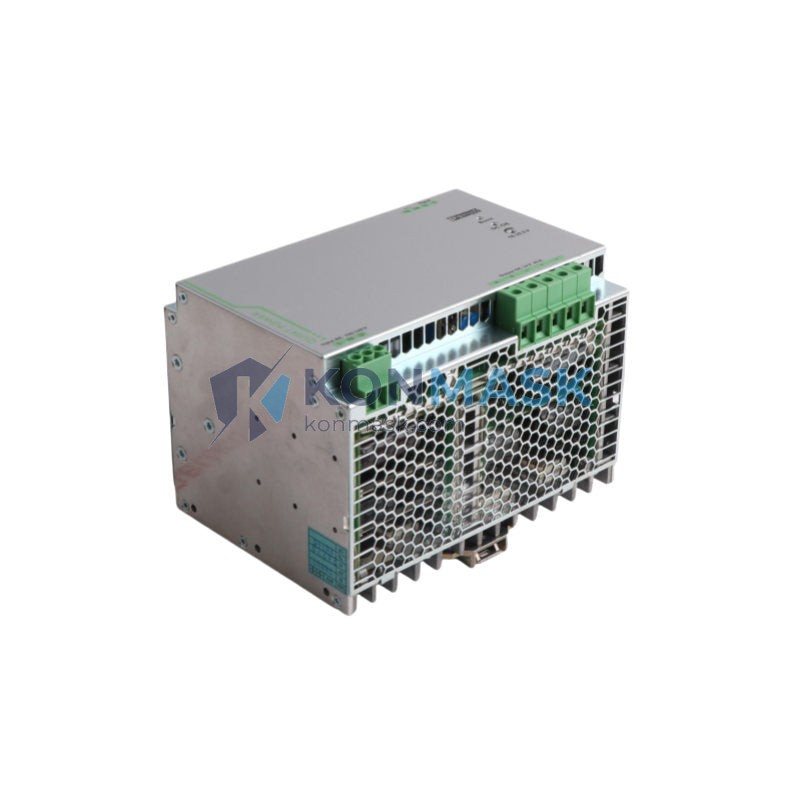

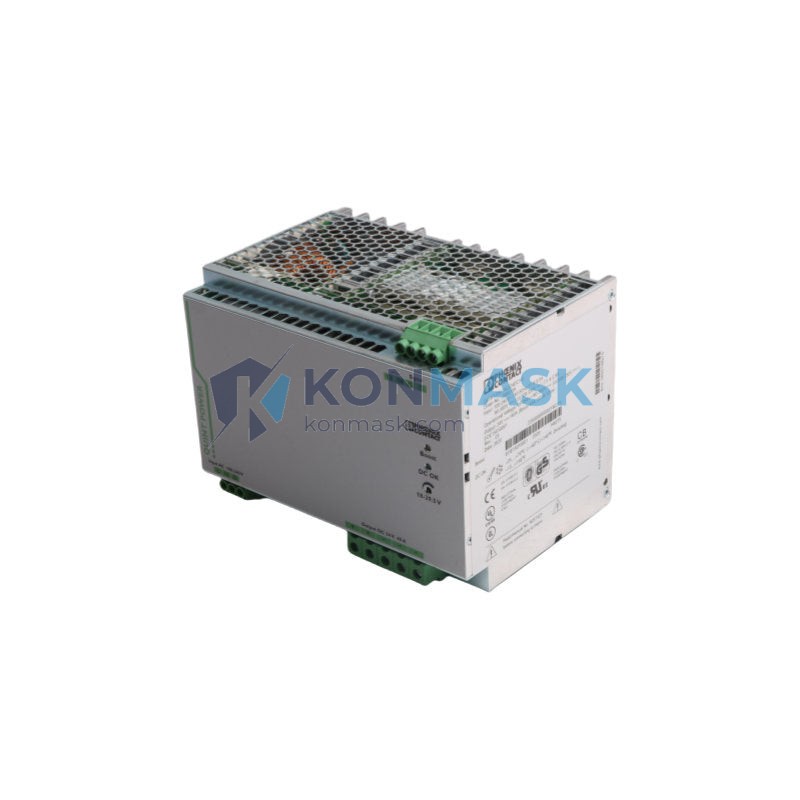

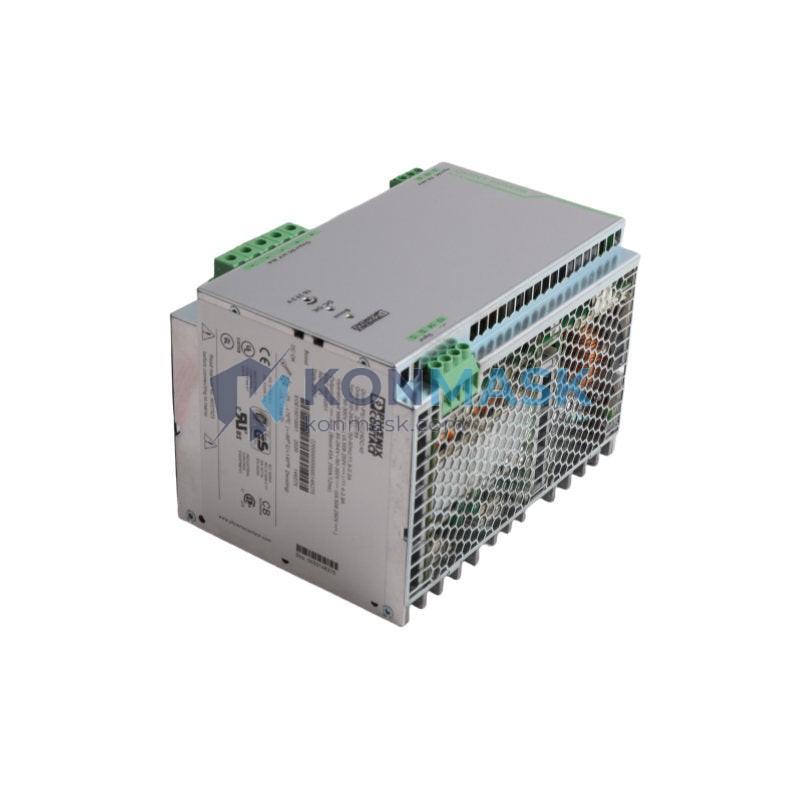

The Phoenix Contact 2866789 QUINT-PS/1AC/24DC/40 is a high-performance DIN rail-mounted power supply module delivering a stable 24 VDC / 40 A output from a single-phase AC input. Engineered for demanding industrial environments, the QUINT series is Phoenix Contact’s flagship power supply line, renowned for its SFB (Selective Fuse Breaking) technology, active power boost, and comprehensive diagnostic capabilities. Konmask.com sources this unit directly through verified distribution channels to guarantee authenticity and full manufacturer traceability.
Technical Specifications
| Part Number (SKU) | 2866789 |
| Model | QUINT-PS/1AC/24DC/40 |
| Brand | Phoenix Contact |
| Series | QUINT Power |
| Input Voltage | 85 – 264 VAC (1-phase), 90 – 350 VDC |
| Input Frequency | 45 – 65 Hz |
| Output Voltage | 24 VDC (adjustable 18 – 29.5 VDC) |
| Output Current | 40 A |
| Output Power | 960 W |
| Power Boost | Up to 200% for 12 ms (SFB Technology) |
| Efficiency | ≥ 95% |
| Mounting | DIN rail (EN 60715 TH 35) |
| Protection Class | IP20 |
| Operating Temperature | -25 °C to +70 °C |
| Dimensions (W × H × D) | 82 × 130 × 175 mm |
| Weight | approx. 3,500 g |
| Certifications | UL, cUL, CE, GL, ATEX Zone 2 |
Our 4-Step Quality Verification Process
Every Phoenix Contact unit shipped from Konmask.com passes through a rigorous 4-step verification protocol before dispatch:
- Source Authentication — Units are procured exclusively from authorized distributors or factory-direct channels with full purchase documentation retained on file.
- Physical Inspection — Holographic labels, serial numbers, and housing markings are cross-checked against Phoenix Contact’s official product database.
- Functional Bench Test — Output voltage, current regulation, and SFB response are verified under load prior to packaging.
- Traceability Record — Each order is assigned a unique shipment traceability ID; documentation is available upon request for audit or warranty purposes.
Key Features & Benefits
- SFB (Selective Fuse Breaking) Technology — Delivers up to 200% current boost for 12 ms to reliably blow downstream fuses without nuisance tripping of the supply.
- Active Power Boost — Handles high inrush loads from motors, solenoids, and capacitive loads without derating.
- Wide-Range AC Input — Operates on 85–264 VAC globally; no manual voltage selection required.
- Integrated Diagnostics — LED status indicators and potential-free signaling contact for remote monitoring and SCADA integration.
- High Efficiency ≥ 95% — Reduces heat dissipation and lowers total cost of ownership in sealed control cabinets.
- Compact DIN Rail Form Factor — 82 mm width fits standard 35 mm DIN rails; optimizes panel space.
- Extended Temperature Range — Rated -25 °C to +70 °C for harsh industrial and outdoor enclosure applications.
Typical Applications
- PLC and DCS control panel power distribution
- Industrial automation and process control systems
- Machine tool and robotics control cabinets
- Building automation and HVAC control systems
- Railway and transportation signaling equipment
- Oil & gas field instrumentation panels
- Renewable energy inverter auxiliary power
Compatible System Components
- Redundancy Modules: Phoenix Contact QUINT-ORING series (e.g., 2320898)
- Buffer Modules: Phoenix Contact QUINT-BUFFER series for UPS bridging
- Current Monitoring: Phoenix Contact MINI-PS and STEP-PS series for sub-distribution
- Terminal Blocks: Phoenix Contact CLIPLINE complete system (UK, PT, PTFIX series)
- Circuit Breakers: Phoenix Contact TMCP / Siemens 5SY series for downstream protection
Global Sourcing & Shipping Capabilities
Konmask.com maintains established logistics partnerships to serve industrial buyers worldwide:
- Stock Location: Shenzhen, China (bonded warehouse)
- Lead Time: In-stock orders typically dispatched within 1–3 business days
- Shipping Methods: DHL Express, FedEx International Priority, UPS Worldwide, sea freight for bulk orders
- Export Documentation: Commercial invoice, packing list, certificate of origin, and MSDS available on request
- Customs Support: HS Code 8504.40 — we assist with customs declarations and duty calculations for major markets (EU, US, AU, UK, SEA)
- Minimum Order: 1 unit; volume pricing available for orders of 5+ units
Certifications & Compliance Statement
The Phoenix Contact 2866789 QUINT-PS/1AC/24DC/40 carries the following certifications:
- ✅ CE — Compliant with EU Low Voltage Directive 2014/35/EU and EMC Directive 2014/30/EU
- ✅ UL / cUL Listed — UL 508 (Industrial Control Equipment), File E135462
- ✅ GL (Germanischer Lloyd) — Marine type approval
- ✅ ATEX Zone 2 — Suitable for use in potentially explosive atmospheres (Group II, Category 3G)
- ✅ RoHS Compliant — Meets EU Directive 2011/65/EU on restriction of hazardous substances
Konmask.com retains copies of all relevant certification documents. Please contact us if compliance documentation is required for your procurement or audit process.
How to Order
- Click Add to Cart and proceed to checkout, or
- Contact us directly for volume pricing, lead time confirmation, or custom documentation requirements.
- For urgent requirements, email [email protected] with your quantity, delivery address, and required delivery date — we will respond within 4 business hours.
- Payment methods accepted: T/T (bank transfer), PayPal, credit card (Visa/Mastercard), and LC at sight for large orders.
Authenticity & Trust FAQ
Q: How do I know this is a genuine Phoenix Contact product?
A: All units are sourced from verified distribution channels. We provide purchase documentation and serial number traceability upon request. Our 4-step verification process (detailed above) is applied to every unit before shipment.
Q: What if I receive a defective unit?
A: We offer a 12-month warranty against manufacturing defects. Defective units will be replaced or refunded within 7 business days of confirmed fault diagnosis. Return shipping is covered by Konmask.com for verified defects.
Q: Can you provide a datasheet or official Phoenix Contact documentation?
A: Yes. The official Phoenix Contact datasheet for part number 2866789 is available on request. Contact [email protected].
Q: Do you support sample orders?
A: Yes, single-unit sample orders are accepted at standard pricing. Volume discounts apply from 5 units.
Q: What is your lead time for out-of-stock items?
A: For items not currently in stock, typical lead time is 2–4 weeks depending on factory availability. We will confirm lead time before order confirmation.
