Phoenix Contact QUINT-PS/1AC/24DC/10 (2866763) 24V 10A DIN Rail Power Supply | Replacement, Equivalent & Selection Guide

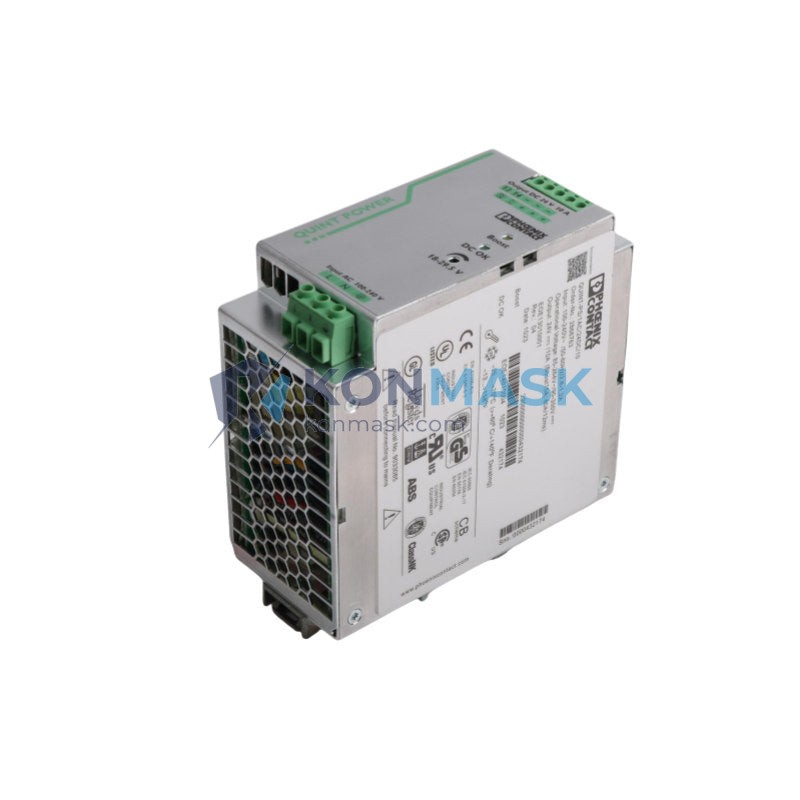

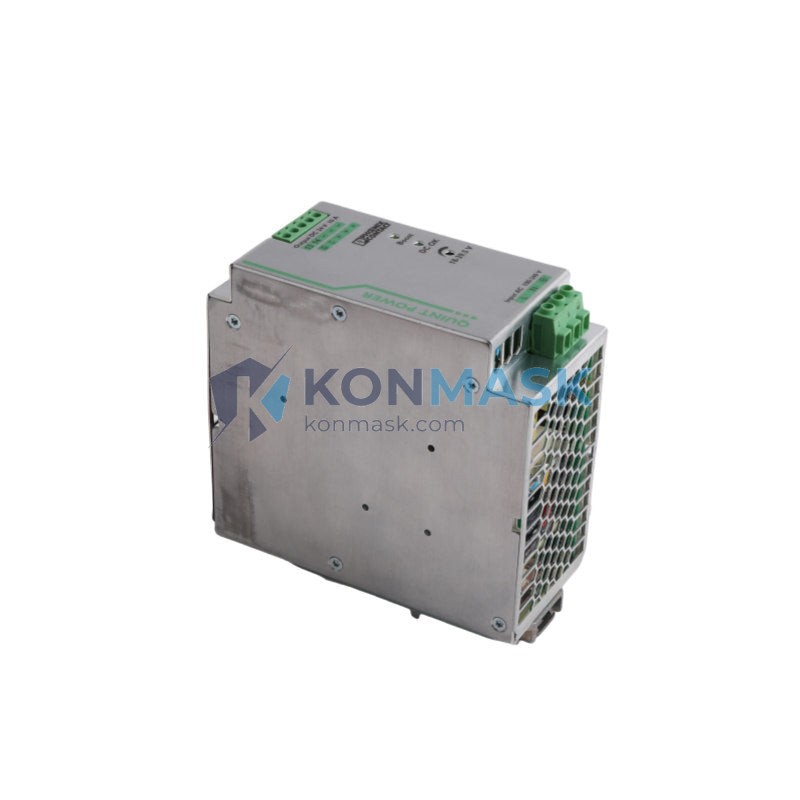

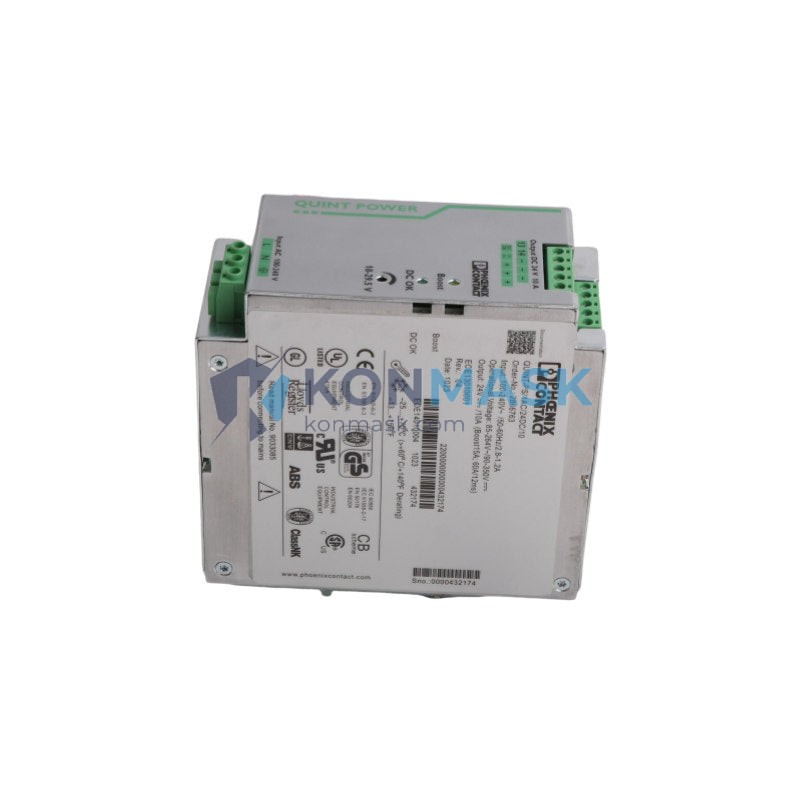

The Phoenix Contact QUINT-PS/1AC/24DC/10 (Order No. 2866763) is a high-performance single-phase DIN rail power supply delivering a stable 24 VDC / 10 A (240 W) output. Engineered for demanding industrial environments, it features active power boost, SFB (Selective Fuse Breaking) technology, and comprehensive diagnostics — making it a benchmark choice for PLC panels, control cabinets, and process automation systems.
Technical Specifications
- Order Number: 2866763
- Model: QUINT-PS/1AC/24DC/10
- Input Voltage: 100–240 VAC (85–264 VAC wide range), 50/60 Hz
- Output Voltage: 24 VDC (adjustable 18–29.5 VDC)
- Output Current: 10 A (continuous)
- Output Power: 240 W
- Power Boost: Up to 200% (20 A) for 12 ms — enables reliable fuse tripping
- Efficiency: ≥ 93%
- Mounting: DIN rail (EN 60715 / 35 mm)
- Protection Class: IP20
- Operating Temperature: -25°C to +70°C
- Dimensions (W × H × D): 55 × 130 × 125 mm
- Weight: 1,140 g
- Certifications: UL, cUL, CE, GL, DNV, ATEX Zone 2
- MTBF: > 500,000 h
- Signaling: Relay contact output + green LED status indicator
Compatible Replacement & Equivalent Models
The table below lists direct replacements and functional equivalents for the QUINT-PS/1AC/24DC/10 from other leading brands. Always verify input/output specs and form factor before substitution.
| Brand | Model | Output | Notes |
|---|---|---|---|
| Phoenix Contact | QUINT4-PS/1AC/24DC/10 (2904602) | 24V / 10A | Next-gen QUINT4 series — direct upgrade |
| Siemens | 6EP1334-2BA20 (SITOP PSU100S) | 24V / 10A | Functional equivalent, same DIN form factor |
| Siemens | 6EP1334-3BA10 (SITOP PSU200M) | 24V / 10A | Modular variant with diagnostics |
| Weidmüller | PRO ECO 240W 24V 10A | 24V / 10A | Cost-effective alternative |
| Murrelektronik | MICO+ 10A (85401) | 24V / 10A | With electronic circuit breaker integration |
| PULS | QS10.241 / CP10.241 | 24V / 10A | Compact form, high efficiency ≥ 94% |
| Omron | S8VK-G24024 | 24V / 10A | Budget-friendly, basic diagnostics |
| ABB | CP-E 24/10.0 | 24V / 10A | Standard DIN rail PSU |
Note: Replacement suitability depends on your specific application. Contact Konmask for selection assistance.
Why Choose the Original Model
- SFB Technology: 200% power boost reliably trips downstream fuses/breakers — eliminates nuisance shutdowns.
- Active Power Factor Correction (PFC): Reduces harmonic distortion and lowers energy costs.
- Relay Signal Output: Enables remote monitoring and integration with PLC/SCADA systems.
- Wide Temperature Range: -25°C to +70°C — suitable for harsh industrial environments.
- Multi-Certification: UL, CE, ATEX Zone 2, DNV — meets global compliance requirements.
- Proven Reliability: MTBF > 500,000 h — minimizes unplanned downtime.
Typical Applications
- PLC and DCS control panel power supply
- Industrial automation and process control systems
- Machine tool and robotics control cabinets
- Building automation (BMS/HVAC)
- Railway and transportation control systems
- Oil & gas and chemical plant control (ATEX Zone 2)
- Marine and offshore applications (DNV certified)
System Compatibility
- PLC Brands: Siemens S7-300/400/1200/1500, Allen-Bradley ControlLogix/CompactLogix, Mitsubishi MELSEC, Omron CJ/CS/NX, Schneider Modicon M340/M580
- Bus Systems: PROFIBUS, PROFINET, EtherNet/IP, Modbus RTU/TCP
- Protection Devices: Compatible with Phoenix Contact Clipline, Weidmüller, and standard DIN rail terminal blocks
- Cabinet Standards: IEC 61439, UL 508A panel wiring
Selection Guide
Use the following criteria to confirm the QUINT-PS/1AC/24DC/10 is the right choice — or to identify a suitable alternative:
- Step 1 — Load Calculation: Sum all 24 VDC loads in your panel. Add 20–30% safety margin. If total ≤ 240 W, this model is sufficient.
- Step 2 — Input Voltage: Confirm your supply is 100–240 VAC single-phase. For 3-phase input, consider QUINT-PS/3AC/24DC/10.
- Step 3 — Fuse Tripping Requirement: If downstream fuses must trip reliably under short-circuit, SFB boost is essential — choose original or QUINT4 upgrade.
- Step 4 — Environment: For ATEX Zone 2 or marine (DNV) applications, original certification is required — generic equivalents may not qualify.
- Step 5 — Budget vs. Features: For cost-sensitive projects without diagnostics needs, consider PULS QS10.241 or Omron S8VK-G24024 as alternatives.
Quality Assurance & Sourcing
- All units sourced from authorized distributors or verified surplus channels.
- Each unit inspected for physical integrity, label authenticity, and functional condition prior to shipment.
- Original packaging and documentation preserved where available.
- Traceability records maintained for B2B procurement compliance.
- New, refurbished, and tested-used conditions available — specify at inquiry.
How to Order
- Add to cart directly, or contact us for bulk/project pricing.
- Specify required condition: New / Refurbished / Tested-Used.
- Provide your shipping destination for accurate freight quote.
- For urgent requirements, email support@konmask.com with your project timeline.
- Lead time: In-stock items ship within 1–3 business days; sourced items 5–15 business days.
Replacement & Compatibility FAQ
Q: Can I replace QUINT-PS/1AC/24DC/10 with QUINT4-PS/1AC/24DC/10?
A: Yes. The QUINT4 (2904602) is the direct next-generation replacement with identical mounting and improved efficiency. It is the recommended upgrade path.
Q: Is the Siemens SITOP 6EP1334-2BA20 a drop-in replacement?
A: Electrically compatible (24V/10A, DIN rail), but the relay signal output pinout and diagnostic features differ. Verify your monitoring circuit before substitution.
Q: Can this PSU power a Siemens S7-1500 PLC system?
A: Yes. The S7-1500 CPU and I/O modules operate on 24 VDC. Ensure total load including I/O does not exceed 10 A.
Q: What is the difference between QUINT-PS and QUINT-PS/M?
A: The /M variant adds a manual current-limiting mode for commissioning. The standard QUINT-PS/1AC/24DC/10 uses automatic SFB boost only.
Q: Do you provide a warranty?
A: Yes — 12-month warranty on new units, 6-month on refurbished. Contact us for details.
