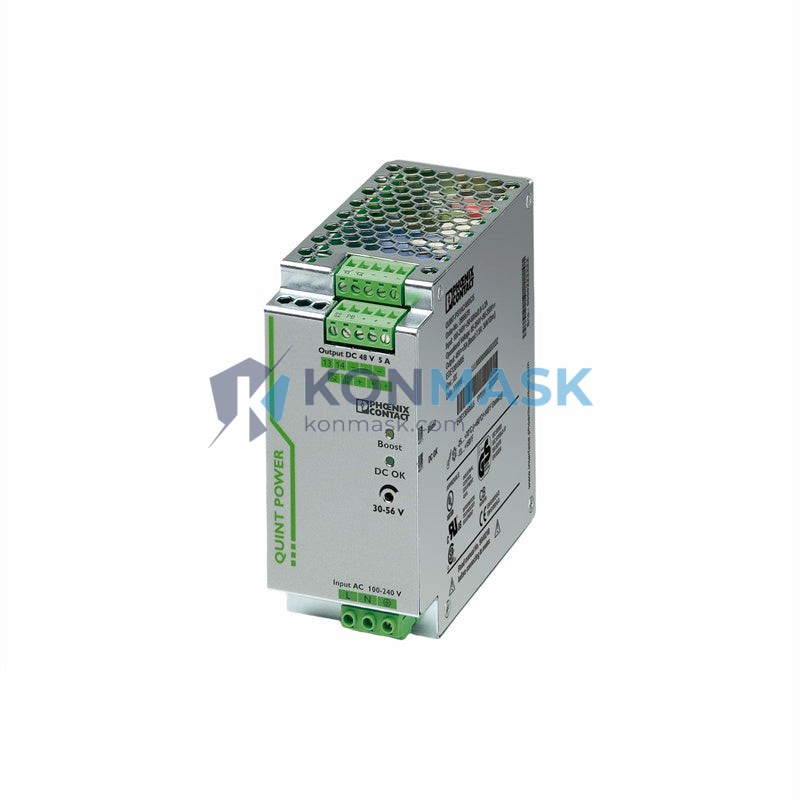

PHOENIX CONTACT QUINT-PS/1AC/48DC/5 Primary-Switched Power Supply – QUINT Series
When a 48 VDC power supply fails on the production floor, the consequences cascade instantly — PLCs lose power, field devices go offline, safety circuits drop out, and an entire automated line grinds to a halt. Unplanned downtime in industrial environments costs thousands of dollars per minute, and the root cause is often a power supply that was never engineered for the demands of continuous industrial operation. The PHOENIX CONTACT QUINT-PS/1AC/48DC/5 (Order No. 2866679) eliminates this risk with a design philosophy built around reliability, diagnostics, and uninterrupted power delivery.
Within the QUINT product family — Phoenix Contact’s flagship line of primary-switched power supplies — the QUINT-PS/1AC/48DC/5 occupies a critical niche: it delivers a regulated 48 VDC output at 5 A (240 W) from a single-phase AC input, making it the preferred choice for 48 V bus architectures in telecommunications infrastructure, process automation, and distributed control systems. Globally, the QUINT series is recognized as an industry benchmark for DIN-rail power supplies, trusted by system integrators and OEMs across more than 100 countries.
Technical Specifications
- Order Number: 2866679
- Model: QUINT-PS/1AC/48DC/5
- Input Voltage: 1-phase AC (wide-range input)
- Output Voltage: 48 VDC (adjustable)
- Output Current: 5 A
- Output Power: 240 W
- Topology: Primary-switched (SMPS)
- Mounting: DIN rail (35 mm)
- Weight: 1,210 g
- Manufacturer: PHOENIX CONTACT GmbH & Co. KG
- Series: QUINT Power Supply
Key Features & Benefits
- QUINT POWER Active Boost Technology: Delivers up to 200% rated current for 12 ms to selectively blow fuses and reliably start high-inrush loads — preventing nuisance tripping.
- Integrated Diagnostics: Continuous monitoring of output voltage and current with visual and potential-free signaling for predictive maintenance integration.
- High Efficiency: Primary-switched topology minimizes heat dissipation, reducing cooling requirements and extending service life in sealed enclosures.
- Wide AC Input Range: Accepts fluctuating grid voltages without derating, ensuring stable 48 VDC output in regions with unstable power infrastructure.
- DIN Rail Mounting: Tool-free snap-on installation on standard 35 mm DIN rails accelerates panel assembly and simplifies replacement.
- Parallel Operation: Supports redundant and power-boost configurations for mission-critical applications requiring N+1 redundancy.
- Approved to International Standards: Certified to IEC/EN 61131-2 and relevant UL/cUL standards for global deployment.
Industry & Equipment Applications
- Telecommunications & Network Infrastructure: Powers 48 V bus systems in telecom cabinets, IP-PBX systems, and PoE network switches.
- Process Automation & DCS: Supplies distributed control system (DCS) I/O modules, field transmitters, and HART-enabled instruments operating on 48 V rails.
- Railway & Transportation: Provides stable 48 VDC for onboard control electronics and trackside signaling equipment.
- Building Automation (BAS/BMS): Powers access control panels, fire detection controllers, and HVAC automation nodes.
- Industrial Machinery & OEM Equipment: Feeds servo drives, solenoid valves, and sensor arrays in 48 V machine architectures.
- Energy & Utilities: Used in substation automation, SCADA RTUs, and smart grid edge devices requiring reliable 48 V supply.
System Integration & Compatible Parts
The QUINT-PS/1AC/48DC/5 is designed to integrate seamlessly within Phoenix Contact’s broader ecosystem and standard industrial panel architectures:
- Redundancy Modules: Pair with QUINT-DIODE/40AC/2X20/1X40 or similar OR-ing diode modules for N+1 redundant power architectures.
- UPS Modules: Compatible with QUINT-UPS series for buffered power continuity during AC mains interruptions.
- Circuit Breakers: Coordinate with Phoenix Contact CLIPLINE or TERMIBLOCK terminal blocks and electronic circuit breakers for downstream protection.
- PLC Platforms: Suitable for powering 48 V I/O backplanes on Siemens, Rockwell, Schneider, and Beckhoff control systems.
- DIN Rail Accessories: Compatible with standard 35 mm DIN rails, NS 35/7.5 profiles per EN 60715.
Our Quality Assurance Process
At Konmask.com, every PHOENIX CONTACT component undergoes a rigorous verification process before shipment:
- Source Verification: Products are sourced exclusively from authorized distributors and verified supply chains to eliminate counterfeit risk.
- Visual & Dimensional Inspection: Each unit is inspected for label authenticity, housing integrity, connector condition, and correct order number marking.
- Functional Pre-check: Where applicable, power-on verification confirms basic operational status prior to packaging.
- Secure Packaging: Anti-static packaging with moisture barrier and shock-absorbing materials protects units during international transit.
- Documentation: Original manufacturer documentation, certificates of conformity, and test reports available upon request.
How to Order
- Submit your inquiry via the Contact / RFQ form on this page with your required quantity and delivery destination.
- Our technical sales team will respond within 1 business day with availability, lead time, and a formal quotation.
- Upon PO confirmation, we arrange export documentation, customs clearance support, and your preferred shipping method (DHL Express, FedEx, sea freight, etc.).
- Track your shipment in real time with our logistics update notifications.
Minimum order quantity: 1 unit. Volume pricing available for orders of 5+ units.
Why Choose Konmask.com?
- ✅ Specialized in Industrial Automation Components — PLC modules, DCS parts, power supplies, and HMI hardware from leading global brands.
- ✅ Global B2B Export Experience — Serving system integrators, EPC contractors, and MRO buyers in 50+ countries.
- ✅ Fast Inquiry Response — Dedicated technical sales team responds within 24 hours with accurate stock and pricing.
- ✅ Anti-Counterfeit Commitment — Strict sourcing protocols and inspection procedures protect your project from substandard parts.
- ✅ Flexible Logistics — Air express, sea freight, and door-to-door delivery options with full export documentation support.
- ✅ Long-Tail Availability — We stock and source obsolete, discontinued, and hard-to-find automation components.
Frequently Asked Questions
Q: What is the output voltage and current of the QUINT-PS/1AC/48DC/5?
A: The QUINT-PS/1AC/48DC/5 provides a regulated 48 VDC output at 5 A continuous (240 W total output power), with adjustable output voltage to fine-tune the bus voltage for your application.
Q: Is the QUINT-PS/1AC/48DC/5 (2866679) still in production?
A: Phoenix Contact periodically updates its QUINT product line. Please contact Konmask.com directly to confirm current production status, available stock, and any recommended successor models.
Q: Can this power supply be used in parallel for redundancy?
A: Yes. The QUINT-PS/1AC/48DC/5 supports parallel operation for power boost and N+1 redundancy configurations when used with appropriate OR-ing diode modules from the QUINT ecosystem.
Q: What certifications does this unit carry?
A: The QUINT series is certified to IEC/EN 61131-2 and carries UL/cUL approvals. Please request the full certificate package from our sales team for your specific compliance requirements.
Q: How long does delivery take for international orders?
A: Delivery time depends on stock availability and destination. In-stock items typically ship within 2–3 business days via DHL Express (3–7 days transit to most destinations). We provide full tracking and export documentation.
Q: Do you provide a warranty on this product?
A: Yes. All products supplied by Konmask.com carry a quality guarantee. Warranty terms are confirmed at the time of quotation based on product condition (new, surplus, or refurbished).
