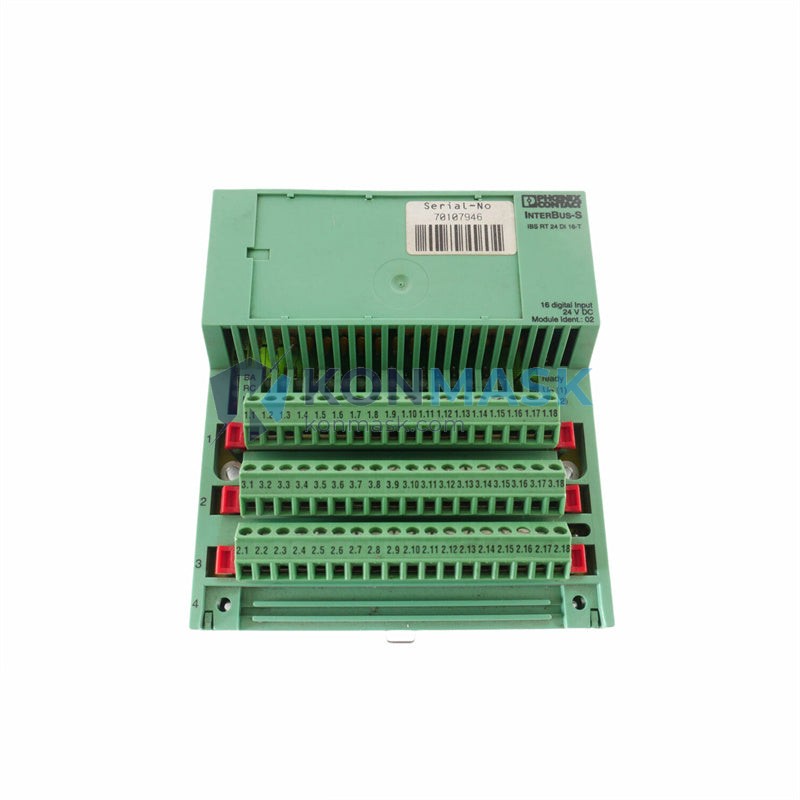

PHOENIX CONTACT IBS RT 24DI/16-T 16-Channel Digital Input I/O Module | Replacement, Equivalent & Selection Guide
The PHOENIX CONTACT IBS RT 24DI/16-T is a 16-channel digital input remote terminal I/O module designed for the Interbus fieldbus system. Operating at 24 VDC, it provides reliable signal acquisition in distributed automation architectures. Whether you are sourcing an original unit, evaluating a compatible replacement, or selecting an equivalent for a new project, this guide covers everything you need.
Technical Specifications
- Part Number / SKU: IBS RT 24DI/16-T
- Manufacturer: PHOENIX CONTACT
- Series: Interbus Remote Terminal (IBS RT)
- Module Type: Digital Input I/O Module
- Number of Channels: 16 × Digital Input
- Input Voltage: 24 VDC
- Fieldbus Protocol: Interbus (IBS)
- Mounting: DIN Rail
- Weight: approx. 2,380 g (module + housing)
- Connection Type: Terminal block (screw-type)
- Protection Class: IP20 (standard panel installation)
- Operating Temperature: 0 °C to +55 °C
- Standards: CE, UL listed
Compatible Replacement & Equivalent Models
If the IBS RT 24DI/16-T is discontinued, long lead-time, or outside budget, the following models offer functional equivalence or drop-in compatibility within the PHOENIX CONTACT Interbus ecosystem:
- IBS RT 24DI/16-T-LK – Identical channel count; enhanced locking connector variant
- IBS ST 24DI/16-T – Inline station variant; same 16-channel 24 VDC DI specification
- IBS IL 24DI/16-T – Inline (IL) series equivalent; compatible with Interbus IL topology
- IBS RT 24DI8/8DO8-T – Mixed I/O alternative when output channels are also required
- Third-party Interbus DI modules – Modules from Weidmüller or Turck with Interbus compatibility may serve as functional replacements; verify protocol version and connector pinout before substitution
Contact support@konmask.com for cross-reference verification before ordering a replacement.
Why Choose the Original Model
- Guaranteed protocol compatibility – Native Interbus IBS RT series ensures zero configuration overhead with existing PHOENIX CONTACT IBS masters
- Proven field reliability – Widely deployed in automotive, food & beverage, and discrete manufacturing since the 1990s
- Full diagnostic support – Integrated bus diagnostics via Interbus CMD (Configurable Module Diagnostics)
- Spare parts availability – Konmask.com maintains stock of both new and tested-used units to minimize downtime
- OEM documentation – Full PHOENIX CONTACT datasheet and wiring diagrams available upon request
Typical Applications
- Distributed I/O expansion in Interbus-based PLC systems (e.g., PHOENIX CONTACT ILC, Siemens S5/S7 with IBS master card)
- Sensor signal collection: proximity switches, push-buttons, limit switches, photoelectric sensors
- Conveyor and material handling control panels
- Automotive body-shop and paint-line automation
- Packaging machinery and bottling lines
- Building automation and HVAC control cabinets
System Compatibility
- Fieldbus: Interbus (IBS) – compatible with all IBS master controllers
- PLC Brands: PHOENIX CONTACT ILC series, Siemens S5 / S7 (with IBS master), Rockwell / Allen-Bradley (with IBS scanner), Schneider Electric (with IBS coupler)
- Software Tools: PHOENIX CONTACT PC WORX, IBS CMD (Interbus Configurable Module Diagnostics), CLIP PROJECT
- Bus Topology: Ring topology; supports up to 512 I/O points per segment
- Cable: Standard Interbus remote bus cable (5-wire shielded)
Selection Guide
Use the table below to select the correct PHOENIX CONTACT IBS RT digital input module for your application:
- 16 DI, 24 VDC, screw terminal → IBS RT 24DI/16-T ✓ (this model)
- 16 DI, 24 VDC, spring-clamp terminal → IBS RT 24DI/16-T-SC
- 8 DI + 8 DO, 24 VDC → IBS RT 24DI8/8DO8-T
- 32 DI, 24 VDC → IBS RT 24DI/32-T
- 16 DI, 120 VAC input → IBS RT 120DI/16-T
Key selection criteria: channel count → input voltage → terminal type → bus segment position → environmental rating (IP20 vs IP67).
Quality Assurance & Sourcing
- Source: Konmask.com sources IBS RT 24DI/16-T units from authorized distributors and verified industrial surplus channels
- Inspection: Every unit undergoes visual inspection, label verification, and functional power-on test before shipment
- Condition options: New (factory sealed), Refurbished (tested & cleaned), Used-tested (full functional verification)
- Warranty: 90-day replacement warranty on all shipped units
- Traceability: Batch records and serial numbers documented for each order
How to Order
- Online: Add to cart directly on this page — stock status shown in real time
- Email RFQ: support@konmask.com — include quantity, required condition, and delivery deadline
- Phone / WhatsApp: +0086 19859288691
- Lead time: In-stock orders ship within 1–3 business days; sourced orders typically 7–15 business days
- Shipping: DHL Express, FedEx International, sea freight available for bulk orders
- Payment: T/T (wire transfer), PayPal, credit card via Shopify Payments
Replacement & Compatibility FAQ
Q: Can I replace IBS RT 24DI/16-T with an IBS ST 24DI/16-T?
A: Functionally yes — both are 16-channel 24 VDC DI Interbus modules. The ST series uses a different housing form factor; verify DIN rail space and connector type before substitution.
Q: Is this module compatible with Siemens S7-300?
A: Yes, when used with a PHOENIX CONTACT IBS S7 300 DSC/I-T Interbus master card installed in the S7-300 rack.
Q: What is the maximum number of IBS RT 24DI/16-T modules per Interbus segment?
A: Up to 32 remote bus devices per segment, subject to the 512-point I/O limit of the Interbus master.
Q: Do you supply the original PHOENIX CONTACT datasheet?
A: Yes — email support@konmask.com with your order number or inquiry and we will provide the official PDF datasheet and wiring diagram.
Q: Can Konmask.com source discontinued or long-lead-time units?
A: Yes. We specialize in hard-to-find industrial automation components. Submit an RFQ and we will respond within 24 hours.
