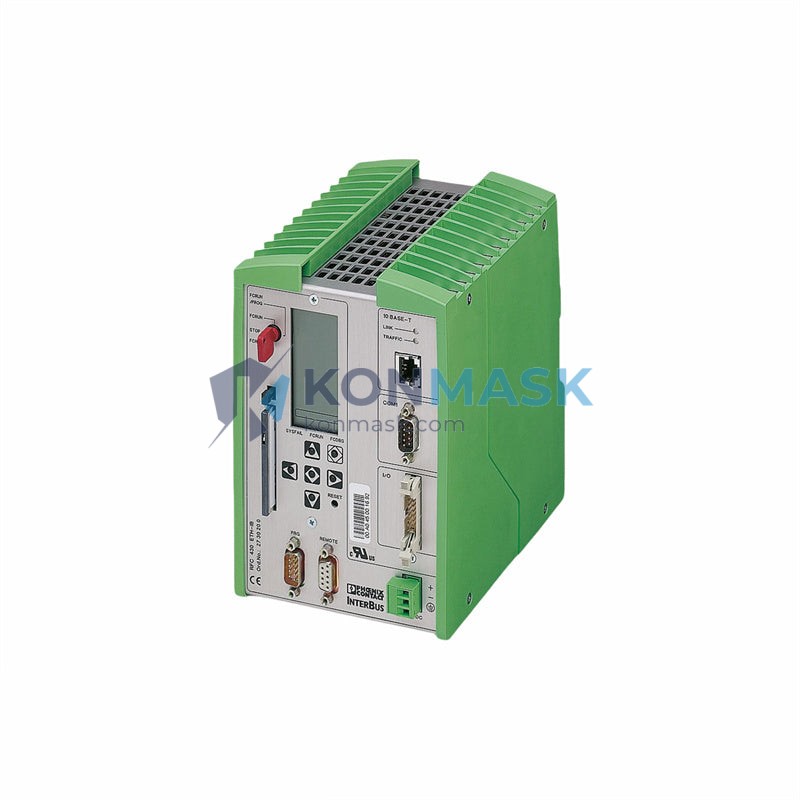

PHOENIX CONTACT RFC 430 ETH-IB 2730190 – Ethernet/InterBus Remote Field Controller | ILC 2050 BI Platform
Engineering Background
The RFC 430 ETH-IB belongs to Phoenix Contact’s ILC 2050 BI controller family — a platform engineered for distributed I/O architectures where deterministic fieldbus communication and Ethernet connectivity must coexist. Designed for mid-to-large automation cells, this controller bridges INTERBUS ring topology with standard Ethernet infrastructure, enabling seamless integration into modern SCADA and DCS environments without sacrificing legacy fieldbus investments.
Product Positioning
Targeted at procurement engineers and system integrators managing industrial control upgrades, the RFC 430 ETH-IB (Part No. 2730190) delivers a proven, OEM-sourced solution for applications demanding high-speed cyclic I/O, robust diagnostics, and dual-network flexibility. It is a direct fit for automotive assembly, process automation, and material handling systems already running INTERBUS segments.
Complete Technical Specifications
- Part Number: 2730190
- Model: RFC 430 ETH-IB
- Manufacturer: PHOENIX CONTACT
- Platform: ILC 2050 BI
- Fieldbus Protocol: INTERBUS (IBS) – Master
- Ethernet Interface: 10/100 Mbps, RJ45
- Programming Standard: IEC 61131-3 (IL, LD, FBD, SFC, ST)
- Max. INTERBUS Nodes: Up to 512 I/O modules per ring
- Cycle Time: Configurable; deterministic INTERBUS scan
- Supply Voltage: 24 V DC (SELV)
- Power Consumption: Refer to datasheet 2730190
- Operating Temperature: 0 °C … +55 °C
- Storage Temperature: −25 °C … +85 °C
- Protection Class: IP20
- Mounting: DIN rail (35 mm)
- Weight: 2,380 g (unit with accessories)
- Certifications: CE, UL, cUL
- Housing Material: Thermoplastic, flame-retardant
- Memory: Program and data memory onboard; SD card slot for project backup
- Diagnostics: LED status indicators; web-based diagnostic interface via Ethernet
Proven Application Environments
- Automotive Assembly Lines – Deterministic INTERBUS scan ensures synchronized robot and conveyor control with sub-millisecond jitter tolerance.
- Process Automation (Chemical / Pharmaceutical) – IEC 61131-3 compliance and structured diagnostics support validation-ready deployments.
- Material Handling & Intralogistics – Distributed I/O over INTERBUS ring reduces wiring complexity across large warehouse footprints.
- Building Automation & Infrastructure – Ethernet connectivity enables integration with BMS/SCADA via standard TCP/IP protocols.
- Machine Tool & Press Control – High-speed cyclic I/O supports precision motion sequencing and safety interlock management.
Engineering Advantages
- Dual-Network Architecture: Simultaneous Ethernet and INTERBUS operation eliminates the need for separate gateway hardware, reducing panel footprint and BOM cost.
- IEC 61131-3 Multi-Language Programming: Engineers can develop in their preferred language (LD, FBD, ST, IL, SFC) within PC Worx or equivalent IEC-compliant IDEs.
- Scalable I/O Expansion: INTERBUS master supports up to 512 remote I/O modules, enabling phased capacity growth without controller replacement.
- Web Diagnostics: Built-in Ethernet web server provides real-time bus diagnostics, reducing MTTR during commissioning and maintenance.
- DIN Rail Mounting: Standard 35 mm rail installation compatible with existing Phoenix Contact Inline terminal infrastructure.
- Proven OEM Lineage: Part of the established ILC 2050 BI family with long-term Phoenix Contact spare parts availability.
System Architecture & Signal Flow
The RFC 430 ETH-IB operates as the INTERBUS master, managing a ring-topology fieldbus network. Field devices (sensors, actuators, remote I/O stations) connect via INTERBUS segments. The controller’s Ethernet port connects upstream to the plant network, SCADA server, or engineering workstation. Cyclic process data is exchanged between the INTERBUS ring and the Ethernet layer through the controller’s internal memory map, with configurable mapping via PC Worx project configuration. The onboard SD card slot supports project backup and firmware updates without a PC connection on-site.
Sourcing & Quality Verification
- All units sourced through authorized distribution channels or verified OEM surplus with full traceability.
- Each RFC 430 ETH-IB 2730190 unit undergoes incoming inspection: visual check, label verification (part number, date code, country of origin), and functional power-on test where applicable.
- Counterfeit-risk mitigation: holographic labels, PCB markings, and firmware version cross-referenced against Phoenix Contact factory records.
- Units shipped with original packaging where available; ESD-safe packaging applied for all shipments.
- Certificate of Conformance (CoC) available upon request.
Procurement Process
- Step 1 – RFQ: Submit your quantity, required delivery date, and destination via the contact form or email below.
- Step 2 – Quote: Receive a formal quotation within 1 business day including unit price, lead time, and shipping options (DHL Express / FedEx International Priority).
- Step 3 – Order Confirmation: Issue PO against the quotation. Payment terms: T/T, PayPal, or trade credit (approved accounts).
- Step 4 – Shipment: Units dispatched within 1–3 business days of payment confirmation. Full tracking provided.
- Step 5 – After-Sales: 12-month warranty on verified OEM units. Technical support available via email for integration questions.
Technical FAQ
Q: Is the RFC 430 ETH-IB compatible with PC Worx programming software?
A: Yes. The RFC 430 ETH-IB is programmed using Phoenix Contact’s PC Worx IEC 61131-3 IDE. Existing PC Worx projects from other ILC 2050 BI controllers can typically be migrated with minor hardware configuration adjustments.
Q: Can this controller replace an RFC 430 ETH (without IB suffix)?
A: The RFC 430 ETH-IB adds INTERBUS master functionality. If your application does not use INTERBUS, the RFC 430 ETH may be sufficient. Confirm your fieldbus topology before substitution.
Q: What is the maximum INTERBUS cable length?
A: Per INTERBUS specification, the total ring cable length can reach up to 400 m per segment (RS-485 physical layer). Refer to Phoenix Contact INTERBUS planning guide for topology-specific limits.
Q: Does the unit support PROFINET or EtherNet/IP?
A: No. The Ethernet port on the RFC 430 ETH-IB supports standard TCP/IP communication (Modbus TCP, proprietary Phoenix Contact protocols). It does not natively support PROFINET or EtherNet/IP without additional gateway hardware.
Q: What is the lead time for new stock?
A: In-stock units ship within 1–3 business days. For larger quantities or specific date-code requirements, contact us for availability confirmation.
