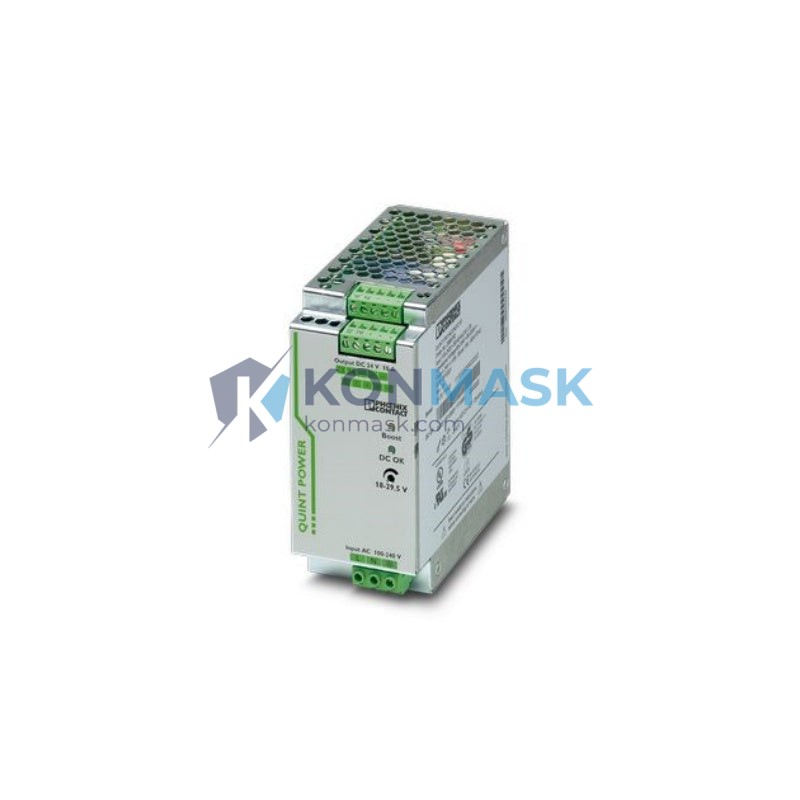

Phoenix Contact QUINT-PS/1AC/24DC/10 24VDC 10A Single-Phase DIN Rail Power Supply – QUINT-PS Series

Imagine a critical PLC control cabinet losing its 24 VDC rail voltage mid-shift. Within milliseconds, field sensors go blind, safety relays drop out, and an entire production line grinds to a halt — costing thousands in downtime, scrap, and emergency maintenance. The power supply is the silent backbone of every control system, and when it fails, everything downstream fails with it. The Phoenix Contact QUINT-PS/1AC/24DC/10 (Order No. 2866763) is engineered precisely to prevent that scenario, delivering rock-solid 24 VDC / 10 A output with the intelligence to warn you before a fault ever occurs.

Within the QUINT-PS family — Phoenix Contact’s flagship primary-switched power supply series — the QUINT-PS/1AC/24DC/10 occupies the sweet spot for mid-range cabinet loads: powerful enough to drive a full PLC rack with distributed I/O, yet compact enough for space-constrained enclosures. Backed by Phoenix Contact’s SFB (Selective Fuse Breaking) technology and a global installed base spanning automotive, oil & gas, water treatment, and machine-building industries, this unit is one of the most trusted 24 V / 10 A DIN rail supplies in the world.

Technical Specifications

Order Number: 2866763
Model / SKU: QUINT-PS/1AC/24DC/10
Input Voltage: 1-phase AC, 85–264 VAC (wide-range)
Input Frequency: 45–65 Hz
Output Voltage: 24 VDC (adjustable 18–29.5 VDC)
Output Current: 10 A nominal
Output Power: 240 W
SFB Boost Current: Up to 25 A (for selective fuse breaking)
Efficiency: ≥ 93% (typical at full load)
Mounting: DIN rail (EN 60715 / 35 mm)
Protection Class: IP20
Operating Temperature: -25 °C to +70 °C
Certifications: UL, cUL, CE, GL, DNV, ATEX (Zone 2)
MTBF: > 500,000 hours
Dimensions (W × H × D): 45 × 130 × 125 mm
Weight: approx. 500 g
Series: QUINT-PS
Manufacturer: Phoenix Contact GmbH & Co. KG

Key Features & Benefits

SFB Technology (Selective Fuse Breaking): Delivers up to 25 A short-circuit current for ≥12 ms to reliably blow downstream branch fuses — eliminating nuisance trips and protecting the entire 24 V bus.
Preventive Function Monitoring: Built-in signal contact (relay output) warns of impending overload or aging before a shutdown occurs, enabling planned maintenance instead of emergency response.
Wide-Range AC Input: 85–264 VAC universal input accepts any global mains voltage without manual switching — ideal for export machinery and multi-region installations.
High Efficiency ≥ 93%: Reduces heat dissipation inside the cabinet, lowering cooling requirements and extending component life.
Adjustable Output Voltage: 18–29.5 VDC trim range compensates for long cable runs and ensures correct voltage at the load.
Compact 45 mm Width: Saves valuable DIN rail space compared to older linear supplies of equivalent power.
Extended Temperature Range: -25 °C to +70 °C operation covers outdoor enclosures, cold-storage facilities, and high-ambient industrial environments.
International Approvals: UL, CE, GL, DNV, and ATEX Zone 2 certifications satisfy the most demanding project specifications worldwide.

Industry & Equipment Applications

Automotive Manufacturing: PLC control panels, robot controllers, and conveyor drive systems requiring stable 24 VDC bus power.
Oil & Gas / Petrochemical: ATEX Zone 2 rated — suitable for use in potentially explosive atmospheres with appropriate enclosure.
Water & Wastewater Treatment: SCADA remote terminal units (RTUs), pump station control panels, and sensor networks.
Machine Building (OEM): CNC machining centers, packaging lines, printing presses, and injection molding machines.
Building Automation & Infrastructure: BMS controllers, access control systems, and fire & gas detection panels.
Marine & Offshore: GL/DNV-approved for shipboard control systems and offshore platform instrumentation.
Food & Beverage: Hygienic-area control cabinets where reliable, low-heat power conversion is critical.

System Integration & Compatible Parts

The QUINT-PS/1AC/24DC/10 is designed to integrate seamlessly within Phoenix Contact’s broader automation ecosystem and standard IEC 61131-compliant control architectures:

Redundancy Modules: Phoenix Contact QUINT-DIODE/40 or QUINT-ORING/24DC/2X20/1X40 for N+1 redundant power architectures.
UPS Modules: Phoenix Contact QUINT-UPS/24DC/24DC/20 for buffer backup during mains interruptions.
PLCs: Compatible with Siemens S7-300/400/1200/1500, Allen-Bradley CompactLogix/ControlLogix, Mitsubishi MELSEC, Omron CJ/NJ series, and Beckhoff CX series.
Terminal Blocks: Phoenix Contact CLIPLINE complete series for clean, tool-free wiring of input and output connections.
Circuit Breakers: Phoenix Contact TMCP or standard 10 A miniature circuit breakers on the AC input side.

Our Quality Assurance Process

At Konmask.com, every Phoenix Contact QUINT-PS/1AC/24DC/10 unit we supply undergoes a rigorous multi-step verification process before shipment:

Source Verification: Units are sourced exclusively from authorized distributors and verified Phoenix Contact supply channels — no grey-market or counterfeit risk.
Visual & Label Inspection: Each unit is inspected for intact seals, correct labeling (order number 2866763), and undamaged housing.
Functional Pre-Check: Output voltage and signal contact operation are verified against Phoenix Contact factory specifications.
Secure Packaging: Anti-static packaging with shock-absorbing foam inserts protects units during international transit.
Documentation: Original datasheet, CE declaration of conformity, and test record provided upon request.
