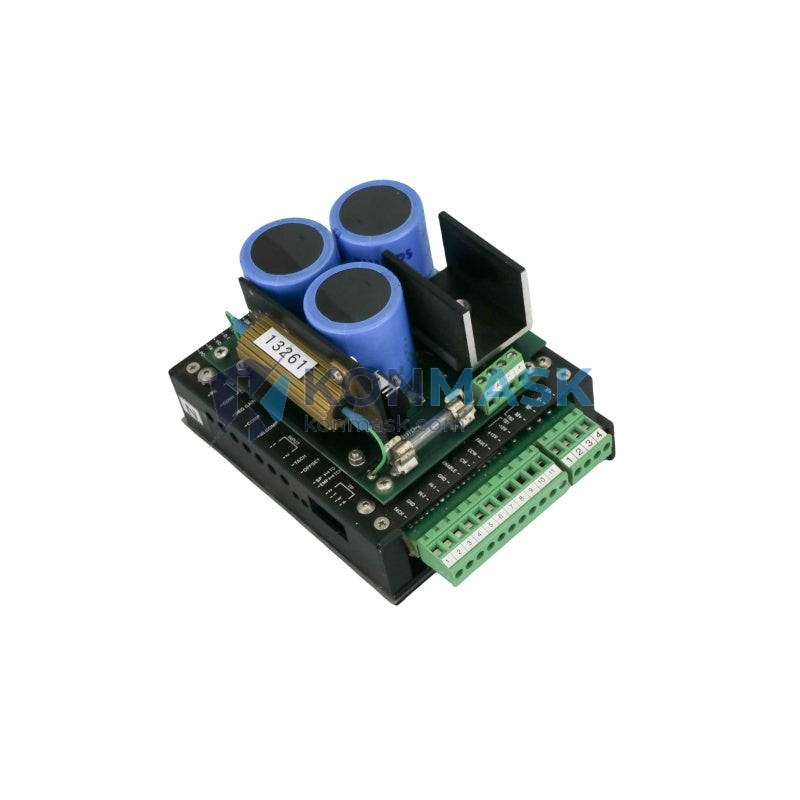

PMI Motion Technologies KXA-48-8-16 – PWM Servo Amplifier | KXA Series Multi-Axis Drive Platform
Engineering Background
The KXA-48-8-16 is a high-performance PWM (Pulse Width Modulation) servo amplifier engineered by PMI Motion Technologies, a recognized leader in precision motion control systems. Designed for demanding industrial automation environments, this unit integrates PS/AUX/PS power supply architecture with multi-axis coordination capability, making it a cornerstone component in servo-driven machinery, CNC systems, and advanced robotics platforms.
Product Positioning
This amplifier is purpose-built for procurement engineers and OEM system integrators who require a verified, drop-in replacement or new-build servo drive with traceable part numbers. The full configuration string — KXA-48-8-16 PS/AUX/PS / 0088060-004 / PH265-02 / MDVHX30ITC02 / 7KG7500-0AA02-0AA0/CC — ensures exact BOM compatibility and eliminates substitution risk in critical motion control architectures.
Complete Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | PMI Motion Technologies |
| Model / SKU | KXA-48-8-16 |
| Full Part Number | KXA-48-8-16 PS/AUX/PS 0088060-004 PH265-02 MDVHX30ITC02 7KG7500-0AA02-0AA0/CC |
| Drive Type | PWM (Pulse Width Modulation) Servo Amplifier |
| Power Configuration | PS/AUX/PS (Primary + Auxiliary + Primary Supply) |
| Series | KXA Series |
| Reference Drawing | 0088060-004 |
| Interface Module | PH265-02 |
| Drive Module Code | MDVHX30ITC02 |
| System Config Code | 7KG7500-0AA02-0AA0/CC |
| Weight (approx.) | 2,600 g |
| Condition | New / Refurbished (specify on inquiry) |
| Origin | OEM — PMI Motion Technologies |
Proven Application Environments
- CNC Machining Centers — Closed-loop axis control for X/Y/Z servo motors requiring precise torque and velocity regulation
- Industrial Robotics — Multi-axis coordinated motion in articulated arm and SCARA robot platforms
- Semiconductor Fabrication Equipment — Ultra-low-vibration servo positioning in wafer handling and lithography stages
- Printing & Packaging Machinery — High-speed register control and tension management in web-fed systems
- Medical Device Manufacturing — Precision servo actuation in assembly and inspection automation lines
- Aerospace Test Rigs — Dynamic load simulation and structural fatigue testing systems
Engineering Advantages
- PWM Drive Architecture — High-efficiency switching topology minimizes heat dissipation and maximizes power density compared to linear amplifiers
- PS/AUX/PS Power Redundancy — Dual primary supply with auxiliary bus ensures uninterrupted operation during transient load events
- Multi-Axis Scalability — KXA platform supports coordinated multi-axis configurations without external synchronization hardware
- Full BOM Traceability — Every sub-component code (PH265-02, MDVHX30ITC02, 7KG7500-0AA02-0AA0/CC) is documented for maintenance and warranty tracking
- Drop-In Replacement Ready — Exact OEM part number match eliminates re-engineering risk in legacy system upgrades
System Architecture & Signal Flow
The KXA-48-8-16 operates within a closed-loop servo architecture. The command signal (position, velocity, or torque reference) is received via the PH265-02 interface module, processed by the MDVHX30ITC02 drive core, and output as a PWM-modulated voltage to the servo motor windings. The PS/AUX/PS power stage conditions the DC bus voltage, while the system configuration code 7KG7500-0AA02-0AA0/CC defines the axis count, feedback type, and communication protocol variant. Encoder feedback closes the position loop at the amplifier level, enabling sub-micron repeatability in precision applications.
Sourcing & Quality Verification
- All units sourced through authorized distribution channels or directly from OEM-certified inventory
- Serial number and date code verification available upon request prior to shipment
- Each unit undergoes functional power-on inspection before dispatch
- Packaging: original OEM carton or equivalent ESD-safe protective packaging
- Documentation: datasheet, test report, and certificate of conformance available on request
Procurement Process
- Submit Inquiry — Contact us with your full BOM reference or the part number string above
- Receive Quote — We confirm stock status, lead time, and pricing within 1 business day
- Order Confirmation — Purchase order accepted via email; proforma invoice issued
- Quality Inspection — Unit inspected and documented before shipment
- Shipment & Tracking — Dispatched via DHL / FedEx / UPS with full tracking; export documentation included
- After-Sales Support — Technical support available post-delivery for integration assistance
Technical FAQ
Q: Is this a new or refurbished unit?
A: We stock both new OEM and professionally refurbished units. Please specify your requirement at inquiry stage and we will confirm availability and pricing accordingly.
Q: What is the lead time for the KXA-48-8-16?
A: Standard lead time is 3–7 business days for in-stock units. For sourced or refurbished units, lead time is 10–21 business days. Contact us for real-time stock confirmation.
Q: Can you provide a datasheet or wiring diagram?
A: Yes. PMI Motion Technologies technical documentation is available upon request. Contact support@konmask.com with your application details.
Q: Is this compatible with Siemens SINUMERIK or Fanuc CNC controllers?
A: Compatibility depends on the specific system configuration code variant. The 7KG7500-0AA02-0AA0/CC suffix defines the communication interface. Please share your controller model for a compatibility assessment.
Q: Do you offer warranty?
A: Yes. New units carry the OEM warranty. Refurbished units carry a 90-day functional warranty from Konmask.com. Extended warranty options are available on request.
