Bosch Rexroth 4WRPEH6 C3 B04L-2X/G24K0/F1M Proportional Directional Control Valve | Replacement, Equivalent & Selection Guide

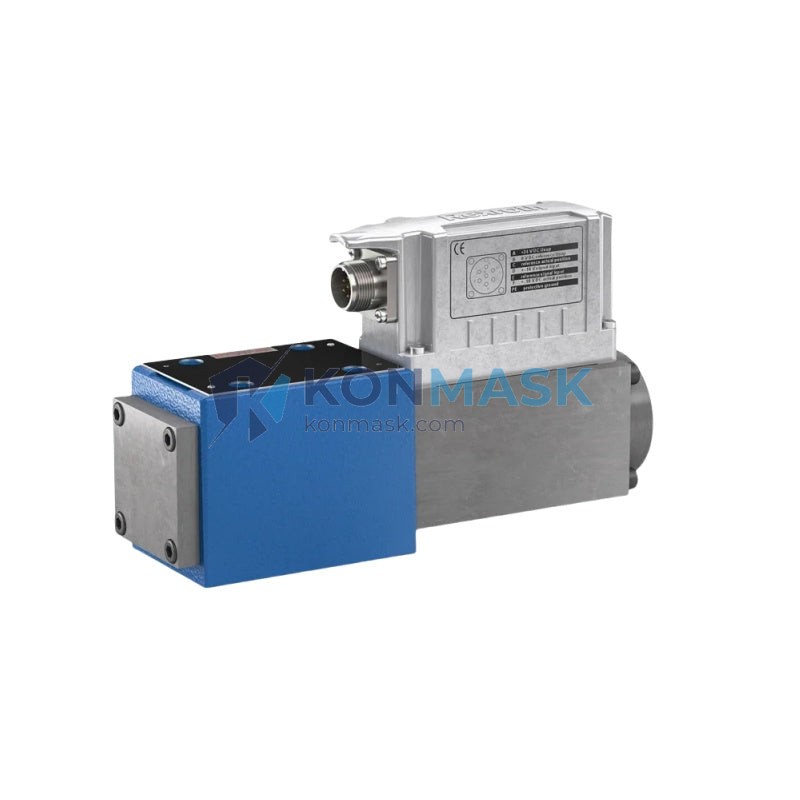

The Rexroth 4WRPEH6 C3 B04L-2X/G24K0/F1M is a high-performance proportional directional control valve from Bosch Rexroth’s 4WRPEH series. Designed for precise flow and direction control in industrial hydraulic systems, this NG6 valve integrates onboard electronics (OBE) with a 24 VDC solenoid, making it ideal for closed-loop and open-loop automation applications. At Konmask.com, we specialize in sourcing, cross-referencing, and supplying this model along with verified compatible equivalents.
Technical Specifications
| Parameter | Value |
|---|---|
| Model / SKU | 4WRPEH6 C3 B04L-2X/G24K0/F1M |
| Manufacturer | Bosch Rexroth |
| Series | 4WRPEH (4WRPE + OBE, NG6) |
| Valve Type | Proportional Directional Control Valve |
| Size (Nominal) | NG6 (Cetop 3 / D03) |
| Spool Type | C3 (4/3-way, closed center) |
| Max Flow Rate | 4 L/min (B04) |
| Actuation | L – Single solenoid (one-sided) |
| Generation | 2X (2nd generation electronics) |
| Solenoid Voltage | G24 – 24 VDC |
| Connector Type | K0 – Standard DIN connector |
| Electronics | F1M – Integrated OBE with enable input |
| Mounting Pattern | Cetop 3 / ISO 4401-03 |
| Weight | ~560 g |
| Operating Pressure | Up to 315 bar (nominal) |
| Hysteresis | ≤ 0.5% |
| Repeatability | ≤ 0.2% |
Compatible Replacement & Equivalent Models
The following models are commonly evaluated as replacements or equivalents for the 4WRPEH6 C3 B04L-2X/G24K0/F1M. Always verify port pattern, spool type, flow rating, and electronics interface before substitution.
| Model | Brand | Type | Notes |
|---|---|---|---|
| 4WRPEH6 C3 B04L-3X/G24K0/F1M | Bosch Rexroth | Direct replacement | 3rd generation electronics; functionally equivalent |
| 4WRE6 E08-2X/G24K4/A1 | Bosch Rexroth | Proportional (without OBE) | Requires external amplifier card; same NG6 pattern |
| 4WRKE6 E08L-3X/6EG24ETK31/A1D3M | Bosch Rexroth | High-response proportional | Higher dynamic performance; direct upgrade path |
| DLHZO-TE-040-L71 | Atos | Proportional directional (NG6) | Compatible mounting; requires electronics check |
| D1FBE01FC0NB00 | Parker Hannifin | Proportional directional (D03) | D03 pattern; verify spool and flow curve |
| 4/3 Proportional NG6 (generic) | Yuken / Duplomatic | Budget alternative | Lower precision; suitable for non-critical axes |
⚠ Konmask.com recommends using original Rexroth parts for safety-critical and high-cycle applications. Contact us for a verified cross-reference.
Why Choose the Original Model
- Integrated OBE electronics (F1M) — eliminates external amplifier, reduces panel space and wiring complexity.
- 2X generation platform — proven reliability with extensive field history across global OEM installations.
- Tight hysteresis ≤ 0.5% — ensures repeatable positioning in closed-loop servo systems.
- Cetop 3 / ISO 4401-03 mounting — drop-in compatible with standard D03 manifolds.
- 24 VDC operation — directly compatible with standard PLC output cards and machine control cabinets.
- Bosch Rexroth global support — full documentation, spare parts, and service network availability.
Typical Applications
- Injection molding machine hydraulic axes (clamp, injection, ejector)
- CNC machine tool slide and spindle hydraulic control
- Press and forming machine proportional control
- Industrial robot hydraulic actuator control
- Test bench and simulation rigs requiring precise flow metering
- Plastic extrusion and blow molding equipment
- Steel mill auxiliary hydraulic systems
System Compatibility
- PLC Interface: Compatible with Siemens S7, Allen-Bradley ControlLogix, Mitsubishi Q/iQ-R, Beckhoff TwinCAT via ±10 V or 4–20 mA analog output modules.
- Manifold: Standard Cetop 3 (NG6) sub-plate; ISO 4401-03-02-0-05 pattern.
- Hydraulic Fluid: Mineral oil HLP 32–68; compatible with HF-C and HF-D fluids (consult Rexroth datasheet RE 29 054).
- Amplifier Card (if OBE bypassed): VT-VSPA2-1-1X/T1 or VT-HACD-1-1X series.
- Connector: DIN EN 175301-803 (K0 type); standard industrial M12 adapter available.
Selection Guide
Use the table below to decode the 4WRPEH6 C3 B04L-2X/G24K0/F1M model code and select the correct variant for your application:
| Code Segment | Meaning | Alternatives |
|---|---|---|
| 4WRPEH | Series: 4/3 proportional directional, OBE integrated | 4WRE (external amp), 4WRKE (high response) |
| 6 | Size: NG6 (Cetop 3) | NG10 → 4WRPEH10; NG16 → 4WRPEH16 |
| C3 | Spool: 4/3-way, closed center | E (open center), W (tandem), D (motor spool) |
| B04 | Max flow: 4 L/min | B08 (8 L/min), B16 (16 L/min) |
| L | Single solenoid (one-sided actuation) | – (double solenoid) |
| 2X | Electronics generation: 2nd | 3X (3rd gen, current production) |
| G24 | Solenoid: 24 VDC | G12 (12 VDC), G110 (110 VAC) |
| K0 | Connector: DIN standard | K4 (M12 connector) |
| F1M | OBE with enable input, standard version | F1 (without enable), F2M (with fault output) |
Quality Assurance & Sourcing
- Source: Authorized distribution channels and verified surplus stock with full traceability.
- Inspection: Each unit inspected for original packaging integrity, date codes, and label authenticity.
- Documentation: Original Rexroth datasheet RE 29 054 available upon request.
- Warranty: 12-month warranty against manufacturing defects on all Konmask-supplied units.
- Counterfeit Prevention: We do not source from unverified grey-market channels. All units include traceable lot documentation.
How to Order
- Confirm your full model number: 4WRPEH6 C3 B04L-2X/G24K0/F1M
- Specify quantity and required delivery timeline.
- Contact us via email or phone for stock availability and pricing.
- Receive proforma invoice → confirm payment → dispatch within 1–3 business days (stock items).
- Tracking number and shipping documents provided upon dispatch.
📧 [email protected] | 📞 +0086 19859288691
Replacement & Compatibility FAQ
Q: Can I replace a 4WRPEH6 C3 B04L-2X with a 3X generation model?
A: Yes. The 3X generation is the current production version and is a direct functional replacement. Wiring and mounting are identical; only the internal electronics revision differs.
Q: Does this valve require an external amplifier card?
A: No. The F1M suffix indicates integrated OBE (on-board electronics). A ±10 V or 4–20 mA command signal from your PLC analog output is sufficient.
Q: What is the enable input (F1M) and how is it wired?
A: The enable input is a digital 24 VDC signal that activates the valve electronics. When the enable is LOW, the valve defaults to the spring-centered (safe) position regardless of the command signal.
Q: Can the 4WRE6 series replace this valve?
A: The 4WRE6 uses the same NG6 mounting but requires an external amplifier card (e.g., VT-VSPA2). It is a viable replacement if an amplifier is already present in the system.
Q: Is this valve compatible with water-glycol (HF-C) hydraulic fluid?
A: Consult Rexroth datasheet RE 29 054. Special seal kits are required for HF-C/HF-D fluids. Contact Konmask for the correct variant.
Q: What is the lead time for out-of-stock units?
A: Standard lead time from Rexroth factory or authorized distribution is 4–8 weeks. Konmask maintains buffer stock for fast-moving variants — contact us for current availability.
