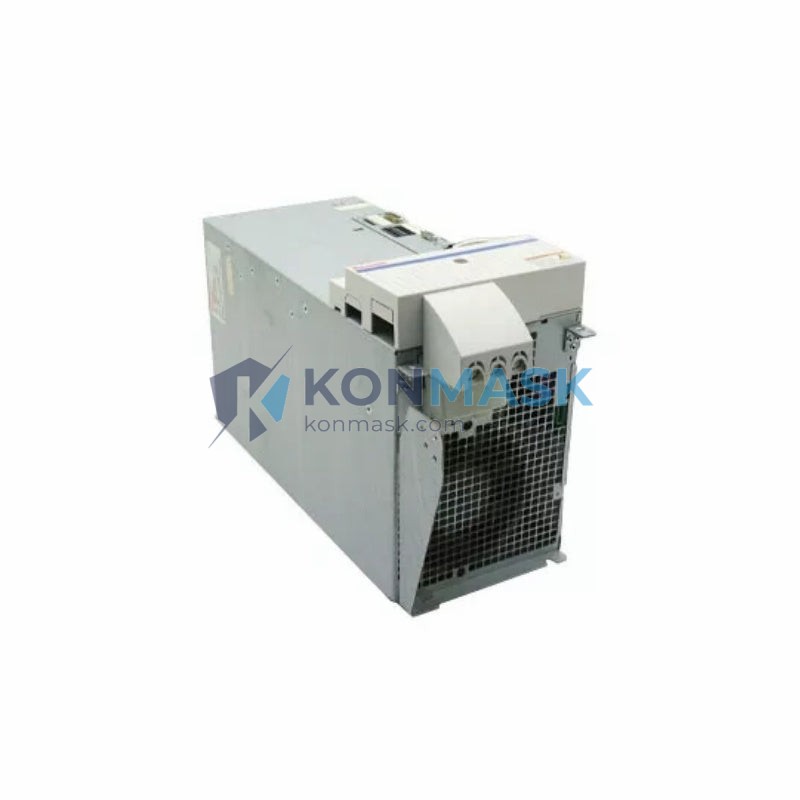

Bosch Rexroth HCS02.1E-W0054-A-03-NNNN – Compact AC Servo Drive with 5.4 kVA Output | IndraDrive C Platform
Engineering Background: The IndraDrive C (HCS02) series represents Bosch Rexroth’s compact, cost-optimized servo drive platform engineered for single-axis and multi-axis motion control in industrial automation. Designed to operate within the SERCOS III / PROFIBUS / EtherCAT ecosystem, HCS02 drives deliver deterministic torque, velocity, and position control for demanding production environments.
Product Positioning: The HCS02.1E-W0054-A-03-NNNN is a 5.4 kVA rated AC inverter unit targeting machine tool, packaging, printing, and material handling applications where compact footprint and high dynamic response are critical. This unit is sourced as verified surplus/refurbished stock and is fully tested prior to shipment.
Complete Technical Specifications
- Part Number (SKU): HCS02.1E-W0054-A-03-NNNN
- Manufacturer: Bosch Rexroth AG
- Series / Platform: IndraDrive C – HCS02
- Drive Type: AC Servo Inverter (Single-Axis)
- Continuous Output Current: 5.4 A (W0054 = 5.4 A peak current class)
- Supply Voltage: 3 × AC 200–480 V, 50/60 Hz
- DC Bus Voltage: 540–750 V DC (nominal)
- Power Rating: ~5.4 kVA
- Control Mode: Torque / Velocity / Position (closed-loop)
- Firmware Variant: A (Standard)
- Communication Option: 03 (PROFIBUS DP)
- Expansion / Safety Option: NNNN (No optional modules)
- Cooling: Forced air (internal fan)
- Protection Class: IP20
- Ambient Temperature: 0 °C to +40 °C (operating)
- Weight: ~6.7 kg
- Certifications: CE, UL (series-level)
- Compatible Motor Families: MSK, MKD, MHD, LSF (Rexroth IndraDyn series)
Proven Application Environments
- CNC machine tools (turning, milling, grinding centers)
- Packaging and form-fill-seal machinery
- Printing and converting lines
- Robotics and gantry systems
- Semiconductor and electronics assembly equipment
- Material handling conveyors and pick-and-place systems
Engineering Advantages
- Compact footprint: HCS02 chassis minimizes cabinet space versus comparable power-class drives
- PROFIBUS DP (Option 03): Native fieldbus integration with Siemens S7, Beckhoff, and other PLC platforms without gateway hardware
- Integrated safety architecture: Compatible with Rexroth SafeMotion safety functions (STO, SS1, SLS) when paired with appropriate safety option cards
- Rexroth IndraWorks DS: Full parameterization, diagnostics, and oscilloscope via USB/Ethernet commissioning tool
- Regenerative braking: Internal braking resistor interface; supports external resistor for high-inertia loads
System Architecture & Signal Flow
The HCS02.1E-W0054-A-03-NNNN operates as a standalone single-axis drive or as a slave axis within a multi-axis IndraDrive topology sharing a common DC bus (HMV supply unit). Signal flow: AC Mains → HMV/HCS Rectifier → DC Bus → HCS02 Inverter Stage → Motor Encoder Feedback → Closed-Loop Control → PROFIBUS DP Command Interface → PLC/CNC Controller.
The drive accepts incremental and absolute encoder feedback (EnDat 2.1/2.2, Hiperface, resolver) via the X8 motor feedback connector, enabling sub-micron positioning accuracy in coordinated multi-axis applications.
Sourcing & Quality Verification
- Unit sourced from decommissioned OEM production lines or authorized surplus channels
- Visual inspection: no physical damage, corrosion, or burn marks
- Power-on functional test: DC bus charge, fan operation, firmware boot verified
- Firmware version documented and available upon request
- Original Rexroth nameplate intact with full part number traceability
- Packed in anti-static foam with moisture barrier for international shipment
Procurement Process
- Stock Status: Contact us to confirm real-time availability before ordering
- Lead Time: In-stock units ship within 1–3 business days (DHL / FedEx international)
- MOQ: 1 unit
- Payment: T/T, PayPal, credit card (Shopify Payments)
- Warranty: 90-day functional warranty against DOA; extended warranty available on request
- Documentation: Rexroth technical datasheet, wiring diagram, and parameter list available upon request
Technical FAQ
Q: Is this drive compatible with non-Rexroth motors?
A: The HCS02 is optimized for Rexroth IndraDyn motors. Third-party motor compatibility requires custom motor data set configuration via IndraWorks DS and is possible but not guaranteed.
Q: What is the difference between W0054 and W0070 variants?
A: W0054 = 5.4 A continuous output current; W0070 = 7.0 A. Select based on your motor’s rated current and peak torque requirements.
Q: Can this unit replace an HCS02.1E-W0054-A-03-B2NN?
A: The NNNN suffix indicates no optional modules. If your application requires the B2 safety option (STO via X41), this unit is not a direct drop-in replacement without hardware modification.
Q: Is PROFIBUS DP the only fieldbus option?
A: For this specific part number (option code 03), yes. Other variants support SERCOS III (S3), EtherCAT (EC), and PROFINET (PN). Contact us if you need a different fieldbus variant.
Q: Do you provide commissioning support?
A: We can provide parameter backup files and remote guidance. On-site commissioning is not included but can be arranged through our partner network.
