Industrial Automation Solution — Bosch Rexroth VPB40.3D1L-1G0NN-D1D-DN-NN-FW R911171030 | IndraControl V Series
Where This Product Is Used

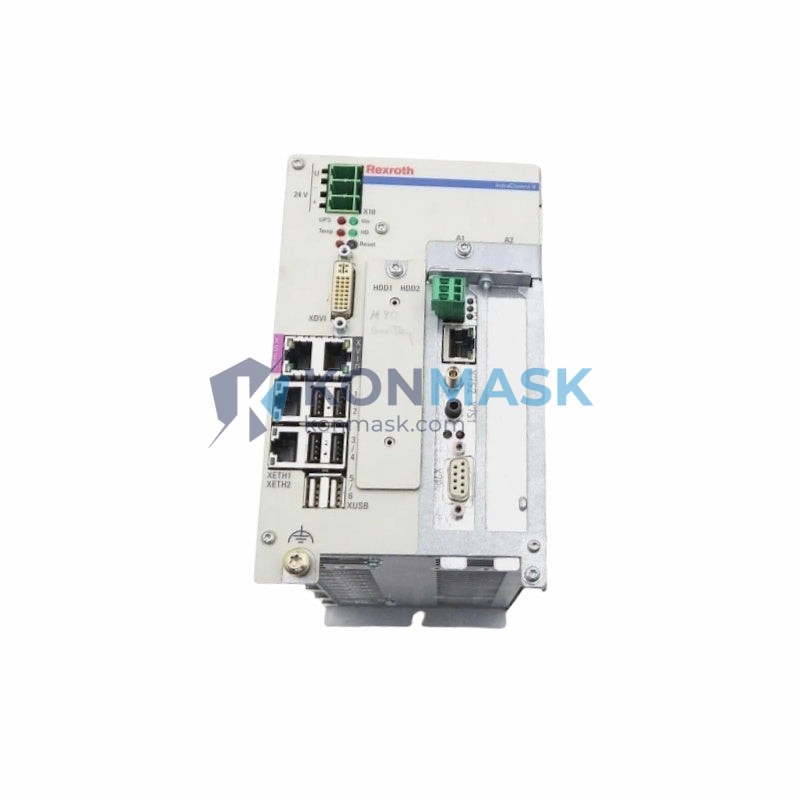

The Bosch Rexroth VPB40.3D1L-1G0NN-D1D-DN-NN-FW (Material No. R911171030) is a high-performance panel controller from the IndraControl V (VPB40) series, engineered for demanding industrial environments. Typical deployment scenarios include:
- CNC Machining Centers — Serves as the operator interface and motion-control hub on multi-axis milling, turning, and grinding machines.
- Automated Assembly Lines — Coordinates servo drives, I/O modules, and safety systems in high-throughput manufacturing cells.
- Plastics & Rubber Processing — Controls injection molding and extrusion lines where precise temperature, pressure, and cycle-time management is critical.
- Printing & Packaging Machinery — Manages register control, web tension, and high-speed cut-to-length operations.
- Metal Forming & Press Lines — Integrates with Rexroth IndraDrive systems for synchronized multi-axis press and transfer applications.
- Renewable Energy & Test Rigs — Used in hydraulic test benches and wind-turbine pitch-control systems requiring real-time data acquisition.
Technical Specifications
| Parameter | Value |
|---|---|
| Part Number (SKU) | VPB40.3D1L-1G0NN-D1D-DN-NN-FW |
| Material Number | R911171030 |
| Series | IndraControl V — VPB40 |
| Manufacturer | Bosch Rexroth AG |
| Device Type | Panel-Mount HMI / Motion Controller |
| Display | 15″ TFT LCD (1G0 = 15-inch display option) |
| Operating System | Windows Embedded / VxWorks (firmware-dependent) |
| Communication Interfaces | SERCOS III / EtherCAT / Ethernet / USB / DVI |
| Fieldbus Support | PROFIBUS, PROFINET, EtherNet/IP (option-dependent) |
| Supply Voltage | 24 V DC (nominal) |
| Protection Rating | IP65 (front panel) |
| Operating Temperature | 0 °C to +55 °C |
| Storage Temperature | −20 °C to +70 °C |
| Weight (approx.) | 1,000 g |
| Firmware Suffix | FW (factory firmware pre-installed) |
Specifications are based on Bosch Rexroth published data. Always verify against the official datasheet for your specific firmware revision.
Why Engineers Specify This Model
- Integrated Motion + HMI — Combines operator panel and motion-control intelligence in a single compact unit, reducing cabinet footprint and wiring complexity.
- SERCOS III Native Support — Deterministic real-time communication with IndraDrive Cs/Ms servo drives at cycle times down to 250 µs.
- IP65 Front Panel — Sealed against dust and coolant splash, suitable for direct machine-tool mounting without additional enclosure.
- Scalable Architecture — The VPB40 platform supports expansion via I/O modules and fieldbus gateways, protecting long-term investment.
- Proven Reliability — Widely deployed across Rexroth MTX and IndraMotion CNC platforms with a documented global install base.
- Long-Term Availability — Bosch Rexroth maintains extended spare-parts support for the IndraControl V family, minimizing obsolescence risk.
Complete System Bill of Materials
For a fully operational IndraControl V control system, the following companion components are typically required:
- Bosch Rexroth IndraDrive Cs / Ms Servo Drive (e.g., HCS02, HCS03)
- Rexroth IndraDyn Servo Motor (MSK / MKE series)
- Rexroth IndraControl L (CML / CML65) Logic Controller (if separate PLC required)
- SERCOS III fiber-optic or copper ring cable set
- 24 V DC power supply (PSL / PST series)
- Rexroth I/O module (RAC / CIO series)
- Safety module (SafeMotion, if SIL 2 / PLd required)
Contact [email protected] for a complete BOM quotation tailored to your machine configuration.
Compliance & Industry Standards
- CE Marking — EU Machinery Directive 2006/42/EC & Low Voltage Directive 2014/35/EU
- UL / cUL Listed (where applicable per regional variant)
- RoHS 2 Compliant (Directive 2011/65/EU)
- IEC 61131-3 Programming Environment (via IndraWorks Engineering)
- ISO 13849 / IEC 62061 Safety-rated variants available
Quality Assurance & Sourcing
At Konmask.com, every unit undergoes a structured verification process before dispatch:
- Visual inspection against Bosch Rexroth OEM cosmetic standards
- Label and material-number cross-check (R911171030 confirmed)
- Functional power-on test where test fixtures are available
- Anti-static packaging with humidity indicator card
- Traceable sourcing from authorized distributors and certified secondary-market channels
We supply OEM-new, factory-refurbished, and tested-used units. Condition is clearly stated at time of quotation.
How to Source This Part
- Request a Quote — Email [email protected] with your required quantity, condition preference, and delivery deadline.
- Stock Confirmation — Our team confirms availability and lead time within 1 business day.
- Order & Payment — Secure payment via T/T bank transfer, PayPal, or trade-assurance platforms.
- Shipping — DHL / FedEx / UPS express worldwide; sea freight available for bulk orders. Export documentation (commercial invoice, packing list, CO) provided.
- After-Sales Support — 90-day warranty on tested units; technical support for integration queries.
Application-Specific FAQ
Q: Is the VPB40.3D1L-1G0NN-D1D-DN-NN-FW compatible with IndraMotion MTX CNC software?
A: Yes. The VPB40 panel controller is a core hardware platform for Rexroth IndraMotion MTX and MLC systems. Ensure firmware revision matches your IndraWorks project version.
Q: Can this unit replace an older VPB40.2 or VPB30 controller?
A: Mechanical mounting and SERCOS interfaces are largely compatible, but firmware and software licenses must be re-validated. Consult your Rexroth system integrator before substitution.
Q: What is the difference between the D1D and D1N display suffix options?
A: D1D typically denotes a daylight-readable display variant with higher brightness, while D1N is the standard brightness version. Verify your ambient lighting conditions before ordering.
Q: Do you supply the IndraWorks software license with the hardware?
A: Software licenses are managed separately by Bosch Rexroth. We supply hardware only. Contact your local Rexroth sales office for license procurement.
Q: What is the typical lead time for R911171030?
A: In-stock units ship within 3–5 business days. Out-of-stock sourcing typically requires 2–4 weeks depending on global availability.
