Is the PCD3.W720 compatible with all PCD3 CPU modules?

The PCD3.W720 is designed for the PCD3 backplane and is generally compatible with PCD3 series CPUs. Compatibility with specific firmware versions should be verified against the SAIA hardware compatibility matrix.

Can the PCD3.W720 be used for static weighing?

Yes. While optimized for dynamic in-motion weighing, the module can also be used for static weighing applications where high-speed data acquisition is beneficial.

What load cell types are supported by the PCD3.W720?

The module supports standard strain-gauge (Wheatstone bridge) load cells with mV/V output. Consult the official datasheet for excitation voltage and input range specifications.

Do you supply the PCD3.W720 as new or refurbished?

Both new and refurbished units are available depending on stock. Condition is always disclosed in the quotation before purchase commitment.

How long does international shipping take for the PCD3.W720?

DHL/FedEx express typically delivers within 3–7 business days to most destinations. Sea freight is available for bulk orders.

Can Konmask source other PCD3 modules alongside the W720?

Yes. Konmask.com specializes in complete PCD3 system sourcing. Share your full parts list for a consolidated quotation.

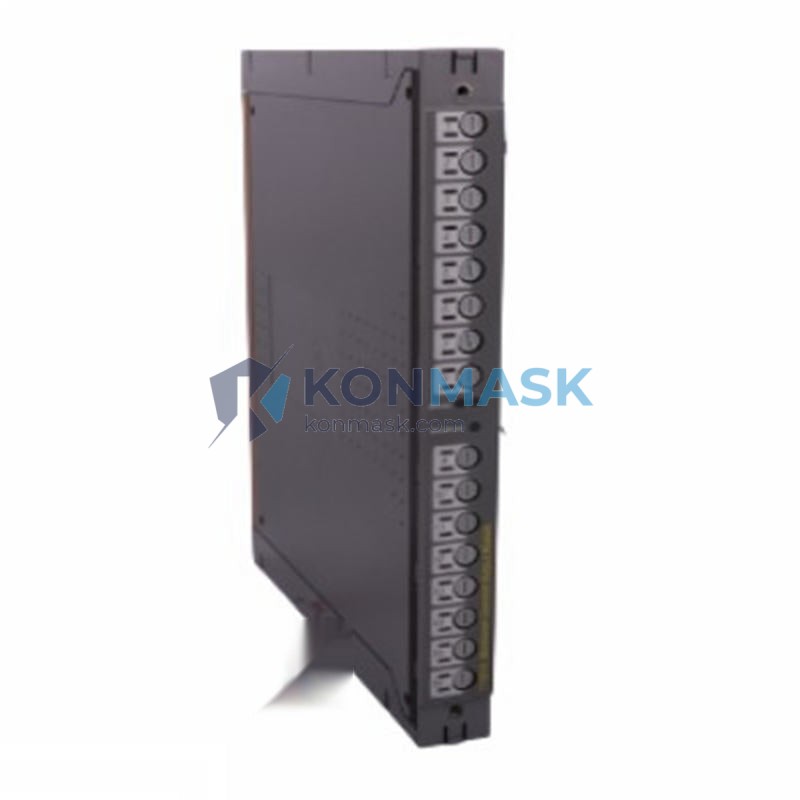

Genuine SAIA PCD3.W720 PCD3 Modular PLC System - Industrial Automation Part

SAIA PCD3.W720 Dynamic Weighing Modules – PCD3 Series

Request a Fast Quote Email Directly

Send your required quantity, target delivery time, and destination country. Konmask will reply with availability and lead time.

SKU: PCD3.W720 Category: SAIA Tags: Dynamic Weighing Module, Industrial Automation, PCD3 Series, PCD3.W720, SAIA

Description

SAIA PCD3.W720 Dynamic Weighing Module – PCD3 Programmable Control System Series

In high-throughput industrial environments — filling lines, checkweighers, batching systems, and conveyor-integrated scales — a single point of failure in the weighing chain can halt an entire production run. Without a reliable, high-speed weighing module, operators face uncontrolled batch variances, regulatory non-compliance, product giveaway, and costly downtime. The SAIA PCD3.W720 eliminates these risks by delivering deterministic, high-resolution weight acquisition directly within the PCD3 automation platform, removing the need for standalone weighing controllers and the integration complexity they introduce.

The PCD3.W720 occupies a specialized position within SAIA-Burgess’s PCD3 modular PLC ecosystem — it is the dedicated dynamic weighing interface card engineered for applications where static weighing is insufficient and real-time weight data must be processed at PLC cycle speed. Globally, SAIA PCD3 systems are deployed across food & beverage, pharmaceutical, chemical, and logistics sectors, and the W720 module is the preferred solution wherever precision gravimetric measurement must be tightly coupled with process control logic.

Technical Specifications

Part Number: PCD3.W720
Brand: SAIA-Burgess (SAIA)
Series: PCD3 Modular PLC System
Module Type: Dynamic Weighing Input Module
Weight: 2,750 g (module with housing)
Mounting: PCD3 backplane slot (standard PCD3 rack compatible)
Interface: Internal PCD3 system bus
Application Class: Dynamic / In-motion weighing, batching, dosing
Load Cell Input: Compatible with standard strain-gauge load cells (Wheatstone bridge)
Operating Temperature: Per PCD3 platform standard (typically 0–55 °C)
Standards Compliance: CE marked; designed for industrial EMC environments

Note: Full electrical specifications (excitation voltage, resolution, sampling rate, input impedance) are available in the official SAIA PCD3.W720 datasheet. Contact Konmask.com for documentation support.

Key Features & Benefits

Native PCD3 Integration: Slots directly into any PCD3 rack — no external weighing controller, no additional fieldbus wiring, no protocol conversion overhead.
Dynamic Weighing Capability: Processes weight signals from moving product (in-motion checkweighing, conveyor batching) with the filtering and settling algorithms required for accurate dynamic measurement.
High-Speed Data Acquisition: Weight values are available to the PLC CPU at system bus speed, enabling real-time closed-loop control of dosing valves, conveyor drives, and reject mechanisms.
Flexible Load Cell Support: Compatible with industry-standard strain-gauge load cells, allowing integration with existing scale hardware or new installations.
Reduced System Footprint: Consolidates weighing intelligence into the PLC rack, reducing panel space, wiring complexity, and potential failure points versus standalone weighing terminals.
Deterministic Process Control: Weight data is synchronized with PLC scan cycles, ensuring consistent batch-to-batch repeatability and audit-trail integrity.
Long Service Life: Built to SAIA’s industrial-grade hardware standards, suitable for 24/7 continuous operation in demanding factory environments.

Industry & Equipment Applications

Food & Beverage: Checkweighing of packaged goods, ingredient batching, filling line weight verification, catch-weight processing.
Pharmaceutical & Chemical: Gravimetric dosing of active ingredients, powder/liquid batching, IBC filling, regulatory-compliant weight logging.
Logistics & Warehousing: In-motion parcel weighing on conveyor sorters, dimensioning/weighing integration, freight billing systems.
Plastics & Rubber: Gravimetric blending of raw materials, extruder throughput control, regrind ratio management.
Building Materials: Aggregate batching for concrete/mortar plants, silo discharge control, truck loading scales.
General Manufacturing: Any application requiring closed-loop weight feedback integrated directly with PLC-controlled actuators and conveyors.

System Integration & Compatible Parts

The PCD3.W720 is designed exclusively for the SAIA PCD3 platform. Typical system configurations include:

PCD3 CPU Modules: PCD3.M3360, PCD3.M5540, PCD3.M6860 and other PCD3 series CPUs
PCD3 Rack/Backplane: PCD3.C100, PCD3.C200 series expansion racks
Power Supply Modules: PCD3.T760, PCD3.T665 series
Load Cells: Standard 4-wire / 6-wire strain-gauge load cells (mV/V output)
HMI: SAIA PCD7 operator panels or third-party HMI via PCD3 communication modules
Communication: PCD3 Ethernet, PROFIBUS, Modbus modules for SCADA/MES integration

Konmask.com maintains inventory of complementary PCD3 modules. Contact us with your full BOM for consolidated sourcing.

Our Quality Assurance Process

Every SAIA PCD3.W720 unit supplied by Konmask.com passes through a documented verification process before shipment:

Authenticity Check: Visual inspection of manufacturer markings, date codes, and label integrity against known-genuine references.
Functional Verification: Where test infrastructure permits, modules are bench-tested for communication response and basic I/O functionality.
Condition Grading: Units are clearly graded as New (factory-sealed), Refurbished (tested & restored), or Used-Tested, with full disclosure prior to order confirmation.
Secure Packaging: ESD-safe packaging with moisture barrier and shock-absorbing materials for international freight.
Documentation: Test records and condition reports available on request.

How to Order

Submit Inquiry: Email [email protected] or use the on-page inquiry form with your required quantity, delivery timeline, and destination country.
Receive Quotation: Our technical team will respond within 1 business day with pricing, lead time, and stock availability.
Order Confirmation: Review and approve the proforma invoice; confirm shipping method (DHL / FedEx / sea freight).
Payment & Dispatch: Payment via T/T bank transfer or agreed terms; shipment with tracking number provided same or next business day.
After-Sales Support: Technical documentation, installation guidance, and warranty claims handled by our engineering support team.

Why Choose Konmask.com?

Industrial Automation Specialists: We focus exclusively on PLC, DCS, and automation hardware — not a generalist distributor.
Global Sourcing Network: Access to new, refurbished, and hard-to-find modules across all major automation brands.
Engineering-Led Support: Our team understands system architecture, not just part numbers — we help you source the right module for your application.
Fast International Shipping: DHL/FedEx express to 200+ countries; sea freight for bulk orders.
Transparent Grading: No surprises — condition and test status disclosed before you commit to purchase.
Competitive Lead Times: Stocked items ship within 24–48 hours; sourced items typically 3–7 business days.

Frequently Asked Questions

Q: Is the PCD3.W720 compatible with all PCD3 CPU modules?: A: The PCD3.W720 is designed for the PCD3 backplane and is generally compatible with PCD3 series CPUs. Compatibility with specific firmware versions should be verified against the SAIA hardware compatibility matrix or by contacting our technical team.
Q: Can the PCD3.W720 be used for static (non-dynamic) weighing?: A: Yes. While optimized for dynamic in-motion weighing, the module can also be used for static weighing applications where high-speed data acquisition is beneficial.
Q: What load cell types are supported?: A: The module supports standard strain-gauge (Wheatstone bridge) load cells with mV/V output. Consult the datasheet for excitation voltage and input range specifications.
Q: Do you supply the PCD3.W720 as new or refurbished?: A: We supply both new and refurbished units depending on availability. Stock condition is always disclosed in the quotation. Contact us to confirm current stock status.
Q: How long does international shipping take?: A: DHL/FedEx express typically delivers within 3–7 business days to most destinations. Sea freight options are available for bulk orders with longer lead times.
Q: Can you source other PCD3 modules alongside the W720?: A: Yes. Konmask.com specializes in complete PCD3 system sourcing. Share your full parts list and we will provide a consolidated quotation.
