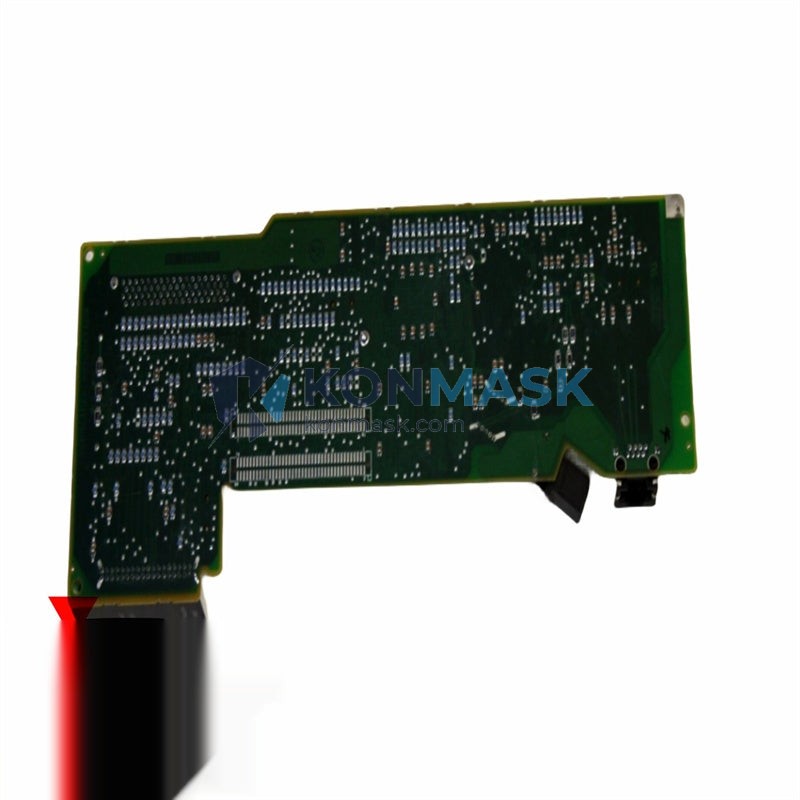

Schneider Electric 140NOE77100 – Ethernet TCP/IP Communication Module | Modicon Quantum Platform
Engineering Background
The Modicon Quantum series represents Schneider Electric’s flagship high-availability PLC platform, engineered for mission-critical process control in power generation, oil & gas, water treatment, and heavy manufacturing. The 140NOE77100 is the dedicated Ethernet TCP/IP network option module for this platform, enabling seamless integration of Quantum racks into plant-wide Ethernet/IP and SCADA networks.
Product Positioning
Designed for procurement engineers and system integrators who require a proven, OEM-sourced Ethernet interface for existing Quantum installations or new greenfield deployments. The 140NOE77100 eliminates the need for third-party gateways by providing native TCP/IP connectivity directly on the Quantum backplane, reducing latency, simplifying architecture, and maintaining full compatibility with Unity Pro / Control Expert engineering software.
Complete Technical Specifications
| Parameter | Specification |
|---|---|
| Part Number | 140NOE77100 |
| Manufacturer | Schneider Electric (Modicon) |
| Module Type | Ethernet TCP/IP Network Option Module |
| Platform | Modicon Quantum |
| Communication Protocol | Ethernet TCP/IP, Modbus TCP, FTP, HTTP, SNMP |
| Network Speed | 10/100 Mbps, Auto-negotiation |
| Physical Interface | RJ-45 (10BaseT / 100BaseTX) |
| Supported Services | Modbus TCP Server/Client, Global Data, I/O Scanning, FTP, Web Server, SNMP v1 |
| Max Simultaneous Connections | 64 TCP connections |
| I/O Scanning | Up to 64 remote devices |
| Global Data | Up to 64 publishers / 64 subscribers |
| Backplane Interface | Modicon Quantum local bus |
| Power Consumption | 3.5 W (from backplane) |
| Operating Temperature | 0 °C to +60 °C |
| Storage Temperature | -40 °C to +85 °C |
| Relative Humidity | 5% to 95% non-condensing |
| Vibration Resistance | IEC 60068-2-6 |
| Shock Resistance | IEC 60068-2-27 |
| EMC Compliance | CE, UL, CSA, FM |
| Dimensions (H × W × D) | Standard Quantum single-slot module |
| Weight | 360 g |
| Firmware Compatibility | Unity Pro / EcoStruxure Control Expert |
| Country of Origin | France / EU |
Proven Application Environments
- Oil & Gas: Upstream wellhead control and downstream refinery DCS integration via Modbus TCP to SCADA hosts
- Power Generation: Turbine and boiler control systems requiring high-availability Ethernet redundancy
- Water & Wastewater: Remote I/O scanning across distributed pump stations and treatment facilities
- Automotive Manufacturing: Production line PLC-to-MES data exchange over plant Ethernet backbone
- Pharmaceutical: FDA 21 CFR Part 11 compliant batch process control with audit-trail data logging via FTP
- Mining & Minerals: Conveyor and crusher control in harsh electrical environments
- Building Automation: Integration of Quantum controllers into BMS networks via SNMP and web server diagnostics
Engineering Advantages
- Native Backplane Integration: Mounts directly in any Quantum local rack slot — no external power supply or gateway hardware required
- Dual-Role Modbus TCP: Operates simultaneously as server (for SCADA polling) and client (for peer-to-peer I/O scanning), reducing scan cycle overhead
- Embedded Web Server: HTTP diagnostics page accessible from any browser for real-time module status, I/O scan table, and network statistics — no additional software needed
- SNMP v1 Agent: Integrates with enterprise network management systems (NMS) for proactive fault detection and trap generation
- FTP File Transfer: Supports automated data logging and configuration backup to network file servers
- Auto-Negotiation: 10/100 Mbps auto-sensing eliminates manual switch configuration errors during commissioning
- Hot-Standby Compatible: Fully supported in Quantum Hot Standby (HSB) redundancy configurations with deterministic failover
- Long Production Lifecycle: Established module with extensive installed base — replacement parts and engineering expertise widely available
System Architecture & Signal Flow
The 140NOE77100 occupies a single slot in the Modicon Quantum local rack and communicates with the CPU (e.g., 140CPU65150) via the high-speed Quantum local bus. Ethernet frames are processed by the module’s onboard processor, decoupling network traffic from the CPU scan cycle. Typical architecture:
- Layer 1–2: RJ-45 → managed industrial Ethernet switch (e.g., ConneXium / Hirschmann) → plant LAN
- Layer 3–7: Modbus TCP polling from SCADA/DCS host (Wonderware, iFIX, Ignition) → 140NOE77100 → Quantum CPU data table
- I/O Scanning: 140NOE77100 acts as Modbus TCP client → polls remote Momentum / STB / Advantys I/O drops → writes to local CPU %MW registers
- Global Data: Multicast UDP distribution of shared data blocks between multiple Quantum stations on the same subnet
Sourcing & Quality Verification
- OEM Traceability: All units sourced through verified industrial automation distributors with documented supply chain records
- Pre-shipment Inspection: Each module inspected for physical integrity, label authenticity, and firmware version consistency before dispatch
- Authenticity Indicators: Genuine 140NOE77100 units carry Schneider Electric holographic labels, CE/UL markings, and traceable date codes on the PCB
- Warranty: 12-month replacement warranty against manufacturing defects
- Condition: New (sealed) and tested used (refurbished) units available — condition clearly stated at time of quotation
Procurement Process
- Submit RFQ: Contact support@konmask.com or call +0086 19859288691 with your required quantity and delivery timeline
- Quotation: Receive itemized quote with unit price, lead time, and shipping options within 1 business day
- Order Confirmation: Purchase order accepted via email; proforma invoice issued for payment processing
- Quality Check & Dispatch: Module inspected, photographed, and securely packaged; tracking number provided within 24 hours of payment clearance
- Delivery: DHL / FedEx Express international shipping; typical transit 3–7 business days to most destinations
- After-Sales Support: Technical commissioning assistance available via email or video call
Technical FAQ
Q: Is the 140NOE77100 compatible with EcoStruxure Control Expert (formerly Unity Pro)?
A: Yes. The module is fully supported in all versions of Unity Pro and EcoStruxure Control Expert. Configuration is performed via the Network Option Module (NOM) configuration tool integrated in the software.
Q: Can this module be used in a Quantum Hot Standby configuration?
A: Yes. The 140NOE77100 is qualified for use in Quantum HSB systems. Both primary and standby racks require individual modules; the active module handles all Ethernet traffic and the standby module takes over transparently on failover.
Q: What is the maximum number of Modbus TCP connections?
A: The module supports up to 64 simultaneous TCP connections, which can be allocated across server (inbound) and client (I/O scanning) roles.
Q: Does the module support DHCP or does it require a static IP?
A: The 140NOE77100 supports both static IP assignment (recommended for production systems) and BOOTP/DHCP for initial commissioning. Static IP is strongly recommended for operational stability.
Q: What is the difference between 140NOE77100 and 140NOE77101?
A: The 140NOE77101 is a later revision with enhanced firmware features. Both are functionally interchangeable for standard Modbus TCP and I/O scanning applications. Confirm firmware compatibility with your Unity Pro version before substitution.
Q: Can I source a Certificate of Conformance (CoC) or test report?
A: Yes. CoC documentation is available upon request for new OEM units. For refurbished units, a pre-shipment test report is provided.
