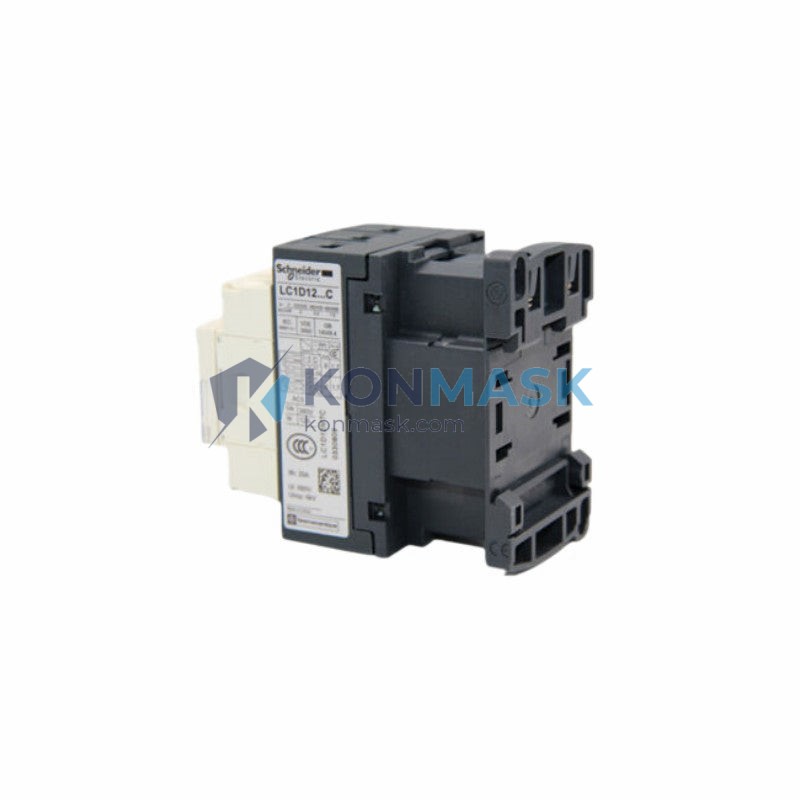

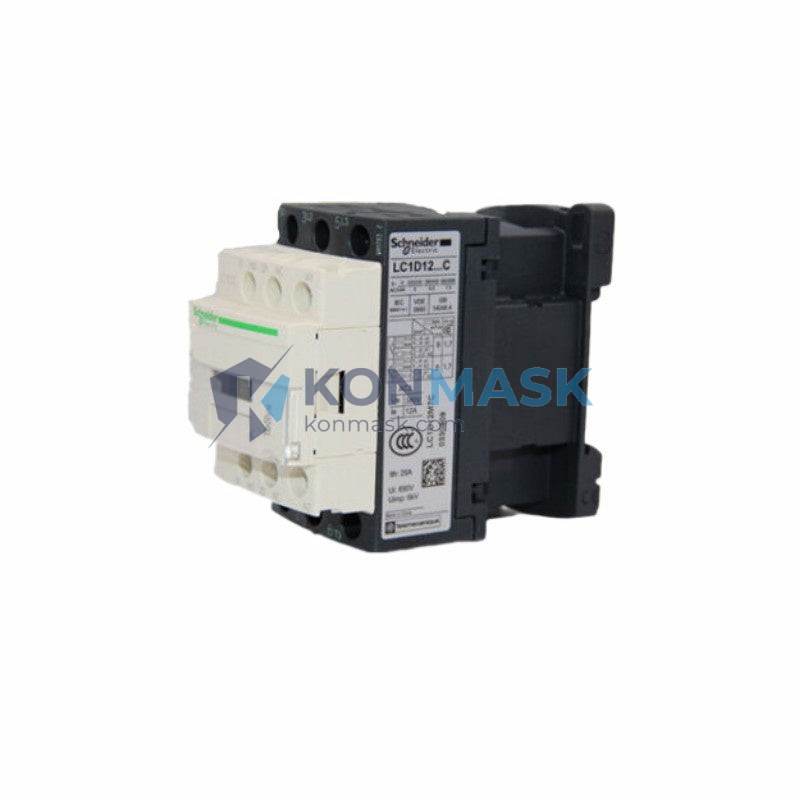

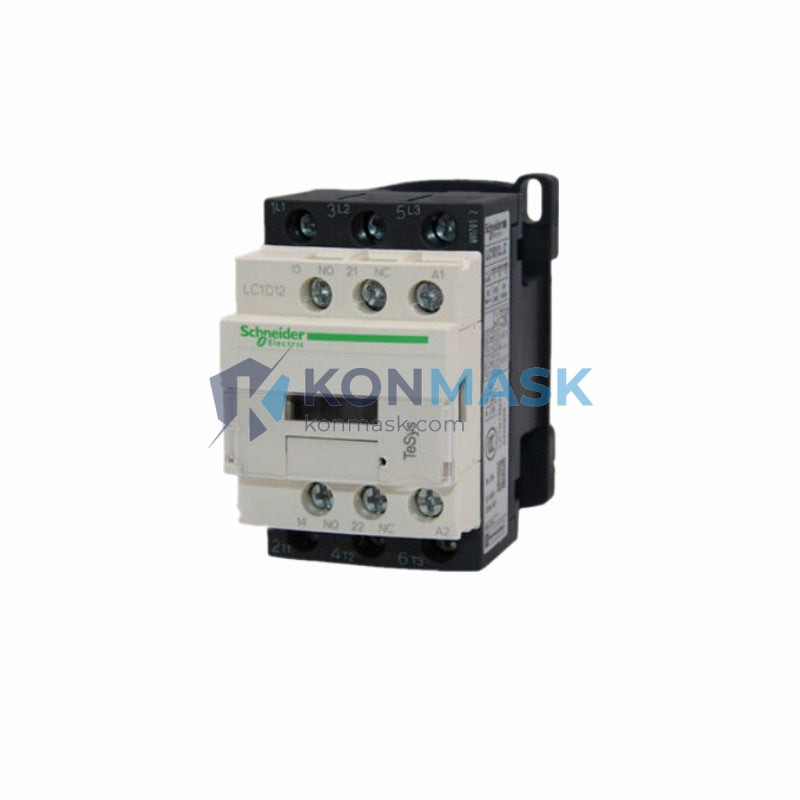

Genuine Schneider Electric LC1D12BDC Contactor Coil | TeSys D Series – Verified Source
The Schneider Electric LC1D12BDC is a DC-operated contactor coil designed for the TeSys D series, rated for 12A AC-3 duty. Sourced directly through authorized industrial distribution channels, every unit sold by Konmask.com undergoes our documented 4-step verification process before dispatch. We serve OEM integrators, MRO procurement teams, and plant engineers who cannot afford counterfeit or substandard components in their control panels.
Technical Specifications
- Manufacturer: Schneider Electric
- Part Number / SKU: LC1D12BDC
- Series: TeSys D
- Type: Contactor Coil (DC Coil)
- Rated Current (AC-3): 12 A
- Coil Voltage: 24 V DC
- Poles: 3-pole main + auxiliary contacts
- Mounting: DIN rail / panel mount
- Operating Temperature: -5°C to +60°C
- Weight: 500 g (approx.)
- Country of Origin: France / China (per production batch)
- Compliance: IEC 60947-4-1, CE, RoHS
Our 4-Step Quality Verification Process
Every LC1D12BDC unit shipped from Konmask.com passes through the following documented checks:
- Step 1 – Source Traceability: Batch origin verified against manufacturer lot codes and authorized distributor invoices.
- Step 2 – Physical Inspection: Housing, label printing, terminal markings, and coil connector inspected against OEM reference samples.
- Step 3 – Electrical Continuity Test: Coil resistance and contact continuity measured and logged prior to packaging.
- Step 4 – Packaging Integrity Check: Original manufacturer packaging confirmed intact; tamper-evident seals verified before dispatch.
Verification records are available upon request for qualified B2B buyers.
Key Features & Benefits
- ✅ Genuine OEM part – not a compatible substitute or aftermarket replacement
- ✅ DC coil operation – ideal for PLC-driven control circuits with 24 V DC output cards
- ✅ Low power consumption – reduced heat generation in compact control panels
- ✅ High switching reliability – rated for millions of operations under rated load
- ✅ Drop-in replacement – fully interchangeable with existing TeSys D LC1D12 frames
- ✅ Documented traceability – batch records available for quality audits
Typical Applications
- Motor starter circuits in manufacturing and process automation
- PLC output-driven contactor control (24 V DC bus)
- HVAC compressor and fan motor switching
- Conveyor and material handling control panels
- Pump control stations in water treatment facilities
- MCC (Motor Control Center) panel builds and retrofits
Compatible System Components
- Contactor Body: Schneider Electric LC1D12 (3-pole, 12A frame)
- Auxiliary Contact Blocks: LA1DN / LA1DK series
- Overload Relays: LRD series (LRD14, LRD16 recommended for 12A)
- Surge Suppressors: LAD4RCB (RC circuit for DC coils)
- Mounting Accessories: GV2AF / DIN rail adapters for TeSys D
Global Sourcing & Shipping Capabilities
- Stock Location: Shenzhen, China (bonded warehouse)
- Lead Time: In-stock orders dispatched within 1–3 business days
- Shipping Methods: DHL Express, FedEx International Priority, SF Express (domestic CN)
- Export Documentation: Commercial invoice, packing list, COO certificate available
- Minimum Order Quantity: 1 unit (bulk pricing available for 10+ units)
- Served Markets: Mainland China, Hong Kong, Southeast Asia, Middle East, Europe, North America
Certifications & Compliance Statement
The Schneider Electric LC1D12BDC is manufactured in compliance with the following international standards:
- IEC 60947-4-1 – Low-voltage switchgear and controlgear: contactors and motor starters
- CE Marking – Conformity with EU Low Voltage Directive (LVD) and EMC Directive
- RoHS Compliant – Restriction of Hazardous Substances (EU Directive 2011/65/EU)
- UL Listed – Recognized component for North American markets (verify current listing with Schneider)
Konmask.com does not alter, relabel, or repackage manufacturer products. All compliance documentation reflects the original manufacturer’s certification.
How to Order
- Online: Add to cart directly on this page. Secure checkout via major payment methods.
- B2B / Bulk Inquiry: Email support@konmask.com with your BOM or quantity requirement for a formal quotation within 24 hours.
- Phone / WhatsApp: +0086 19859288691 (Mon–Fri, 09:00–18:00 CST)
- Lead Time Confirmation: Stock availability confirmed at time of order; real-time stock queries welcome via email.
Authenticity & Trust FAQ
Q: How do I know this is a genuine Schneider Electric part?
A: Every unit is sourced from authorized industrial distributors with traceable lot documentation. We provide batch records and distributor invoices to qualified B2B buyers upon request.
Q: Can I return the product if it fails incoming inspection?
A: Yes. We offer a 30-day return policy for unused, unopened units. Defective units are subject to our RMA process — contact support@konmask.com to initiate.
Q: Do you provide a Certificate of Conformance (CoC)?
A: A CoC can be provided for orders of 5 units or more. Please request at time of order.
Q: Is this part compatible with my existing LC1D12 contactor body?
A: Yes. The LC1D12BDC coil is a direct replacement for the LC1D12 frame with a 24 V DC coil specification. Confirm your existing coil voltage before ordering.
Q: Can you source other Schneider Electric TeSys D variants?
A: Yes. We stock or can source the full LC1D range (LC1D09 through LC1D150) in various coil voltages. Contact us with your part number.
