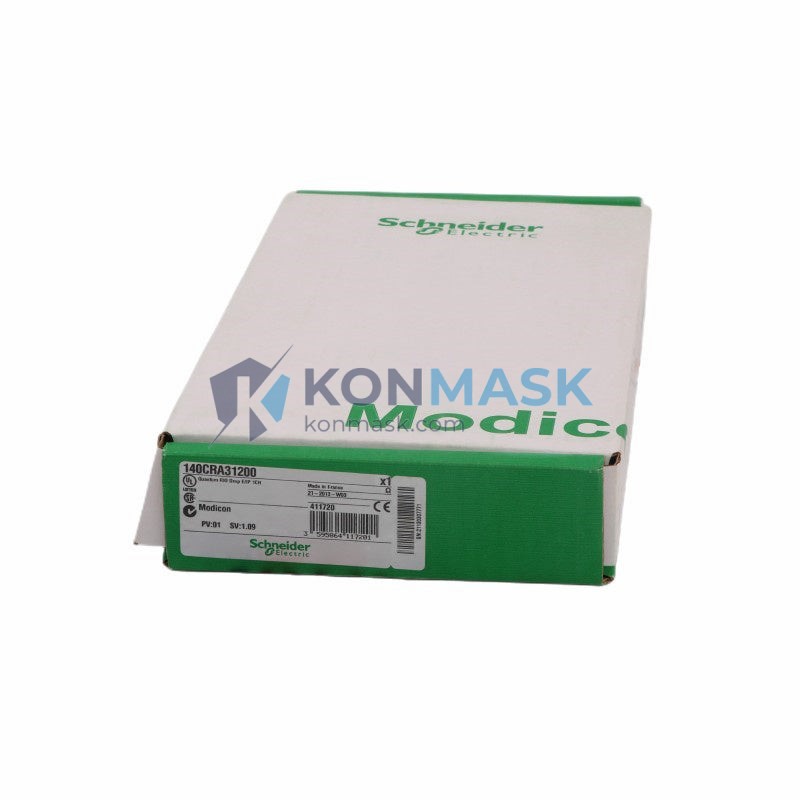

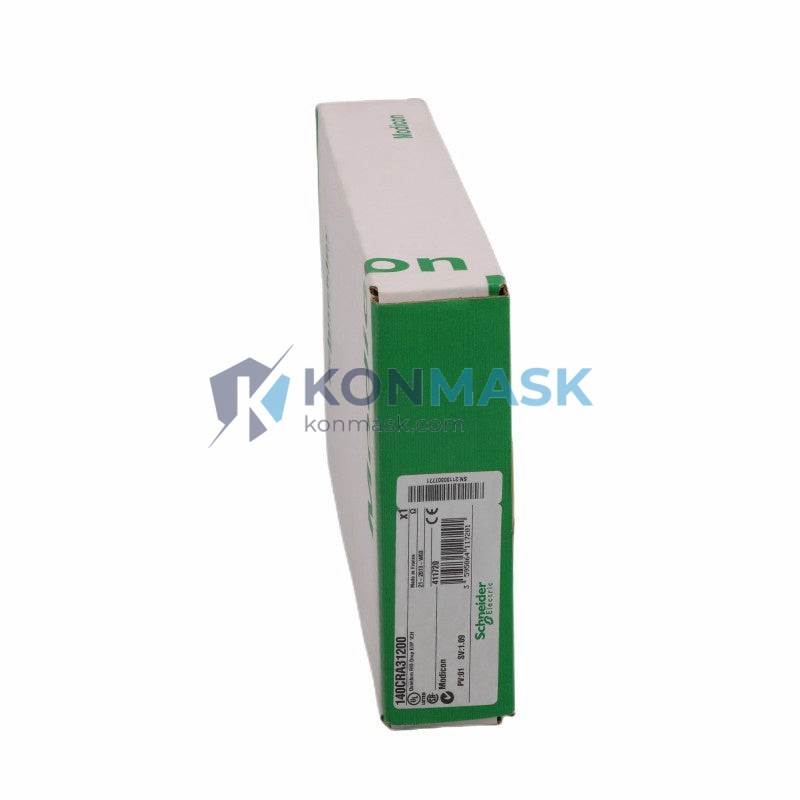

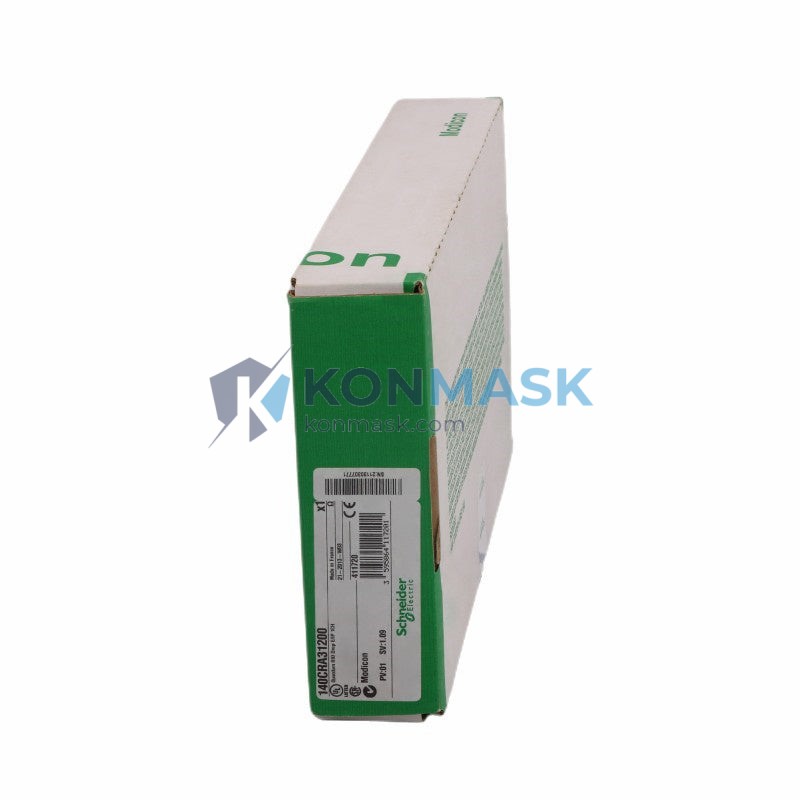

Schneider Electric 140CRA31200 Ethernet Remote Site Adapter | Replacement, Equivalent & Selection Guide
The Schneider Electric 140CRA31200 is a dedicated Ethernet Remote Site Adapter designed for the Modicon Quantum automation platform. It enables high-speed Ethernet communication between remote I/O drops and the main PLC rack, making it a critical component in distributed control architectures. This page provides full technical specifications, compatible replacement models, a structured selection guide, and sourcing information to help engineers and procurement teams make confident decisions.
Technical Specifications
- Part Number: 140CRA31200
- Manufacturer: Schneider Electric (Modicon)
- Series: Modicon Quantum
- Function: Ethernet Remote Site Adapter (RIO Drop Adapter)
- Communication Protocol: Modbus TCP/IP over Ethernet
- Network Interface: 10/100 Mbps Ethernet (RJ45)
- Backplane Bus: Quantum I/O bus
- Power Supply: Supplied via backplane (no external power required)
- Operating Temperature: 0°C to 60°C
- Storage Temperature: -40°C to 85°C
- Humidity: 5% to 95% non-condensing
- Dimensions (W×H×D): Single-slot Quantum module form factor
- Weight: Approx. 600 g
- Certifications: CE, UL, cUL
- Firmware: Upgradeable via Unity Pro / EcoStruxure Control Expert
- Country of Origin: France / USA (varies by production batch)
Compatible Replacement & Equivalent Models
The following modules are functionally compatible or serve as direct/near-direct replacements for the 140CRA31200 in Modicon Quantum distributed I/O architectures:
- 140CRA31200C – Conformal-coated variant for harsh environments; drop-in replacement
- 140CRA93200 – Enhanced Ethernet RIO adapter with dual-port redundancy support
- 140NOE77100 – Ethernet communication module; suitable when full RIO adapter function is not required
- 140NOE77101 – Extended NOE module with web server; partial functional overlap
- BMXCRA31200 – Modicon M340 platform equivalent (requires rack/platform migration)
- BMXCRA31210 – M340 Ethernet RIO adapter with fiber option (platform migration)
Note: Always verify firmware version, backplane compatibility, and Unity Pro/Control Expert project settings before substituting modules in a live system.
Why Choose the Original Model
- Guaranteed Compatibility: Factory-validated for Modicon Quantum racks and Unity Pro programming environments
- Stable Firmware Ecosystem: Supported by Schneider Electric’s long-term firmware update and security patch program
- Proven Field Reliability: Widely deployed in oil & gas, water treatment, power distribution, and manufacturing plants globally
- OEM Warranty: Eligible for Schneider Electric’s standard hardware warranty and extended service contracts
- Regulatory Compliance: Pre-certified CE/UL — no re-certification required for system integration
Typical Applications
- Distributed I/O (RIO) drops in Modicon Quantum PLC systems
- Remote rack communication over plant-floor Ethernet networks
- Oil & gas SCADA and DCS integration
- Water/wastewater treatment plant automation
- Power generation and substation control
- Automotive and heavy manufacturing process control
- Building management systems (BMS) with Quantum backbone
System Compatibility
- PLC Platform: Modicon Quantum (140-series)
- Programming Software: Unity Pro XL / EcoStruxure Control Expert (v11.0+)
- Head-End Adapters: 140CRP93200, 140CRP31200 (Quantum RIO head-end)
- Power Supplies: 140CPS11100, 140CPS21100, 140CPS52400 (Quantum PSU series)
- Compatible Racks: 140XBP01600, 140XBP01000, 140XBP00600 (Quantum backplane series)
- Network Switches: Standard managed Ethernet switches supporting 10/100 Mbps; Schneider Electric ConneXium series recommended
- Not Compatible With: Modicon M580, M340, Premium, or Momentum platforms without hardware migration
Selection Guide
Use the following criteria to determine whether the 140CRA31200 is the right module for your application:
- Platform: Is your PLC a Modicon Quantum (140-series)? → Yes: proceed. No: consider BMXCRA31200 (M340) or BMECRA31210 (M580).
- Environment: Standard industrial environment? → 140CRA31200. Harsh/corrosive atmosphere? → 140CRA31200C (conformal coat).
- Redundancy Required? Single network path → 140CRA31200. Dual-ring / redundant Ethernet → 140CRA93200.
- Drop Count: Up to 31 RIO drops per Ethernet RIO network supported by the head-end adapter.
- I/O Module Slots: Up to 16 I/O slots per remote drop rack (depending on backplane selected).
- Fiber vs. Copper: 140CRA31200 uses copper RJ45. For fiber runs >100 m, use a media converter or select a fiber-capable variant.
Quality Assurance & Sourcing
- Source: Konmask.com sources 140CRA31200 units from authorized distributors and verified surplus channels
- Inspection: Each unit undergoes visual inspection, label verification, and functional pre-check before shipment
- Authenticity: Counterfeit screening performed on all surplus stock; original Schneider Electric packaging and documentation preserved where available
- Condition Options: New-in-box (NIB), Refurbished (tested), and Surplus (as-removed) — specify at time of inquiry
- Lead Time: In-stock units ship within 1–3 business days; sourced units typically 5–15 business days
- Export Compliance: ECCN EAR99 / No license required for most destinations; buyer responsible for import compliance
How to Order
- Step 1: Confirm your Quantum rack model and current firmware version
- Step 2: Specify required condition: New / Refurbished / Surplus
- Step 3: Add to cart directly, or contact us for bulk pricing and lead-time confirmation
- Step 4: Provide shipping destination for freight quote (international orders welcome)
- Contact: support@konmask.com | +0086 19859288691
- Payment: T/T (wire transfer), PayPal, and major credit cards accepted
Replacement & Compatibility FAQ
Q: Can I replace 140CRA31200 with 140CRA31200C?
A: Yes. The 140CRA31200C is a conformal-coated version with identical electrical and communication specifications. It is a direct drop-in replacement.
Q: Is 140CRA31200 compatible with Modicon M580?
A: No. The M580 platform uses BMECRA31210 or similar 580-series adapters. The 140CRA31200 is exclusive to the Quantum (140-series) backplane.
Q: Can I use 140NOE77100 instead of 140CRA31200?
A: Partially. The NOE module provides Ethernet communication but does not function as a remote I/O drop adapter. It cannot replace the CRA in a distributed I/O topology.
Q: What happens if the firmware versions mismatch between head-end and drop adapter?
A: Firmware mismatch can cause communication faults or prevent the drop from being recognized. Always align firmware versions across all CRA/CRP modules in the RIO network.
Q: Do you provide a warranty on surplus units?
A: Yes. Konmask.com offers a 90-day functional warranty on all refurbished and surplus units. New-in-box units carry the original Schneider Electric warranty.
Q: Can I order a single unit or do you require minimum quantities?
A: Single units are available. Volume discounts apply for orders of 3+ units. Contact us for a quote.
