Genuine Schneider ATV32HU75N4 Variable Speed Drive | Altivar 32 Series – Verified Source

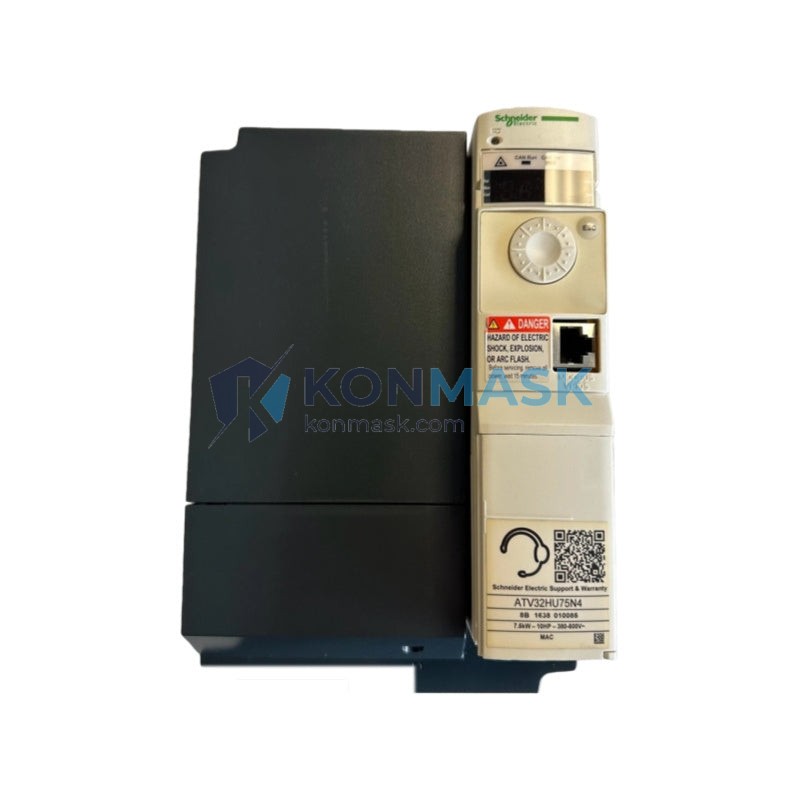

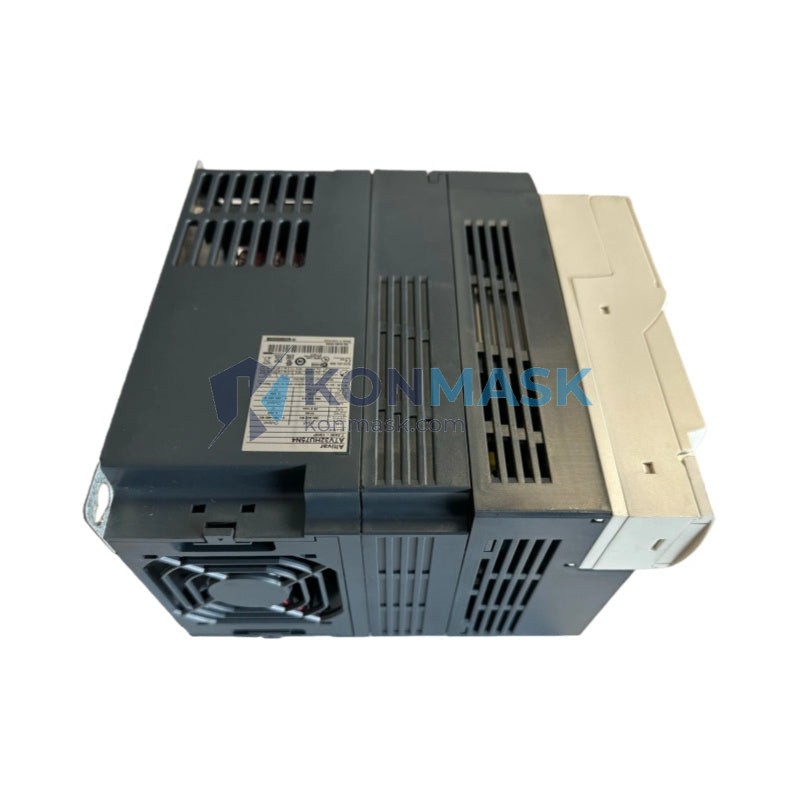

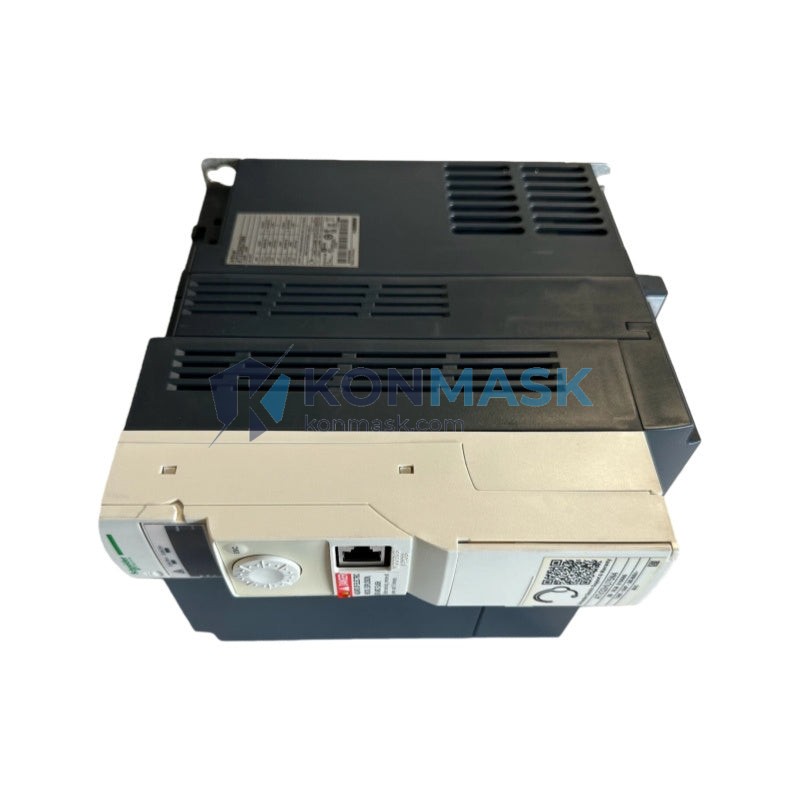

The Schneider Electric ATV32HU75N4 is a high-performance 7.5kW (10HP) three-phase variable speed drive from the renowned Altivar 32 series, engineered for demanding industrial motor control applications. At Konmask.com, every unit is sourced through verified supply channels and undergoes our rigorous 4-step quality inspection before shipment — giving B2B buyers the confidence they need when sourcing critical automation components.
Technical Specifications
- Part Number / SKU: ATV32HU75N4
- Brand: Schneider Electric
- Series: Altivar 32 (ATV32)
- Motor Power: 7.5 kW / 10 HP
- Supply Voltage: 3-Phase, 380–500 V AC (±15%)
- Output Frequency: 0.5–500 Hz
- Output Current (Nominal): 17 A
- Protection Rating: IP20 (panel-mount)
- Communication: CANopen, Modbus RTU (RJ45)
- Control Type: Sensorless Flux Vector / V/f
- Braking: Built-in dynamic braking transistor
- Weight: 7.5 kg
- Certifications: CE, UL, cUL, RoHS
- Operating Temperature: -10°C to +50°C
- Humidity: 5–95% non-condensing
Our 4-Step Quality Verification Process
Every ATV32HU75N4 unit shipped from Konmask.com passes through our standardized verification protocol:
- Step 1 – Source Authentication: Units are procured exclusively from authorized distributors or OEM-certified channels. Supplier credentials are documented and on file.
- Step 2 – Physical Inspection: Enclosure integrity, label accuracy (part number, serial, date code), and packaging condition are verified against Schneider Electric’s official specifications.
- Step 3 – Functional Bench Test: Power-on test confirms display initialization, parameter access, and communication port response prior to packaging.
- Step 4 – Documentation Review: Shipment includes original datasheet reference, inspection checklist, and traceability record for your procurement files.
Key Features & Benefits
- ✅ Compact DIN-rail / panel-mount design — saves cabinet space without sacrificing performance
- ✅ Advanced motor control algorithms — sensorless flux vector for precise torque at low speed
- ✅ Integrated EMC filter — reduces interference in sensitive industrial environments
- ✅ Built-in dynamic braking transistor — supports fast deceleration cycles
- ✅ Dual communication ports — CANopen + Modbus RTU for seamless PLC/SCADA integration
- ✅ STO (Safe Torque Off) function — IEC 61508 SIL2 compliant safety input
- ✅ Wide voltage tolerance (±15%) — stable operation in fluctuating grid conditions
- ✅ Simple commissioning — intuitive keypad with copy/paste parameter function
Typical Applications
- Conveyor and material handling systems
- Pump and fan speed regulation
- Packaging and filling machinery
- Textile and printing equipment
- HVAC air handling units
- Hoisting and lifting equipment (with appropriate braking resistor)
- CNC auxiliary axes and general-purpose motor control
Compatible System Components
- Braking Resistors: VW3A7701 / VW3A7702 series
- Remote Keypad: VW3A1101 (remote display & programming)
- CANopen Card: VW3A3608 (for extended network integration)
- EMC Input Filter: VW3A4401 (external, for enhanced compliance)
- Compatible PLCs: Schneider Modicon M221, M241, M251, M340 series
- SCADA/HMI: Magelis HMIGXU, HMISTO series via Modbus RTU
Global Sourcing & Shipping Capabilities
Konmask.com operates as a specialized industrial automation component supplier serving clients across Asia-Pacific, Europe, the Middle East, and North America. We offer:
- Express Air Freight: DHL / FedEx / UPS — typical transit 3–7 business days worldwide
- Sea Freight Consolidation: Available for bulk orders (5+ units)
- Export Documentation: Commercial invoice, packing list, CO (Certificate of Origin) upon request
- Customs Compliance: HS Code 8504.40 — proper declaration for smooth customs clearance
- Lead Time: In-stock units ship within 1–3 business days; sourced units 7–15 business days
Certifications & Compliance Statement
- CE Marking: Compliant with EU Low Voltage Directive 2014/35/EU and EMC Directive 2014/30/EU
- UL / cUL Listed: File E164862 — suitable for North American installations
- RoHS Compliant: Directive 2011/65/EU — restricted hazardous substances
- IEC 61800-5-1: Adjustable speed electrical power drive systems safety standard
- IEC 61508 SIL2: Safe Torque Off (STO) function certified
Konmask.com does not manufacture Schneider Electric products. All brand names, trademarks, and part numbers are the property of their respective owners and are referenced solely for product identification purposes.
How to Order
- Confirm Part Number: Verify ATV32HU75N4 matches your application requirements using the Schneider Electric Altivar 32 catalog.
- Select Quantity: Add to cart — volume pricing available for orders of 3+ units (contact us for a quote).
- Provide Application Details (Optional): Share your motor nameplate data and control requirements for pre-sales technical support.
- Checkout & Payment: Secure checkout via T/T bank transfer, PayPal, or credit card. Pro-forma invoice available for corporate procurement.
- Receive & Verify: Inspect upon arrival using our included checklist. Contact support within 7 days for any discrepancies.
Authenticity & Trust FAQ
Q: Are these units genuine Schneider Electric products?
A: Yes. All ATV32HU75N4 units are sourced from verified supply channels. We provide traceability documentation upon request.
Q: Do you offer a warranty?
A: We offer a 12-month warranty against manufacturing defects. Units showing signs of tampering or field damage are not covered.
Q: Can I return a unit if it doesn’t match my requirements?
A: Yes. Unused, unopened units may be returned within 30 days. Please contact support@konmask.com before initiating a return.
Q: Do you provide technical support for installation?
A: Our team can provide parameter setup guidance and wiring diagrams. For complex commissioning, we recommend engaging a certified Schneider Electric integrator.
Q: Can you source other Altivar 32 variants?
A: Yes — we regularly source the full ATV32 range including ATV32H018M2, ATV32HU11M2, ATV32HU22N4, ATV32HU40N4, and more. Contact us with your part number.
