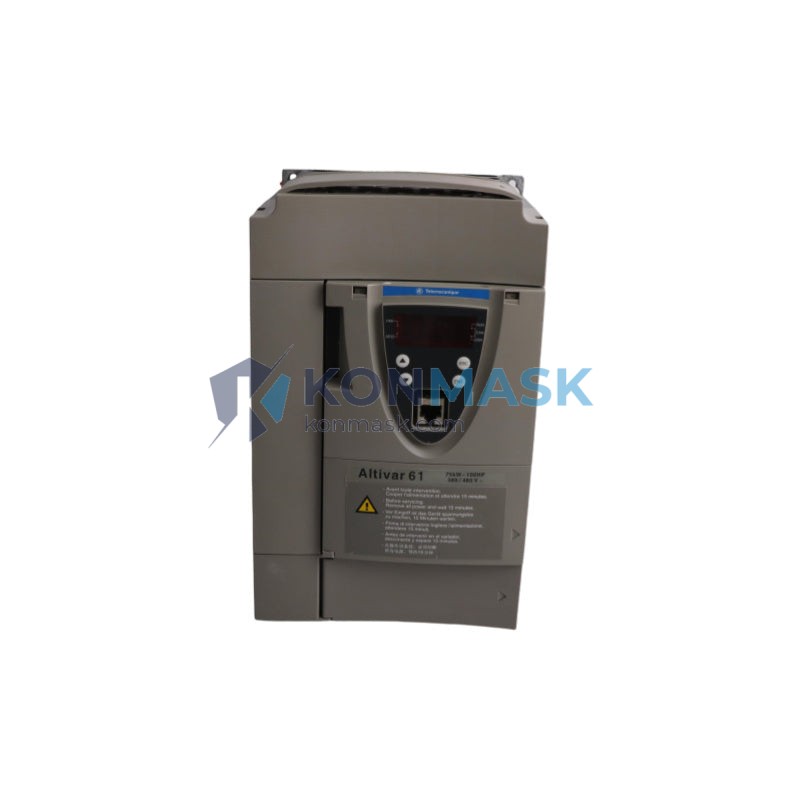

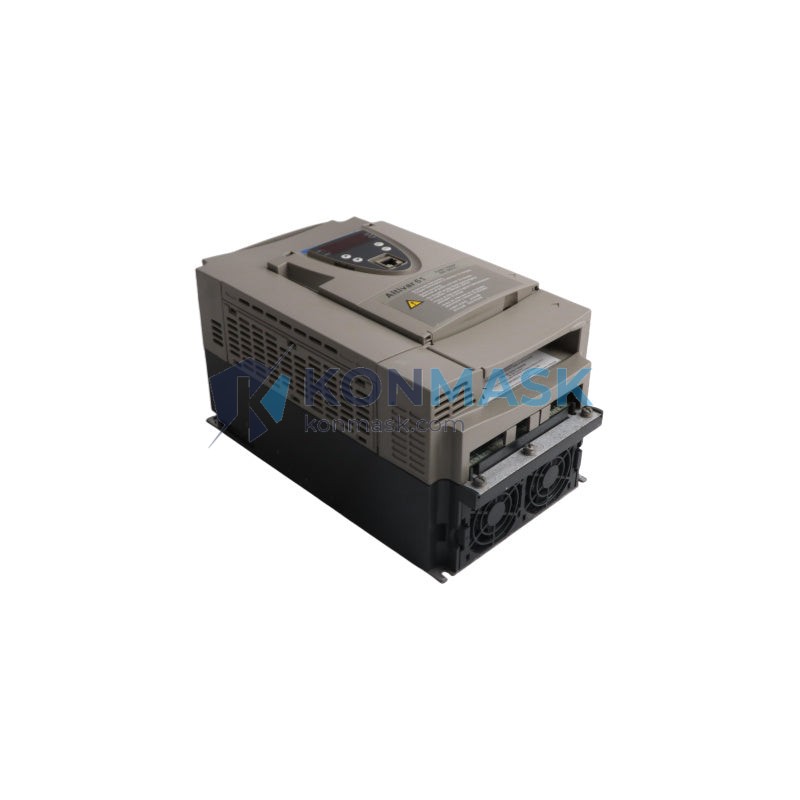

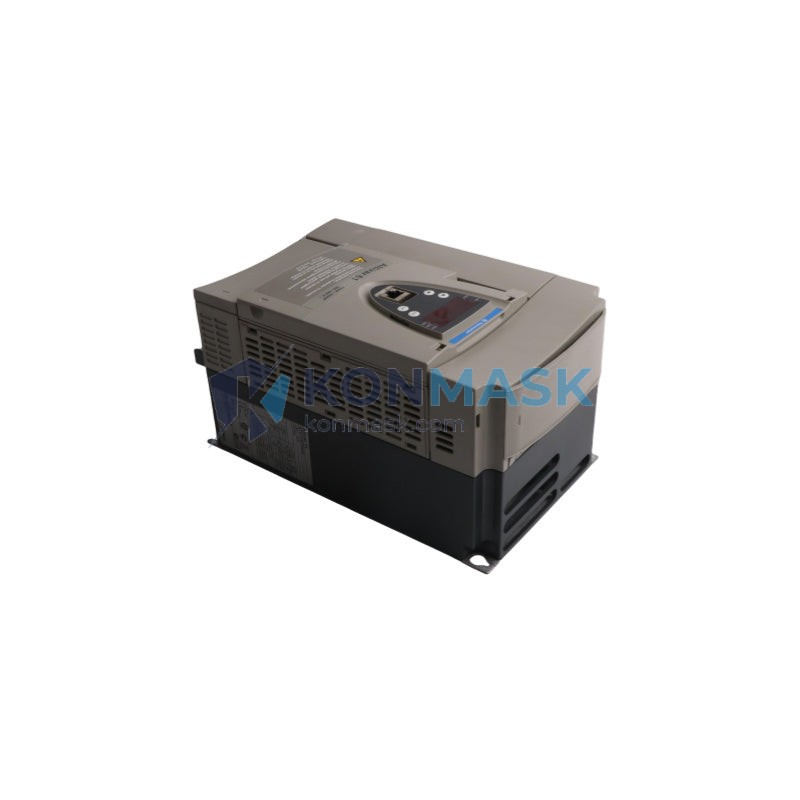

Pump & Fan Control Solution — Schneider Electric ATV61HU75N4 / ATV71HU75N4Z | Altivar 61 / Altivar 71
The Schneider Electric Altivar 61 and Altivar 71 series represent two of the most widely deployed variable speed drive platforms in industrial automation. The ATV61HU75N4 (Altivar 61) and its functionally compatible counterpart ATV71HU75N4Z (Altivar 71) deliver 7.5 kW / 10 HP output power on a 380–480 V three-phase supply — purpose-engineered for demanding pump, fan, compressor, and conveyor applications where precise speed regulation and energy savings are mission-critical.
Konmask.com supplies both models as verified OEM units with full traceability, serving procurement engineers and MRO teams across manufacturing, water treatment, HVAC, and process industries worldwide.
Where This Product Is Used
The ATV61HU75N4 and ATV71HU75N4Z are specified by engineers across a broad range of industrial environments:
- Water & Wastewater Treatment: Centrifugal pump speed control for flow regulation, pressure management, and energy optimization in municipal and industrial water systems.
- HVAC Systems: Variable-speed control of supply and return air fans, cooling tower fans, and chilled water pumps in commercial and industrial buildings.
- Food & Beverage Processing: Conveyor belt speed regulation, mixer drives, and bottling line control requiring hygienic, reliable operation.
- Oil & Gas / Petrochemical: Pump and compressor drives in hazardous-area-adjacent installations (ATV71HU75N4Z with IP54 enclosure option).
- Pulp & Paper / Textile Mills: Tension-controlled winding and unwinding, multi-motor coordination on process lines.
- Mining & Minerals: Belt conveyor drives, crusher feed control, and slurry pump management.
- OEM Machine Builders: Embedded into packaging machines, printing presses, and material handling systems requiring compact, high-performance drives.
Technical Specifications
| Parameter | ATV61HU75N4 | ATV71HU75N4Z |
|---|---|---|
| Series | Altivar 61 | Altivar 71 |
| Rated Output Power | 7.5 kW / 10 HP | |
| Supply Voltage | 380–480 V AC, 3-phase (±10%) | |
| Supply Frequency | 50 / 60 Hz | |
| Output Frequency Range | 0.1 – 500 Hz | |
| Rated Output Current | 17 A (400 V) | |
| Motor Control Mode | Sensorless Flux Vector (SVC), V/f | Closed-loop Flux Vector (FVC), SVC, V/f |
| Communication Protocols | Modbus RTU, CANopen (optional: Profibus, DeviceNet, Ethernet) | Modbus RTU, CANopen, Ethernet (optional: Profibus, DeviceNet) |
| Protection Rating | IP20 (standard) | IP20 / IP54 (Z suffix = IP54) |
| Braking | Dynamic braking transistor built-in | |
| EMC Filter | Integrated Class C2 | |
| Ambient Temperature | -10°C to +50°C (operating) | |
| Storage Temperature | -25°C to +70°C | |
| Altitude | Up to 1000 m without derating | |
| Weight | ~5.54 kg | |
| Certifications | CE, UL, cUL, RoHS | |
| HS Code | 8504401990 | |
| Country of Origin | France | |
Why Engineers Specify This Model
- Dual-Model Compatibility: ATV61 and ATV71 share the same power stage and mounting footprint — simplifying spare-parts inventory and enabling cross-series replacement during MRO.
- Advanced Motor Control: The ATV71’s closed-loop flux vector control delivers ±0.01% speed accuracy, critical for tension-sensitive and positioning applications.
- Energy Savings: Built-in Energy Saving Mode (ESM) on the ATV61 reduces motor energy consumption by up to 30% on variable-torque loads (pumps, fans).
- Integrated EMC Filter: Class C2 filter eliminates the need for external EMC components, reducing panel space and BOM cost.
- Rich Communication Stack: Native Modbus RTU and CANopen with optional fieldbus cards (Profibus DP, DeviceNet, EtherNet/IP, Modbus TCP) for seamless PLC/SCADA integration.
- Safe Torque Off (STO): ATV71 includes SIL 2 / PLd-rated STO function for machinery safety compliance without external contactors.
- Compact Footprint: Book-style mounting enables high-density panel layouts in space-constrained enclosures.
Complete System Bill of Materials
For a complete drive system, engineers typically specify the following alongside the ATV61HU75N4 / ATV71HU75N4Z:
- Line Reactor: VW3A4551 (3% impedance, 7.5 kW) — reduces harmonic distortion and protects drive input rectifier.
- Braking Resistor: VW3A7705 — for applications with frequent deceleration or overhauling loads.
- Output Filter (dV/dt): VW3A4420 — protects motor insulation on long cable runs (>50 m).
- Fieldbus Option Card: VW3A3310 (Profibus DP), VW3A3316 (EtherNet/IP), VW3A3320 (DeviceNet).
- Remote Keypad: VW3A1101 — panel-mount remote display and programming terminal.
- Enclosure (IP54): ATV71HU75N4Z includes integrated IP54 enclosure — no additional cabinet required for light industrial environments.
- Motor Cable: Shielded, 4-core, rated for VFD duty (e.g., Belden 29500 series or equivalent).
Compliance & Industry Standards
- CE Marking: Compliant with EU Low Voltage Directive 2014/35/EU and EMC Directive 2014/30/EU.
- UL 508C: Listed for industrial control equipment (North American market).
- IEC 61800-5-1: Adjustable speed electrical power drive systems — safety requirements.
- IEC 61800-3: EMC requirements for drive systems (Category C2).
- ISO 13849-1 / IEC 62061: ATV71 STO function rated PLd / SIL 2.
- RoHS 2011/65/EU: Restriction of hazardous substances compliant.
- HS Code 8504401990: Static converters — for customs and import classification.
Quality Assurance & Sourcing
Konmask.com operates a rigorous multi-stage verification process for all Schneider Electric drives:
- OEM Traceability: Every unit is sourced from authorized Schneider Electric distribution channels or verified surplus with full documentation chain.
- Visual & Physical Inspection: Enclosure integrity, nameplate verification (part number, serial number, date code), connector condition, and label authenticity checks.
- Functional Test (where applicable): Power-on verification, parameter read-back, and communication port test prior to shipment.
- Anti-Counterfeit Screening: Hologram verification, PCB marking inspection, and weight/dimension cross-check against OEM specifications.
- Packaging: ESD-safe packaging with desiccant, foam cushioning, and tamper-evident sealing for international shipment.
How to Source This Part
- Submit RFQ: Email [email protected] with your required quantity, delivery timeline, and destination country.
- Receive Quote: Our team responds within 24 business hours with pricing, lead time, and availability confirmation.
- Order Confirmation: Purchase order accepted via email. Payment terms: T/T, PayPal, or trade assurance.
- Inspection & Dispatch: Units pass QA inspection and are dispatched with commercial invoice, packing list, and certificate of origin.
- Logistics: DHL Express, FedEx, or sea freight — Incoterms EXW/FOB Xiamen available. Typical transit: 3–7 business days (air).
- After-Sales Support: Technical support available via email and WhatsApp: +0086 19859288691.
Application-Specific FAQ
Q: Can the ATV61HU75N4 replace the ATV71HU75N4Z directly?
A: For most pump and fan applications using V/f or sensorless vector control, yes — the ATV61HU75N4 is a direct functional replacement. The ATV71 is required for closed-loop encoder feedback, STO safety function, or applications needing higher dynamic performance.
Q: What is the maximum motor cable length?
A: Without output filter: up to 50 m shielded. With VW3A4420 dV/dt filter: up to 100 m. Longer runs require engineering review.
Q: Is this drive compatible with IE3 / IE4 premium efficiency motors?
A: Yes. Both ATV61 and ATV71 support auto-tuning for IE3/IE4 motors. The ATV71’s flux vector mode further optimizes efficiency at partial loads.
Q: Can I use this drive in a multi-pump configuration?
A: Yes. The ATV61HU75N4 includes a built-in PID controller and multi-pump sequencing logic (up to 6 pumps) without requiring an external PLC.
Q: What fieldbus is required for Siemens S7 PLC integration?
A: Profibus DP (option card VW3A3310) or Modbus TCP via Ethernet card (VW3A3316) are the most common choices for S7-300/400/1500 integration.
Q: Do you provide a warranty?
A: Yes — 12-month warranty against manufacturing defects. Warranty claims processed within 5 business days of receipt.
