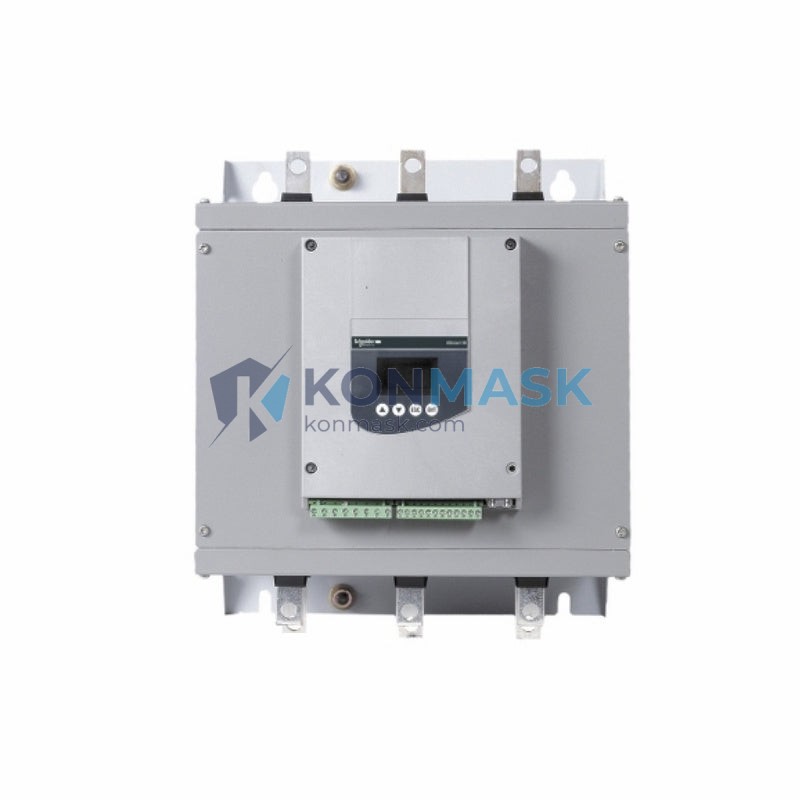

The Schneider Electric ATS48C25Q is a high-performance soft starter from the Altistart 48 (ATS48) series, rated at 250A / 132kW (400V). Designed for smooth motor starting and stopping in demanding industrial environments, it reduces mechanical stress, inrush current, and energy consumption. This page serves as a comprehensive selection, replacement, and compatibility reference for engineers and procurement teams.
Technical Specifications
| Parameter | Value |
|---|---|
| Model / SKU | ATS48C25Q |
| Brand | Schneider Electric |
| Series | Altistart 48 (ATS48) |
| Rated Current | 250 A |
| Motor Power (400V) | 132 kW |
| Motor Power (460V) | 160 HP |
| Supply Voltage | 208–690 VAC, 3-phase, 50/60 Hz |
| Control Voltage | 110–230 VAC |
| Starting Torque Control | Yes (adjustable) |
| Bypass Contactor | Internal (built-in) |
| Protection Class | IP20 (panel mount) |
| Communication | Modbus RTU (optional card) |
| Certifications | CE, UL, CSA, IEC 60947-4-2 |
| Weight | 4.5 kg |
| Mounting | DIN rail / panel |
Compatible Replacement & Equivalent Models
The following models are commonly evaluated as direct or functional replacements for the ATS48C25Q. Always verify electrical ratings and control wiring before substitution.
| Brand | Model | Rating | Compatibility Notes |
|---|---|---|---|
| Schneider Electric | ATS480C25Q | 250A / 132kW | Next-gen Altistart 480 — direct upgrade, enhanced features |
| Schneider Electric | ATS48C21Q | 210A / 110kW | Lower rating; suitable for derated applications |
| Siemens | 3RW4455-6BC44 | 250A / 132kW | Functional equivalent; different wiring layout |
| ABB | PSE250-600-70 | 250A | Functional equivalent; verify bypass logic |
| Eaton | S811+V25N3S | 250A | Functional equivalent; different comm protocol |
| WEG | SSW900C0250T5SZ | 250A | Functional equivalent; verify control voltage |
Why Choose the Original ATS48C25Q
- Proven reliability — Altistart 48 series has millions of installations globally across heavy industry.
- Built-in bypass contactor — eliminates need for external bypass, reducing panel space and wiring complexity.
- Advanced motor protection — thermal overload, phase loss, phase imbalance, and locked rotor protection built in.
- Torque control algorithm — ensures smooth, jerk-free starts even under variable load conditions.
- Wide voltage range — 208–690V covers global applications without hardware changes.
- Seamless Schneider ecosystem integration — compatible with Modbus, CANopen, DeviceNet, and Profibus via optional cards.
Typical Applications
- Pumps and compressors (water treatment, HVAC, oil & gas)
- Conveyors and belt drives (mining, logistics, food processing)
- Fans and blowers (industrial ventilation, power generation)
- Crushers and mixers (cement, chemical, aggregate)
- Centrifuges and agitators (pharmaceutical, wastewater)
System Compatibility
- PLC Integration: Compatible with Schneider Modicon M340, M580, Premium, and Quantum PLCs via Modbus RTU/TCP.
- SCADA/DCS: Integrates with EcoStruxure, Vijeo Citect, and third-party SCADA via standard protocols.
- Motor Types: Squirrel-cage induction motors (standard and high-efficiency IE2/IE3).
- Bypass: Internal bypass contactor rated for continuous duty — no external contactor required.
Selection Guide
Use the following criteria to confirm the ATS48C25Q is the correct model for your application:
- Motor FLA ≤ 250A — soft starter current rating must meet or exceed motor full-load amps.
- Supply voltage 208–690VAC, 3-phase — confirm site voltage matches.
- Starting duty cycle — standard duty (10 starts/hour); for heavy duty, consider ATS480 series.
- Bypass required? — built-in bypass is standard; no external contactor needed.
- Communication needed? — order optional VW3A48101 (Modbus) or VW3A48121 (Profibus) card separately.
- Enclosure rating — ATS48C25Q is IP20; for IP65 install in appropriate enclosure or select ATS48 enclosed version.
Quality Assurance & Sourcing
- All units sourced from authorized distributors and verified supply chains.
- Each unit undergoes incoming inspection: label verification, firmware check, and functional test where applicable.
- Original manufacturer packaging preserved; serial numbers traceable.
- Certificates of conformity and test reports available on request.
- Warranty: 12 months from shipment date.
How to Order
- Part Number: ATS48C25Q
- Lead Time: In-stock items ship within 1–3 business days; ex-stock orders confirmed at inquiry.
- MOQ: 1 unit
- Payment: T/T, PayPal, credit card accepted.
- Shipping: DHL / FedEx / UPS worldwide; sea freight available for bulk orders.
- 📧 [email protected] | 📞 +0086 19859288691
Replacement & Compatibility FAQ
Q: Can the ATS480C25Q directly replace the ATS48C25Q?
A: Yes. The ATS480 series is the next-generation successor with enhanced diagnostics and energy monitoring. Control wiring is largely compatible but verify parameter settings before commissioning.
Q: Is the ATS48C25Q compatible with IE3 high-efficiency motors?
A: Yes. The torque control algorithm is compatible with IE2 and IE3 motors. Adjust motor parameters (FLA, thermal class) in the starter settings.
Q: Can I use the ATS48C25Q without a bypass contactor?
A: The ATS48C25Q includes an internal bypass contactor — no external bypass is required for standard applications.
Q: What is the difference between ATS48C25Q and ATS48C21Q?
A: The C25Q is rated 250A / 132kW; the C21Q is rated 210A / 110kW. Choose based on your motor’s full-load current.
Q: Do you supply original Schneider Electric units?
A: Yes. All units are sourced from authorized channels. Certificates and traceability documentation available on request.
