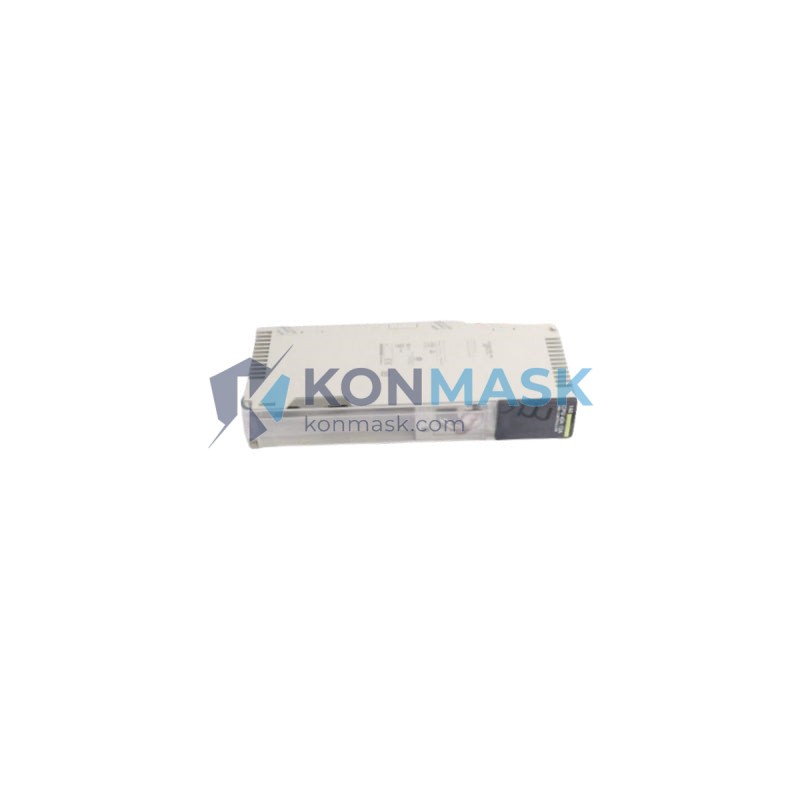

Schneider Electric BMEAHO412 – 4-Channel Analog Output Module | Modicon M580 ePAC Platform
Engineering Background
The BMEAHO412 is a high-precision analog output module engineered for Schneider Electric’s Modicon M580 ePAC (Ethernet Programmable Automation Controller) platform — the industry benchmark for process-critical and hybrid automation architectures. Designed to IEC 61131-3 standards, it delivers deterministic signal output across demanding industrial environments where signal integrity and loop reliability are non-negotiable.
Product Positioning
Targeting process engineers and control system integrators who require reliable 4-channel analog output capability within the M580 backplane ecosystem, the BMEAHO412 bridges digital control logic to field actuators — including control valves, variable-speed drives, and positioners — with 12-bit resolution and full galvanic isolation per channel.
Complete Technical Specifications
| Part Number | BMEAHO412 |
| Manufacturer | Schneider Electric (Modicon) |
| Platform | Modicon M580 ePAC |
| Module Type | Analog Output |
| Number of Channels | 4 isolated analog output channels |
| Output Signal Types | 4–20 mA / 0–20 mA / 0–10 V (configurable per channel) |
| Resolution | 12-bit (1 in 4096) |
| Accuracy | ±0.1% of full scale at 25°C |
| Isolation | Channel-to-channel and channel-to-bus galvanic isolation |
| Load Impedance (Current) | ≤ 600 Ω |
| Load Impedance (Voltage) | ≥ 1 kΩ |
| Power Supply | Supplied via M580 backplane (no external power required) |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -25°C to +70°C |
| Relative Humidity | 5% to 95% non-condensing |
| Protection Rating | IP20 |
| Weight | 240 g |
| Country of Origin | France |
| HS Code | 853710 |
| Certifications | CE, UL, cUL, IEC 61131-2 |
| Programming Software | EcoStruxure Control Expert (Unity Pro) |
Proven Application Environments
- Oil & Gas: Wellhead control, pipeline pressure regulation, and compressor speed reference via 4–20 mA loops
- Water & Wastewater: Pump VFD speed setpoints, dosing pump control, and valve positioning in SCADA-integrated plants
- Power Generation: Turbine governor reference signals and excitation control in combined-cycle plants
- Pharmaceutical & Food Processing: Reactor temperature setpoints and flow control in GMP-compliant environments
- Building Automation: HVAC damper actuator control and chiller plant optimization within BACnet/Modbus hybrid architectures
- Discrete Manufacturing: Tension control, web guiding, and servo amplifier reference in high-speed production lines
Engineering Advantages
- Per-Channel Isolation: Eliminates ground loop interference — critical in multi-loop process installations with shared field wiring
- Backplane-Powered Design: Simplifies panel wiring and reduces BOM cost by eliminating dedicated 24 VDC field power for the module
- 12-Bit Resolution: Provides 4096 discrete output steps — sufficient for PID loop control of modulating valves and VFDs without perceptible stepping
- Hot-Swap Compatibility: Supports module replacement under power within M580 redundant configurations, minimizing process downtime
- EcoStruxure Integration: Native tag mapping and diagnostics within Control Expert reduce commissioning time and enable remote fault isolation
- Wide Temperature Range: Qualified for 0–60°C ambient — suitable for non-climate-controlled MCC rooms and outdoor enclosures with thermal management
System Architecture & Signal Flow
The BMEAHO412 occupies a standard I/O slot on the M580 local or remote drop rack. The CPU communicates with the module via the X Bus backplane at the rack scan rate. Each output channel independently converts the 12-bit digital word from the process image table into an analog signal through a dedicated DAC and output driver stage. Channel isolation barriers prevent common-mode voltage from propagating between loops or back to the backplane.
In redundant CPU configurations (BMEH58•040/058), the module participates in bumpless transfer — the standby CPU maintains a synchronized output image, ensuring zero-glitch switchover on primary CPU fault. Field wiring connects via the module’s front-face terminal block (spring-clamp or screw type, depending on accessory selection).
Sourcing & Quality Verification
- All BMEAHO412 units supplied by Konmask.com are sourced from authorized Schneider Electric distribution channels or verified surplus with full traceability documentation
- Each unit undergoes incoming inspection: label verification, firmware revision check, and functional output test prior to shipment
- Counterfeit risk mitigation: holographic label authentication and serial number validation against Schneider Electric’s product database
- Packaging: original OEM carton where available; ESD-safe anti-static bag and foam insert for all units
- Warranty: 12-month Konmask operational warranty covering manufacturing defects and DOA units
Procurement Process
- Inquiry: Submit your BOM or part number to [email protected] or call +0086 19859288691
- Quotation: Receive a formal quotation with unit price, lead time, and availability within 24 business hours
- Order Confirmation: Issue PO against the quotation; payment terms confirmed at this stage
- Quality Inspection: Pre-shipment inspection report issued upon request
- Shipment: DHL / FedEx / UPS express or sea freight — Incoterms EXW, FOB, or CIF available
- After-Sales: Technical support and RMA processing within the 12-month warranty period
Technical FAQ
Q: Can the BMEAHO412 be used in an M340 rack?
A: No. The BMEAHO412 is exclusively compatible with the Modicon M580 backplane (X Bus). It is not electrically or mechanically compatible with M340 (Modbus X Bus) or Quantum racks.
Q: Is the module compatible with HART field devices?
A: The BMEAHO412 does not natively support HART protocol superimposed on the 4–20 mA loop. For HART-enabled analog output, refer to the BMEAHO0412H variant.
Q: What is the update rate for analog outputs?
A: Output update is synchronized to the M580 task cycle. With a 10 ms MAST task, all 4 channels update within one scan. Faster update rates are achievable with faster task configurations.
Q: Can I mix current and voltage outputs on the same module?
A: Yes. Each channel is independently configurable for current (4–20 mA / 0–20 mA) or voltage (0–10 V) output via software configuration in Control Expert — no hardware jumpers required.
Q: What happens to outputs on CPU fault or communication loss?
A: The module supports configurable fallback behavior per channel: hold last value, go to a preset safe value, or go to 0. This is configured in the module’s I/O object properties within Control Expert.
Q: Is a firmware update required for use with EcoStruxure Control Expert v15+?
A: Consult the M580 compatibility matrix in Schneider Electric’s EcoStruxure documentation. Konmask can advise on firmware revision at time of quotation.
