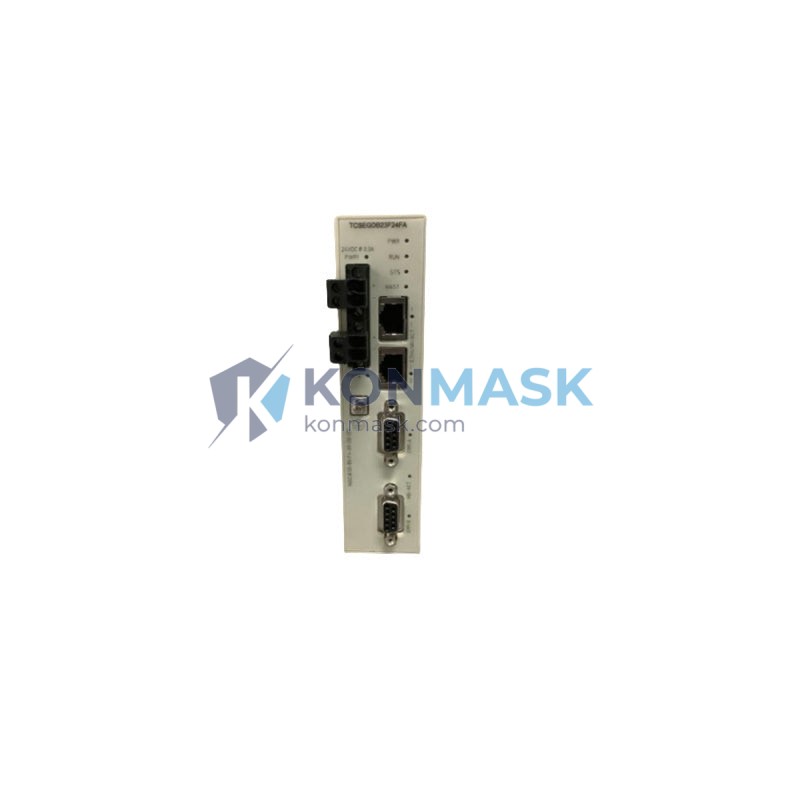

SCHNEIDER TCSEGDB23F24FA Ethernet Proxy Module – Modicon Premium Series
Imagine a critical production line suddenly losing communication between its PLC and the plant-wide Ethernet network. Operators are blind, SCADA screens go dark, and every second of downtime translates directly into lost revenue and potential safety risks. This is the reality when a reliable Ethernet gateway is absent from your control architecture. The SCHNEIDER TCSEGDB23F24FA Ethernet Proxy Module was engineered precisely to prevent this scenario — acting as the indispensable communication bridge that keeps your Modicon Premium PLC seamlessly connected to your industrial Ethernet infrastructure.
Within the Modicon Premium family, the TCSEGDB23F24FA occupies a strategic position as the dedicated Ethernet proxy communication module. It enables Modbus TCP/IP connectivity for Premium PLCs that require transparent integration into modern Ethernet-based plant networks. Globally, Schneider Electric’s Modicon Premium platform remains one of the most widely deployed mid-to-high-end PLC series in process industries, discrete manufacturing, and infrastructure projects — and the TCSEGDB23F24FA is the key that unlocks its full Ethernet potential.
Technical Specifications
- Part Number: TCSEGDB23F24FA
- Brand: Schneider Electric (Modicon)
- Series: Modicon Premium
- Module Type: Ethernet Proxy Communication Module
- Communication Protocol: Modbus TCP/IP, Ethernet TCP/IP
- Network Speed: 10/100 Mbps (auto-negotiation)
- Connector: RJ45
- Power Supply: Supplied via Premium rack backplane (24 VDC)
- Operating Temperature: 0°C to +60°C
- Storage Temperature: -25°C to +70°C
- Humidity: 5% to 95% non-condensing
- Certifications: CE, UL, cUL
- Mounting: Modicon Premium rack (TSX RKY series)
- Dimensions: Standard Premium single-slot module form factor
Note: Specifications are based on publicly available Schneider Electric documentation. Always verify against the official datasheet for your specific application.
Key Features & Benefits
- Transparent Ethernet Proxy: Enables Modicon Premium PLCs to communicate over standard Ethernet networks without requiring a full Ethernet CPU, protecting existing hardware investments.
- Modbus TCP/IP Native Support: Seamlessly integrates with SCADA systems, HMIs, and other Modbus TCP/IP-compatible devices across the plant network.
- Auto-Negotiating 10/100 Mbps: Automatically adapts to network speed, ensuring compatibility with both legacy and modern Ethernet infrastructure.
- Hot-Swap Capable: Designed for the Modicon Premium rack architecture, supporting maintenance without full system shutdown in supported configurations.
- Compact Single-Slot Design: Maximizes rack space efficiency in space-constrained control panels.
- Industrial-Grade Reliability: Built to withstand the vibration, temperature extremes, and EMI environments typical of industrial facilities.
- Easy Configuration via Unity Pro: Fully supported by Schneider Electric’s Unity Pro / Control Expert programming environment for rapid commissioning.
Industry & Equipment Applications
- Automotive Manufacturing: Body shop and paint line PLC-to-MES communication via Ethernet.
- Water & Wastewater Treatment: Remote monitoring and SCADA integration for pump stations and treatment plants.
- Oil & Gas: Pipeline monitoring systems requiring reliable Modbus TCP/IP data exchange.
- Food & Beverage Processing: Production line control with real-time data logging to plant historians.
- Power Generation & Distribution: Substation automation and energy management systems.
- Building Automation: HVAC and facility management systems integrated with Modicon Premium controllers.
- Pharmaceutical Manufacturing: GMP-compliant process control with full network auditability.
System Integration & Compatible Parts
The TCSEGDB23F24FA is designed for use within the Modicon Premium ecosystem. Compatible and commonly paired components include:
- Premium CPUs: TSX P57 series (e.g., TSX P57 104M, TSX P57 204M, TSX P57 304M, TSX P57 454M)
- Premium Racks: TSX RKY 4EX, TSX RKY 6EX, TSX RKY 8EX, TSX RKY 12EX
- Power Supplies: TSX PSY 2600M, TSX PSY 5500M
- I/O Modules: TSX DEY / TSX DSY discrete I/O, TSX AEY / TSX ASY analog I/O
- Programming Software: Schneider Electric Unity Pro / EcoStruxure Control Expert
- Network Switches: ConneXium / Hirschmann industrial Ethernet switches
