SCHNEIDER BMH1403P11A2A Servo Motor | Replacement, Equivalent & Selection Guide

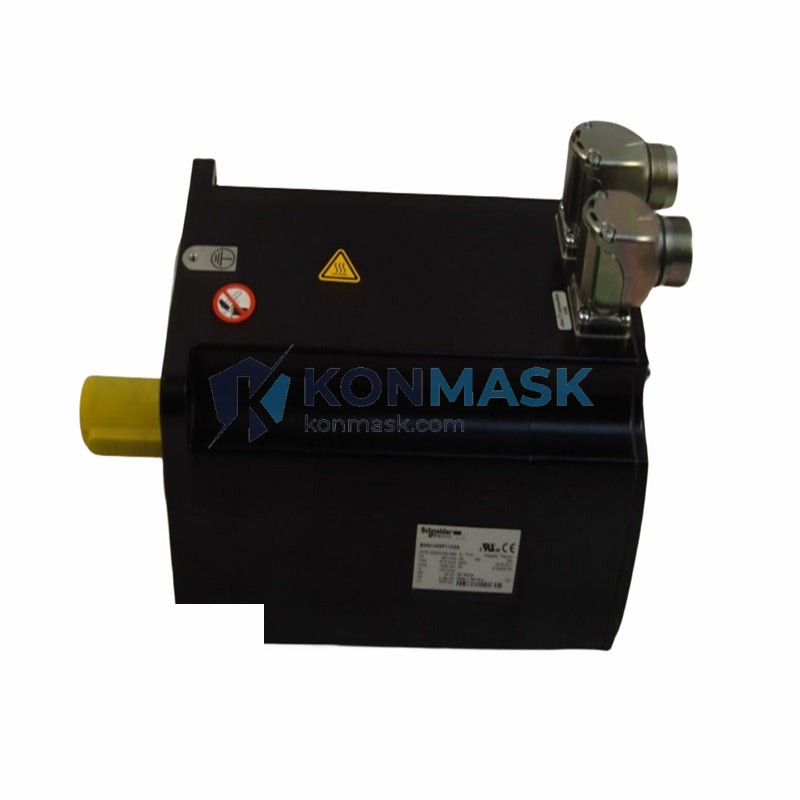

The Schneider Electric BMH1403P11A2A is a high-performance AC servo motor from the Lexium BMH series, engineered for precision motion control in demanding industrial automation environments. This page provides full technical specifications, verified compatible replacements, and a structured selection guide to help engineers and procurement teams make confident sourcing decisions.
Technical Specifications
| Parameter | Value |
|---|---|
| Brand | Schneider Electric |
| Part Number | BMH1403P11A2A |
| Series | Lexium BMH |
| Motor Type | AC Synchronous Servo Motor |
| Rated Power | 1.1 kW |
| Rated Torque | 3.5 N·m |
| Peak Torque | 10.5 N·m |
| Rated Speed | 3000 RPM |
| Max Speed | 6000 RPM |
| Voltage Supply | 3-phase 230/400 V AC |
| Encoder Type | Incremental / SinCos encoder (17-bit) |
| Shaft Type | Smooth shaft (no key) |
| Brake | Without holding brake |
| Protection Rating | IP65 (shaft end IP54) |
| Insulation Class | F |
| Ambient Temperature | 0 °C to +40 °C |
| Weight | Approx. 1.2 kg |
| Flange Size | 40 mm |
| Compatible Drive | Lexium 32 / LXM32 |
Compatible Replacement & Equivalent Models
When the BMH1403P11A2A is unavailable or being evaluated against alternatives, the following models offer comparable performance characteristics. Always verify mechanical dimensions, encoder protocol, and drive compatibility before substitution.
| Manufacturer | Model | Power | Torque | Notes |
|---|---|---|---|---|
| Schneider Electric | BMH1403P11A2A | 1.1 kW | 3.5 N·m | Original model — preferred |
| Schneider Electric | BMH1403P16A2A | 1.1 kW | 3.5 N·m | With holding brake variant |
| Schneider Electric | BMH1403T11A2A | 1.1 kW | 3.5 N·m | Keyed shaft variant |
| Siemens | 1FK7042-5AK71-1AA0 | 1.0 kW | 3.2 N·m | Cross-brand equivalent; requires drive adaptation |
| Mitsubishi | HG-KR43 | 0.4 kW | 1.3 N·m | Lower power class; verify application fit |
| Yaskawa | SGMJV-04ADE6S | 0.4 kW | 1.27 N·m | Cross-brand; encoder protocol differs |
⚠ Important: Cross-brand replacements require drive parameter reconfiguration and mechanical interface verification. Consult your system integrator before substitution.
Why Choose the Original Model
- Native Drive Integration: Plug-and-play compatibility with Lexium 32 (LXM32) servo drives — no parameter mapping required.
- Certified Performance: Factory-matched torque curves and encoder calibration ensure rated accuracy from day one.
- Warranty & Traceability: Genuine parts carry full Schneider Electric warranty and traceable batch documentation.
- Reduced Commissioning Risk: Eliminates encoder protocol translation, mechanical adapter plates, and tuning iterations.
- Long-Term Availability: Schneider Electric maintains spare parts availability for active product lines for 10+ years.
Typical Applications
- Packaging Machinery: High-speed pick-and-place, form-fill-seal, and cartoning lines requiring precise position control.
- CNC & Machine Tools: Axis drives for milling, turning, and grinding centers with tight velocity loop requirements.
- Textile & Printing Equipment: Tension control and registration systems demanding smooth low-speed torque.
- Semiconductor & Electronics Assembly: SMT placement machines and wafer handling with sub-millimeter repeatability.
- Robotics & Collaborative Arms: Joint actuators in SCARA and Cartesian robot configurations.
- Material Handling: Conveyor indexing, palletizing, and sortation systems with frequent start-stop cycles.
System Compatibility
| Component | Compatible Models |
|---|---|
| Servo Drive | Lexium 32A (LXM32AD18N4), LXM32MD18N4, LXM32MU60N4 |
| Motion Controller | Modicon M241, M251, M262; PacDrive LMC Pro/Eco |
| Fieldbus | CANopen, EtherCAT, Modbus TCP, SERCOS III (drive-dependent) |
| Power Cable | VW3M5101Rxx (motor power cable for BMH 40 mm flange) |
| Encoder Cable | VW3M8102Rxx (SinCos encoder cable) |
| Connector Kit | VW3M3101 (motor connector set) |
Selection Guide
Use the following decision framework to confirm the BMH1403P11A2A is the correct model for your application:
- Torque Requirement: Confirm continuous load torque ≤ 3.5 N·m and peak torque ≤ 10.5 N·m. If higher torque is needed, consider BMH1403P22A2A (7.0 N·m) or BMH1403P32A2A (10.5 N·m).
- Speed Profile: Verify operating speed range. BMH1403P11A2A is rated to 3000 RPM continuous / 6000 RPM peak. For lower-speed, higher-torque profiles, evaluate BMH1402 series.
- Brake Requirement: This model has no holding brake. For vertical axes or gravity-loaded loads, specify BMH1403P11A2AB (with brake).
- Shaft Interface: Smooth shaft (no keyway). For keyed shaft, specify BMH1403T11A2A.
- Encoder Resolution: 17-bit SinCos encoder standard. Confirm drive firmware supports this encoder type.
- Environmental Rating: IP65 body / IP54 shaft end. For wash-down or high-humidity environments, verify sealing is sufficient or consider additional shaft sealing.
Quality Assurance & Sourcing
- Genuine Parts Only: Konmask.com sources BMH1403P11A2A exclusively from authorized distributors and verified OEM channels.
- Inspection Protocol: Every unit undergoes visual inspection, label verification, and packaging integrity check prior to dispatch.
- Documentation Provided: Certificate of conformity, packing list, and batch traceability records available on request.
- Anti-Counterfeit Measures: Holographic labels, serial number verification, and original Schneider Electric packaging retained.
- Storage Conditions: Units stored at 15–25 °C, humidity-controlled warehouse to preserve encoder and winding integrity.
How to Order
- Confirm Part Number: Verify BMH1403P11A2A matches your BOM and drive compatibility list.
- Request a Quote: Email support@konmask.com with quantity, required delivery date, and destination country.
- Lead Time: In-stock units ship within 3–5 business days. Out-of-stock lead time is 2–4 weeks depending on supply chain status.
- Shipping: DHL / FedEx / UPS international express available. Sea freight for bulk orders. Export documentation (CO, packing list, commercial invoice) included.
- Payment: T/T bank transfer, PayPal, and trade assurance options available.
Replacement & Compatibility FAQ
Q: Can I use BMH1403P11A2A with a non-Schneider servo drive?
A: Technically possible with drives supporting SinCos encoder input and compatible power ratings, but requires full parameter commissioning and is not recommended for production environments without validation.
Q: What is the difference between BMH1403P11A2A and BMH1403P11A2AB?
A: The suffix “B” denotes a holding brake. The BMH1403P11A2AB includes a 24 VDC holding brake for vertical or gravity-loaded axes. All other specifications are identical.
Q: Is BMH1403P11A2A still in production?
A: Yes, as of 2026 this model remains an active Schneider Electric product. Contact us for current availability and lead time.
Q: Can this motor replace an older BSH series motor?
A: The BMH series is the successor to the BSH series. Mechanical and electrical interfaces differ; a direct drop-in replacement is not guaranteed. Consult Schneider Electric’s migration guide or contact Konmask for application review.
Q: Do you provide test reports or incoming inspection records?
A: Yes. Inspection records and conformity certificates are available upon request for all orders.
