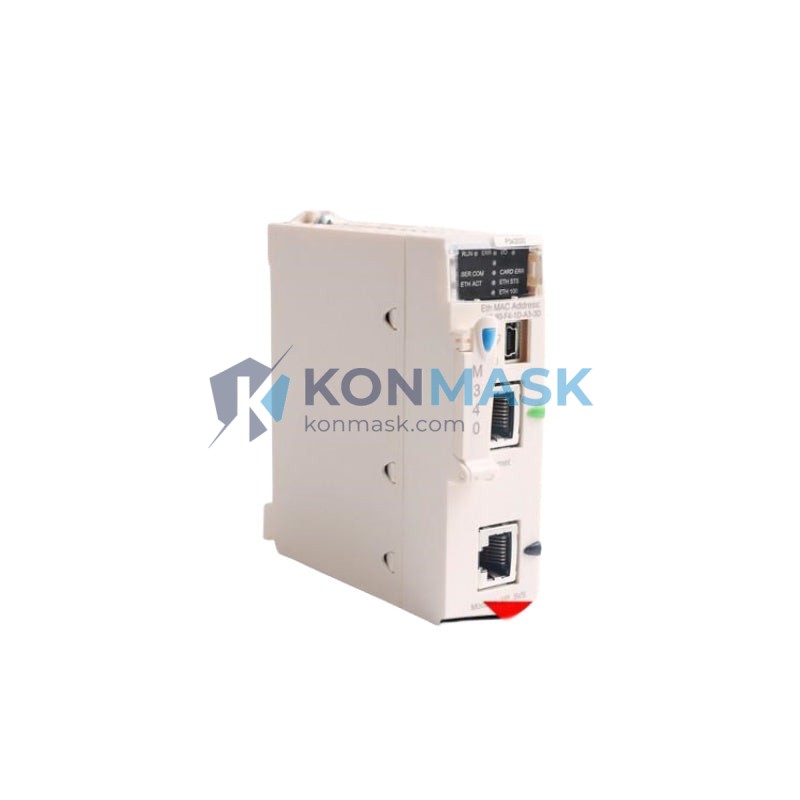

Schneider BMXP341000 Modicon M340 Ethernet Modbus Processor | Replacement, Equivalent & Selection Guide
The Schneider Electric BMXP341000 is a high-performance processor module for the Modicon M340 mid-range PLC platform. Featuring an integrated Ethernet Modbus TCP/IP port alongside a Modbus serial port, it is engineered for demanding industrial automation environments requiring reliable real-time control, deterministic scan cycles, and seamless network integration. This page provides full technical specifications, verified compatible replacement models, a structured selection guide, and sourcing information to help engineers and procurement teams make confident decisions.
Technical Specifications
- Part Number: BMXP341000
- Brand: Schneider Electric
- Series: Modicon M340
- Module Type: CPU / Processor Module
- Integrated Ports: 1 × Ethernet 10/100 Mbps (Modbus TCP/IP, EtherNet/IP), 1 × Modbus serial (RS-485)
- Program Memory: 512 KB application memory
- Data Memory: 512 KB
- Max I/O: Up to 1,024 discrete I/O; up to 256 analog channels
- Scan Time: 0.1 ms per 1,000 boolean instructions
- Supported Protocols: Modbus TCP/IP, EtherNet/IP, Modbus RTU/ASCII, CANopen (via BMX CAN module)
- Programming Software: Unity Pro (EcoStruxure Control Expert)
- Operating Temperature: 0 °C to +60 °C
- Power Supply: Supplied via M340 backplane (BMX XBP rack)
- Country of Origin: France
- HS Code: 853710
- Weight: ~200 g
- Certifications: CE, UL, cUL, ATEX Zone 2 (with appropriate enclosure)
Compatible Replacement & Equivalent Models
The table below lists verified compatible and functionally equivalent alternatives to the BMXP341000, suitable for direct replacement or system upgrade scenarios:
- BMXP342000 – Upgraded M340 CPU with 1 MB memory and additional Ethernet port; drop-in hardware replacement with firmware update required
- BMXP342010 – M340 CPU with 1 MB memory + CANopen master port; ideal when CANopen fieldbus is required
- BMXP342020 – M340 CPU with 1 MB memory + Profibus DP master; for Profibus-based architectures
- BMXP3420302 – M340 CPU with 2 MB memory + dual Ethernet; highest-spec M340 processor for large applications
- BMXP341000H – Harsh environment variant of BMXP341000; conformal coating for humidity/corrosion resistance
- Siemens CPU 314C-2 PN/DP (6ES7314-6EH04-0AB0) – Cross-brand equivalent for S7-300 platform migration projects (requires full re-engineering)
Note: All Schneider M340 replacements require Unity Pro / EcoStruxure Control Expert for program migration. Verify rack (BMX XBP) and power supply (BMX CPS) compatibility before substitution.
Why Choose the Original BMXP341000
- Proven field reliability – Widely deployed in water treatment, building automation, and discrete manufacturing since 2006
- Dual-port connectivity – Simultaneous Ethernet TCP/IP and Modbus serial eliminates the need for additional communication modules in mixed-protocol environments
- Unity Pro ecosystem – Full IEC 61131-3 programming support (LD, FBD, ST, IL, SFC) with simulation and diagnostics
- Compact M340 form factor – Fits standard BMX XBP racks (4, 6, 8, 12 slots); no dedicated CPU rack required
- Long-term parts availability – Schneider Electric maintains spare parts support; Konmask.com stocks verified genuine and refurbished units
Typical Applications
- Water and wastewater treatment plant automation
- HVAC and building management systems (BMS)
- Conveyor and material handling control
- Packaging machine sequencing
- Energy monitoring and substation automation
- OEM machine control with Modbus SCADA integration
System Compatibility
- Racks: BMX XBP 0400 / 0600 / 0800 / 1200 (4, 6, 8, 12-slot M340 backplanes)
- Power Supplies: BMX CPS 2000 / 3500 / 3500H
- I/O Modules: All BMX DDI / DDO / DAI / DAO / AHI / AHO series M340 I/O
- Communication Modules: BMX NOE 0100 (additional Ethernet), BMX NOM 0200 (Modbus serial), BMX NRP 0200 (Profibus DP slave)
- Software: Unity Pro XL / L / S v2.0 and above; EcoStruxure Control Expert v14.0+
- HMI: Magelis XBTGT / XBTGK series via Modbus TCP or serial
Selection Guide
Use the following criteria to determine whether BMXP341000 is the right processor for your application, or to select an appropriate upgrade:
- Application size ≤ 512 KB program + ≤ 1,024 I/O points → BMXP341000 is sufficient
- Need > 512 KB memory or > 1,024 I/O → Upgrade to BMXP342000 or BMXP3420302
- CANopen fieldbus required → Select BMXP342010
- Profibus DP master required → Select BMXP342020
- Harsh/humid environment → Specify BMXP341000H (conformal coated)
- Dual Ethernet redundancy required → Select BMXP3420302 (2 × Ethernet ports)
- Replacing a failed unit like-for-like → BMXP341000 is the direct replacement; confirm firmware version compatibility with existing rack
Quality Assurance & Sourcing
- Genuine new stock: Factory-sealed units with full Schneider Electric warranty traceability
- Certified refurbished: Tested to OEM specifications; includes 12-month Konmask warranty
- Inspection standard: Each unit undergoes power-on functional test, firmware version verification, and visual inspection before shipment
- Anti-counterfeit: All units sourced through verified authorized distributor channels; certificates of conformity available on request
- Export compliance: HS Code 853710; export documentation and commercial invoices provided for international orders
How to Order
- Step 1: Confirm your part number: BMXP341000 (standard) or BMXP341000H (harsh environment)
- Step 2: Specify quantity and required delivery timeline
- Step 3: Contact us via the form below or email support@konmask.com for a formal quotation
- Step 4: Receive proforma invoice; confirm payment (T/T, PayPal, or credit card accepted)
- Step 5: Shipment within 1–3 business days; tracking number provided
For urgent replacement orders or large-volume procurement, please call +0086 19859288691 for priority handling.
Replacement & Compatibility FAQ
Q: Can BMXP342000 directly replace BMXP341000 without hardware changes?
A: Yes, the BMXP342000 is physically compatible with all M340 racks. A firmware update and program re-download via Unity Pro is required. Memory addressing is backward compatible.
Q: Is BMXP341000 compatible with Modbus RTU SCADA systems?
A: Yes. The integrated RS-485 serial port supports Modbus RTU and ASCII protocols natively, enabling direct connection to legacy SCADA systems without additional communication modules.
Q: What is the difference between BMXP341000 and BMXP341000H?
A: The BMXP341000H features conformal coating on the PCB for enhanced resistance to humidity, condensation, and corrosive atmospheres. Functionally identical; select H-variant for harsh environments.
Q: Can I use EcoStruxure Control Expert instead of Unity Pro?
A: Yes. EcoStruxure Control Expert (v14.0+) is the successor to Unity Pro and is fully compatible with BMXP341000 projects. Existing Unity Pro projects can be opened and re-downloaded directly.
Q: Does Konmask.com provide a warranty on refurbished units?
A: Yes. All certified refurbished BMXP341000 units carry a 12-month Konmask warranty covering functional defects. New units carry the original Schneider Electric warranty.
