Allen-Bradley 1756-L55M23 ControlLogix Processor 1.5MB | Replacement, Equivalent & Selection Guide

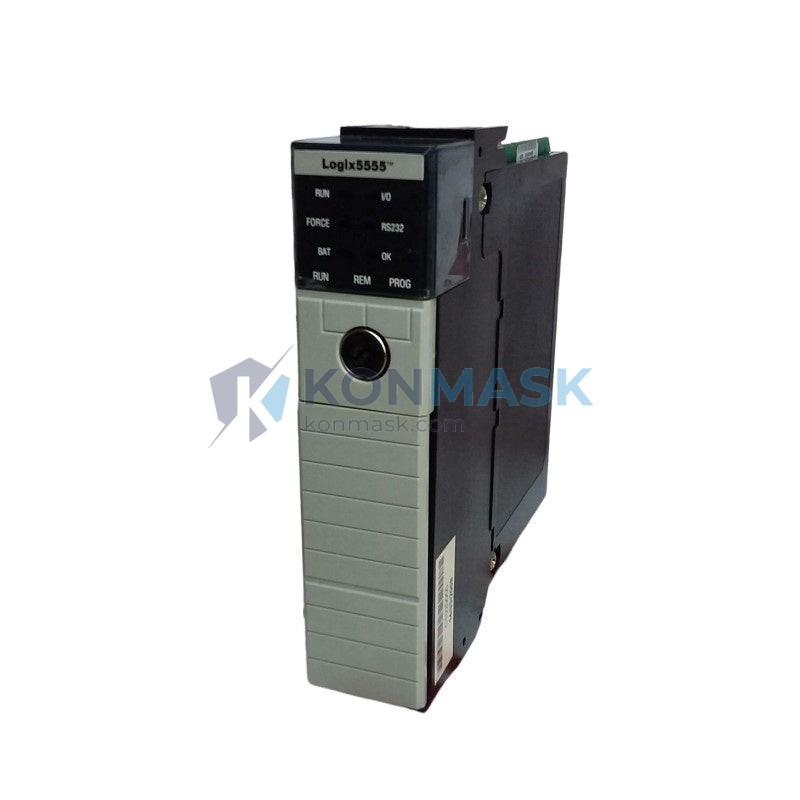

The Allen-Bradley 1756-L55M23 is a ControlLogix series programmable logic controller (PLC) processor module featuring 1.5MB non-volatile user memory. It operates within the 1756 ControlLogix chassis and serves as the central execution engine for complex discrete, process, motion, and safety control applications across industrial automation systems.
Whether you are sourcing a direct replacement for a failed unit, evaluating functional equivalents to reduce lead time, or comparing cross-brand alternatives for a new project, this guide provides the technical foundation to make a confident selection decision.
Technical Specifications

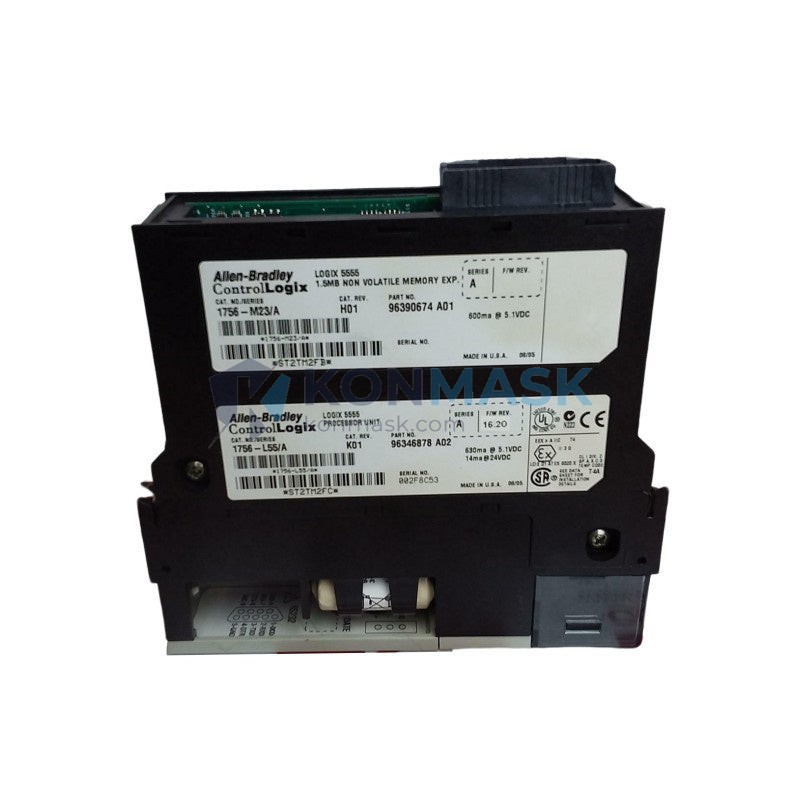

- Part Number: 1756-L55M23
- Series: Allen-Bradley ControlLogix (1756)
- Processor Family: Logix5555
- User Memory: 1.5MB non-volatile (key parameter for replacement compatibility)
- I/O Capacity: Up to 128,000 I/O points

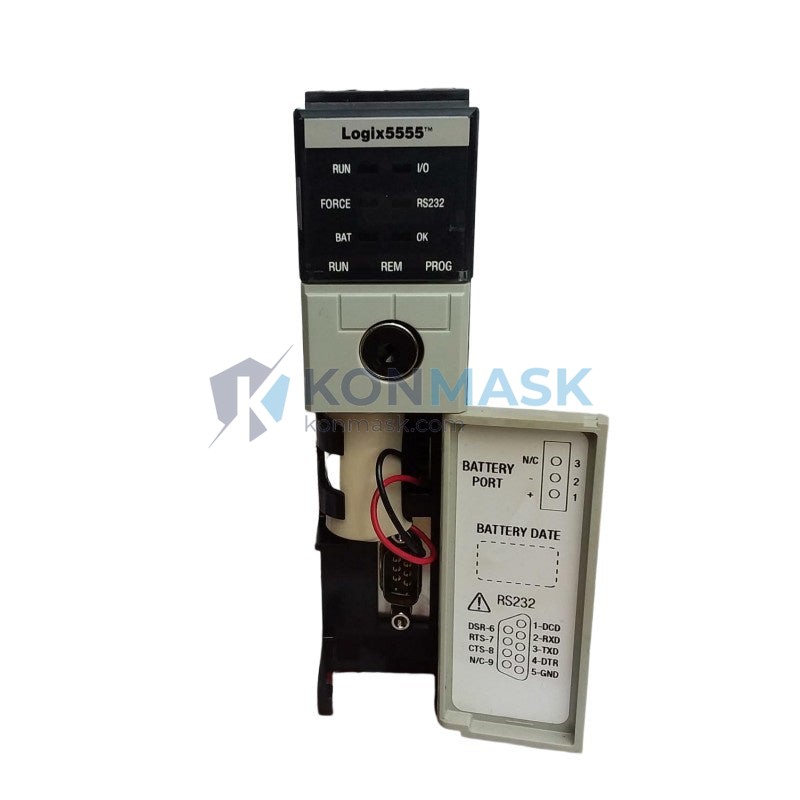

- Communication Ports: RS-232 serial (DF1/DH-485); backplane communication via 1756 chassis
- Programming Software: RSLogix 5000 / Studio 5000 Logix Designer
- Operating Voltage: Supplied via 1756 chassis backplane (1756-PA72 / 1756-PB72)
- Operating Temperature: 0°C to 60°C
- Certifications: UL, CE, C-Tick
- Firmware: Upgradeable via ControlFLASH
- Form Factor: Single-slot ControlLogix chassis module
- Weight: ~300g
⚠ Key replacement parameters: memory size (1.5MB), firmware revision, and chassis slot compatibility must all be verified before substitution.
Compatible Replacement & Equivalent Models
1. Direct Drop-in Replacements
The following models are pin-compatible and slot-compatible within the same 1756 chassis, requiring only firmware matching and program restore:
- 1756-L55M23 (same part, new or refurbished) — identical drop-in
- 1756-L55M22 — 750KB variant; suitable only if program fits within reduced memory
- 1756-L55M24 — 3.75MB variant; upward-compatible, larger memory headroom
Prerequisite: Verify firmware revision matches or is upgradeable. Back up program before swapping.
2. Functional Equivalents (Same Platform, Newer Generation)
For applications where the L55 series is discontinued or unavailable, the L6x and L7x series offer functional equivalence with enhanced performance:
- 1756-L61 — 2MB, ControlLogix L6x; requires Studio 5000 v16+, program conversion needed
- 1756-L62 — 4MB, ControlLogix L6x; recommended upgrade path for memory-intensive applications
- 1756-L71 — 2MB, ControlLogix L7x; latest generation, enhanced diagnostics and security
Note: L6x/L7x processors require program re-compilation in Studio 5000. I/O configuration and tag databases are generally portable. Confirm EtherNet/IP module compatibility if used.
3. Cross-Brand Alternatives
For greenfield projects or cost-driven replacements where Allen-Bradley platform lock-in is not required:
- Siemens S7-300 CPU 315-2 DP — comparable mid-range PLC; requires full re-engineering of program and I/O wiring
- Mitsubishi Q06UDEHCPU — high-performance alternative; GX Works2/3 programming environment
- Schneider Electric Modicon M340 BMXP342020 — IEC 61131-3 compliant; suitable for process-heavy applications
⚠ Cross-brand substitution requires full system re-engineering. Not recommended for maintenance replacements. Contact Konmask for feasibility assessment.
Why Choose the Original Model
- Precision Memory Allocation: 1.5MB non-volatile memory is precisely sized for mid-complexity ControlLogix programs — no over-provisioning cost, no under-capacity risk.
- OEM Certification Compliance: UL, CE, and C-Tick certifications ensure regulatory compliance for machinery directives and export requirements.
- Seamless Backplane Compatibility: Native 1756 chassis integration eliminates adapter modules, reducing failure points and installation complexity.
- Rockwell Ecosystem Support: Full compatibility with RSLogix 5000 / Studio 5000, FactoryTalk, and Rockwell TechConnect support contracts.
- Proven Field Reliability: Logix5555 processors have decades of validated deployment in automotive, oil & gas, and food & beverage industries.
- Warranty & Traceability: Genuine units supplied by Konmask include full traceability documentation and 12-month warranty coverage.
Typical Applications
- Automotive Manufacturing: Body-in-white welding lines, paint shop conveyors, and assembly sequencing control
- Oil & Gas: Wellhead control panels, pipeline SCADA integration, and compressor station automation
- Food & Beverage: Batch processing, CIP (clean-in-place) control, and packaging line coordination
- Water & Wastewater: Pump station control, SCADA-linked treatment process management
- Pharmaceutical: FDA 21 CFR Part 11 compliant batch control and environmental monitoring systems
- Material Handling: Warehouse sortation systems, AGV coordination, and conveyor network control
System Compatibility
The 1756-L55M23 is designed to operate within the following ControlLogix ecosystem components:
- 1756-A4 / A7 / A10 / A13 / A17 — ControlLogix chassis (4, 7, 10, 13, 17 slot)
- 1756-PA72 / PB72 — AC/DC power supply modules
- 1756-EN2T / EN3TR — EtherNet/IP communication modules
- 1756-DNB — DeviceNet bridge module
- 1756-CN2 / CN2R — ControlNet communication modules
- 1756-IB16 / OB16E — Digital I/O modules (16-point DC input/output)
- 1756-IF8 / OF8 — Analog I/O modules (8-channel input/output)
- 1756-M02AE — Servo drive interface for motion control applications
Selection Guide
Answer these three questions to confirm the 1756-L55M23 is the right choice for your application:
- Does your existing program fit within 1.5MB? — Check RSLogix 5000 memory usage report. If usage exceeds 1.2MB (80% threshold), consider the 1756-L55M24 (3.75MB) to allow headroom for future expansion.
- Is your chassis a 1756 ControlLogix platform? — The L55M23 is chassis-specific. It is not compatible with CompactLogix (1769), SLC 500 (1747), or MicroLogix platforms. Confirm chassis catalog number before ordering.
- What firmware revision does your system require? — Verify the firmware revision of the existing processor using RSLogix 5000 Controller Properties. Konmask can supply units pre-flashed to your required revision upon request.
Not sure? Contact Konmask at support@konmask.com or +0086 19859288691 with your chassis catalog number and program memory usage — we will confirm compatibility within 24 hours.
Quality Assurance & Sourcing
Sourcing Channels: Konmask sources the 1756-L55M23 through authorized Rockwell Automation distributors, certified secondary market channels, and factory-refurbished stock with full traceability.
4-Step Inspection Process:
- Visual Inspection: Housing integrity, label authenticity, connector pin condition, and anti-counterfeit marking verification
- Functional Power-On Test: Module initialization, firmware version confirmation, and self-diagnostic pass verification
- Communication Test: Backplane communication validation and RSLogix 5000 online connection test
- Final Documentation: Serial number logging, test report generation, and packaging with ESD protection
Available Documentation: Test reports, certificate of conformance (CoC), material traceability records, and customs/export documentation upon request.
How to Order
- Submit Your Inquiry: Email support@konmask.com or call +0086 19859288691 with part number, quantity, required firmware revision, and delivery timeline.
- Receive Quotation: Konmask will respond within 24 hours with pricing, lead time, and available stock confirmation.
- Confirm & Ship: Upon order confirmation, units are inspected, documented, and dispatched with full tracking. Express and standard shipping options available worldwide.
Replacement & Compatibility FAQ
Q1: Can the 1756-L55M23 directly replace a 1756-L55M22?
Yes, the 1756-L55M23 (1.5MB) can replace the 1756-L55M22 (750KB) as a drop-in substitute in the same chassis slot. The larger memory is backward compatible. You must restore the original program from backup and verify firmware revision compatibility. No hardware wiring changes are required.
Q2: Is the 1756-L61 a compatible equivalent to the 1756-L55M23?
The 1756-L61 is a functional equivalent from the newer L6x generation with 2MB memory. It is chassis-compatible with the 1756 platform but requires program re-compilation in Studio 5000 v16 or later. It is the recommended upgrade path when L55 series units are unavailable. Contact Konmask to confirm your program’s compatibility before ordering.
Q3: Are there cross-brand substitutes that are equivalent to the 1756-L55M23 for a new installation?
For new installations not bound to the Rockwell platform, cross-brand alternatives such as the Siemens S7-300 or Mitsubishi Q series offer comparable processing capability. However, these are not drop-in substitutes — full re-engineering of the control program, I/O wiring, and HMI integration is required. Konmask recommends retaining the Allen-Bradley platform for existing systems to minimize re-engineering cost and risk.
