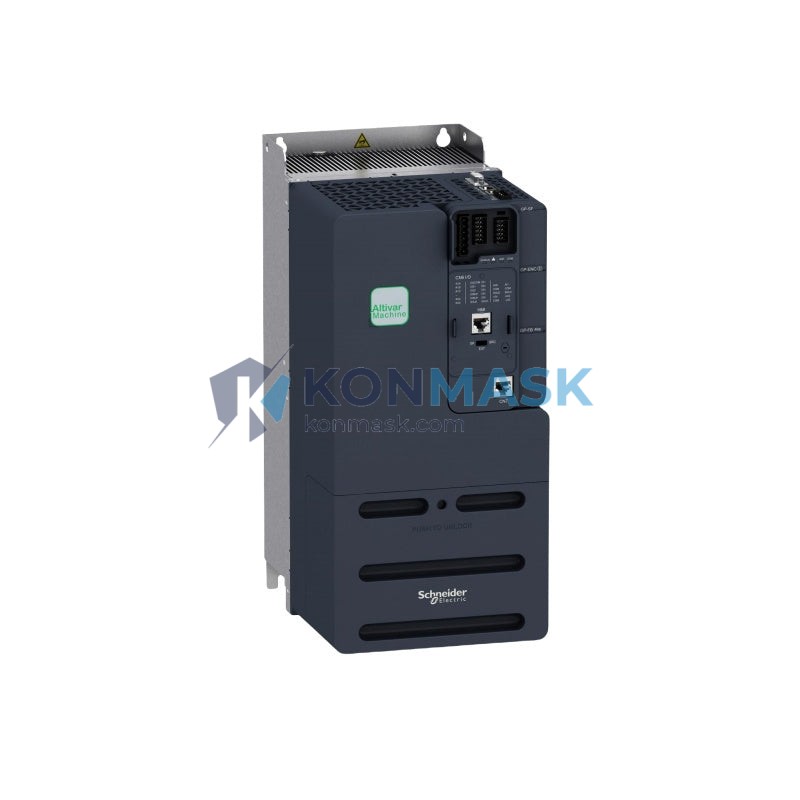

Schneider Electric ATV340D15N4 – 15kW Three-Phase Variable Speed Drive | Altivar 340 Platform
Engineering Background: The Altivar 340 series represents Schneider Electric’s dedicated solution for simple machine applications requiring reliable, energy-efficient motor speed control. Designed for OEM integration and industrial retrofit projects, the ATV340 platform delivers robust performance across pumping, conveying, compressor, and fan applications where precise torque and speed regulation are critical.
Product Positioning: The ATV340D15N4 is the 15kW (20HP) variant of the Altivar 340 family, engineered for three-phase 380–480V industrial environments. It bridges the gap between entry-level drives and high-performance servo systems, offering advanced motor control algorithms, embedded fieldbus connectivity, and a compact footprint suitable for panel-mount or standalone installation. Procurement engineers specify this drive for its proven reliability in continuous-duty cycles and its seamless integration with Schneider Electric’s EcoStruxure Machine architecture.
Complete Technical Specifications
| Part Number / SKU | ATV340D15N4 |
| Brand / Manufacturer | Schneider Electric |
| Series / Platform | Altivar 340 (ATV340) |
| Rated Motor Power | 15 kW (20 HP) |
| Supply Voltage | Three-phase 380–480 V AC (±10%) |
| Supply Frequency | 50/60 Hz |
| Output Frequency Range | 0.1–500 Hz |
| Rated Output Current | 33 A (Normal Duty) / 29 A (Heavy Duty) |
| Control Method | V/f, Sensorless Flux Vector (SVC), Closed-Loop Flux Vector |
| Switching Frequency | 2–16 kHz (adjustable) |
| Protection Rating | IP20 (standard) / IP21 (with optional kit) |
| EMC Filter | Integrated Class C2 EMC filter |
| Braking | Dynamic braking transistor integrated |
| Digital Inputs | 6 × DI (24 VDC logic) |
| Analog Inputs | 2 × AI (0–10V / 0–20mA / 4–20mA) |
| Digital Outputs | 2 × relay outputs (NO/NC) |
| Analog Output | 1 × AO (0–10V / 0–20mA) |
| Communication | Modbus RTU (RJ45, embedded); optional CANopen / EtherNet/IP / PROFIBUS DP / PROFINET via plug-in card |
| Display / HMI | Integrated 7-segment LED display; optional graphic keypad |
| Operating Temperature | -10°C to +50°C (derating above 40°C) |
| Storage Temperature | -25°C to +70°C |
| Humidity | 5–95% RH (non-condensing) |
| Altitude | Up to 1000 m (derating above) |
| Dimensions (H×W×D) | Approx. 270 × 130 × 195 mm |
| Weight | Approx. 5.6 kg |
| Certifications | CE, UL, cUL, RoHS |
| HS Code (Reference) | 8504.40 |
| Country of Origin | China (CN) |
Proven Application Environments
- Pump & Fan Control: Energy-saving speed regulation for centrifugal pumps, cooling fans, and HVAC air-handling units with PID closed-loop feedback.
- Conveyor & Material Handling: Smooth start/stop and precise speed control for belt conveyors, roller tables, and packaging lines.
- Compressor Drives: Constant-torque load management for screw and reciprocating compressors in industrial utilities.
- Mixer & Agitator: Variable torque profiles for chemical processing, food & beverage mixing, and water treatment agitators.
- OEM Machine Integration: Panel-mount installation in textile, printing, woodworking, and plastics machinery with EtherNet/IP or PROFINET fieldbus.
- Retrofit Projects: Direct replacement for legacy ATV31 / ATV312 / ATV61 drives in existing control panels with compatible wiring footprint.
Engineering Advantages
- Sensorless Vector Control (SVC): Delivers high starting torque (200% at 0.5 Hz) without encoder feedback, reducing installation complexity.
- Integrated EMC Filter: Class C2 filter eliminates the need for external EMC components, saving panel space and BOM cost.
- Embedded Modbus RTU: Native RS-485 Modbus RTU via RJ45 enables direct integration with Schneider M221/M241/M251 PLCs and third-party SCADA systems without additional gateways.
- Plug-in Fieldbus Cards: Modular communication expansion (CANopen, EtherNet/IP, PROFIBUS DP, PROFINET) future-proofs the drive for evolving network architectures.
- Energy Savings Mode: Automatic flux optimization reduces motor iron losses during partial-load operation, achieving up to 30% energy savings vs. DOL starters.
- Compact DIN-Rail Compatible Footprint: Optimized for space-constrained control panels; side-by-side mounting with zero clearance (with derating).
- EcoStruxure Ready: Fully compatible with Schneider Electric’s EcoStruxure Machine and Plant architectures for IIoT-enabled predictive maintenance.
System Architecture & Signal Flow
The ATV340D15N4 operates within a standard three-tier automation hierarchy:
- Level 1 – Field: Three-phase motor (induction or PM) connected to drive output terminals U/V/W. Encoder feedback optional via HTL/TTL input card.
- Level 2 – Control: Drive receives speed reference via analog input (AI1: 0–10V or 4–20mA) or digital preset speeds via DI terminals. Local/Remote switching via DI6.
- Level 3 – Supervision: Modbus RTU (RJ45) or optional fieldbus card connects to PLC (e.g., Schneider M241, Siemens S7-1200) or SCADA for parameter read/write, fault monitoring, and energy metering.
Typical wiring sequence: L1/L2/L3 (supply) → Internal EMC filter → Rectifier → DC bus → IGBT inverter → U/V/W (motor). Dynamic braking resistor connects to PA/PB terminals for high-inertia load deceleration.
Sourcing & Quality Verification
- Authorized Supply Chain: Units sourced through verified Schneider Electric distribution channels with full traceability documentation.
- Authenticity Checks: Each unit inspected for holographic CE/UL labels, Schneider Electric serial number format (SN: XXXXXXXXXX), and firmware version consistency.
- Functional Testing: Pre-shipment power-on test confirming display initialization, parameter access, and I/O continuity.
- Packaging Integrity: Original OEM packaging with anti-static foam insert, accessory kit (RJ45 cable, mounting hardware), and documentation CD/QR code.
- Warranty: 12-month warranty against manufacturing defects; DOA replacement within 7 business days.
Procurement Process
- Inquiry: Submit RFQ via support@konmask.com with quantity, required delivery date, and destination port.
- Quotation: Receive formal quotation with unit price, lead time, and shipping options within 24 business hours.
- Order Confirmation: Issue PO referencing SKU ATV340D15N4; payment via T/T, PayPal, or trade assurance.
- Inspection & Dispatch: Pre-shipment inspection report provided; shipped via DHL / FedEx / sea freight with tracking number.
- After-Sales: Technical support for commissioning, parameter configuration, and fault diagnosis available via email or WhatsApp.
Technical FAQ
Q: Is the ATV340D15N4 compatible with permanent magnet (PM) motors?
A: Yes. The ATV340 supports both standard induction motors and permanent magnet synchronous motors (PMSM) in open-loop SVC mode.
Q: Can I use this drive with a Siemens S7-1200 PLC via PROFINET?
A: Yes, with the optional VW3A3627 PROFINET communication card installed. The drive appears as a standard PROFINET IO device.
Q: What is the difference between ATV340D15N4 and ATV340D15N4E?
A: The ATV340D15N4E variant includes an enhanced EMC filter (Class C1) and conformal coating for harsh environments. The standard D15N4 is suitable for industrial environments meeting Class C2 requirements.
Q: Does the drive support Safe Torque Off (STO)?
A: Yes. The ATV340 series includes integrated STO (SIL 2 / PLd) via dedicated STO terminals, eliminating the need for external safety contactors in most applications.
Q: What is the minimum motor cable length recommendation?
A: Schneider recommends shielded motor cable (e.g., LIYCY) with maximum length of 50 m without output filter, or up to 100 m with optional dV/dt filter (VW3A4721).
