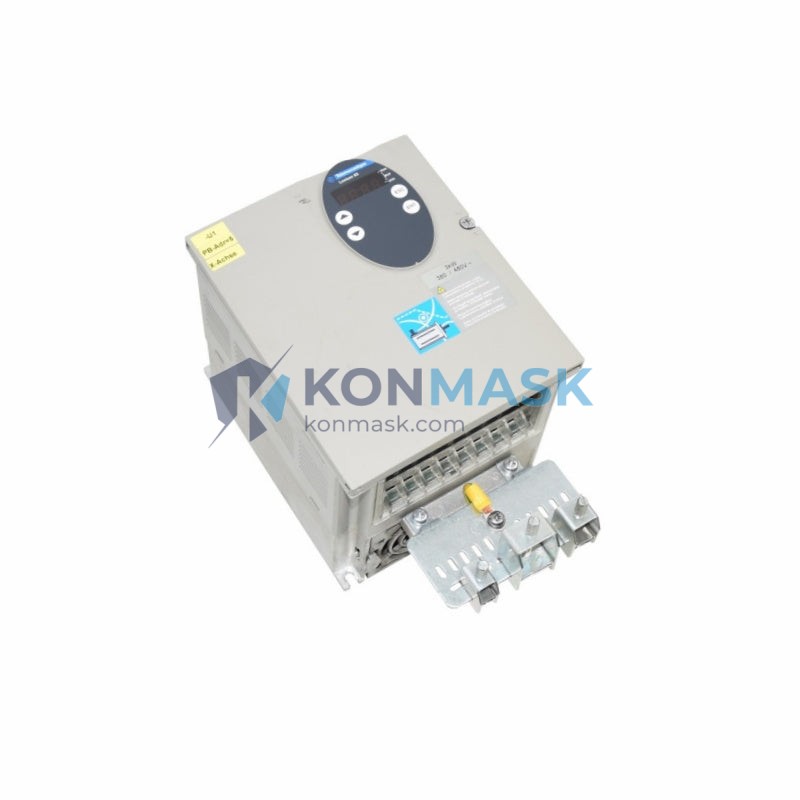

Schneider Electric LXM05BD34N4 – Compact AC Servo Drive for Precision Motion Control | Lexium 05 Platform
Engineering Background: The Lexium 05 series represents Schneider Electric’s dedicated servo drive platform engineered for demanding motion control applications across industrial automation. Designed to pair natively with Schneider BSH and BMH servo motors, the LXM05 family delivers closed-loop torque, velocity, and position control with deterministic response — a critical requirement in high-throughput manufacturing and process automation environments.
Product Positioning: The LXM05BD34N4 is a 3-phase 400 V AC input servo amplifier rated at 3.4 A continuous output current, occupying the mid-range of the Lexium 05 power stack. It targets machine builders and OEMs who require a compact, DIN-rail or panel-mount drive with full IEC 61800-5-1 safety compliance, native CANopen/CANmotion connectivity, and seamless integration into Modicon PLC ecosystems. Cross-reference part numbers on this listing: 955MS5196 / GLFPF3000VMM4AM / 0050-75958 / C1804 / 0020-26312.
Complete Technical Specifications
- Part Number: LXM05BD34N4
- Series: Lexium 05
- Manufacturer: Schneider Electric (France)
- Drive Type: AC Servo Amplifier (Closed-Loop)
- Supply Voltage: 3-Phase 380–480 V AC ±10%, 50/60 Hz
- Continuous Output Current: 3.4 A RMS
- Peak Output Current: 10.2 A (3× rated, 3 s)
- Power Rating: ~1.5 kW continuous shaft power (motor-dependent)
- Control Modes: Torque / Velocity / Position (PTP & electronic gearing)
- Feedback Interface: Incremental encoder, SinCos encoder, Hiperface (motor-dependent)
- Communication: CANopen DS402 / CANmotion
- Digital I/O: 6 × DI, 3 × DO (24 V DC logic)
- Analog Input: ±10 V, 12-bit resolution
- Safety Function: STO (Safe Torque Off) — IEC 62061 SIL 2 / EN 13849-1 PLd
- Protection Class: IP20 (panel mount)
- Ambient Temperature: 0–45 °C (operating), −25 to +70 °C (storage)
- Humidity: 5–95% RH non-condensing
- Altitude: Up to 1000 m without derating
- Mounting: Panel mount, vertical orientation
- Dimensions (H×W×D): ~180 × 60 × 170 mm (refer to Schneider datasheet for exact)
- Weight: ~1.5 kg
- Certifications: CE, UL, cUL, RoHS
- HS Code: 8504.40
- Country of Origin: France
Proven Application Environments
- Packaging Machinery: High-speed pick-and-place, form-fill-seal lines, and cartoning machines where precise velocity synchronization between multiple axes is mandatory.
- CNC & Machine Tools: Feed axis and spindle orientation control on milling centers and lathes requiring sub-millisecond torque response.
- Textile & Converting: Winding/unwinding tension control and register correction on web-handling lines.
- Semiconductor & Electronics Assembly: Wafer handling, SMT pick-and-place, and dispensing robots demanding micron-level repeatability.
- Robotics & Handling: Articulated arm joints and SCARA robot axes in automotive body-shop and logistics automation.
- Printing & Labeling: Servo-driven print heads and label applicators requiring synchronized motion with line encoders.
- Food & Beverage: Hygienic-area conveyors and dosing systems (drive in sealed control cabinet, IP20 acceptable).
Engineering Advantages
- Native Lexium Ecosystem: Plug-and-play pairing with Schneider BSH/BMH motors — no manual encoder scaling or motor parameter entry required when using Schneider motor database.
- STO Safety Integration: Hardware-level Safe Torque Off eliminates external safety relays on SIL 2 / PLd machine designs, reducing panel BOM cost.
- CANmotion Multi-Axis Sync: Deterministic CANmotion bus enables electronic gearing and cam profiling across up to 32 axes without a dedicated motion controller.
- Compact Footprint: 60 mm width allows dense multi-axis panel layouts — critical in space-constrained OEM machine cabinets.
- Auto-Tuning: One-button inertia identification and gain auto-tuning via SoMove software reduces commissioning time from hours to minutes.
- Wide Supply Tolerance: ±10% voltage tolerance handles unstable grid conditions common in emerging-market factory environments.
System Architecture & Signal Flow
In a typical Lexium 05 motion cell, the LXM05BD34N4 receives position/velocity setpoints from a Modicon M340 or M580 PLC via CANopen DS402 or CANmotion. The drive closes the current loop at 16 kHz PWM switching frequency, feeding a BSH or BMH servo motor. Encoder feedback (incremental or SinCos) returns to the drive’s feedback port; the drive’s position counter is then reported back to the PLC for supervisory monitoring. The STO input is wired to the machine’s safety PLC (e.g., Preventa XPSMC) to achieve category 3 / PLd stop-on-demand without cutting main power.
Typical BOM for a single-axis Lexium 05 cell:
- LXM05BD34N4 — Servo Drive (this unit)
- BSH0703P01A2A or equivalent — Servo Motor
- VW3M5101R30 — Motor power cable (3 m)
- VW3M8102R30 — Encoder feedback cable (3 m)
- VW3A3608 — CANopen communication cable
- XPSMC16ZP — Safety relay / STO wiring module
- LXM05A or LXM28 — Multi-axis power supply (if shared DC bus)
Sourcing & Quality Verification
- Source: Konmask.com sources LXM05BD34N4 units from authorized industrial distributors and verified OEM surplus channels.
- Inspection: Every unit undergoes visual inspection, label authenticity check, and functional power-on verification before dispatch.
- Traceability: Batch records and serial number logs retained for 3 years — available on request for regulated industries.
- Packaging: Anti-static bag + foam-lined export carton; humidity indicator card included for long-haul freight.
- Warranty: 12-month replacement warranty against manufacturing defects.
Procurement Process
- Confirm Part Number: Verify LXM05BD34N4 against your BOM or cross-reference (955MS5196 / GLFPF3000VMM4AM / 0050-75958 / C1804 / 0020-26312).
- Request Quote: Contact support@konmask.com with quantity and required delivery date for volume pricing.
- Receive Pro-Forma Invoice: Issued within 1 business day; supports T/T, L/C, and PayPal for international buyers.
- Order Confirmation & Lead Time: In-stock units ship within 3–5 business days; ETA provided at order confirmation.
- Shipping & Documentation: DHL / FedEx express with full commercial invoice, packing list, and CO certificate (Form A available for applicable markets).
- After-Sales Support: Technical commissioning support available via email or WhatsApp (+0086 19859288691).
Technical FAQ
Q: Is LXM05BD34N4 compatible with third-party servo motors?
A: Yes, with manual motor parameter configuration via SoMove software. However, Schneider BSH/BMH motors are recommended for full auto-tuning and safety function support.
Q: What communication protocol does this drive support?
A: CANopen DS402 and Schneider’s proprietary CANmotion protocol. Modbus RTU is available via optional VW3A3607 module.
Q: Can this drive operate on single-phase supply?
A: No. LXM05BD34N4 requires 3-phase 380–480 V AC input. For single-phase applications, refer to the LXM05A range.
Q: What is the STO wiring requirement?
A: STO inputs (STO_A and STO_B) must be driven by a 24 V DC safety-rated source. Refer to Schneider application note AN-LXM05-STO for wiring diagrams.
Q: How do I commission this drive?
A: Use Schneider SoMove software (free download) via USB-RJ45 cable VW3A8106. The drive supports one-button auto-tuning after motor selection from the built-in database.
Q: What is the difference between LXM05BD34N4 and LXM05AD34N4?
A: The “B” variant includes an integrated braking resistor connection and enhanced EMC filter. The “A” variant is the base model without these features.
