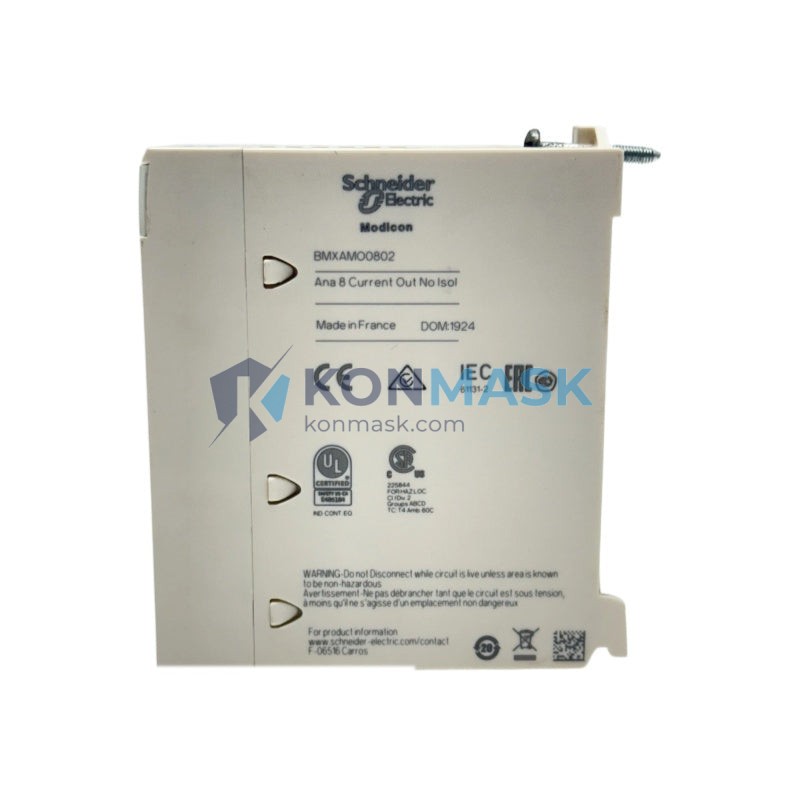

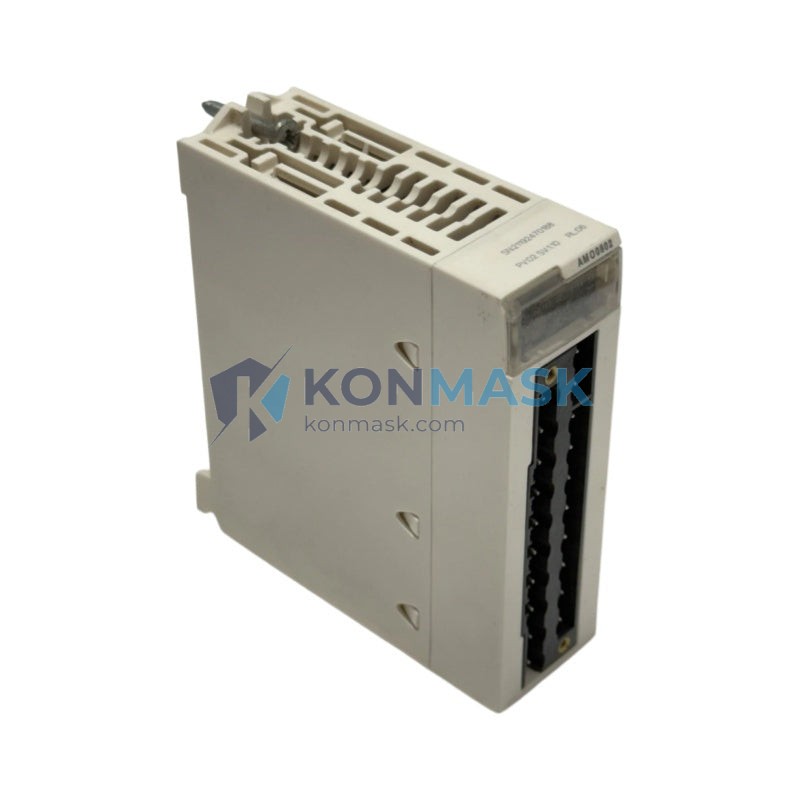

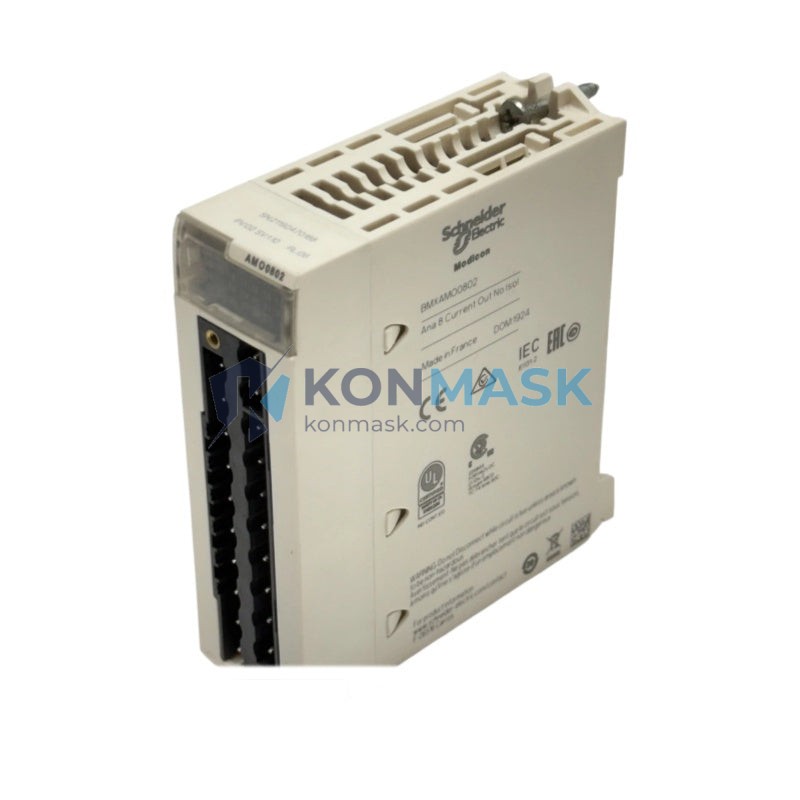

Genuine Schneider Electric BMXAMO0802 8-Channel Analog High-Level Output Module | Modicon M340 Series – Verified Source
The Schneider Electric BMXAMO0802 is an 8-channel analog high-level output module designed for the Modicon M340 PLC platform. Sourced directly through verified supply channels, every unit sold by Konmask.com undergoes our 4-step quality verification process before shipment. Whether you are commissioning a new system or replacing a failed module, we provide the genuine part with full traceability.
Technical Specifications
| Part Number (SKU) | BMXAMO0802 |
| Manufacturer | Schneider Electric |
| Product Line / Series | Modicon M340 (BMX Series) |
| Module Type | Analog High-Level Output |
| Number of Channels | 8 Channels |
| Output Signal Type | Voltage / Current (High-Level) |
| Output Range (Voltage) | ±10 V |
| Output Range (Current) | 0–20 mA / 4–20 mA |
| Resolution | 16-bit |
| Isolation | Channel-to-bus isolation |
| Bus Interface | Modicon M340 backplane bus |
| Operating Temperature | 0 °C to +60 °C |
| Storage Temperature | -25 °C to +70 °C |
| Relative Humidity | 5% to 95% (non-condensing) |
| Weight | 165 g |
| Certifications | CE, UL, cUL, RoHS |
| Country of Origin | France / EU (Schneider Electric manufacturing) |
Our 4-Step Quality Verification Process
Every BMXAMO0802 unit shipped from Konmask.com passes through the following verification steps before dispatch:
- Source Authentication — We verify the supply chain origin and cross-reference manufacturer batch codes against known-genuine references.
- Physical Inspection — Label integrity, housing condition, connector pin alignment, and PCB markings are inspected against OEM specifications.
- Functional Bench Test — Where applicable, modules are powered and output channel responses are validated against datasheet parameters.
- Packaging & Documentation Check — Original or OEM-equivalent packaging, datasheet, and certificate of conformity are included with each shipment.
Key Features & Benefits
- 8 independent high-level analog output channels — voltage and current selectable per channel
- 16-bit resolution for precise process control in demanding industrial environments
- Plug-and-play compatibility with all Modicon M340 racks and backplanes
- Channel-to-bus isolation reduces noise interference and protects the CPU
- Compact BMX form factor — minimal rack space consumption
- Fully supported by Unity Pro / EcoStruxure Control Expert software
- Genuine OEM part — no counterfeit risk, full warranty eligibility
Typical Applications
- Process control loops (flow, pressure, temperature setpoint output)
- Variable speed drive (VFD) reference signal generation
- Valve positioner and actuator control
- Batch processing and recipe management systems
- Water & wastewater treatment plant automation
- Oil & gas upstream and midstream control systems
- Pharmaceutical and food & beverage manufacturing lines
- Building management systems (BMS) requiring precision analog output
Compatible System Components
- Racks: BMXXBP0400, BMXXBP0600, BMXXBP0800, BMXXBP1200, BMXXBP0400H (hazardous)
- CPUs: BMXP341000, BMXP342000, BMXP342010, BMXP342020, BMXP3420302
- Power Supplies: BMXCPS2000, BMXCPS3500, BMXCPS3020H
- Programming Software: EcoStruxure Control Expert (formerly Unity Pro) v2.6 and above
- Related Analog Input Modules: BMXAMI0410, BMXAMI0800, BMXAMI0810
Global Sourcing & Shipping Capabilities
Konmask.com maintains stock and sourcing networks across Asia, Europe, and North America. We ship the BMXAMO0802 worldwide with the following service levels:
- Standard Air Freight: 5–10 business days (most destinations)
- Express Courier (DHL / FedEx / UPS): 2–5 business days
- Sea Freight / Consolidated Cargo: Available for bulk orders
- Export Documentation: Commercial invoice, packing list, certificate of origin, and customs HS code support provided
- HS Code Reference: 8537.10 (programmable controllers / industrial control modules)
For urgent requirements or large-volume procurement, please contact our sales team directly for priority allocation and lead-time confirmation.
Certifications & Compliance Statement
The Schneider Electric BMXAMO0802 carries the following certifications as issued by the original manufacturer:
- CE Marking — Compliant with EU Low Voltage Directive and EMC Directive
- UL / cUL Listed — Recognized for use in North American industrial installations
- RoHS Compliant — Restriction of Hazardous Substances Directive (EU 2011/65/EU)
- IEC 61131-2 — Programmable controller hardware standard compliance
Konmask.com does not alter, re-label, or modify any OEM hardware. All certifications remain intact and valid as issued by Schneider Electric.
How to Order
- Add to Cart — Click “Add to Cart” for standard single-unit or small-quantity orders. Checkout supports major credit cards, PayPal, T/T bank transfer, and LC.
- Request a Quote — For orders of 5+ units, OEM pricing, or project-based procurement, email [email protected] with your quantity and required delivery date.
- Confirm Lead Time — Our team will confirm stock availability and estimated ship date within 1 business day.
- Receive & Inspect — All shipments include a packing list and quality inspection report. Contact us within 5 business days of receipt for any discrepancy claims.
Authenticity & Trust FAQ
Q: Are these modules genuine Schneider Electric OEM parts?
A: Yes. We source exclusively from verified distributors and authorized supply channels. Each unit is inspected before shipment.
Q: Do you provide a warranty?
A: We offer a 12-month warranty against manufacturing defects on all genuine modules. Warranty claims are processed within 5 business days.
Q: Can I verify the part number before purchasing?
A: Yes. Contact us with your project BOM and we will confirm part number, revision, and firmware compatibility before you commit to an order.
Q: Do you accept returns?
A: Unused modules in original packaging may be returned within 30 days. Please review our Returns Policy page for full terms.
Q: Can you supply the full Modicon M340 system — racks, CPUs, I/O modules?
A: Yes. Konmask.com specializes in complete Schneider Electric Modicon system builds. Contact us for a full BOM quotation.
