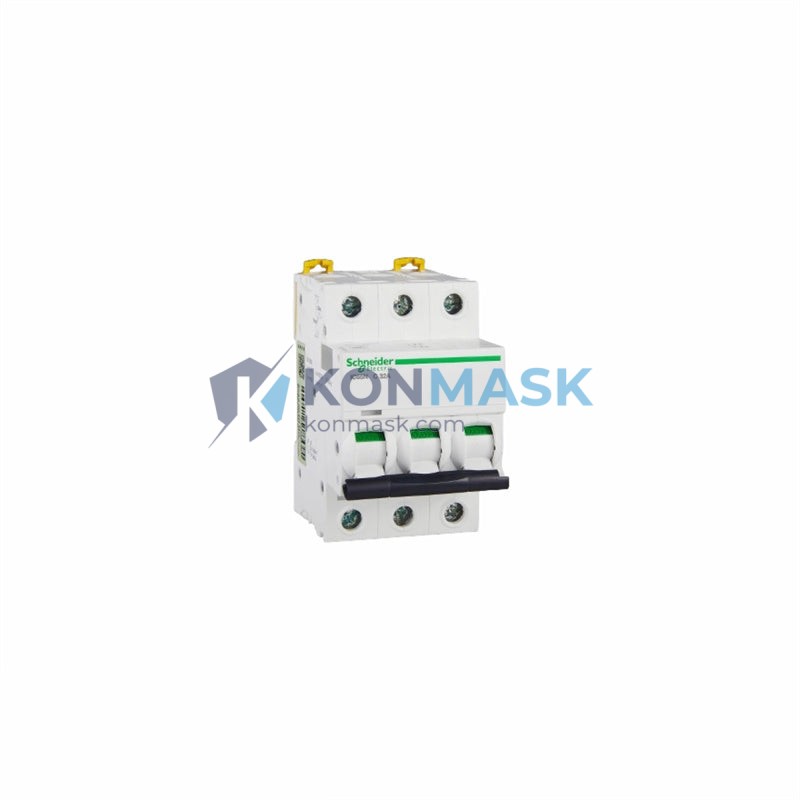

Industrial Panel Protection Solution – Schneider Electric iC65N 3P C32A | Acti9 Series
Where This Product Is Used
The Schneider Electric iC65N 3P C32A Miniature Circuit Breaker is engineered for demanding electrical protection applications across a wide range of industrial and commercial environments:
- Industrial Automation Panels – Protects PLC control cabinets, motor control centers (MCC), and distribution boards in manufacturing plants.
- Commercial Building Electrical Systems – Ideal for sub-distribution boards in office buildings, shopping centers, and hotels.
- Machine Tool & OEM Equipment – Provides reliable short-circuit and overload protection for CNC machines, conveyors, and packaging lines.
- Data Centers & Server Rooms – Safeguards UPS systems and PDU circuits requiring stable 3-phase protection.
- Water Treatment & HVAC Systems – Protects pump motors and HVAC control panels in utility infrastructure.
- Renewable Energy Installations – Used in solar inverter combiner boxes and wind turbine control panels.
Technical Specifications
- Brand: Schneider Electric
- Series: Acti9 iC65N
- SKU / Part Number: iC65N-3P-C32A
- Poles: 3P (Three-Pole)
- Rated Current: 32A
- Trip Curve: C (suitable for resistive and low inductive loads)
- Breaking Capacity (Icn): 10 kA @ 230/400V AC
- Rated Voltage: 230/400V AC
- Frequency: 50/60 Hz
- Mounting: DIN Rail (35mm)
- Terminal Capacity: 1–25 mm²
- Degree of Protection: IP20 (terminals IP40 with cover)
- Operating Temperature: -25°C to +60°C
- Weight: 1,320 g
- Standards: IEC/EN 60898-1, IEC/EN 60947-2
Why Engineers Specify This Model
- High Breaking Capacity: 10 kA Icn ensures reliable fault clearance even in high-fault-current environments, reducing arc flash risk.
- C-Curve Selectivity: Optimized for motor feeders and general distribution — trips fast on short circuits, tolerates inrush currents.
- Compact DIN Rail Footprint: 3-pole in a slim 54mm width saves valuable panel space in dense control cabinets.
- Acti9 Ecosystem Compatibility: Fully compatible with Schneider’s Acti9 auxiliary accessories — shunt trips, auxiliary contacts, earth leakage add-ons (Vigi).
- Vibration Resistance: Designed to withstand industrial vibration per IEC standards — no nuisance tripping in dynamic environments.
- Long Service Life: Rated for 20,000 mechanical operations and 10,000 electrical operations at rated current.
Complete System Bill of Materials
For a complete motor branch circuit or distribution panel using the iC65N 3P C32A, engineers typically specify:
- Schneider iC65N 3P C32A MCB (this unit) — branch circuit protection
- Schneider Acti9 Vigi iC65 — earth leakage add-on module (optional, RCD protection)
- Schneider iC65 Shunt Trip (MX) — remote tripping auxiliary
- Schneider iC65 Auxiliary Contact (OF/SD) — status feedback to PLC/SCADA
- Schneider Acti9 iC65 Comb Busbar — 3-phase distribution within panel
- Schneider Acti9 Insulated Terminal Covers — IP40 terminal protection
- 35mm DIN Rail (2m length) — standard mounting rail
- Cable end ferrules, 16–25mm² — for secure termination
Compliance & Industry Standards
- IEC/EN 60898-1 – Circuit breakers for overcurrent protection in household and similar installations
- IEC/EN 60947-2 – Low-voltage switchgear and controlgear: Circuit breakers
- CE Marking – Compliant with EU Low Voltage Directive (LVD) 2014/35/EU
- RoHS Compliant – Restriction of Hazardous Substances Directive
- REACH Compliant – Registration, Evaluation, Authorisation and Restriction of Chemicals
Quality Assurance & Sourcing
At Konmask.com, every Schneider Electric component is sourced through verified supply channels. Each iC65N unit undergoes the following before dispatch:
- Visual inspection for physical damage, label integrity, and hologram verification
- Packaging authenticity check against Schneider Electric OEM standards
- Batch traceability documentation available upon request
- Storage in ESD-safe, climate-controlled warehouse conditions
We supply to system integrators, panel builders, OEM manufacturers, and MRO procurement teams globally.
How to Source This Part
- Online: Add to cart directly at Konmask.com
- Email RFQ: support@konmask.com — include quantity, delivery location, and required lead time
- Phone / WhatsApp: +0086 19859288691
- Bulk Orders: Volume pricing available for orders of 10+ units — contact us for a formal quotation
- Lead Time: In-stock items ship within 1–3 business days; ex-factory orders quoted individually
Application-Specific FAQ
Q: Can the iC65N 3P C32A be used for motor protection?
A: Yes. The C-curve characteristic tolerates motor inrush currents (typically 5–10× rated current) without nuisance tripping, making it suitable for direct-on-line (DOL) motor starters up to approximately 11kW at 400V.
Q: Is this breaker compatible with Schneider Vigi earth leakage modules?
A: Yes. The iC65N is fully compatible with the Acti9 Vigi iC65 add-on RCD module, enabling combined MCB+RCD (RCBO equivalent) protection without replacing the breaker.
Q: What is the difference between iC65N and iC65H?
A: The iC65H offers a higher breaking capacity of 15 kA (vs. 10 kA for iC65N), making it suitable for installations closer to the transformer or with higher prospective fault currents.
Q: Can I use this in a single-phase 230V application?
A: Yes, though it is a 3-pole device. You can use it in a 3-phase system or connect only the required poles in a single-phase application, leaving unused poles isolated per local electrical code.
Q: What cable cross-section is compatible with the terminals?
A: The iC65N accepts conductors from 1mm² to 25mm², accommodating both solid and stranded cables with or without ferrules.
