Schneider Electric MC-4/11/10/400 HW:E0R603 SW:V00.12.XX ELAU PAC DRIVE Motion Controller | Replacement, Equivalent & Selection Guide

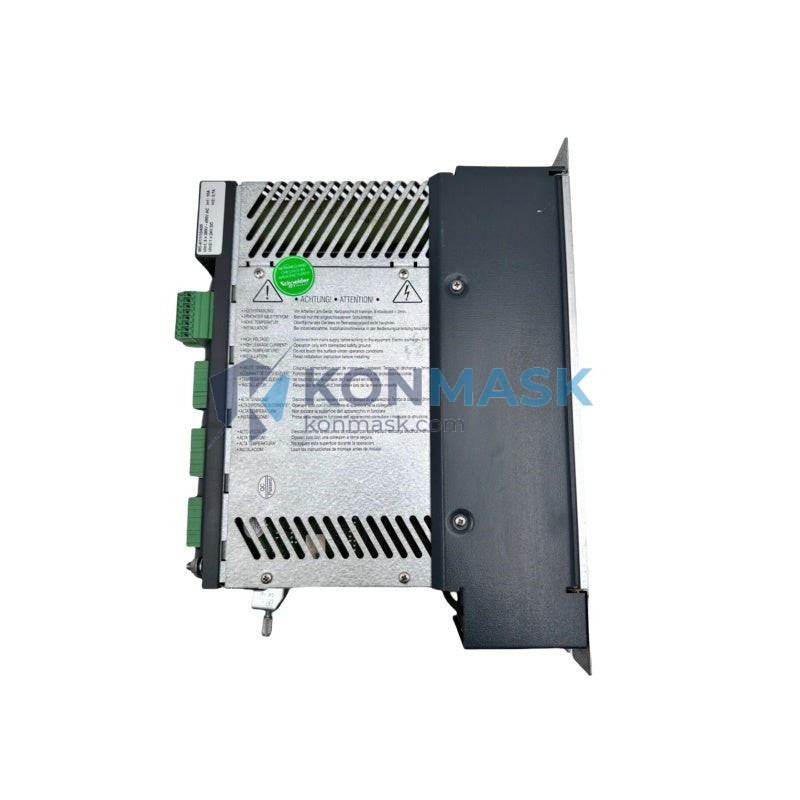

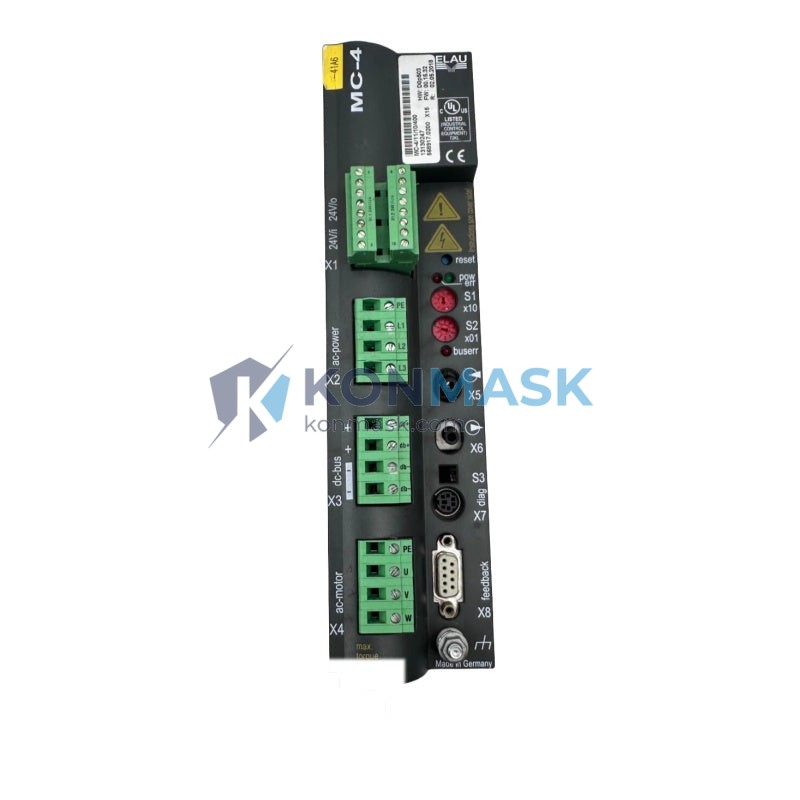

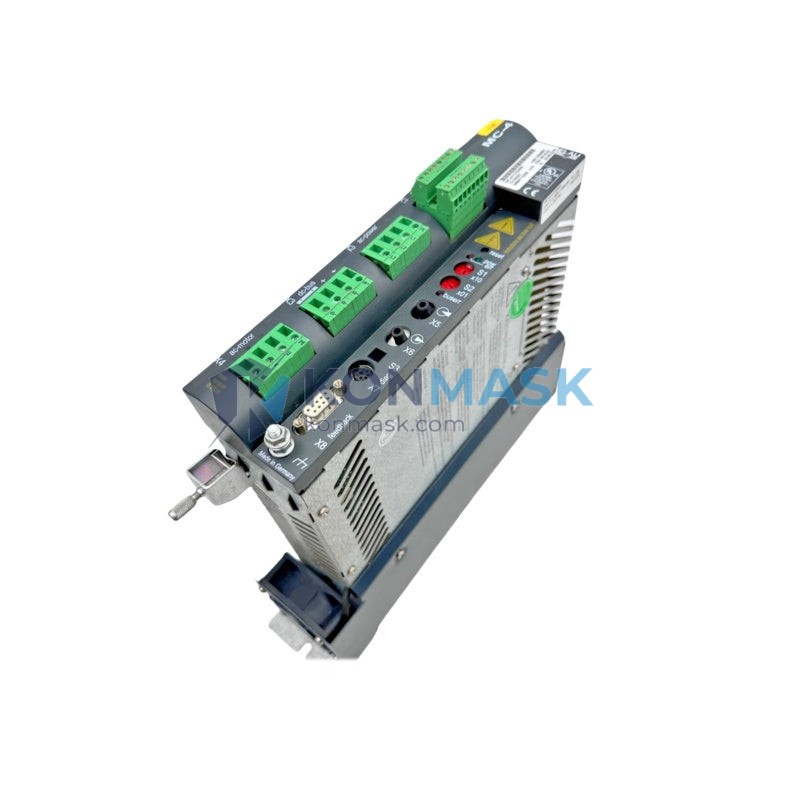

The Schneider Electric (ELAU) MC-4/11/10/400 is a high-performance multi-axis motion controller from the PAC DRIVE M series, designed for demanding packaging and industrial automation applications. Hardware revision E0R603, firmware V00.12.XX. Konmask.com supplies genuine, tested units with full traceability.
Technical Specifications
- Part Number / SKU: MC-4/11/10/400
- Hardware Revision: E0R603
- Software / Firmware: V00.12.XX
- Brand / OEM: Schneider Electric (formerly ELAU)
- Series: PAC DRIVE M (PacDrive M)
- Controller Type: Multi-axis motion controller
- Axes Supported: Up to 4 servo axes
- Communication: SERCOS II, CANopen, Ethernet
- Power Supply: 400 V AC (3-phase)
- Weight: 3,540 g (approx.)
- Condition: New / Refurbished / Exchange available — contact us
Compatible Replacement & Equivalent Models
If the MC-4/11/10/400 is discontinued or lead times are long, the following models are functionally compatible or direct replacements. Always verify firmware and hardware revision compatibility before substitution.
- Schneider Electric MC-4/11/10/400-I — Identical axis count, updated I/O variant
- Schneider Electric MC-4/11/10/400-E — Ethernet-enhanced variant, same motion core
- ELAU MC-4/11/10/400 (legacy label) — Pre-Schneider acquisition unit; electrically identical
- Schneider Electric LMC058CF1C00000 — Next-generation LMC series, requires software migration
- Schneider Electric LMC078CF1C00000 — Higher-axis-count upgrade path
- Note: Third-party clones are not recommended for safety-critical packaging lines.
Why Choose the Original MC-4/11/10/400
- Proven reliability in high-speed packaging (up to 1,200 cycles/min)
- Native SERCOS II synchronization for tight multi-axis coordination
- Full compatibility with existing PAC DRIVE M servo drives (SD-M series)
- Supported by Schneider Electric SoMachine Motion / PacDrive 3 engineering tools
- Extensive installed base — spare parts and expertise widely available
Typical Applications
- Horizontal and vertical form-fill-seal (HFFS / VFFS) packaging machines
- Cartoning and case-packing lines
- Labeling and inspection systems
- Printing and converting machinery
- Robotic pick-and-place cells integrated with packaging lines
System Compatibility
- Servo Drives: Schneider Electric / ELAU SD-M series (SD-M1, SD-M2, SD-M3)
- HMI: Schneider Electric Magelis / Vijeo Designer panels
- Engineering Software: PacDrive Architect, SoMachine Motion V4.x+
- Fieldbus: SERCOS II ring topology; optional CANopen for auxiliary devices
- Safety: Compatible with Schneider Electric Preventa safety modules
Selection Guide
Use the table below to select the right PAC DRIVE M controller for your axis count and power requirements:
- 2-axis / 400 V: MC-2/11/10/400 — entry-level, lower cost
- 4-axis / 400 V: MC-4/11/10/400 (this model) — most common packaging standard
- 6-axis / 400 V: MC-6/11/10/400 — complex multi-station lines
- 8-axis / 400 V: MC-8/11/10/400 — high-axis robotic integration
- Tip: If migrating to PacDrive 3, map existing MC-4 axes to LMC058 or LMC078 and re-commission via SoMachine Motion.
Quality Assurance & Sourcing
- All units inspected and function-tested prior to shipment
- Serial number and hardware revision verified against Schneider Electric records
- Shipped with anti-static packaging and full documentation
- 12-month warranty on refurbished units; OEM warranty on new stock
- Traceable supply chain — no counterfeit risk
How to Order
- Add to cart directly, or contact us for volume pricing and lead-time confirmation
- Provide your machine model and current firmware version for compatibility check
- Request a proforma invoice for bank transfer / LC payment
- Express DHL / FedEx worldwide shipping available; export documentation included
📧 support@konmask.com | 📞 +0086 19859288691
Replacement & Compatibility FAQ
Q: Can I replace MC-4/11/10/400 HW:E0R603 with a newer hardware revision?
A: Yes, in most cases. Hardware revisions are backward-compatible within the same firmware branch. Confirm SW version compatibility with your machine OEM.
Q: Is the ELAU MC-4/11/10/400 the same as the Schneider Electric version?
A: Yes. Schneider Electric acquired ELAU in 2006. The hardware is identical; only the branding changed.
Q: What firmware version should I use with HW:E0R603?
A: V00.12.XX is the validated firmware for this hardware revision. Upgrading to V00.13.XX or later requires hardware compatibility verification.
Q: Do you offer exchange / repair service?
A: Yes. Contact us with your faulty unit details for an exchange quote or repair evaluation.
Q: Can this controller work with third-party SERCOS drives?
A: Limited compatibility exists with SERCOS II-compliant drives from other vendors, but full functionality is only guaranteed with Schneider Electric / ELAU SD-M series drives.
