What is the difference between MT32N1, MT32H1, and MT32L1?

The suffix N, H, and L denote the breaking capacity class. N is standard breaking capacity, H is high, and L is very high (limiting). The MT32N1 is the N-rated 3200 A, 3-pole variant suitable for most standard industrial distribution applications.

Is the MT32N1 available in both fixed and drawout versions?

Yes. The Masterpact MT series supports both fixed and drawout mounting configurations. Please specify your requirement when submitting your RFQ.

Which Micrologic trip unit should I select for the MT32N1?

Trip unit selection depends on your protection coordination requirements. Micrologic 2.0 A provides basic LSI protection; 5.0 E adds earth fault; 6.0 E adds measurement; 7.0 adds power quality metering.

Can Konmask.com provide the original Schneider Electric test certificate?

Yes. All units we supply come with the original manufacturer's factory test certificate and full traceability documentation as standard.

What is the typical lead time for the MT32N1?

Ex-stock units can ship within 3–5 business days. For non-stock items, typical lead time is 4–8 weeks depending on Schneider Electric's production schedule.

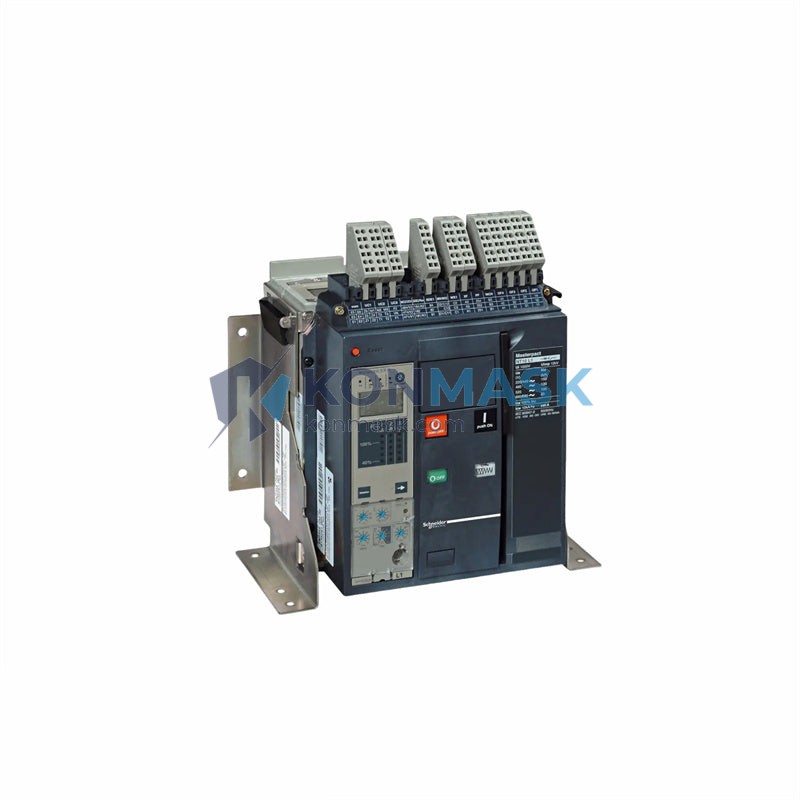

Genuine Schneider Electric MT32N1 Masterpact MT - Industrial Automation Part

Schneider MT32N1 Air Circuit Breaker – Masterpact MT Series

Request a Fast Quote Email Directly

Send your required quantity, target delivery time, and destination country. Konmask will reply with availability and lead time.

SKU: MT32N1 Category: Schneider Tags: Air Circuit Breaker, Masterpact MT, MT32N1, Power Distribution, Schneider Electric

Description

Schneider Electric MT32N1 Air Circuit Breaker – Masterpact MT Series

When an unprotected power distribution system experiences a fault current, the consequences are immediate and catastrophic: arc flash events, equipment destruction, unplanned downtime, and in the worst cases, loss of life. In mission-critical industrial environments — from steel mills and data centers to offshore platforms and large commercial buildings — the absence of a reliable air circuit breaker means there is no last line of defense between a fault and a full facility shutdown. The Schneider Electric MT32N1 is precisely that defense: a high-performance air circuit breaker engineered to interrupt fault currents with speed, precision, and repeatability that conventional molded-case breakers simply cannot match.

The MT32N1 belongs to Schneider Electric’s Masterpact MT series, the flagship range of low-voltage air circuit breakers designed for main and tie breaker applications in demanding power distribution architectures. Within the Masterpact MT lineup, the MT32N1 occupies the 3200 A frame class with a standard breaking capacity (N-rated), making it the preferred choice for engineers who require robust overcurrent protection without over-specifying to the higher H or L breaking capacity tiers. Globally, the Masterpact MT series is recognized as a benchmark product in IEC 60947-2 compliant switchgear, deployed across more than 100 countries and trusted by EPC contractors, panel builders, and end-users in the most demanding industrial and infrastructure sectors.

Technical Specifications

Model / SKU: MT32N1
Brand: Schneider Electric
Series: Masterpact MT
Frame Rating: 3200 A
Breaking Capacity Class: N (Standard)
Poles: 3P (Three-pole)
Standard: IEC 60947-2
Mounting: Fixed / Drawout (configuration dependent)
Protection Functions: Overload (LSI), Short-circuit, Earth fault (with optional Micrologic trip unit)
Trip Unit Compatibility: Micrologic A / E / P / H (sold separately)
Auxiliary Contacts: Available (OF, SD, SDE, etc.)
Communication: Compatible with Modbus, Profibus, DeviceNet via optional modules
Operating Temperature: -25°C to +70°C
Standards Compliance: IEC 60947-2, CE, RoHS

Note: All specifications are based on Schneider Electric official published data. Verify with the official datasheet for your specific application requirements.

Key Features & Benefits

High Interrupting Performance: N-rated breaking capacity provides reliable fault current interruption for main distribution boards in industrial and commercial facilities.
Modular Trip Unit Architecture: Compatible with the full Micrologic trip unit family, enabling precise protection coordination from basic LSI to advanced energy metering and communication.
Drawout Capability: Drawout versions allow safe maintenance and replacement without de-energizing the entire switchboard, minimizing downtime.
Integrated Communication Ready: Optional communication modules enable real-time monitoring, remote control, and integration into SCADA and BMS systems.
Long Electrical Life: Designed for high numbers of operating cycles, reducing total cost of ownership in applications with frequent switching.
Zone Selective Interlocking (ZSI): Supports ZSI for faster fault clearing and improved selectivity in cascaded protection schemes.
IEC 60947-2 Certified: Fully compliant with international standards, accepted by inspection authorities and EPCs worldwide.

Industry & Equipment Applications

Power Generation & Utilities: Main incomer protection in MV/LV substations and generator paralleling switchboards.
Oil & Gas / Petrochemical: Main distribution protection in process plant MCC rooms and offshore platform power centers.
Steel & Heavy Industry: Incomer and bus-tie breaker in rolling mill and arc furnace power distribution systems.
Data Centers: Main and tie breaker in critical power distribution units (PDU) requiring high availability and remote monitoring.
Commercial Buildings & Infrastructure: Main switchboard protection in airports, hospitals, and large commercial complexes.
Marine & Offshore: Switchboard main breaker in vessels and offshore installations compliant with classification society requirements.

System Integration & Compatible Parts

Trip Units: Micrologic 2.0 A, 5.0 A, 6.0 A, 7.0 A, 2.0 E, 5.0 E, 6.0 E (Schneider Electric)
Auxiliary Contacts: OF (open/close indicator), SD (fault indicator), SDE (earth fault indicator)
Motor Mechanism: MCH motor operator for remote racking and closing
Communication Modules: IFM Modbus, IFM Profibus DP, IFM DeviceNet
Drawout Chassis: Compatible Masterpact MT drawout cradle assemblies
Busbar Adapters: Front and rear connection kits for various switchboard configurations

Contact our technical team at [email protected] to confirm compatibility with your existing switchgear assembly.

Our Quality Assurance Process

At Konmask.com, every Schneider Electric MT32N1 unit we supply undergoes a rigorous multi-stage verification process before shipment:

Source Verification: Units are sourced exclusively from authorized Schneider Electric distributors and verified channel partners with traceable supply chains.
Visual & Physical Inspection: Each unit is inspected for label authenticity, serial number integrity, housing condition, and correct nameplate data.
Documentation Package: Every shipment includes the original manufacturer test certificate, packing list, and commercial invoice.
Anti-Counterfeit Check: We cross-reference serial numbers against Schneider Electric’s verification systems where applicable.
Secure Packaging: Units are packed in original or equivalent protective packaging with moisture-proof and anti-static measures for international freight.

How to Order

Submit your inquiry via the Contact / RFQ form on this page or email [email protected].
Provide your required quantity, delivery destination, and any specific configuration requirements (trip unit type, fixed/drawout, auxiliary contacts).
Our technical sales team will respond within 24 business hours with availability, lead time, and a formal quotation.
Upon order confirmation, we arrange quality inspection, documentation, and international freight to your destination.

We support EXW, FOB, CIF, and DDP Incoterms. Payment via T/T, L/C, and other trade finance instruments available for qualified buyers.

Why Choose Konmask.com?

Specialized Industrial Focus: We deal exclusively in industrial automation and power distribution components — no consumer electronics, no distractions.
Verified Supply Chain: Every product is traceable to authorized distribution channels with full documentation.
Technical Expertise: Our team includes engineers with hands-on experience in switchgear, PLC systems, and industrial power distribution.
Global Logistics: We ship to over 50 countries with experience in customs documentation, dangerous goods compliance, and time-critical deliveries.
Responsive Support: Dedicated account managers for B2B buyers, EPC contractors, and MRO procurement teams.
Competitive Pricing: Direct relationships with distributors allow us to offer competitive pricing on both spot and contract orders.

Frequently Asked Questions

Q: What is the difference between MT32N1, MT32H1, and MT32L1?: A: The suffix N, H, and L denote the breaking capacity class. N is standard breaking capacity, H is high, and L is very high (limiting). The MT32N1 is the N-rated 3200 A, 3-pole variant — suitable for most standard industrial distribution applications where the prospective short-circuit current does not exceed the N-rated Icu value.
Q: Is the MT32N1 available in both fixed and drawout versions?: A: Yes. The Masterpact MT series supports both fixed and drawout mounting configurations. Please specify your requirement when submitting your RFQ so we can confirm the correct part number and chassis assembly.
Q: Which Micrologic trip unit should I select for the MT32N1?: A: Trip unit selection depends on your protection coordination requirements. Micrologic 2.0 A provides basic LSI protection; Micrologic 5.0 E adds earth fault protection; Micrologic 6.0 E adds measurement; Micrologic 7.0 adds power quality metering. Our engineers can assist with protection coordination studies.
Q: Can Konmask.com provide the original Schneider Electric test certificate?: A: Yes. All units we supply come with the original manufacturer’s factory test certificate and full traceability documentation as standard.
Q: What is the typical lead time for the MT32N1?: A: Lead time varies by stock availability. Ex-stock units can ship within 3–5 business days. For non-stock items, typical lead time is 4–8 weeks depending on Schneider Electric’s production schedule. Contact us for a real-time availability check.
