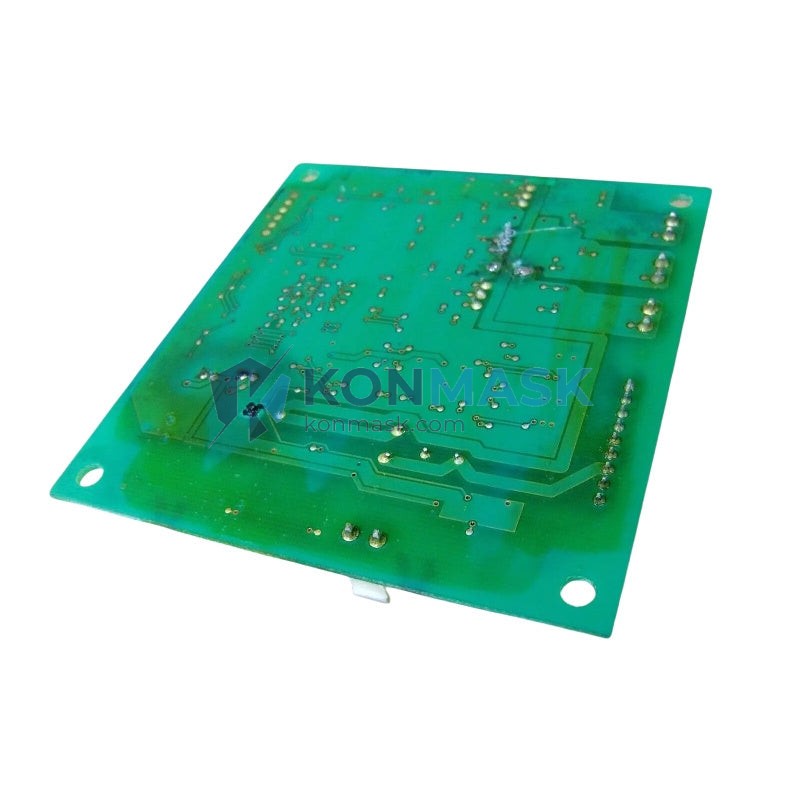

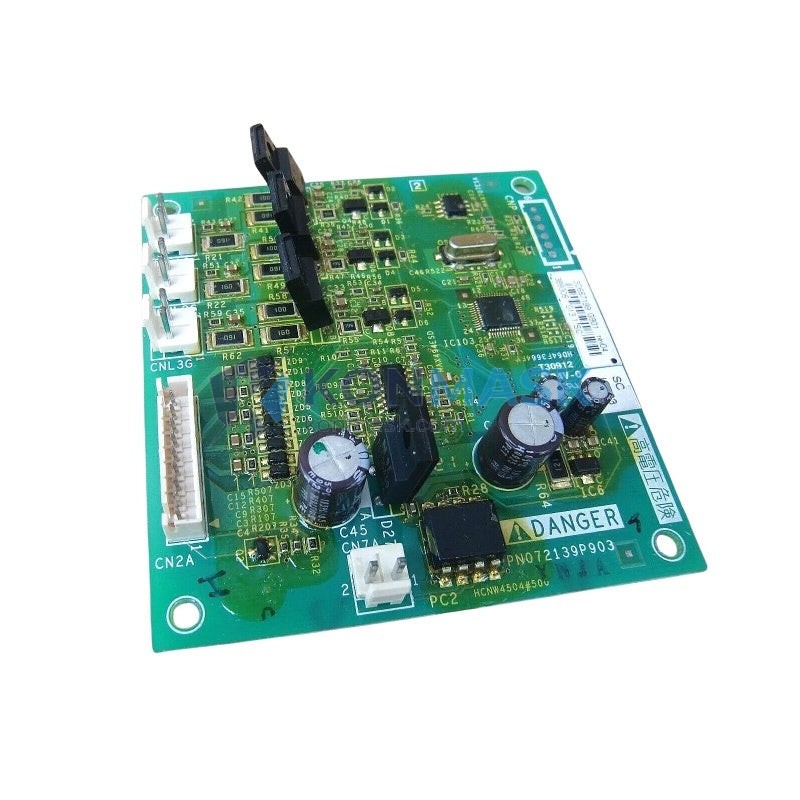

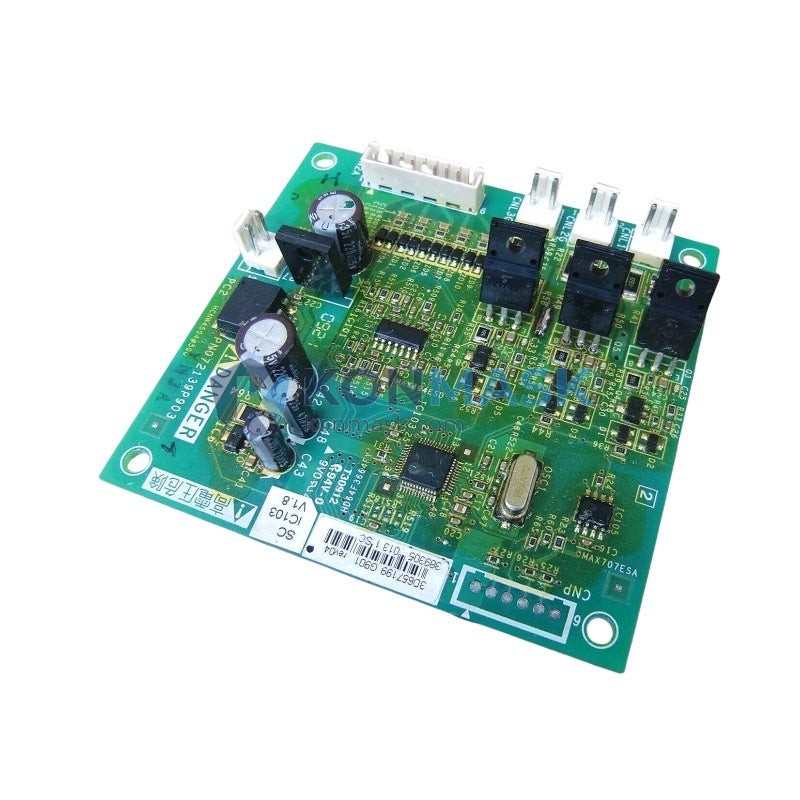

Schneider Electric PN072139P903 Thyristor Trigger Board | Replacement, Equivalent & Selection Guide
The Schneider Electric PN072139P903 is an OEM thyristor trigger board designed for use in Schneider ATV61 and ATV71 series variable frequency drives (VFDs). This board controls the firing angle of thyristors (SCRs) to regulate power conversion, making it a critical component in drive rectifier and braking circuits. Konmask.com supplies both genuine OEM units and verified compatible equivalents to minimize downtime in industrial automation systems.
Technical Specifications
- Part Number: PN072139P903
- Manufacturer: Schneider Electric
- Component Type: Thyristor Trigger / Gate Drive PCB
- Compatible Drive Series: ATV61, ATV71 (medium-to-high power frames)
- Function: Gate pulse generation for SCR/thyristor firing control
- Mounting: PCB module, DIN-rail or chassis mount (drive-integrated)
- Weight: Approx. 800 g (with packaging)
- Condition Available: New OEM / Tested Surplus / Compatible Replacement
Compatible Replacement & Equivalent Models
If the PN072139P903 is unavailable or cost-prohibitive, the following alternatives are commonly evaluated:
- PN072139P903 — OEM original (this listing)
- VX5A1HD22N4 — ATV71 power board assembly (includes trigger function)
- ATV61 Trigger PCB (generic) — Third-party compatible boards for ATV61 frames ≥ 75 kW
- Siemens 6SE7031 trigger board — Cross-brand alternative for comparable SCR drive topologies (requires engineering review)
- ABB SINT4130C — Functional equivalent for thyristor-based rectifier control in similar power ranges
Note: Cross-brand substitutions require verification of gate pulse timing, voltage levels, and connector pinout. Contact Konmask engineering support before substituting.
Why Choose the Original PN072139P903
- ✅ Factory-calibrated gate pulse timing — no field adjustment required
- ✅ Direct plug-in replacement — zero wiring modification
- ✅ Guaranteed compatibility with Schneider ATV61 / ATV71 firmware
- ✅ Meets OEM thermal and EMC specifications
- ✅ Traceable serial number for warranty and service records
Typical Applications
- ATV61 / ATV71 VFD rectifier bridge control (75 kW – 630 kW frames)
- Regenerative braking thyristor firing circuits
- Industrial pump, fan, compressor, and conveyor drive systems
- Water treatment, HVAC, and mining automation
- Retrofit and repair of existing Schneider drive installations
System Compatibility
| Drive Series | Power Range | Compatibility |
|---|---|---|
| ATV61 | 75 kW – 630 kW | ✅ Confirmed |
| ATV71 | 75 kW – 630 kW | ✅ Confirmed |
| ATV61 < 75 kW | Below 75 kW | ⚠️ Verify frame code |
| ATV312 / ATV32 | All | ❌ Not compatible |
Selection Guide
Use the following criteria to confirm PN072139P903 is the correct part for your application:
- Step 1 — Identify drive nameplate: Confirm drive model is ATV61 or ATV71, power ≥ 75 kW.
- Step 2 — Locate existing board: Match the part number printed on the PCB silkscreen to PN072139P903.
- Step 3 — Check frame code: Cross-reference the drive’s frame letter (D, E, F) with Schneider’s spare parts catalog.
- Step 4 — Confirm fault code: Common faults indicating trigger board failure: OCF, SCF, PHF, brF.
- Step 5 — Contact Konmask: Share your drive nameplate photo for free pre-purchase compatibility confirmation.
Quality Assurance & Sourcing
- All units inspected and function-tested prior to dispatch
- OEM units sourced from authorized Schneider Electric distribution channels
- Compatible replacements undergo gate pulse waveform verification
- Anti-static packaging with humidity indicator card
- 12-month warranty on new OEM units; 90-day warranty on tested surplus
How to Order
- Click Add to Cart or Contact Us for bulk / urgent orders.
- Email [email protected] with your drive model, serial number, and required quantity.
- WhatsApp / Phone: +0086 19859288691 for same-day response.
- We ship worldwide via DHL, FedEx, and UPS with full tracking.
Replacement & Compatibility FAQ
Q: Can I use a third-party trigger board instead of PN072139P903?
A: Yes, but only after verifying gate pulse voltage (typically 15–18 V), pulse width, and connector pinout match. Konmask can assist with compatibility checks.
Q: My ATV71 shows fault code OCF — is this the trigger board?
A: OCF (overcurrent fault) can indicate a failed thyristor or a faulty trigger board. Test the trigger board first as it is the lower-cost component.
Q: Do you supply tested surplus units?
A: Yes. All surplus units are load-tested and include a 90-day return warranty.
Q: What is the lead time for new OEM stock?
A: In-stock units ship within 1–2 business days. Out-of-stock OEM orders typically require 2–4 weeks.
Q: Can PN072139P903 be repaired instead of replaced?
A: Board-level repair is possible for experienced technicians. Konmask also offers repair services — contact us for a quote.
