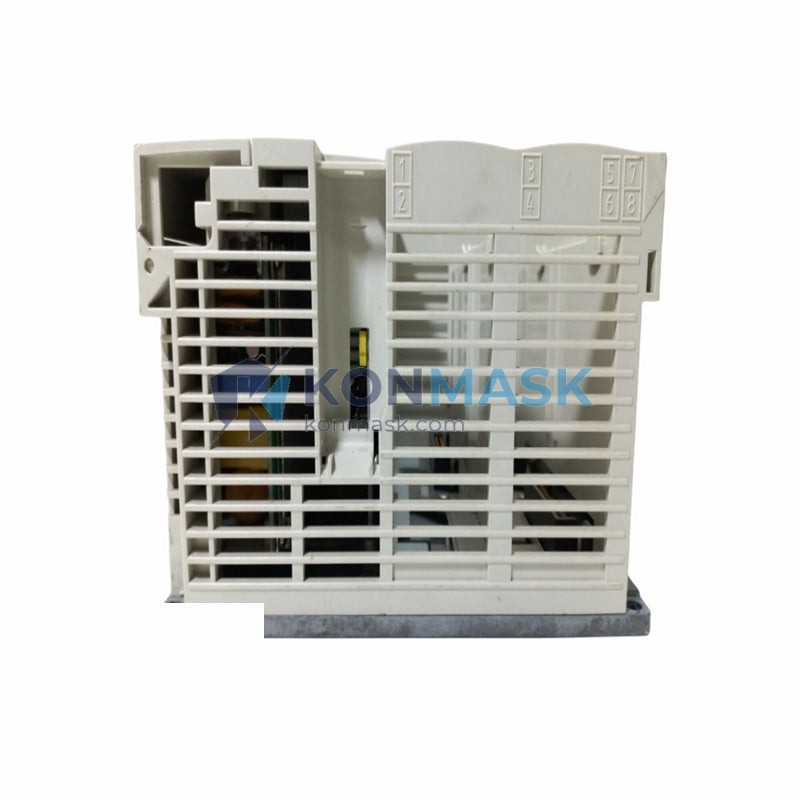

Discrete I/O Expansion Solution – Schneider Electric TSX3710001 | TSX Micro Series
The Schneider Electric TSX3710001 is a discrete I/O expansion module designed for the TSX Micro PLC platform. Built for industrial automation environments demanding reliable digital signal handling, this module extends the I/O capacity of TSX 37 base controllers — making it a go-to component for machine builders, panel integrators, and process automation engineers.
Where This Product Is Used
The TSX3710001 is deployed across a wide range of industrial automation applications where deterministic digital I/O expansion is required:
- Discrete Manufacturing Lines — Conveyor control, part detection, and end-of-line testing stations using 24 VDC sensor networks.
- Packaging Machinery — Synchronizing actuators, proximity sensors, and pneumatic valves in high-cycle packaging equipment.
- HVAC & Building Automation — Fan/pump start-stop control, damper positioning feedback, and alarm relay outputs in commercial building systems.
- Water & Wastewater Treatment — Pump station control, level switch monitoring, and valve sequencing in municipal infrastructure.
- Food & Beverage Processing — Hygienic-zone machine control where compact DIN-rail footprint and reliable I/O are critical.
- OEM Machine Control Panels — Integrated into custom control cabinets alongside TSX 37-10 / 37-21 / 37-22 base units for modular I/O expansion.
Technical Specifications
| Part Number | TSX3710001 |
| Brand | Schneider Electric (Telemecanique) |
| Series | TSX Micro (TSX 37) |
| Module Type | Discrete I/O Expansion Module |
| Mounting | DIN Rail / Panel Mount (TSX Micro rack) |
| Supply Voltage | 24 VDC (nominal) |
| Weight | 1,200 g (approx.) |
| Communication | Integrated TSX Micro backplane bus |
| Programming Software | PL7 Pro / PL7 Junior (Schneider Electric) |
| Standards Compliance | IEC 61131-2, CE, UL |
| Operating Temperature | 0 °C to +60 °C |
| Storage Temperature | -25 °C to +70 °C |
| Relative Humidity | 5% to 95% non-condensing |
| Protection Degree | IP20 (module body) |
Note: Verify all specifications against the official Schneider Electric TSX Micro hardware manual before system design. Konmask.com provides this data as a reference guide only.
Why Engineers Specify This Model
- Proven TSX Micro Ecosystem Compatibility — Plug-and-play expansion within the TSX 37 family; no additional interface hardware required.
- Compact DIN-Rail Footprint — Optimized for space-constrained control cabinets common in OEM machine builds.
- Deterministic I/O Scanning — Consistent cycle-time performance critical for synchronized multi-axis or multi-zone machine control.
- Long Field Service Life — TSX Micro modules are widely supported in installed base maintenance and MRO (Maintenance, Repair & Operations) programs globally.
- Availability for Legacy System Support — Sourced to support brownfield plant upgrades and spare-parts programs where TSX Micro infrastructure remains in service.
Complete System Bill of Materials
The TSX3710001 is typically specified alongside the following components for a complete TSX Micro control system:
- TSX 37-10 / TSX 37-21 / TSX 37-22 — TSX Micro base controller units
- TSX PSY 2600 / TSX PSY 5500 — Power supply modules for TSX Micro rack
- TSX DM 57 xxK — Memory extension cartridges (PL7 application storage)
- TSX ETZ 410 / TSX ETZ 510 — Ethernet TCP/IP communication modules
- TWDXCAFJ10M / TWDXCAFJ30M — I/O expansion cables for remote module connection
- Zelio Relay RSB / RSL Series — Interface relays for output load isolation
- Preventa XPSAF / XPSMF — Safety relay modules for SIL-rated machine guarding
Compliance & Industry Standards
- IEC 61131-2 — Programmable controllers: equipment requirements and tests
- CE Marking — Conformity with EU Low Voltage Directive and EMC Directive
- UL Listed — Recognized for use in North American industrial control panels
- RoHS Compliant — Restriction of Hazardous Substances (verify lot date with Schneider Electric for specific production batches)
- IEC 61000-4 Series — EMC immunity: ESD, EFT/Burst, surge, conducted RF
Quality Assurance & Sourcing
Konmask.com specializes in industrial automation components for MRO, system integration, and OEM procurement. Our sourcing process for the TSX3710001 includes:
- Authorized & Verified Supply Chain — Parts sourced from authorized distributors and verified industrial surplus channels.
- Pre-Shipment Functional Inspection — Visual inspection and basic continuity checks performed before dispatch.
- Traceability Documentation — Lot codes, date codes, and supplier documentation available upon request for critical applications.
- Secure Anti-Static Packaging — All modules shipped in ESD-safe packaging with moisture barrier protection.
- Warranty — 90-day replacement warranty against DOA (Dead on Arrival) defects. Contact support for extended warranty options.
How to Source This Part
- Add to Cart — Select quantity and proceed to checkout directly on this page.
- Request a Quote (RFQ) — For bulk orders (>5 units), OEM procurement, or project-based purchasing, email support@konmask.com with your BOM and required delivery schedule.
- Lead Time — Standard orders ship within 3–7 business days. Expedited options available — contact us for availability.
- Export & Cross-Border Orders — We support international shipments. HS Code reference: 8537.10 (programmable controllers / control panels). Buyers are responsible for import duties per destination country regulations.
- Payment — Secure checkout via major credit cards, PayPal, and T/T bank transfer for corporate accounts.
Application-Specific FAQ
Q: Is the TSX3710001 compatible with TSX 37-21 and TSX 37-22 base units?
A: Yes. The TSX3710001 is designed for the TSX Micro (TSX 37) family and is compatible with TSX 37-10, 37-21, and 37-22 base controllers. Always verify the maximum I/O expansion capacity of your specific base unit in the Schneider Electric TSX Micro hardware manual.
Q: Can this module be programmed with Unity Pro / EcoStruxure Control Expert?
A: No. TSX Micro modules use PL7 Pro or PL7 Junior programming software. Unity Pro / EcoStruxure Control Expert is for the Modicon M340, M580, and Premium platforms. Ensure your engineering team has the correct PL7 software version installed.
Q: Is this a new or refurbished unit?
A: Konmask.com offers both new-in-box and tested-refurbished units depending on current stock. Product condition is clearly stated at the time of order confirmation. Contact us if you require new-only supply for warranty or compliance reasons.
Q: What is the typical lead time for urgent MRO replacement?
A: For in-stock units, same-day or next-day dispatch is available for orders placed before 14:00 CST. Contact support@konmask.com or call +0086 19859288691 for urgent plant-down situations.
Q: Do you provide a Certificate of Conformance (CoC) or test report?
A: Yes, upon request. CoC and inspection documentation are available for orders requiring traceability for regulated industries (food & beverage, pharmaceutical, water treatment). Please specify at time of order.
Q: Can I return the module if it is not compatible with my system?
A: Compatibility returns are accepted within 14 days of receipt, provided the module is unused and in original packaging. See our Returns Policy or contact support for details.
