Schneider Electric TSXDSY32T2K – 32-Point 24VDC Transistor Output Module | Replacement, Equivalent & Selection Guide

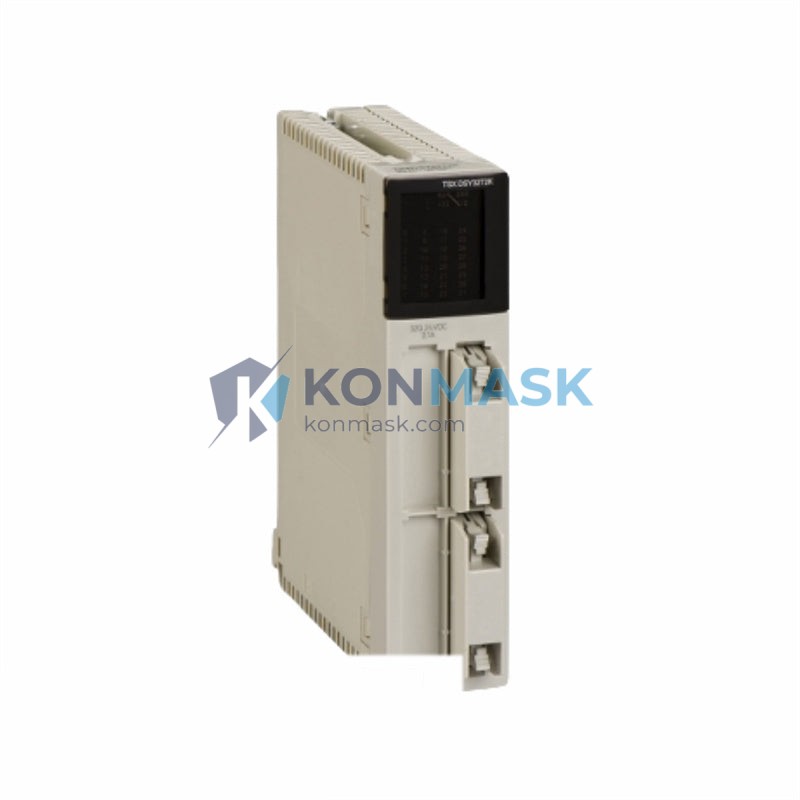

The Schneider Electric TSXDSY32T2K is a 32-point discrete transistor output module designed for the TSX Micro (TSX 37) PLC series. It delivers reliable 24VDC sourcing outputs for machine control, process automation, and industrial panel applications. At Konmask.com, we specialize in sourcing original, tested, and equivalent replacement modules for B2B industrial buyers worldwide.
Technical Specifications
- Part Number: TSXDSY32T2K
- Brand: Schneider Electric (formerly Telemecanique)
- Series: TSX Micro / TSX 37
- Module Type: Discrete Transistor Output Module
- Number of Outputs: 32 points
- Output Voltage: 24VDC
- Output Type: Transistor (sourcing / PNP)
- Max Load Current per Output: 0.1 A
- Total Max Current: 3.2 A
- Protection: Short-circuit and overload protection
- Connector Type: HE10 (MIL) 40-pin connector
- Weight: 520 g
- Standards: IEC 61131-2, CE, UL
Compatible Replacement & Equivalent Models
When the TSXDSY32T2K is discontinued, hard to source, or requires a cost-effective alternative, the following models are commonly evaluated:
- TSXDSY32T2 – Earlier revision; functionally equivalent, verify firmware compatibility
- TSXDSY16T2K – 16-point version; use two units for equivalent I/O count
- TSXDSY64T2K – 64-point upgrade option for expanded I/O requirements
- Modicon M221 / M241 I/O Expansion – Next-generation platform migration path
- Third-party compatible modules – Contact us for vetted OEM-equivalent sourcing
Note: Always verify firmware version, backplane compatibility, and wiring connector type before substituting modules.
Why Choose the Original TSXDSY32T2K
- ✅ Guaranteed compatibility with TSX Micro / TSX 37 backplane
- ✅ Factory-tested and certified to IEC 61131-2 standards
- ✅ Plug-and-play replacement — no re-programming required
- ✅ Proven reliability in 24/7 industrial environments
- ✅ Full Schneider Electric technical support and documentation
Typical Applications
- Machine tool control and CNC auxiliary I/O
- Conveyor and material handling systems
- Packaging and labeling line automation
- HVAC and building management control panels
- Water treatment and pump station control
- Automotive assembly line PLC expansion
System Compatibility
- Compatible PLC Racks: TSX 3705, TSX 3708, TSX 3710, TSX 3720, TSX 3721, TSX 3722
- Programming Software: PL7 Pro, PL7 Junior, Unity Pro (via migration)
- Communication: Modbus, Uni-Telway (via CPU module)
- Power Supply: Powered via TSX Micro backplane (no external 24VDC supply required for module logic)
Selection Guide
Use this guide to confirm the TSXDSY32T2K is the right module for your application:
- Step 1 – Confirm PLC rack: Verify your rack is TSX 37 series (TSX Micro). This module is NOT compatible with TSX Premium or Modicon M340.
- Step 2 – Count required outputs: If you need exactly 32 discrete outputs, TSXDSY32T2K is the direct fit. For 16 outputs, consider TSXDSY16T2K.
- Step 3 – Verify output type: TSXDSY32T2K provides transistor (PNP/sourcing) outputs. If your field devices require relay outputs, select TSXDSY32R5 instead.
- Step 4 – Check load current: Each output supports max 0.1 A. For higher-current loads, use an interposing relay.
- Step 5 – Connector wiring: Uses HE10 40-pin connector. Confirm your existing cable harness matches before ordering.
Quality Assurance & Sourcing
All modules supplied by Konmask.com undergo the following process:
- 🔍 Visual inspection and label verification
- ⚡ Power-on functional test prior to shipment
- 📦 Anti-static ESD packaging with humidity indicator
- 📄 Certificate of conformity available on request
- 🌐 Sourced from authorized distributors and verified secondary market channels
We stock both new original and tested used / refurbished units. Condition is clearly stated on each listing. Contact us to confirm current stock condition and lead time.
How to Order
- Add the TSXDSY32T2K to your cart and proceed to checkout.
- For bulk orders (5+ units), request a volume quote via email: support@konmask.com
- Need a specific condition (new / refurbished / tested)? Specify in your order notes.
- International orders: We ship worldwide via DHL, FedEx, and UPS. Customs documentation provided.
- Lead time: In-stock orders ship within 1–3 business days. Contact us for urgent requirements.
Replacement & Compatibility FAQ
- Q: Is TSXDSY32T2K compatible with TSX Premium racks?
- A: No. TSXDSY32T2K is exclusively designed for the TSX Micro (TSX 37) series. TSX Premium uses a different backplane and I/O module form factor.
- Q: Can I replace TSXDSY32T2K with TSXDSY32T2 (without the K suffix)?
- A: In most cases yes — the “K” suffix typically denotes a connector kit variant. Verify the connector type on your existing installation before ordering.
- Q: What is the lead time if the module is not in stock?
- A: We maintain global sourcing networks. Typical lead time for out-of-stock items is 5–15 business days. Contact us for urgent requirements.
- Q: Do you provide a warranty?
- A: Yes. New original units carry the manufacturer warranty. Refurbished units carry a 90-day Konmask functional warranty.
- Q: Can you help migrate from TSX Micro to a newer Schneider platform?
- A: Yes. Our technical team can advise on migration paths to Modicon M221, M241, or M262 platforms. Contact us for a free consultation.
